Yakovlev "Shutka" helicopter

[ucon]

Yak-EG (experimental helicopter) or "SH" as Shoutka ("Joke")



[ucon]

.



[Stargazer]

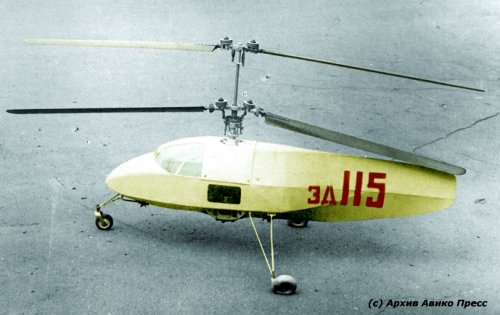

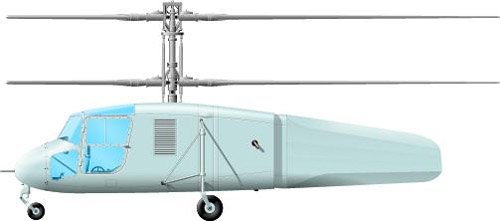

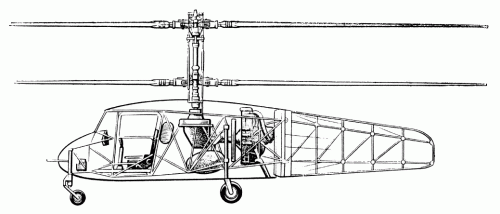

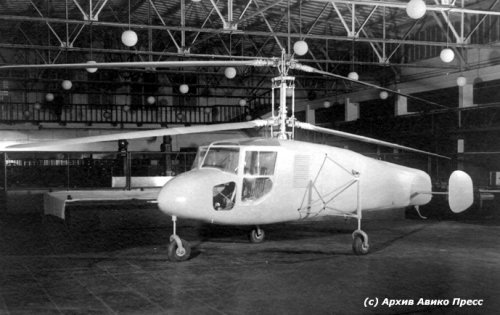

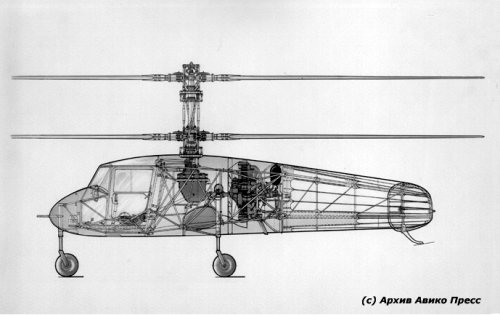

Here are some nice pictures of the Yak-EG helicopter (also known as "Shutka", "Sh" and Yak-M-11-FR-1) which I found on the web.

Source: http://www.spaceavia.ru/



[Stargazer]

And a nice video (in French):

http://video.aol.fr/video-detail/yakovlev-yak-eg/72057654316612496



[Stargazer]

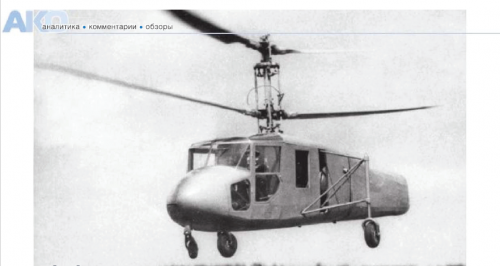

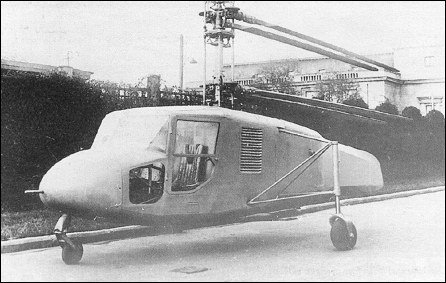

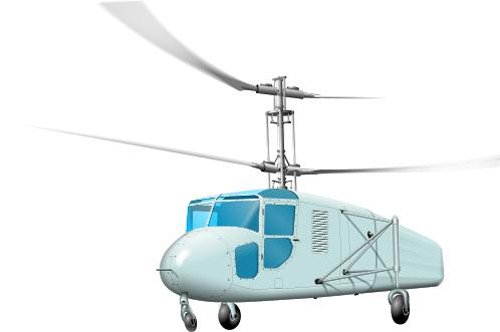

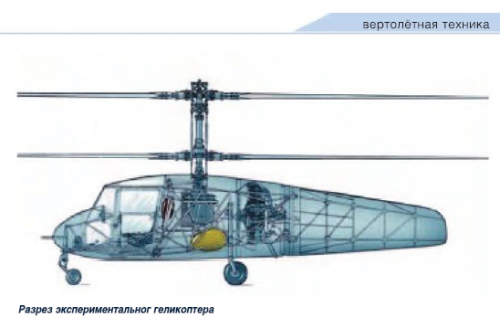

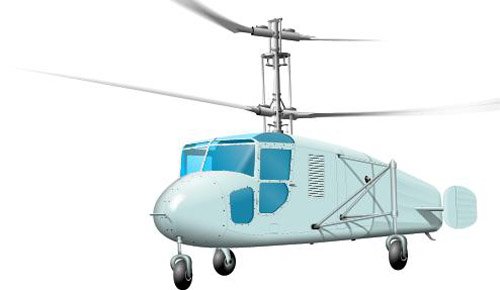

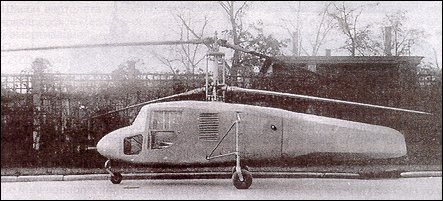

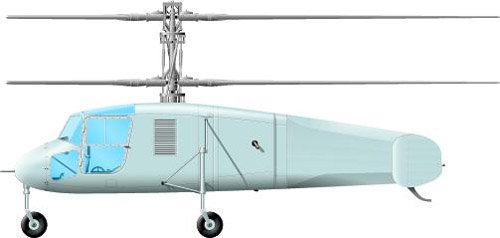

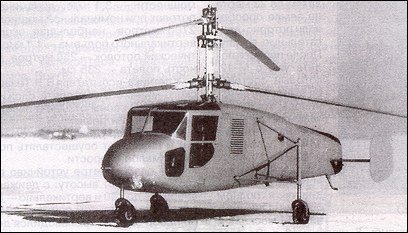

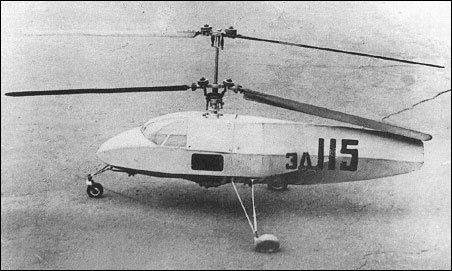

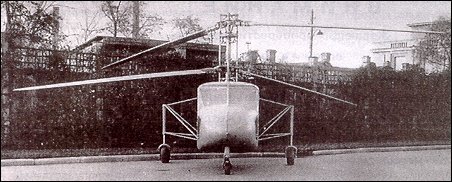

More pics of the Shutka (picture before last shows only a sub-scale r/c model):



[Cy-27]

There was a two page article, in Russian, on the experimental Sh (Sha) and EG designs in Аэрокосмическое обозрение 2012-06 (Aerospace Review issue 61) .



[walter]

Hi Cy-27 , Hi Skyblazer
Thanks for the wonderful pics/drawings/links. Never had noticed before that the landing gear also underwent changes. The straight nosewheel strut was replaced by a socalled trailing type and it seems the fuselage struts were also shortened.
