Clarence H. Wissler (1887-1954) designed and built at least three aircraft. These were the 1915 Baby Monoplane, the 1922 WA-6 2-seat tandem biplane, and the 1923 WA-9 2-seat side-by-side biplane. The latter two have already been covered. But I haven't seen much mention of the monoplane elsewhere.
A photo of the Baby Monoplane is attached (coming from the Logan County Historical Society Collection). As can be seen, it was a high-winged, tail-first aircraft powered by an air-cooled V-2 pusher. The fuselage was open-framed and supported by four bicycle wheels. There doesn't seem to be any vertical tail surfaces. Does anyone know anything more about this 1915 monoplane?
A 1926 AVIATION article (which I'll post next) lists Clarence Wissler as an "aeronautical engineer" but I've also seen him described as an "aviation mechanic" or even a "well-traveled magician and escape artist entertainer". So, quite a colourful guy. Wissler was said to have "returned to his hometown Bellefontaine in the early 1920s and pursued his passion for aviation." That doesn't jive with other sources which say that Wissler didn't return to his home town until "the early 1920s". My guess is that his varied 'entertainer' activities kept him bouncing back and forth between the road and Bellefontaine, Ohio.
He was said to have built three Baby Monoplanes before returning home. I believe that this statement garbles the facts. According to another source, [2] the lone 1915 Baby Monoplane was constructed on the second floor of his parents' Wissler Dry Goods Co. in Bellefontaine. Most source agree that the WA-6 and WA-9 were also built on that second floor (the WA-6 at least being completed up on the roof and then winched down to the ground). I would suggest that Clarence Wissler built all three of his aircraft designs in the Wissler Dry Goods Co. - one each of the Baby Monoplane, WA-6, and WA-9.

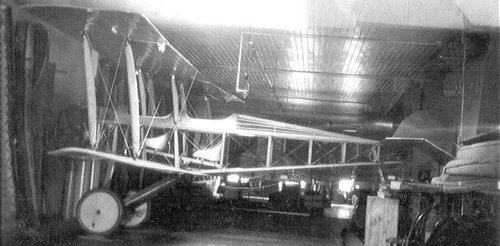

BTW: AVIATION mentions the lack of a fixed tail surface on the WA-6 but a fixed fin is visible in photos of the restored WA-6 (perhaps added later?). Contemporary photos of the WA-6 also show the aircraft fitted with a Townend ring style cowl around its Anzani 6A-3, not fitted on the restoration. I am attaching a photo of the WA-6 while being constructed (again, from the Logan County Historical Society Collection).

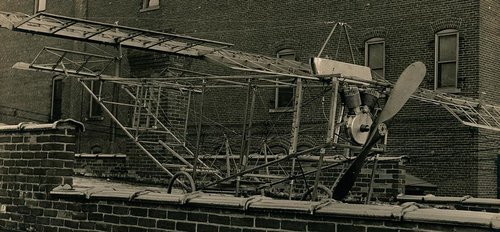

A photo of the Baby Monoplane is attached (coming from the Logan County Historical Society Collection). As can be seen, it was a high-winged, tail-first aircraft powered by an air-cooled V-2 pusher. The fuselage was open-framed and supported by four bicycle wheels. There doesn't seem to be any vertical tail surfaces. Does anyone know anything more about this 1915 monoplane?
A 1926 AVIATION article (which I'll post next) lists Clarence Wissler as an "aeronautical engineer" but I've also seen him described as an "aviation mechanic" or even a "well-traveled magician and escape artist entertainer". So, quite a colourful guy. Wissler was said to have "returned to his hometown Bellefontaine in the early 1920s and pursued his passion for aviation." That doesn't jive with other sources which say that Wissler didn't return to his home town until "the early 1920s". My guess is that his varied 'entertainer' activities kept him bouncing back and forth between the road and Bellefontaine, Ohio.
He was said to have built three Baby Monoplanes before returning home. I believe that this statement garbles the facts. According to another source, [2] the lone 1915 Baby Monoplane was constructed on the second floor of his parents' Wissler Dry Goods Co. in Bellefontaine. Most source agree that the WA-6 and WA-9 were also built on that second floor (the WA-6 at least being completed up on the roof and then winched down to the ground). I would suggest that Clarence Wissler built all three of his aircraft designs in the Wissler Dry Goods Co. - one each of the Baby Monoplane, WA-6, and WA-9.
BTW: AVIATION mentions the lack of a fixed tail surface on the WA-6 but a fixed fin is visible in photos of the restored WA-6 (perhaps added later?). Contemporary photos of the WA-6 also show the aircraft fitted with a Townend ring style cowl around its Anzani 6A-3, not fitted on the restoration. I am attaching a photo of the WA-6 while being constructed (again, from the Logan County Historical Society Collection).
Attachments
- Joined
- 25 July 2007
- Messages
- 4,167
- Reaction score
- 3,835
The following is very long ... my excuse is that the Wissler WA-6 and WA-9 were fairly obscure types.
AVIATION, May 24, 1926, page 793
Two Low Power Touring Airplanes.
THE WISSLER AIRPLANE COMPANY of Bellefontaine, Ohio, has recently produced two interesting airplanes of comparatively low power which have successfully passed their tests. Both planes were designed by C. H. Wissler, aeronautical engineer, who has been interested in aviation since 1909 and has designed and built many experimental airplanes. Little has been heard of his work, however, since a great part of it has been along experimental and research lines covering wind tunnel tests, stress analysis, propeller design, etc.
The first of the two planes to be described is the WA-6. It is designed as a sport plane and is said to be very easy to fly and very economical in upkeep. The engine, an Anzani 75 hp. air-cooled radial, takes about four gallons of gasoline and [?] gal. of oil per hour.
Constructional Details
The machine is a tandem two-seater single bay biplane. The main planes are wood and wire construction and covered with standard grade A cotton fabric, doped with four coats of lead-acetate, two coats Buff Titanium and finished with two coats of Valspar varnish. The main spars are I section spruce and are backed with 3/32 in. steel the entire length for extra strength on account of the very thin wing section used. The ribs have white pine webs lightened out and have spruce cap strips. Each wing panel has four box ribs to take compression of the high tensile steel wire used for internal drag bracing. Ailerons are mounted on top wings only. No center section is used, the top wings joining over the center line of fuselage and being mounted on four short struts cross braced with aircraft cable.
Like the main planes, the horizontal stabilizer, elevators and rudder are of wood and wire construction. The rudder is of the balanced type. All ribs, both in the main planes and in the tail surfaces, where joined to the leading and trailing edges, are reinforced with copper strips. Side stress in the ribs is taken care of by tape in Pratt truss form running the entire length of each wing panel in four different places. The tail surfaces are braced in a like manner. No fixed vertical fin is used on this plane.
The fuselage is also of the usual wood and wire type, the longerons being ash from the rear cockpit forward and of spruce to the rear. The fuselage is covered with aluminum from the engine bed plate at the nose to the back of the rear cockpit and from that point to the rudder post the covering is cotton fabric. Dual control is installed and both cockpits have ample room and comfortable seats. The engine is mounted directly on the heat treated nose plate and is readily accessable at all times. In fact, the engine can be dismounted from the plane in less than half an hour by one man. The gasoline and oil tanks are mounted in front of the front cockpit and are easily removed if need be. All necessary instruments are mounted in both front and rear cockpits.
The Landing Gear
The landing gear is of the conventional two wheel Vee type with straight rigid axle, rubber sprung. Vee's are of streamline spruce reinforced with steel plates lightened out. The tread of the wheels is 5 ft. and wheels are wire with 26 in. by 3 in. cord tires. The tail skid is of ash and rubber sprung and so mounted to give proper drag without undue stress on the rear of the fuselage.
All bracing and control wires are of Roebling’s aircraft cable of proper size to insure ample strength in all cases. Flying wires are double and landing wires are single. Owing to the short span of the wings, no drift wires are necessary, which fact cuts down the resistance and, therefore, adds to the high speed. The horizontal stabilizer is braced from below with steel tube and the rudder is braced with solid steel wire from the hinge line to the top of the stabilizer on each side. All control wires are exposed which, of course, renders
inspection of these a matter of ease.
Performance
The airplane has, apparently ample power with the 75 hp. aircooled Anzani 6A-3, radial engine. During the experimental tests of the machine, the engine was throttled down from the normal speed of 1500 r.p.m. to 1100 r.p.m. and the plane continued upon an even keel with hands off. The balance of the plane is such that very little movement of the controls is necessary. On one occasion, when the engine was cut at an altitude of 5400 ft., the ensueing glide extended for a period of 28 min. before the landing was made, which gives some indication of the flat gliding angle of the airplane. In a case of engine failure, this should give ample time for the location of the most suitable landing place. On another occasion during the tests, it is said that, when stalled, there was no tendency for the machine to fall off on one or the other wing tip. And, lastly, the machine was shown to possess ample controlability and maneuverability during the tests.
