Williams International F415

[flateric]

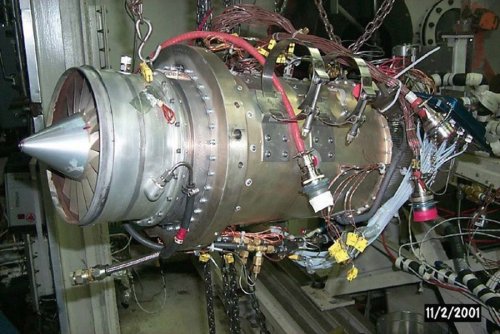

looking for publicilly available unclassified schematics, drawings of the small beast



[kqcke for you]

looking for publicilly available unclassified schematics, drawings of the small beast

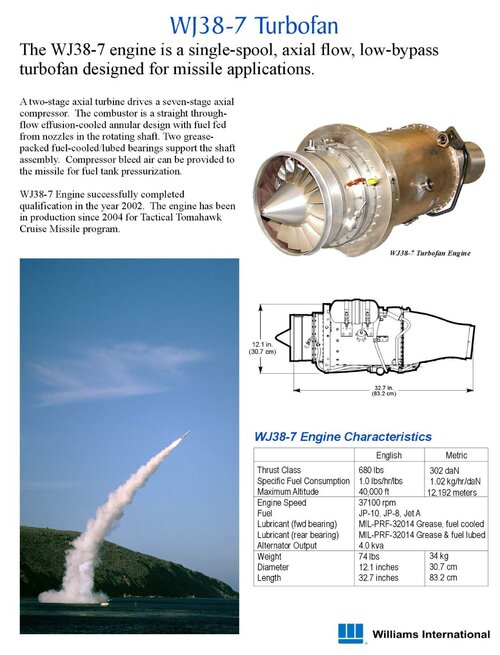

I May found some information on it. The F415 is stated to be used in the Tactical Tomahawk and this picture from Williams International says that the WJ38-7 Turbofan is used in the Tactical Tomahawk since 2004.

Edit: the picture looks like the other one you have Up there.
Edit 2:
The source: https://uspto.report/TM/90881338
USPTO.report source: https://tsdr.uspto.gov/#caseNumber=...TION&caseType=DEFAULT&searchType=statusSearch



[Helicoprion]

Good luck, Williams International is notoriously tight lipped with their engine information. If anything is available, it would likely be from a source other than WI themselves.



[flateric]

From Forecast Int.



[kqcke for you]

Good luck, Williams International is notoriously tight lipped with their engine information. If anything is available, it would likely be from a source other than WI themselves.

Even the best crumble sometimes... Its from a trademark from WI on uspto where they put that as specimen. So its from them but Not them them.



[NMaude]

A patent search for patents by Williams on the USPTO website should reveal some interesting information.



[kqcke for you]

I find it interresting how mutch larger the SPFC of F415 compared to F107 is. Its around 50% larger (give or take ~5%) but F415 has 0.3kN more trust. I guess thats the trade off they were willing to choose for an cheaper engine. But i think after some +26 years old i guess that maybe some extra performance and fuel reduction is possible



[zjz]

Search DTIC for past conference papers, keywords to search includes "cruise missile engine", "airbreathing engines", "expendable turbojet/turbofan" .....
