What is this SST?

[Mike Pryce]

This came up on Twitter from @AvHistorian

Any ideas? Folks are suggesting Bristol 188 or Avro 730 derivative.

I think it looks like an airline or engine company concept; rectangular windows, passengers sitting over the wing in a 4 foot high 'loft' make me think it was not a real design.



[Michel Van]

could be the British Electro-Hydraulics Ltd designed SST airliner around 1957

or Hawker APG.1000 ?



[LowObservable]

It doesn't look real to me. Where's the fuel?



[Mike Pryce]

In the fin and tailplane? Only reason for their huge size. Shame the noise from the 'burners will fatigue them off in no time...



[hesham]

A Lockheed Projects;

https://www.secretprojects.co.uk/forum/index.php/topic,855.0.html



[Mike Pryce]

Bingo! My first guess on Twitter as it looked like a Starfighter with bits stuck on.

I think it is just to illustrate the 'sort of thing' an SST would be - above technical issues show why. Nuclear or not, rectangular windows mean 'pop'!



[sferrin]

I'm almost certain there is something very similar in American Secret Projects -Fighters or Bomber. Looks very familiar.

edit: Was probably thinking of CL-288...or Suntan.



[circle-5]

edit: Was probably thinking of CL-288...or Suntan.

The Lockheed CL-288 (a Kelly Johnson design) had similar outlines. The CL-288 was Lockheed's proposal for the Long Range Interceptor (WS-202A) program, against the Douglas 1355, NAA ESO 7189, Republic AP-75, Northrop N-144, etc. Based on the extensive window complement, the SST variant might have been a bit short on fuel and range ...

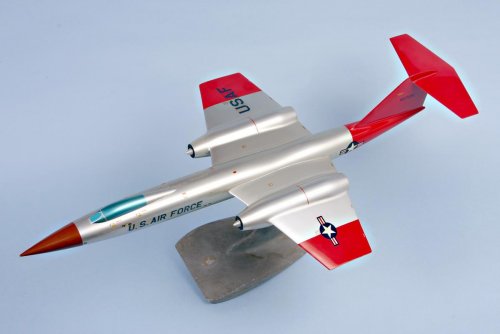

Attached photo shows the CL-288 proposal model that went to Washington, back in the day. North American won this one, which became the F-108.



[hesham]

As I think it was a transport aircraft based on it.
