Were there any other candidates to the German Kriegsmarine carrier-based aircraft?

NamedUser_

ACCESS: Restricted
Joined
31 March 2021
Messages
18
Reaction score
36

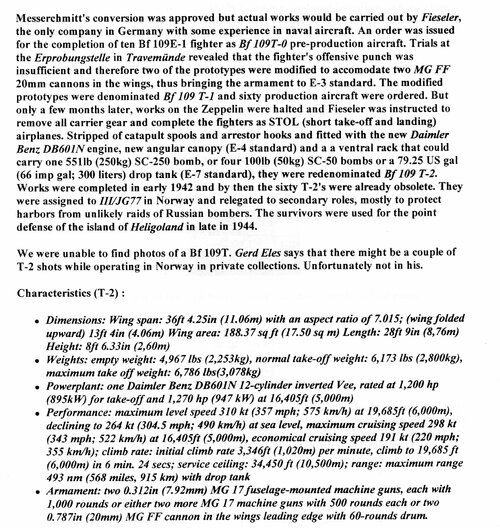

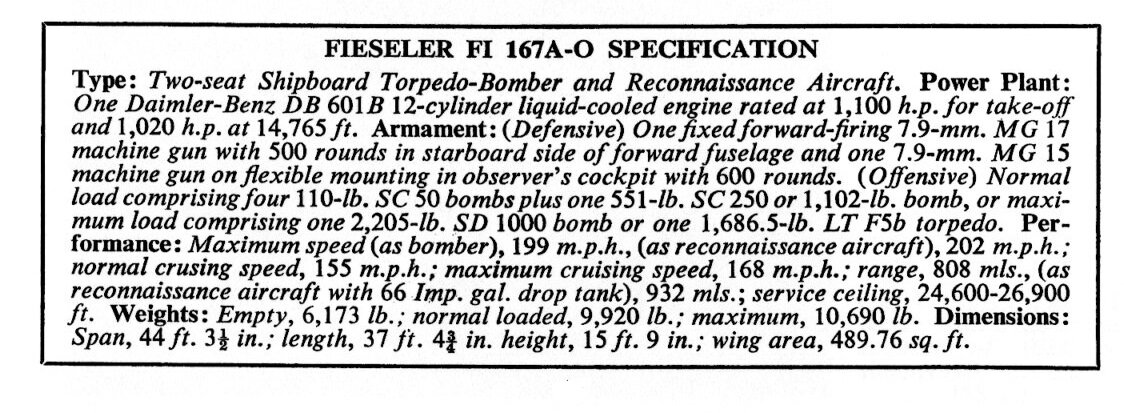

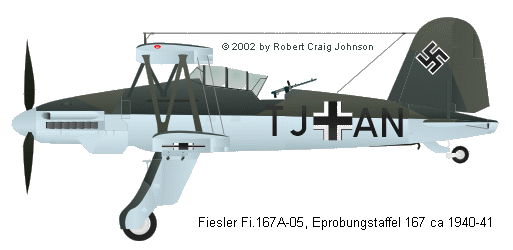

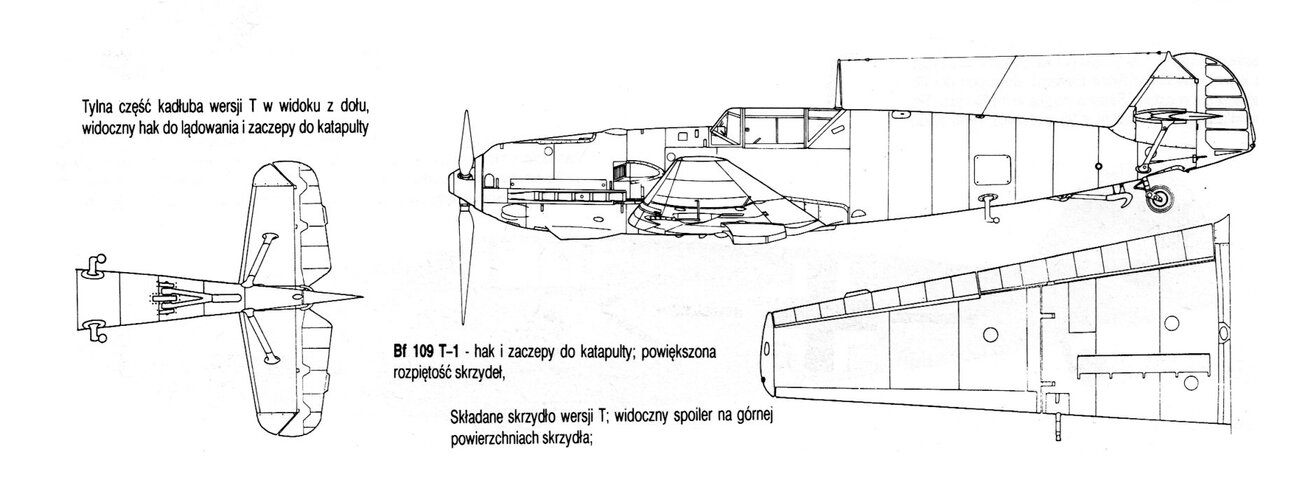

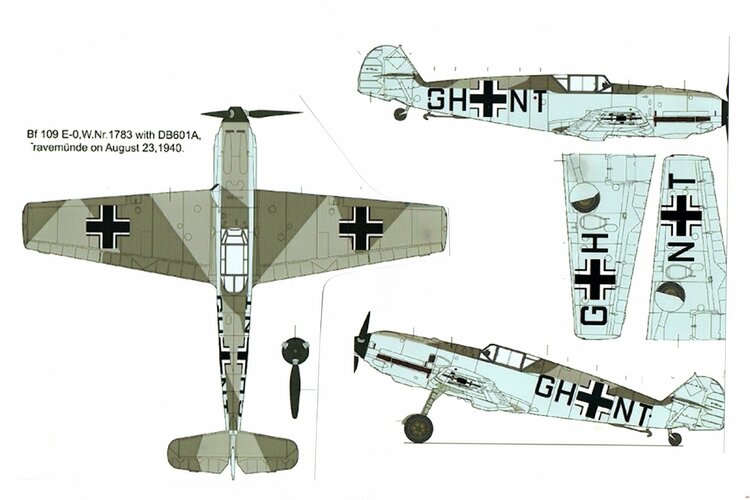

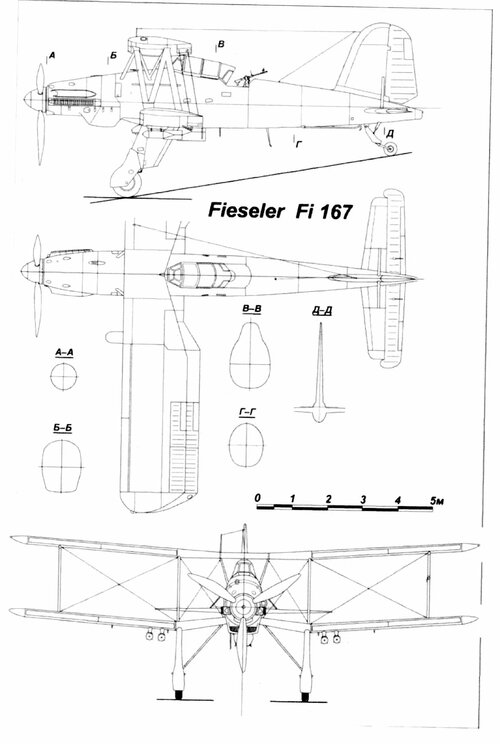

Well first thread here but a buddy of mine asked if the RLM had any specifications for carrier-based planes, as well as other plane candidates than the Bf-109T, Ju-87C, and the Fi 167.

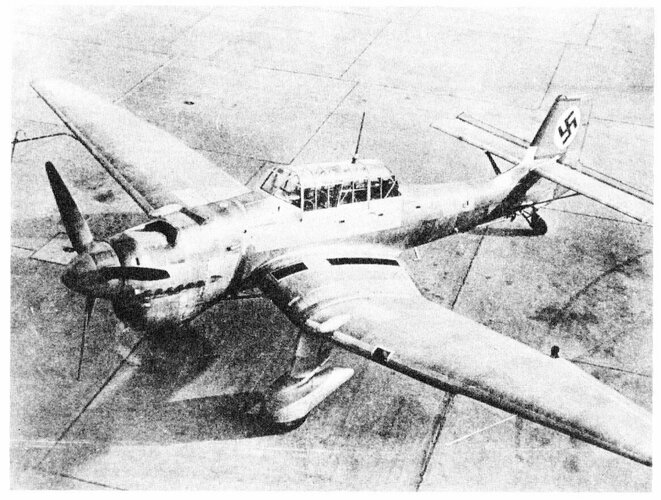

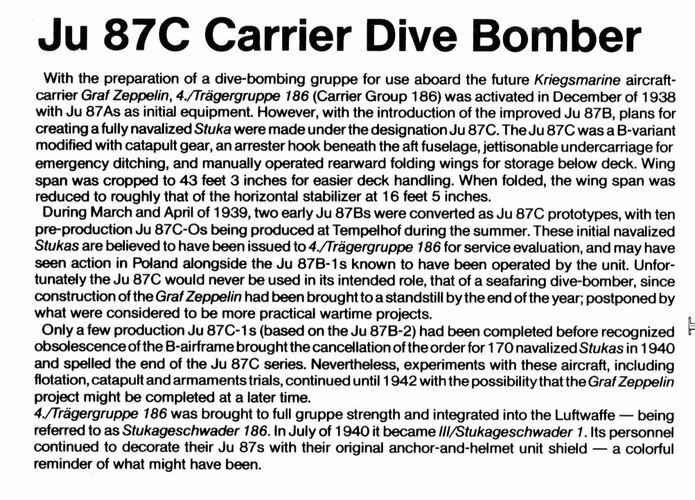

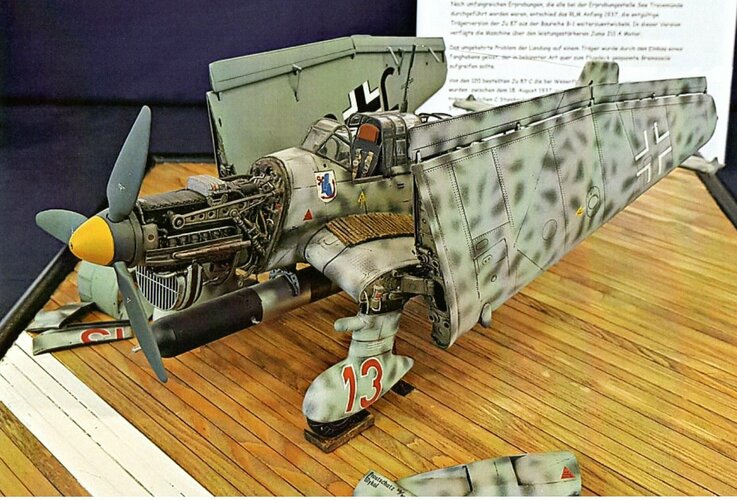

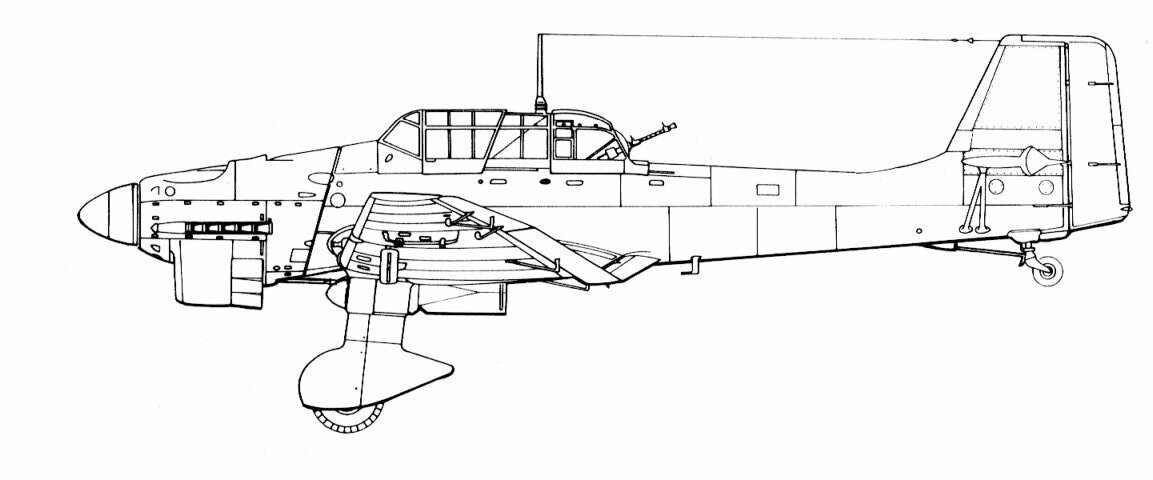

Junkers Ju 87 C


Attachments

  • 353.jpg
    470.7 KB · Views: 154
  • 370.jpg
    1.1 MB · Views: 141
  • 371.jpg
    303.1 KB · Views: 133
  • 372.jpg
    140.3 KB · Views: 130
  • 373.jpg
    375.9 KB · Views: 119
  • 374.jpg
    52.5 KB · Views: 122
  • 375.jpg
    337.2 KB · Views: 124
  • 376.jpg
    1.1 MB · Views: 114
  • 377.jpg
    817.8 KB · Views: 133
  • 378.jpg
    873.8 KB · Views: 177

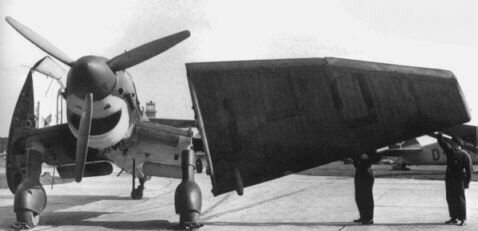

What kind of folding mechanism does the Ju-87C use Grummans STO-wing design ?

Several years ago, there was a book (or series of books) on speculative and factual KM carrier aircraft. I recall "Traegerflotten" being part of the title. Anyone have any info on the book? I've look it up in the forum search function and am having no luck. I think entries from that book might make for an interesting comparison and discussion.

I think the book you are referring to is Traegerflotten by John Baxter. It is totally what-if territory, with Germany somehow having
33 CVs (including Bremen (sistership to Europa) which was wrecked in a bombing raid in March 1941 (which I believe is historically factual)). Of the 32 CVs, 14 were built in France (Atlantikflotte), 12 in Germany and six in Leningrad (Norwegenflotte). 14 are classed as fleet carriers (CV), four as battle carriers (CVB), 10 as light carriers (CVL), and four as auxiliary carriers (ACV).
To give you a flavour as to the context of this book, the French carrier Bearn (renamed Moltke) is the first German carrier. It is mainly used as a training carrier.
The second carrier is the infamous Graf Zeppelin, commissioned 30 July 1940. After sea trials, her catapult sleds and launch rails were removed and replaced with expendable launching bridles and flush decks. As well the 150mm guns were removed, resulting in a weight saving of about 1100 tons. Zeppelin began training her new air group (32 He 100Ts + 6 spares, 24 Ju 87Cs +2 spares) in February 1941. Zeppelin joined Moltke in operations in the Baltic Sea during Operation Barbarossa. Zeppelin resumed operations in the Baltic Sea in March 1942. Presumably, sometime in the summer of 42, the Germans conquered Leningrad and started to put the shipyards there to their use. In September 42 Zeppelin moved with her sister ship Peter Strasser to Trondheim to form the basis of the Norwegenflotte.

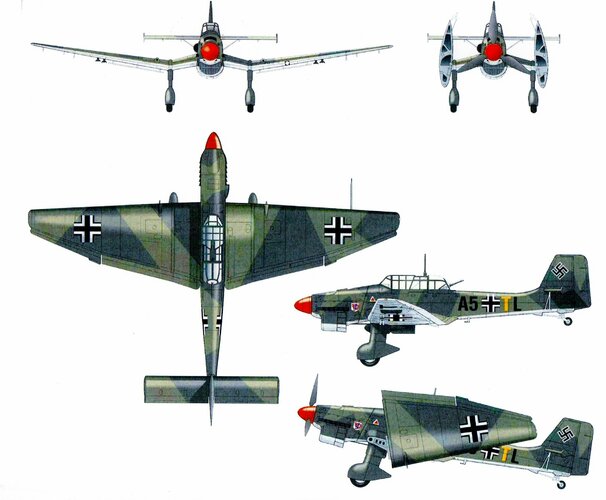

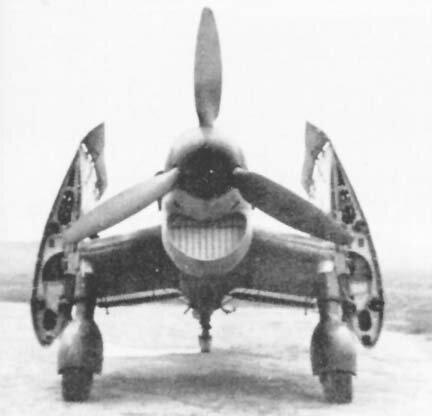

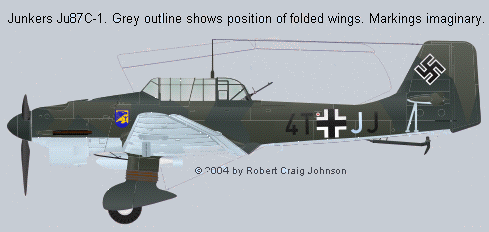

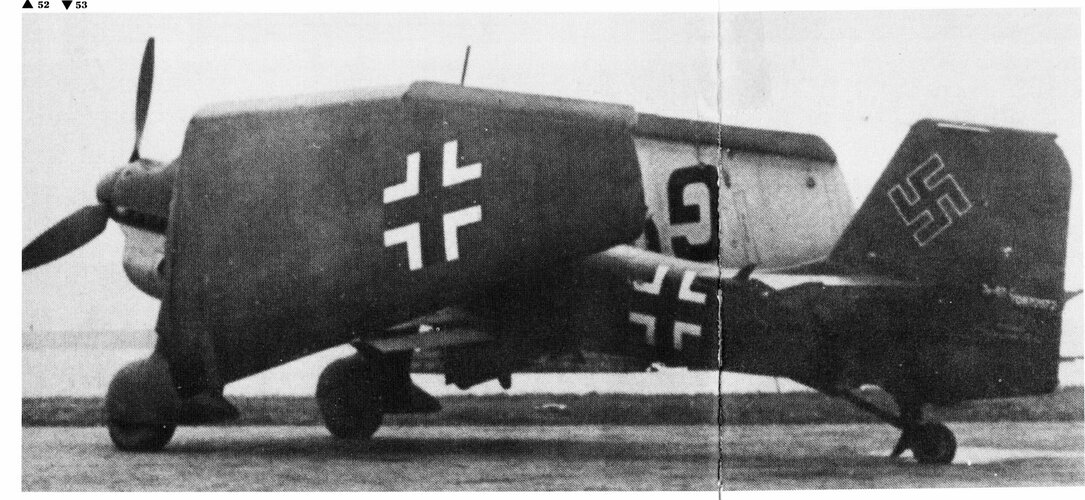

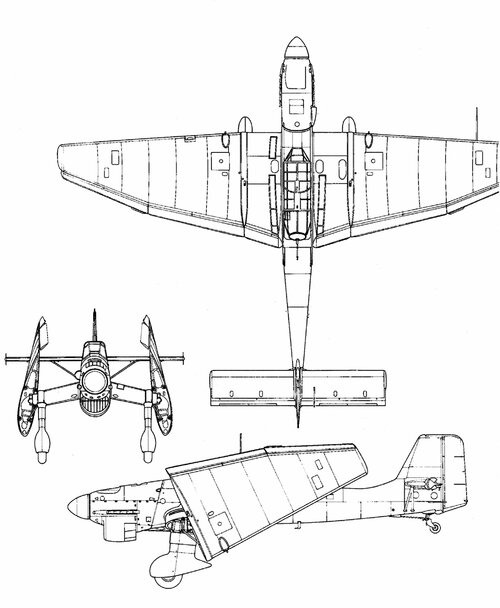

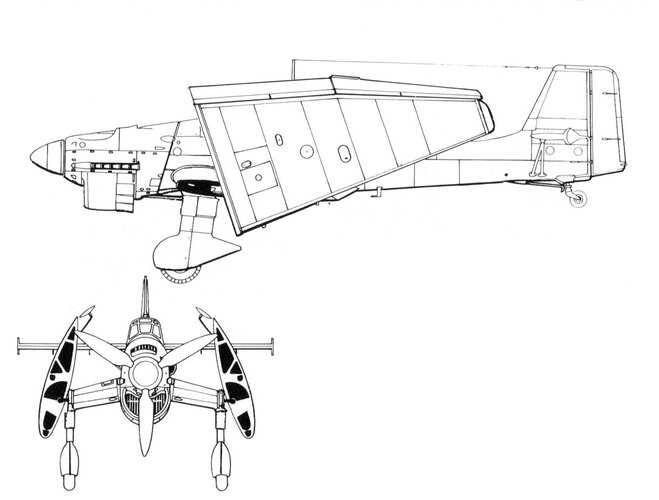

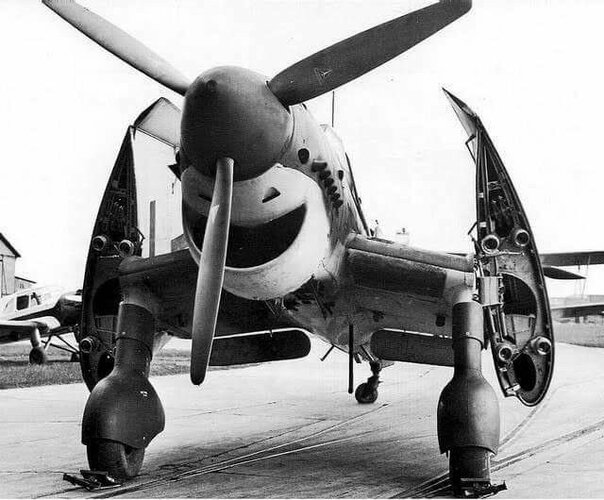

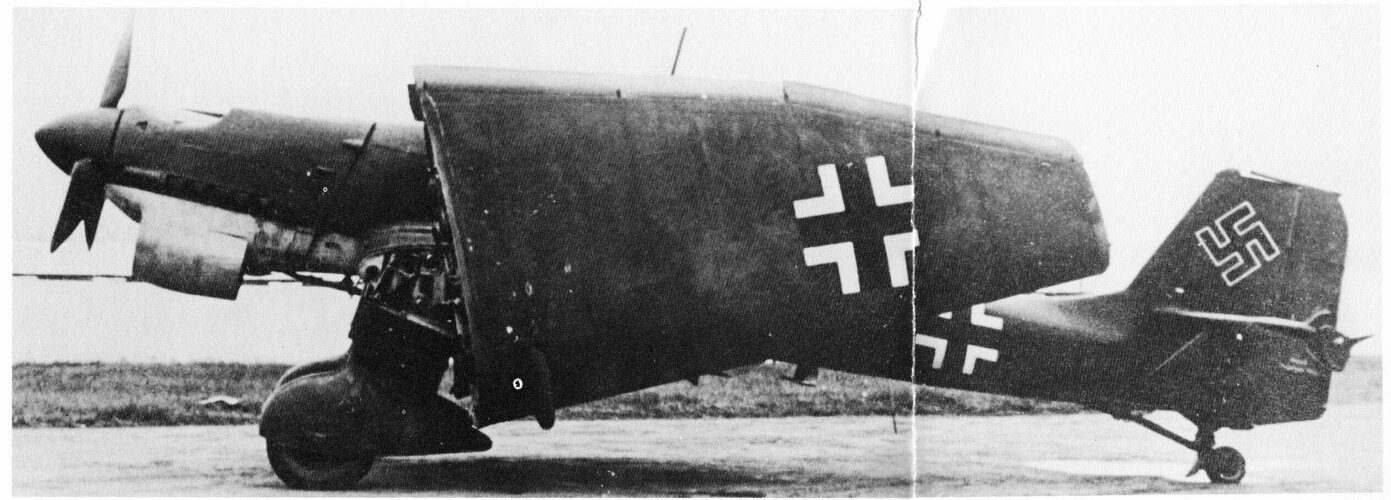

What kind of folding mechanism does the Ju-87C use Grummans STO-wing design ?

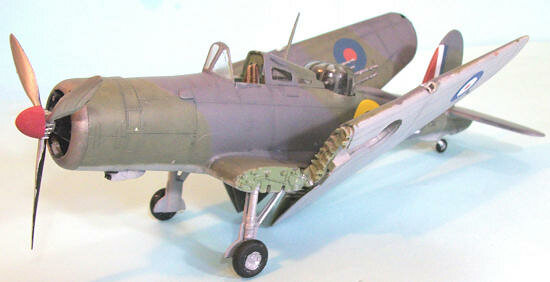

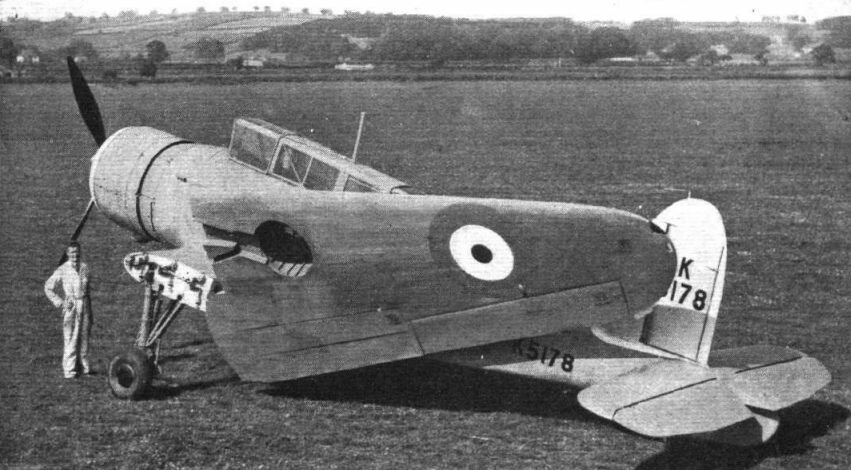

Blackburn Skua double articulation floding system


Attachments

  • 1699-1.jpg
    92.9 KB · Views: 138
  • tmcrocd.jpg
    49 KB · Views: 124
  • de9ec679994a6611d021555007e1e504.jpg
    51.8 KB · Views: 123
  • img_097.jpg
    16.8 KB · Views: 109
  • Ju87 wingfold.jpg
    Ju87 wingfold.jpg
    13.8 KB · Views: 217

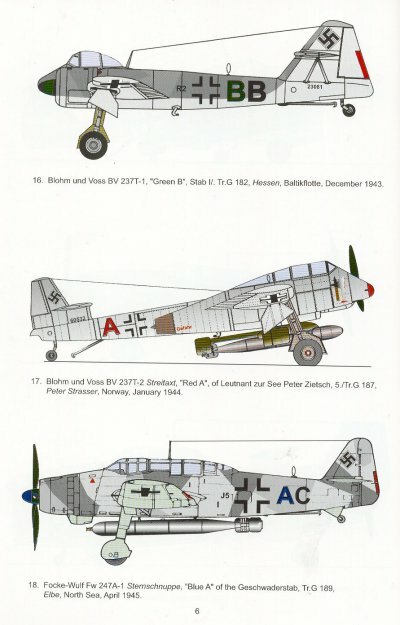

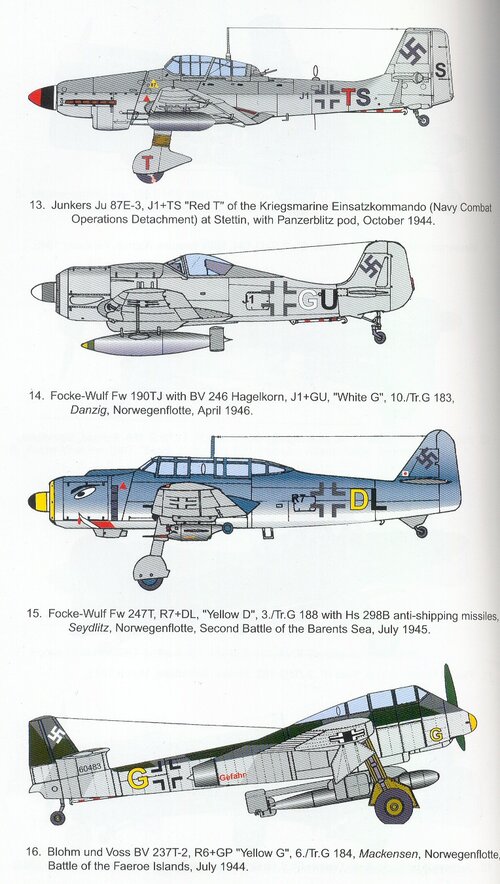

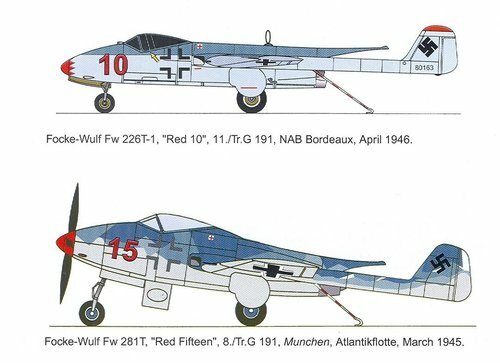

Baxter's "Tragerflotten" had the HE-100 replacing the BF-109 as the main carrier fighter and also had German versions of the Japanese "Jill" torpedo bomber.

I have wondered what a German or Italian version of the Japanese Yokosuka D4Y Suisei "Judy" would have been like..

Moderator alert: Fantasy stuff. Offtopic


Attachments

  • tragerflotten planes1.jpg
    tragerflotten planes1.jpg
    44 KB · Views: 220
  • tragerflotten planes.jpg
    tragerflotten planes.jpg
    271.8 KB · Views: 221
  • Tragerflotten FW.jpg
    Tragerflotten FW.jpg
    32.5 KB · Views: 208
  • Tragerflotten V2.jpg
    Tragerflotten V2.jpg
    7.9 KB · Views: 202
Last edited by a moderator:

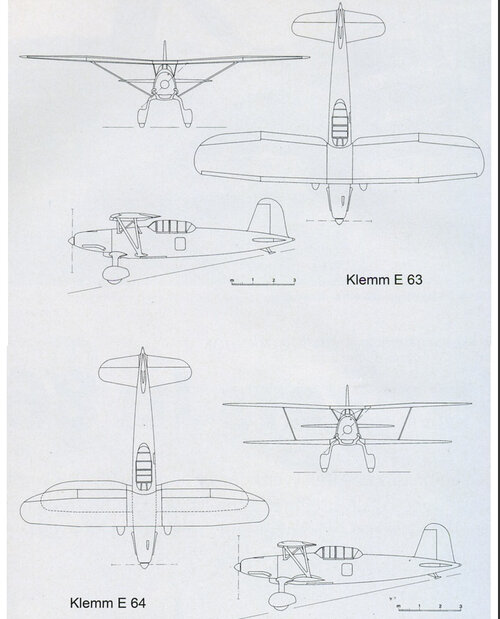

Klemm E63 and E64


Attachments

  • projekte_der_deckaufklc3a4rer_klemm_e_63_und_e_64-4.jpg
    397.6 KB · Views: 184
Baxter's "Tragerflotten" had the HE-100 replacing the BF-109 as the main carrier fighter and also had German versions of the Japanese "Jill" torpedo bomber.
Fictional stuff properly belongs in the alternative history and speculative design sections of the forum.

I know that Germany had an assortment of twin engine designs drafted when the Graf Zeppelin was being worked on again in 1942. Let me see if I can find some pictures.
