Vulcan Aircraft Co. Starfire VTOL Project of 1989

[hesham]

Hi,

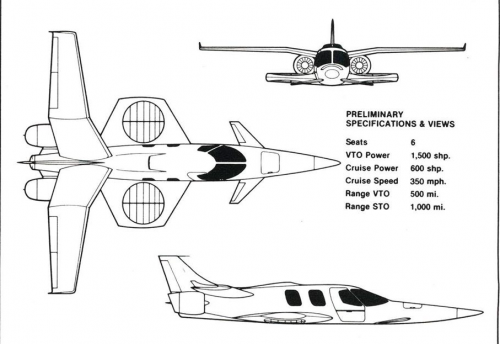

the Vulcan Aircraft Company designed the Starfire,a VTOL fan-in-wing business and
military aircraft project of 1989.

http://archive.aviationweek.com/image/spread/19891113/48/2/zoom



[Star_Inheritance]

Hello!
Does anyone know if this plane was ever built in any form or fashion? Even maybe a physical mock-up?
Thanks!



[overscan (PaulMM)]

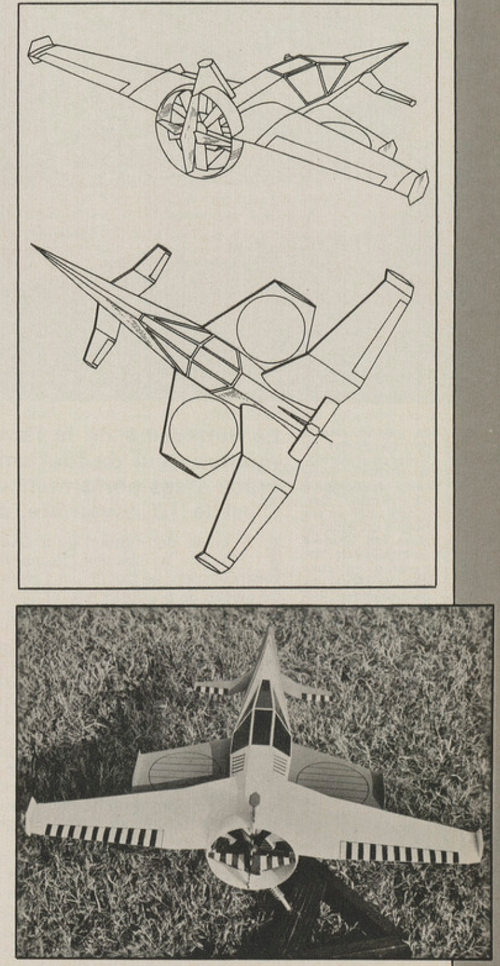

Only wind tunnel models.

Here's a patent:

US4828203A - Vertical/short take-off and landing aircraft - Google Patents

A vertical and short take-off and landing aircraft comprising a fuselage, a set canard wings, a set of lift fan wings, air deflectors, lift wings, and a pusher propeller. The canard wings are attached forward of the center of gravity to the fuselage. The lift fan wings are attached about the...

patents.google.com



[Coiler]

The "official" (proposed) name for the military version would have been the Starfire LVX.



[Orionblamblam]



[AirAusquin]

Hi,

the Vulcan Aircraft Company designed the Starfire,a VTOL fan-in-wing business and
military aircraft project of 1989.

http://archive.aviationweek.com/image/spread/19891113/48/2/zoom

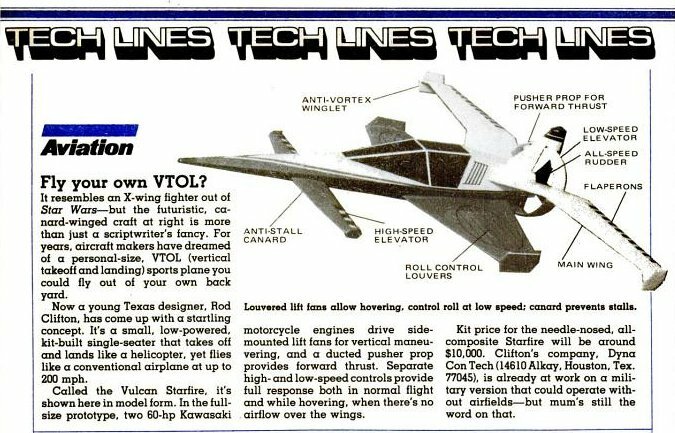

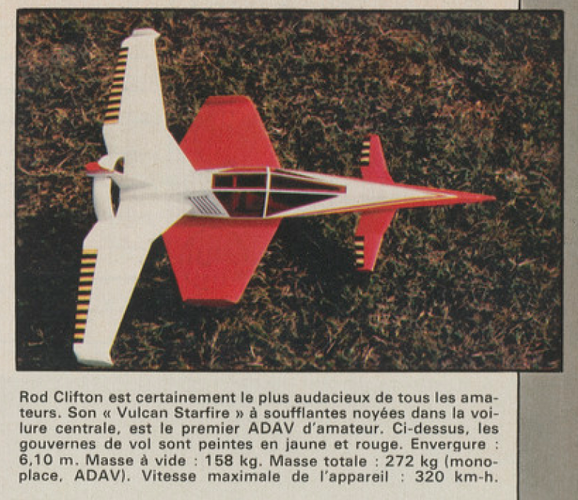

Hello again Hesman, in fact the project was from 1981, and started out as a kit homebuilt VTOL personal vehicle.

I just ended an article (in spanish, sorry. I am planning to start writing in english soon) detailing what I know about it history, including some new material I came across this year, and all related patents: "Dreams of vertical flight: The 1981's Vulcan Starfire

Here is the additional material:



[AirAusquin]

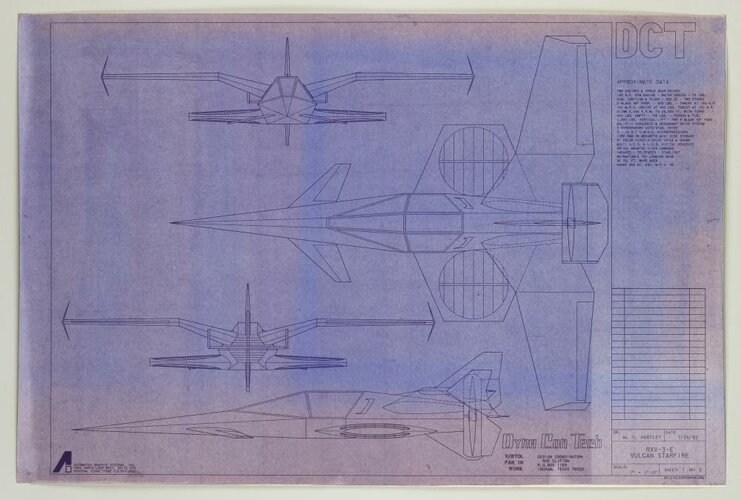

View attachment 709534

Orionblamblam, may I know the source of this image? It was impossible to find it in the web, either by image or by text search.

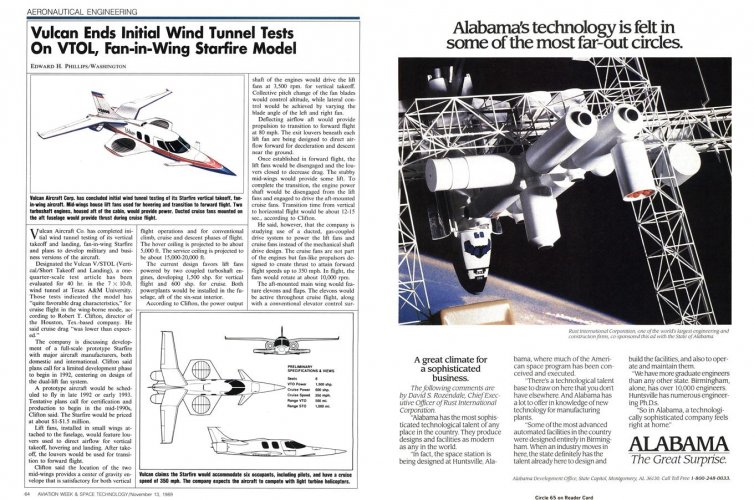

Here is a copy of the Aviation Week article linked by Hesham (only the plain text):
