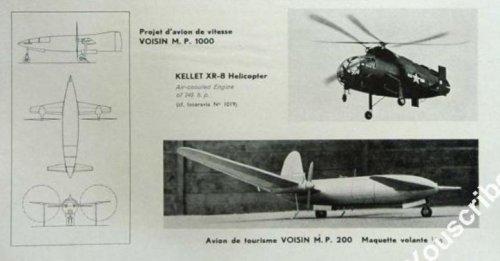

Voisin MP-1000 & MP-200 Projects

Hi,

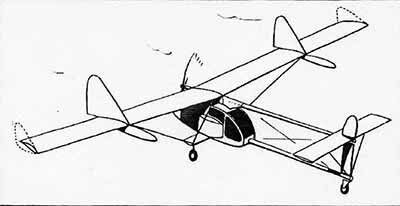

I refine the drawing to be more clearance,and for Voisin,I know that in 1919,
Gabriel Voisin left the Aviation and began to design cars,what are those aircraft ?.

Last edited:
From Icare 1961,

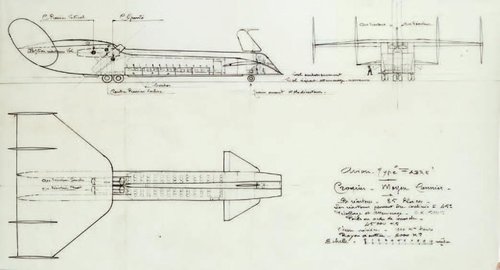

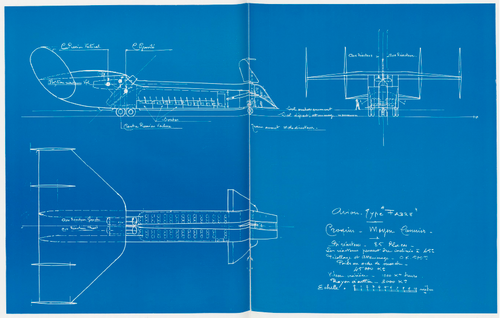

it seemed to be that Mr. Gabriel Voisin was still designing aircraft,here is a
tilt jet V/STOL transport aircraft Project,could accommodated 85 passenger,
with canard shape.



Attachments

  • A.png
    542.7 KB · Views: 145
  • download.png
    77.2 KB · Views: 148
Last edited:

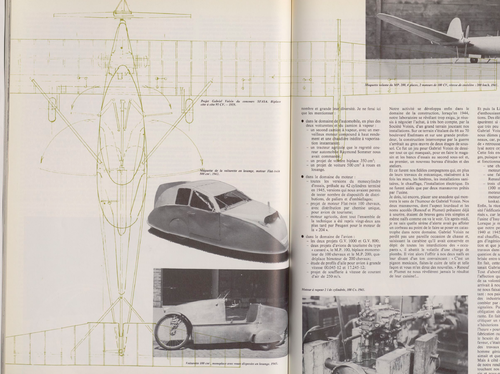

From Icare 1975,

there is a good article about Voisin later aircraft,included MP-100,a two-
seat tourist canard aircraft Project,powered by single engine,GV.800,which
was a canard transport Project,developed from GV.1000 (or MP-1000),also
an airplane Project with 250 km/h speed.

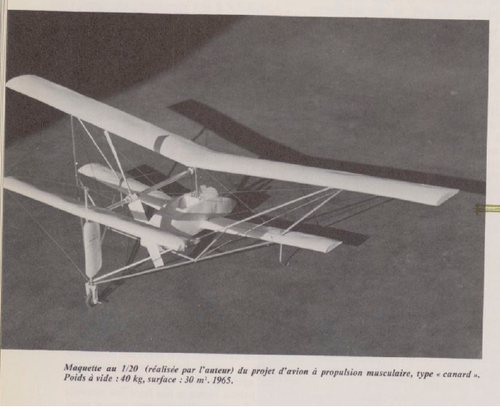

During 1960s,he created a man-powered or a ultra-light aircraft Project.


Attachments

  • 1.png
    1.6 MB · Views: 116
  • 2.png
    343.3 KB · Views: 94
  • 3.png
    4.5 MB · Views: 99
  • 4.png
    216.9 KB · Views: 93
  • 5.png
    311.9 KB · Views: 88
  • 6.png
    1.7 MB · Views: 81
Last edited:
By the way,

the GV.800 was a single seat fighter Project,and not a transport.

TU magazine

Last edited:
From hesham's link:

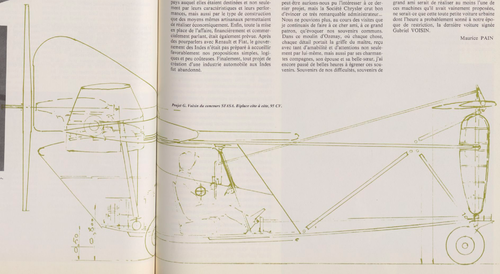

En 1959, Gabriel VOISIN, avec la collaboration de l'ingénieur Maurice PAIN, présente un projet de canard équipé d'un moteur de 95 CV au concours de design lancé par le Service de la Formation Aérienne [SFA].
Maurice BAYET, directeur du MRA, propose un plan de modèle de vol libre de 1,2 m d'envergure, sur les conseils de Gabriel Voisin lui-même [MRA n° 254, mai 1960]
[ref. 10]

Google translation:
In 1959, Gabriel VOISIN, with the collaboration of the engineer Maurice PAIN, presented a duck project equipped with a 95 HP engine to the design competition launched by the Air Training Service [SFA].
Maurice BAYET, director of the MRA, proposes a model plan of free flight of 1.2 m wingspan, on the advice of Gabriel Voisin himself [MRA n ° 254, May 1960]
[ref. 10]
