Victory Bomber

[KJ_Lesnick]

I think it was in 1940, the Vickers Aircraft Company came up with a design called the Victory-Bomber which had six-engines and a high-aspect ratio elliptical wing with a geodetic frame wrapped around a pressure hull with a remote-controlled tail-gun. It was designed to carry a 22,000 pound bomb (Grand Slam) a distance of around 3,000 miles with a top speed of 350 mph or so at altitudes of 40,000 to 50,000 feet.

I'm curious how long it would have taken to have been developed either as is, or with a bomb-bay that could carry ordinary bombs as well as the 22,000 bomb?



[overscan (PaulMM)]

This is impossible to calculate from the information available. What are the altered circumstances which lead Britain to pursue this design? How much effort is expended? What technical issues occur during development? You can only work by analogy to other programs like B-29 or B-36.



[Pirate Pete]

Two things regarding this project come to mind:
First (and my apologies about the 'source') from Wikipedia:

Aircraft designer Barnes Wallis reasoned that by selectively destroying strategic infrastructure targets, the German capacity to make armaments could be reduced. In 1940 Barnes Wallis designed a 22,400 lb (10,200 kg) "penetrating" bomb that was to bury itself in the ground before detonating. It was estimated that it could break dams like the Möhne if it exploded in the reservoirs within 150 ft (46 m) of the dam's face.[1]
However, no existing Royal Air Force (RAF) bomber could carry such a weapon, so he designed a huge six-engined bomber to drop the bomb from 40,000 ft (12,000 m). Wallis was an expert on geodetic airframe construction, having previously used it in designs such as the Wellesley (1935) and Wellington (1936), and naturally used it again for the Victory Bomber; also, all existing Vickers tooling was for this construction method. His specification was for a 50 ton (45 tonne) bomber that could fly at high altitude, 45,000 ft (14,000 m) being calculated to give the bomb maximum impact speed, at a speed of 320 mph (280 kn; 510 km/h) over a distance of 4,000 mi (3,500 nmi; 6,400 km). It would carry a single 22,400 lb (10,200 kg) "earthquake bomb". Defensive armament was minimal; speed and height would be its chief defence with one 4-gun turret in the tail position for any fighter aircraft that did attempt to reach it. The bomber would benefit by climbing to altitude while over Britain where fighter defences could protect it. The crew compartment was pressurized.
The limitation of the purpose of the aircraft to a single bomb did not endear it to the Air Ministry who required more flexibility of their aircraft, and the Air Staff rejected both the bomber and the bomb in May 1941, as the aircraft was unlikely to be completed before the war ended.[1]
The bomber design is not believed to have been developed beyond construction of a large wooden wind tunnel model which survives today at Brooklands Museum but the earthquake bomb idea was continued, initially as the smaller 12,000 lb (5,400 kg) Tallboy bomb, and then the larger 22,000 lb (10,000 kg) Grand Slam bomb, the carrying aircraft being a modified Avro Lancaster, whose performance improved during the war to the point where it could manage such a load.
There was further design work on large high flying bombers by the British during the war including 75 ton (68 tonne) and 100 ton (90 tonne) designs, but these did not progress either.


Specifications (as planned)
General characteristics
• Payload: 22,000 lb (10,200 kg)
• Length: 96 ft (29.3 m)
• Wingspan: 172 ft (52.4 m)
• Height: 11ft (3.2m)
• Wing area: 2,675 ft² (248.8 m²)
• Loaded weight: 104,000 lb (47,200 kg)
• Powerplant: 6 × Rolls Royce Merlin or Bristol Hercules supercharged piston engine, () each
Performance
• Maximum speed: 352 mph (566 km/h) at 32,000 ft (9,750 m)
• Service ceiling: 45,000 ft (14,000 m)
Armament
• Guns: 4× 0.303 in (7.7 mm) Browning machine guns
• Bombs: single 10 ton bomb



and secondly, on this same Forum - in Early Aircraft Projects:

http://www.secretprojects.co.uk/forum/index.php/topic,2797.0.html

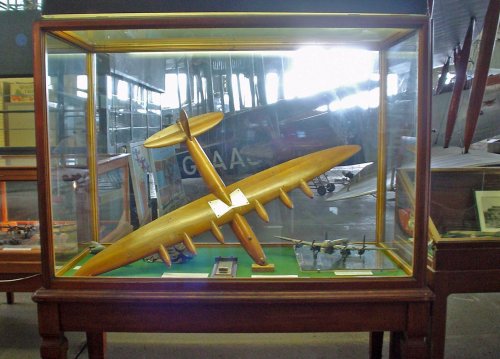

Plus From Brooklands Museum - the wind tunnel test model:



[KJ_Lesnick]

PaulMM (Overscan)

This is impossible to calculate from the information available. What are the altered circumstances which lead Britain to pursue this design?

Well, let's assume the aircraft was built with a bomb-bay that could carry not just a 22,000 pound earthquake bomb, but the standard range of incendiaries, bombs, and cookies? The primary objection of the design was that the design was only able to carry one bomb type.

How much effort is expended?

If it was workable, the design probably would have invariably been a successor to the Lancaster. Since the Vickers Windsor was a successor to the Lancaster, and the Victory could fly higher and farther with a routinely heavier load, there likely would have been no Vickers Windsor.

What technical issues occur during development?

If I was to speculate, the wing looked a bit thicker than would be ideal at altitude, and the gunnery system proposed depended on a small periscope in a blister below the turret which proved problematic on high altitude Wellington variants. The methods used on the B-29's remote controlled turrets could be applied instead.

Basic the estimate on the B-29, you would have the aircraft flying 2 years and 2-6 months after the specification was issued: This would produce a first flight at sometime in 1944. I'm not sure if this is totally valid as 1938 was pre-War and 1940 was not in Europe. I could not recite exactly how fast everything moved during WWII, but they did seem to be moving at a decent clip.
