VFW H 1 one man helicopter

[hesham]

Hi,


does anyone know this VFW H 1 one man helicopter ?.



[richard]

Bonjour


The VFW H.1 was a single seat conventional helicopter offered to the army , but refused because not innovative enough .

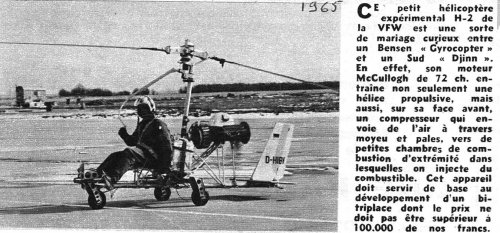

I don't have illustration for the H.1 , only the H.2 ...



[hesham]

Eexcellent my dear Richard.



[Maveric]

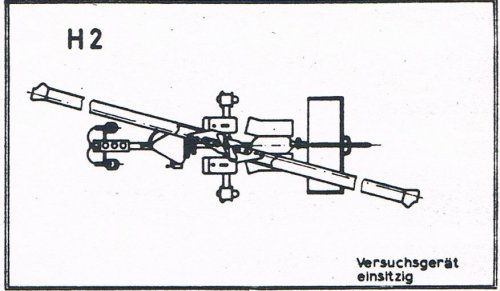

I have also only the H.2.



[Rickshaw]

Helicopter or autogyro?



[richard]

Helicopter : it had combustion chambers at the rotor's tip .



[antigravite]

Combustion chambers... Hmmm... Was it another ramjet-tip helicopter, as Hiller's Hornet (HOE/H32)?


A.



[richard]

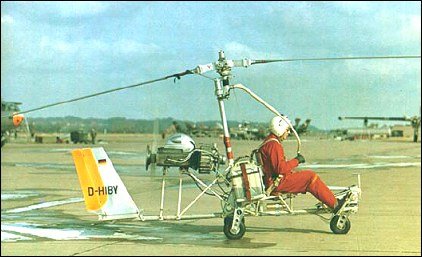

The McCulloch engine drives the two blades propeller AND a compressor which supplies air to the rotor's tip combustion chamber , where it is mixed with fuel .
It is the very same principle as the late war WNF-Doblhoff 342
