Various Austrian Post-war Aircraft Projects

Cy-27

ACCESS: Top Secret
Senior Member
Joined
28 January 2008
Messages
631
Reaction score
479
Unidentified Austrian Experimental Glider (Nurflügler or "Flying Wing")

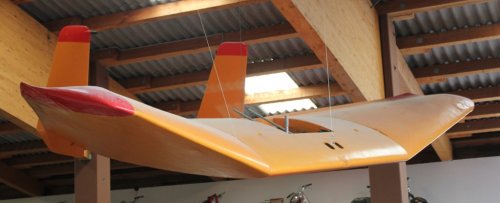

Below is a photo taken recently at the Fahrzeug Technik Luftfahrt Museum at Lauffen near Bad Ischl Austria of an unusual glider.

Does anyone know the constuctor? Neither the museum information sheets nor the book source specify the maker by name - just Nurflügler Experimental.

Details:

Nurflügler (Wing Aircraft) Glider (@1965)

Flying wing - Built in the 1960's this glider aircraft was used for testing gliding properties.

A high rudder with the controls actuated by shifting body weight. The pilot was required to remain in a kneeling position.

The start was made with a winch or by towing with a helicopter to the required height. Although the Nurflugler had good flying characteristics, the wind start was not without some danger for the pilot.


Source:

Details from the Fahrzeug und Technik Luftfahrt Museum Lauffen information boards and Luftfahzeugbau in Österreich (Reinhard Keimel).


Attachments

  • IMG_4245.JPG
    87.5 KB · Views: 505
  • IMG_4181.JPG
    157.9 KB · Views: 481

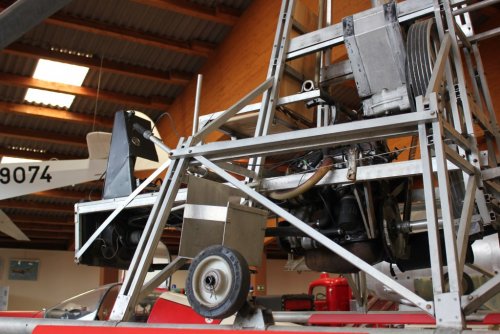

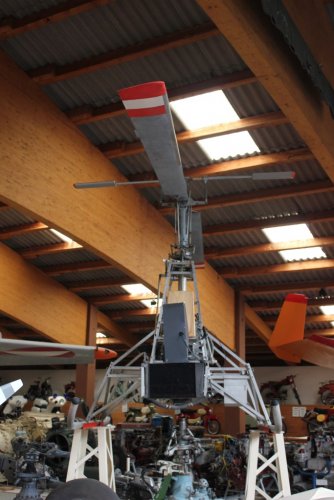

Unidentified Austrian Homebuilt Helicopter

Below are some helicopter photographs taken recently at the museum at Lauffen . The exhibit had no associated caption or signage to indicate its origins.

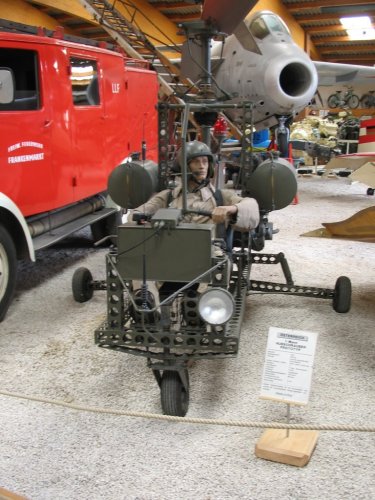

This type should not be confused with the earlier Austrian military helicopter/gyrocopter which was displayed in the museum for some years, the "Einmann Hubschrauber Prototyp" or "One-man Helicopter Prototype", OE-HWK (see last image).

Does anyone know the constructor of this helicopter?

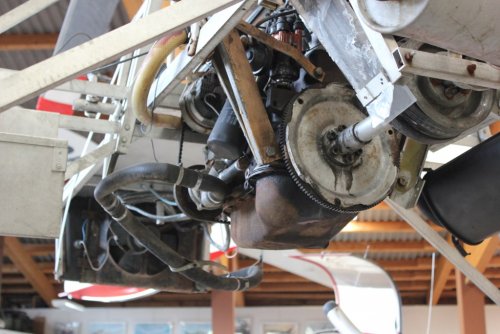

This example is more basic and appears to have a car exhaust system and very rudimentary controls.

I hope someone is able to help!


Attachments

  • IMG_4179.JPG
    190.8 KB · Views: 438
  • IMG_4224.JPG
    162.9 KB · Views: 395
  • IMG_4225.JPG
    191 KB · Views: 364
  • IMG_4244.JPG
    153.9 KB · Views: 42
  • IMG_6062.JPG
    263.1 KB · Views: 72

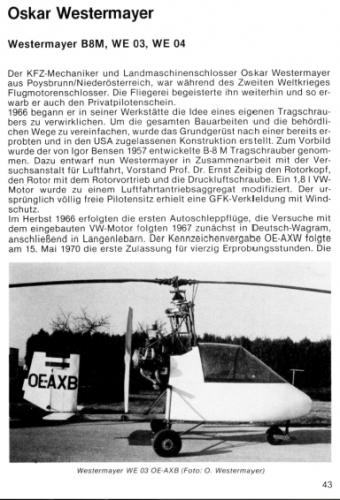

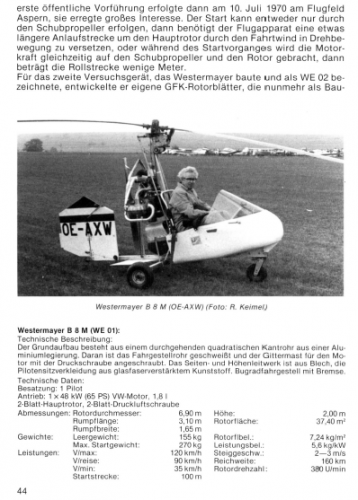

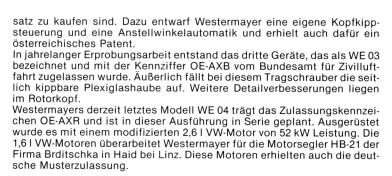

A little known company,the Westermayer,

it built Bensen B-8M underder licence as WE.01,the WE.02 ?,the WE.03 & WE.04 were
a gyroplanes.

Propeller-Luftfahrzeuge-Konstruktionen Seit 1945


Attachments

  • 5.png
    58 KB · Views: 60
  • 4.png
    132.5 KB · Views: 51
  • 3.png
    48.6 KB · Views: 87
  • 2.png
    151.9 KB · Views: 93
  • 1.png
    166 KB · Views: 91
hesham said:
A little known company,the Westermayer,

it built Bensen B-8M underder licence as WE.01,the WE.02 ?,the WE.03 & WE.04 were
a gyroplanes.

Propeller-Luftfahrzeuge-Konstruktionen Seit 1945

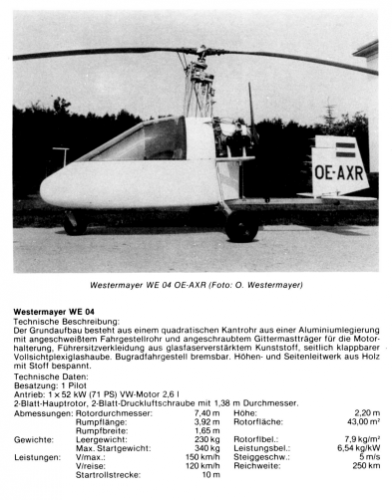

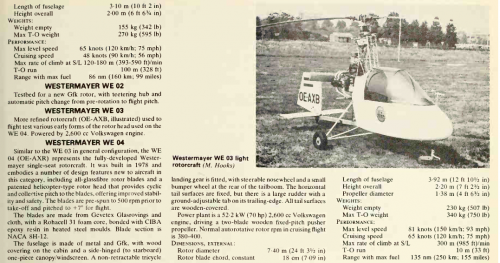

From JAWA 1978.


Attachments

  • 47.png
    78.7 KB · Views: 32
  • 48.png
    569 KB · Views: 47
Hi,

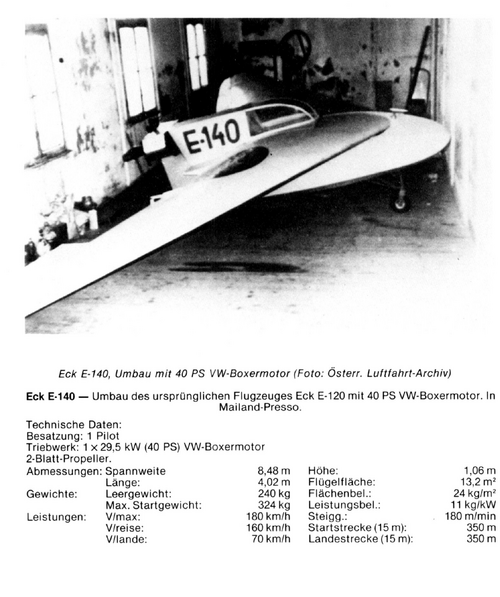

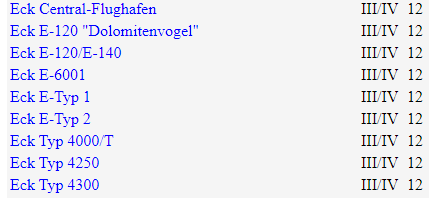

for Robert Eck,I know E-120,E-140,E-285,E-285S & E-6001,please any Info,which I want (only) about E-Type 1,E-Type 2,E-4000/T,E-4250 & E-4300.



Attachments

  • 1.png
    6.2 KB · Views: 42
Last edited:

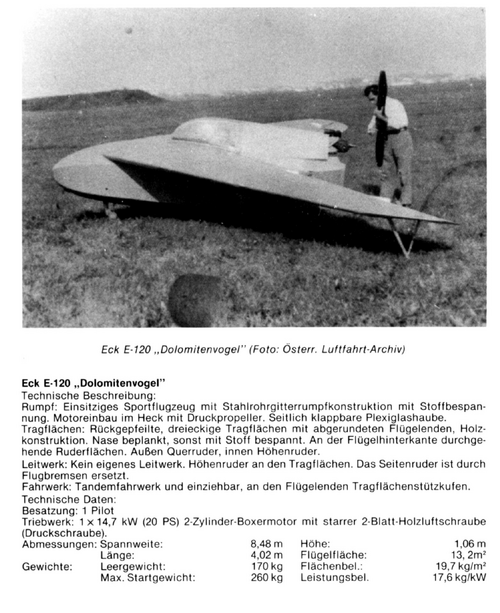

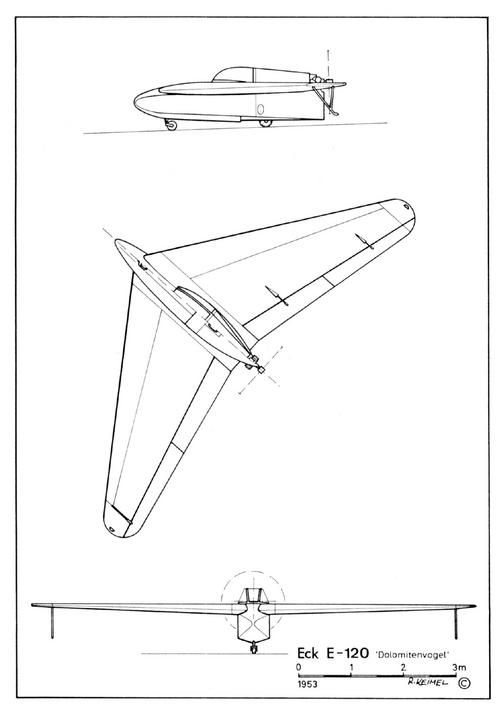

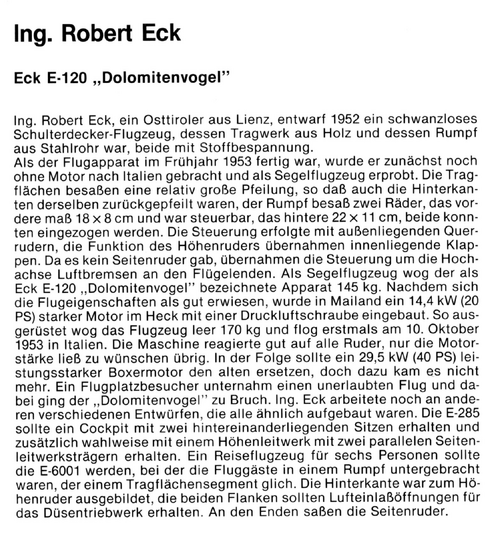

From, Propeller-Luftfahrzeuge-Konstruktionen Seit 1945,


Attachments

  • 30.png
    1.2 MB · Views: 24
  • 31.png
    1.6 MB · Views: 22
  • 32.png
    1.3 MB · Views: 25
  • 33.png
    453.2 KB · Views: 25
