Unknown project of a German ramjet aerial torpedo.1939

[klem]

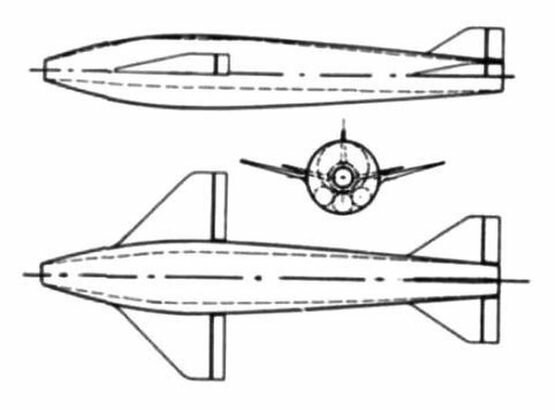

Unknown project of a German ramjet aerial torpedo from 1939.ramjet engine unit ?, total weight 1000 kg, payload 250 kg, speed 300 m/sec, range 300 km, few information about it: Like, project leader, designer or any other technical information. Any further indication would be a good and useful contribution.



[Wurger]

Picture origin, please!



[klem]

Picture origin, please!

H. Walter, Development of hydrogen peroxide rockets in Germany.(AGARD-First Guided Missiles Seminar Munich,Germany April,1956).



[sagallacci]

Looks like it could be an early proposal for a ramjet missile using the the Walter design. A.L. Kay's book on jet and gas turbines discusses Walter's work on any number of ramjet systems but doesn't mention much about applications other than powerplants for aircraft.
