unknown Atlas rocket versions

[Michel Van]

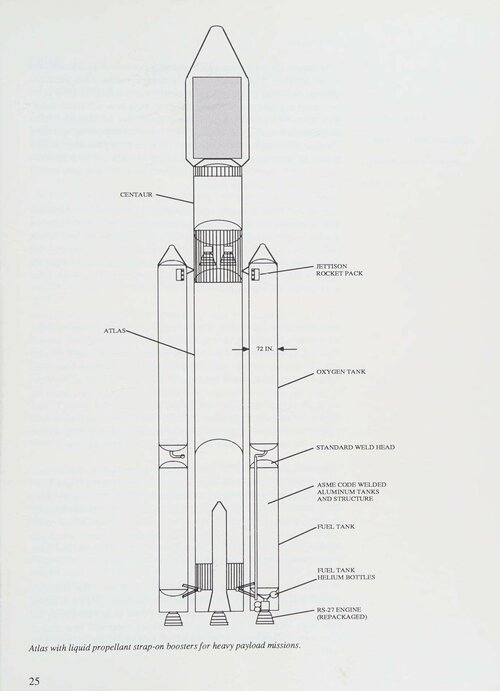

Found this on X (twitter)
sadly not source on what book is this

the Atlas has two liquid booster connected to Booster stage and interstage
they use RS-27 engines



[publiusr]

Husjak's book?



[Michel Van]

Husjak's book?

I posted this at NSF
it from the 1994 book The Future of U.S. Rocketry by Edward Hujsak.
at NSF they think this is proposed heavy-lift Atlas 2 design.



[publiusr]

Hujsak it is spelled... pronounced hijack?

I wonder if that book influenced Musk...a lot of talk about welding... simplification...

I think it is the author's own drawing.
