Two different designs designated PZL-140

[hesham]

Hi,


http://menstream.pl/lotnictwo/pzl/pzl-140;orlik;2000,126.html


http://www.heli-team.pl/forum/viewtopic.php?f=97&t=790&start=80



[Jemiba]

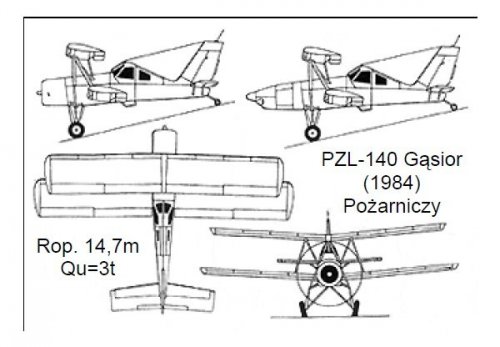

Judging the available sources, those designs aren't related. The bi-plane design is said to have been based
on the PZL-106 Kruk agriculture aircraft and was intended as a firefighting aircraft. The designation "PZL-118"
can be found for it, too ( http://www.luftfahrt-eisenach.de/ddr-luftfahrtforum/magic_viewtopic.php?f=95&t=770 ).

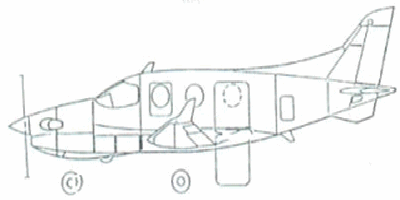

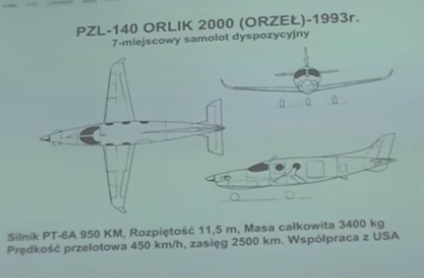

The other design could be a business/private aircraft derivative of the PZL-130 Turbo Orlik trainer, I think.



[Stargazer]

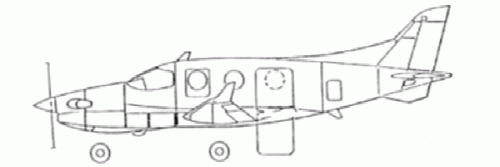

The first picture is obviously distorted. I have attempted to restore it to a more accurate width and enhance it a bit.



[hesham]

Hi,

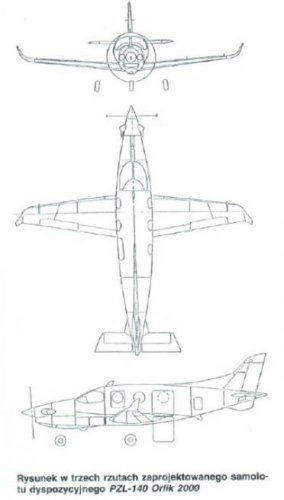

here is a 3-view to PZL-140,from the book; Samolot szkolno-treningowy PZL-130 Orlik



[hesham]

Hi,

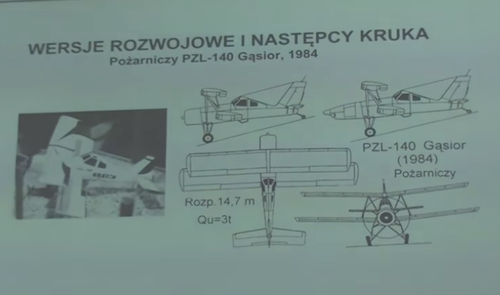

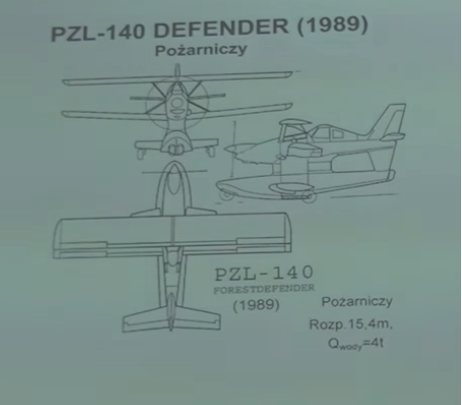

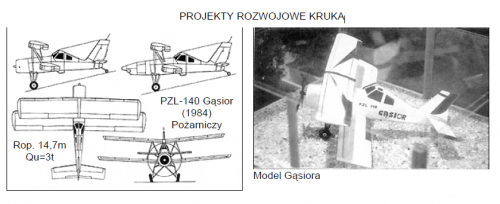

http://www.smil.org.pl/ptl/wyklady/04_PZL-106_Kruk.pdf



[hesham]

Hi,



[Richard N]

Hi Hesham,

Is there a book where these Polish aircraft drawings came from? That may be the only source to get them from now since all of the links in this thread are dead.

Richard



[Apophenia]

... all of the links in this thread are dead.

Richard: The PZL-106 Kruk pdf mentioned in reply #5 is still available through The Wayback Machine (select May 18, 2016).
-- https://web.archive.org/web/20160518133136/http://www.smil.org.pl/ptl/wyklady/04_PZL-106_Kruk.pdf
