Tupolev Tu-28 developed from Tu-6

[hesham]

Hi,

the Tu-28 of 1947 was a developed version of Tu-6 as front-
line scout aircraft.
(In 1947, the bureau conducted a preliminary elaboration of refitting
long-range bomber ╚ 1969 ╩ (TU-8) in the option fotorazvedchika.
This variant was designated the Tu-28. In this design five-seater
aircraft has not changed. Provides for the replacement weapons,
installing the latest models of photographic equipment and extra
fuel tank in bombootseke. Offensive weapons included one fixed
gun NS-23, defensive - 2 guns B-20E on the upper mechanical
installation and one the same gun at the bottom of the mechanized installation with a circular firing. Photographic Equipment consisted
of a camera AFA-30/200 for routine shooting AFA-33/75-50 for
campaign promising shooting and apparatus AFA-MI. The project
was not implemented).

http://www.airwar.ru/main.html

http://translate.google.com/translate?js=y&prev=_t&hl=ar&ie=UTF-8&layout=1&eotf=1&u=http://www.airwar.ru/enc/spy/tu6.html&sl=ru&tl=en



[hesham]

From Kryl'ya Rodine 6/2001,


here is the Tu-28,which developed from Tu-6.



[hesham]

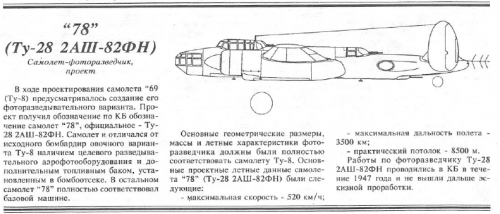

From Авиация и космонавтика 9/1998



[Hood]

Is that 'fir tree' aerial aft some kind of tail-warning radar?



[hesham]

Honestly,I don't know my dear Hood,

maybe a Russian members can help ?.



[Granit]

It's very strange, such an antenna is applied to the interceptor Tu-1, which had a radar "Gneiss-5"...
