In end of 1970s the Bundeswehr issue the Transportpanzer 1 Fuchs
The Dutch Army show interest in Fuchs but as Armoured Troop Carrier in 1980s
So they build the TPz 1 Fuchs 8x8 prototype for Dutch.
The TPz 1 Fuchs 8x8 BTR was longer as 8 m with a width of about 3 m and a height (on the roof of the 2,3 m).
Weight now exceeded 19 t, the combat weight — would more than 20 t.
The maximum speed on the highway now did not exceed 85-90 km/h.
Its also amphibious like 6x6 with speed of 8-10 km/h.
it had to replace the BTP YP-408 and was alternative to YPR-756.
In layout the Fuchs 8x8 similar like original Fuchs 6x6 but aft part is for 16 troopers and their equipment.

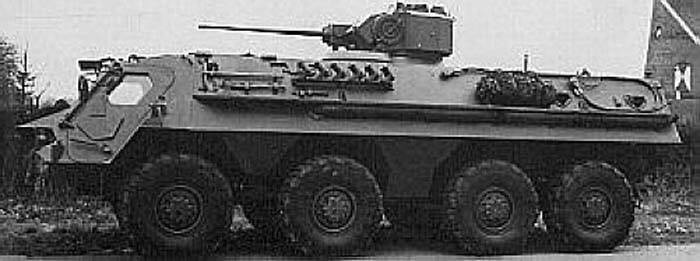

But equip is fuchs 8x8 with torret with 25-mm Oerlikon KBA-B02 automatic cannon and a rifle caliber machine gun.
additional weapons consisted of six smoke grenade launchers
and Block grenade launchers unchanged borrowed from the base armored personnel carrier.
I have no information why the Dutch Army not take the TPz 1 Fuchs 8x8

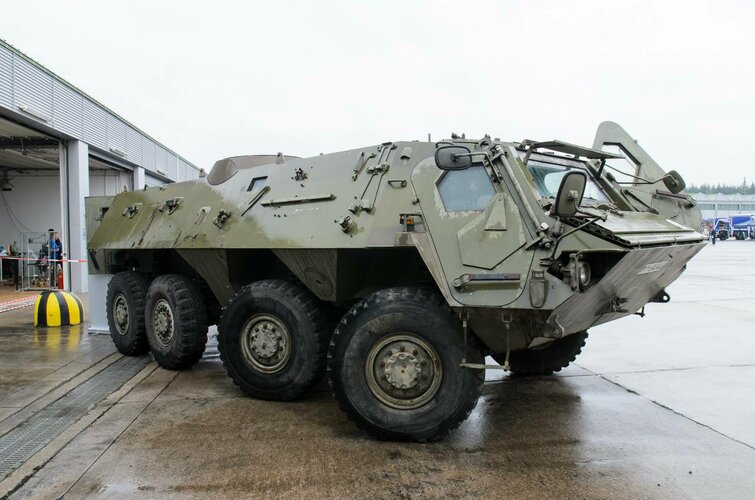

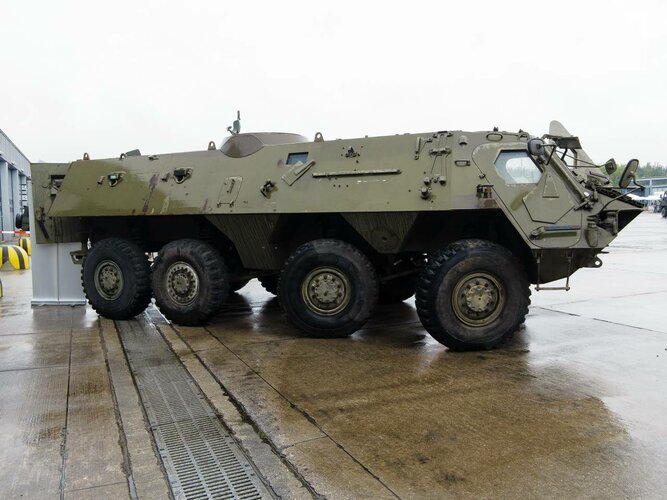

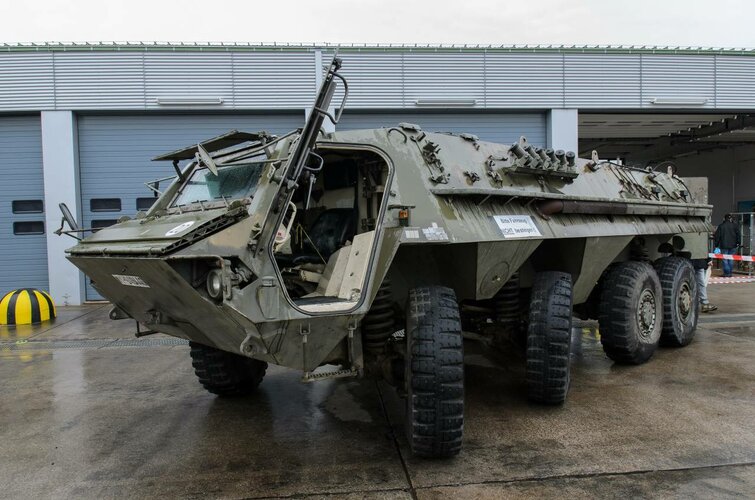

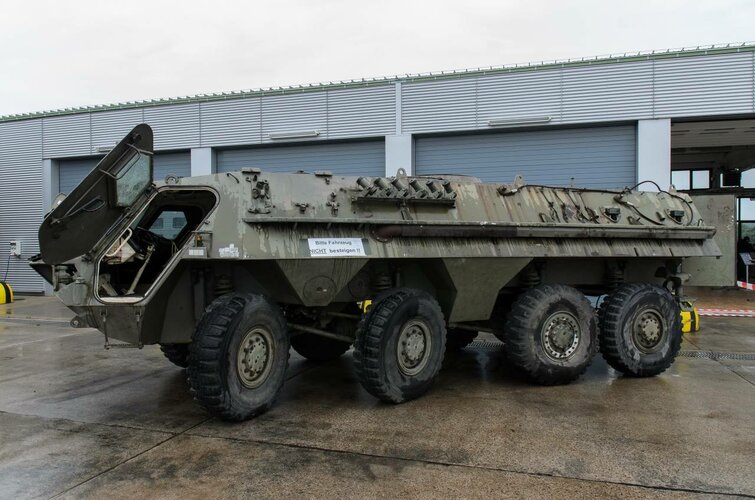

the Prototype without Turret is store at Wehrtechnische Dienststelle 41 (WTD 41) in Trier (germany)
source
en.topwar.ru
The Dutch Army show interest in Fuchs but as Armoured Troop Carrier in 1980s
So they build the TPz 1 Fuchs 8x8 prototype for Dutch.
The TPz 1 Fuchs 8x8 BTR was longer as 8 m with a width of about 3 m and a height (on the roof of the 2,3 m).
Weight now exceeded 19 t, the combat weight — would more than 20 t.
The maximum speed on the highway now did not exceed 85-90 km/h.
Its also amphibious like 6x6 with speed of 8-10 km/h.
it had to replace the BTP YP-408 and was alternative to YPR-756.
In layout the Fuchs 8x8 similar like original Fuchs 6x6 but aft part is for 16 troopers and their equipment.
But equip is fuchs 8x8 with torret with 25-mm Oerlikon KBA-B02 automatic cannon and a rifle caliber machine gun.
additional weapons consisted of six smoke grenade launchers
and Block grenade launchers unchanged borrowed from the base armored personnel carrier.
I have no information why the Dutch Army not take the TPz 1 Fuchs 8x8
the Prototype without Turret is store at Wehrtechnische Dienststelle 41 (WTD 41) in Trier (germany)
source
Armored troop carrier TPz 1 Fuchs 8x8 (Germany)
In the late seventies, the defense industry of Germany began mass production of the latest wheeled armored personnel carriers Transportpanzer 1 Fuchs. The starting customer of this technology was the Bundeswehr, and soon the first export contracts appeared. However, not all foreign armies wanted...
