Toyo TT-10 Japanese trainer

[hesham]

From Japan:

Toyo TT-10 :tandem two seat low wing light cantilever monoplane,
powered by one Lycoming O-290-D2 engine,FF 1953.



[Jemiba]

Photo of the Toyo TT-10 from Aviation Week .4.54 :



[hesham]

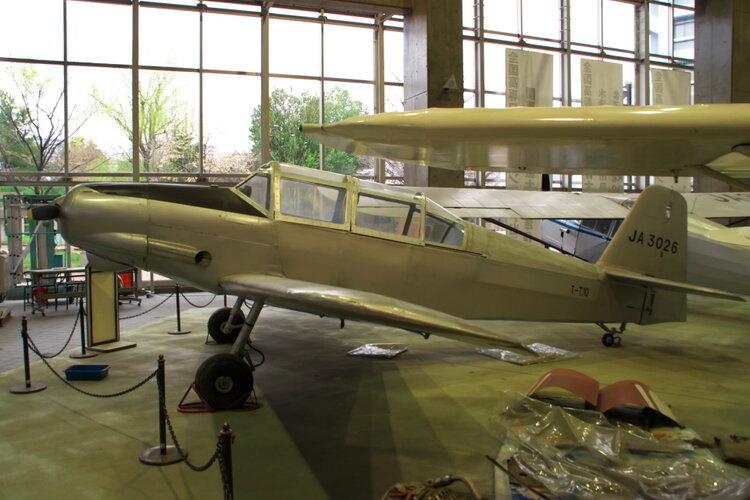

Toyo TT-10



[blackkite]

Hi!
http://omino.a.la9.jp/tt-10.html
http://scalesquadron-japan.que.jp/archive/TT-10/index.html
”Toyo Aviation Industry Co., Ltd. TT-10
The plan for the TT-10 model of Toyo Aviation Industry Co., Ltd. began immediately after the resumption of postwar aviation, and it was manufactured by Toyo Aviation Industry Co., Ltd. in Fujisawa, Kanagawa Prefecture, and made its maiden flight in 1953.
The structure is a two-seater single-engine low-wing training machine with a steel pipe upholstered body, cantilevered low-wing main wings and fixed legs, equipped with Lycoming horizontally opposed 4-cylinder, O-290 140 horsepower, maximum speed.
Was 235 km and had a cruising range of 760 km.
The maneuvering performance was good as a training aircraft, and except for equipment, it had world-class performance at that time.”
