The UAVia Karlsson VTOL

VTOLicious

ACCESS: Top Secret
Senior Member
Joined
24 November 2008
Messages
1,410
Reaction score
1,973
Hi, interesting Project: http://uavia.com.ua/eng/vtol.html

Specs from the UAVia-homepage:

Dimensions External:
Wingspan 6,8m; 22,3 ft
Lenght 6,1m; 20 ft
Height overall 2,51m; 8,2 ft


Dimensions Internal:
Cabin Lenght 1,43m; 4,7 ft
Cabin width 1,3m; 4,26 ft
Cabin height 1,25m; 4,1 ft

Power Plant:
Two Piston Engines 200 HP each
Engine Type 4 cylinder
Transmission Mechanical

Weights:
Max VTOL weight 650kg; 1430lb
STOL weight 720kg; 1630lb

Performans, Standart Day:
Max Speed 510km/h; 310 mph
Service Ceiling 5,500m; 18,000 ft
Hovering Ceiling 1,200m; 3,950 ft
Range, VTOL, no reserves 1,100km; 685miles
Range, STOL, no reserves 2,100km; 1,300miles

Safety Measures:
All three fans are mechanically interconnected. All transmission gearboxes are constantly monitored by heat and oil chip gauges. Aircraft can continue horizontal flight with one engine failure. Aircraft can land as conventional airplane.

Anyone more info on this one? I have some pics of the RC prototype, but dont know how to attach them. Help appreciated!


Attachments

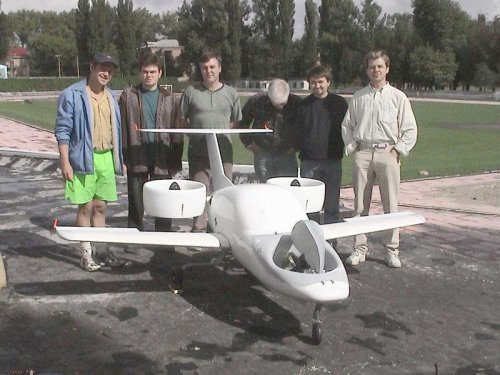

  • Firts%20roll%20out_b.jpg
    86.9 KB · Views: 231

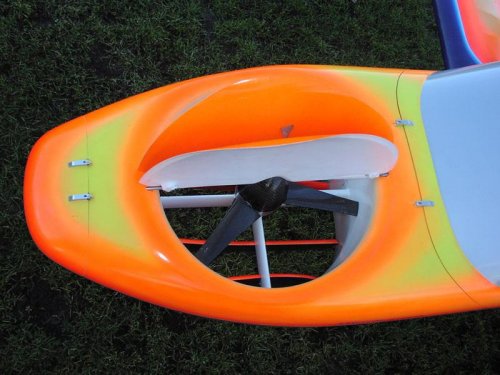

  • p1010054.jpg
    53.4 KB · Views: 228

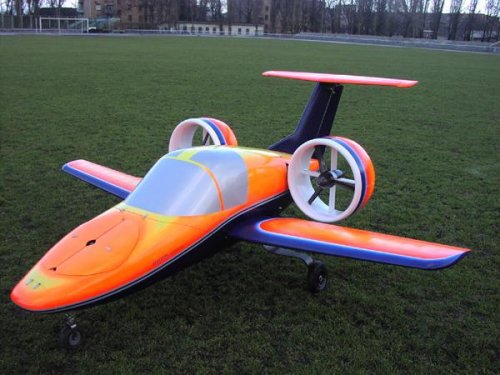

  • p1010060_b.jpg
    80.9 KB · Views: 218

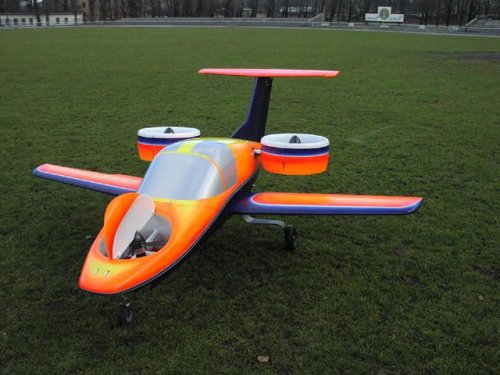

  • p1010062.jpg
    48.8 KB · Views: 204

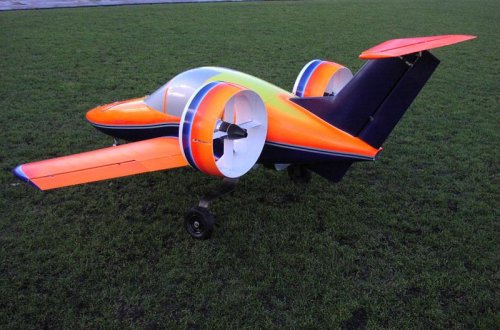

  • p1010068_b.jpg
    70.8 KB · Views: 198
