The Raketen abschussgeraet M42.

[klem]

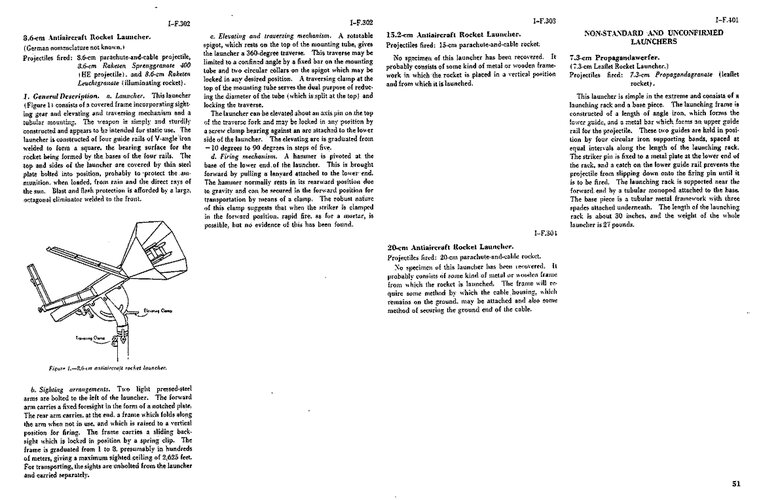

The 8.6 cm Raketen abschussgeraet M42, is quite unusual as a rocket launcher, it is not often encountered in books perhaps because its field of use was restricted and limited or it was not very successful. In (German and japanese solid-fuel rocket weapons-Military Intelligence Division-War Department-Washington D.C.).



[Grzesio]

It was a modified variant of an earlier DSR-Abschussgeraet, which lacked the sights and protective sheet metal jacket.
Ammunition for the launcher included a number of variants of wire barrage, fragmentation and illumination rockets, with both blackpowder and smokeless propellant.



[klem]

A nice picture found here.(https://forums.airbase.ru/2021/12/t67577_7--chertezhi-nemetskikh-esmintsev-tipov-34-36-36a-36v.8047.html)



[klem]

Naval Weapons of ww2-John Campbell



[klem]

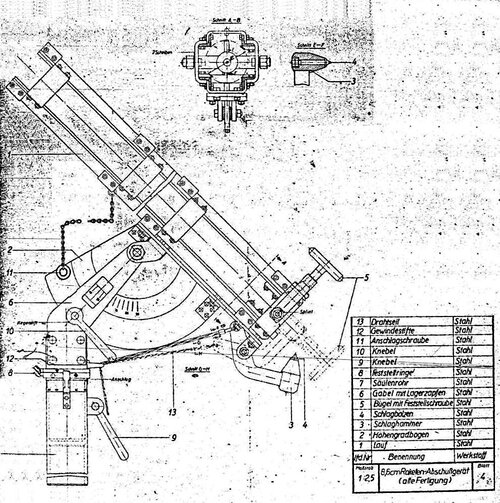

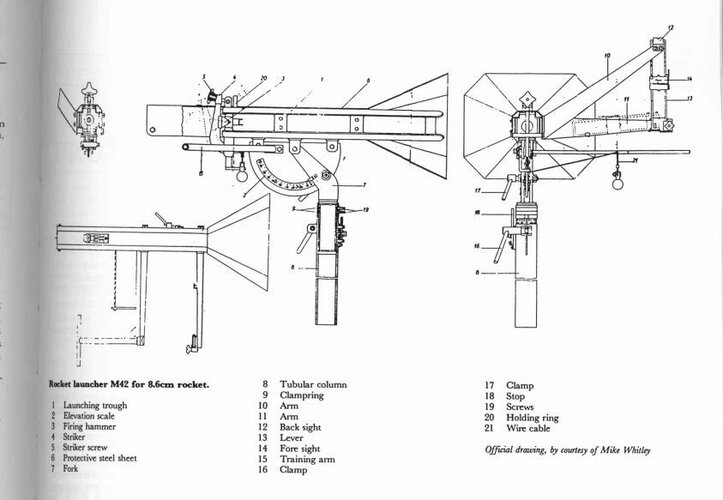

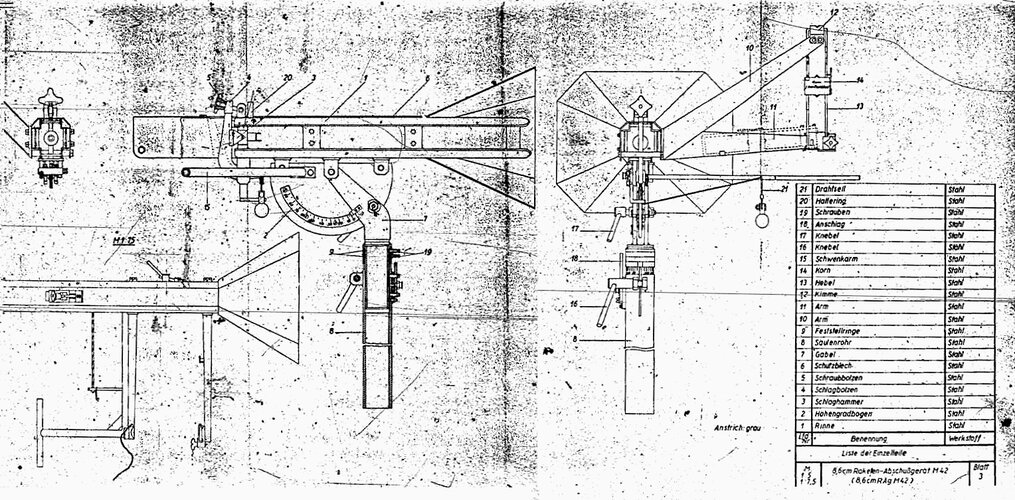

Some schematic drawings of the Raketen abschussgeraet M42.
