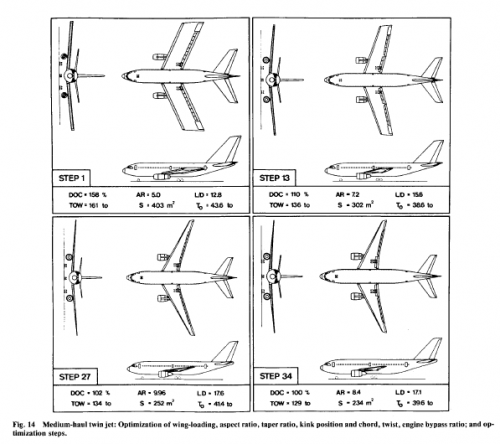

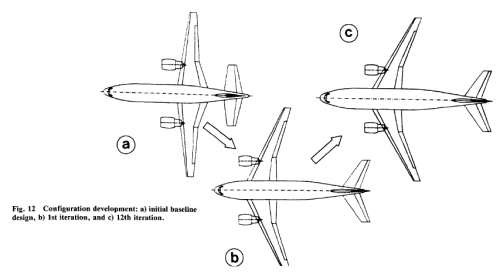

hesham ACCESS: USAP Senior Member Joined 26 May 2006 Messages 33,465 Reaction score 13,506 25 December 2014 #1 Hi, from Technical University of Berlin,here is a drawings to a various wing shapes,for a jet airliner aircraft,similar to Airbus A.310. http://arc.aiaa.org/doi/abs/10.2514/3.45320?journalCode=ja Attachments 1.png 35 KB · Views: 102 2.png 49.3 KB · Views: 102
Hi, from Technical University of Berlin,here is a drawings to a various wing shapes,for a jet airliner aircraft,similar to Airbus A.310. http://arc.aiaa.org/doi/abs/10.2514/3.45320?journalCode=ja
