Tachikawa A26 (Ki-77) Experimental Long-Range Aircraft

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
31 May 2007
Messages
8,574
Reaction score
6,765

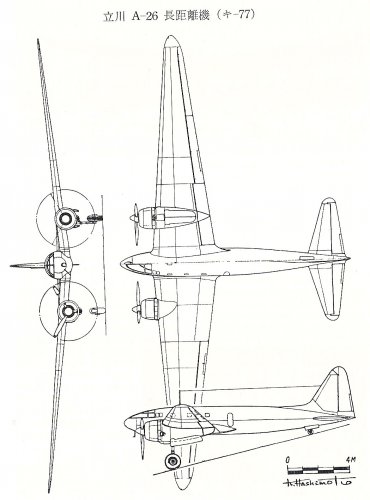

Hi! The Tachikawa A-26 Long-distance plane(Ki-77).
Wing span:29.437m, Overall length:15.3m, Height:3.85m(ground position), Wing Area:79.56m2, Empty weight:7,237kg, MTOW:16,725kg, Max Speed:440km/h(4,600m), Range;18,000km, Service ceiling:8,700m, Engine:Nakajima HA115 special type(1,170hp in take off).
A-26 marked non stop 16,435km flight in Manshu(1944/7/2 to 7/4). Flight time:57hours12minutes, Average speed:288.2km/h, Residual fuel after flight:800L.
If she used all fuel, she could fly 18,000km.
Source:My No.2 bible.


Attachments

  • A26 001.jpg
    A26 001.jpg
    196.1 KB · Views: 151
  • A26 002.jpg
    A26 002.jpg
    198.8 KB · Views: 128
  • A26 003.jpg
    A26 003.jpg
    21.6 KB · Views: 88
  • A26 004.jpg
    A26 004.jpg
    13.6 KB · Views: 80

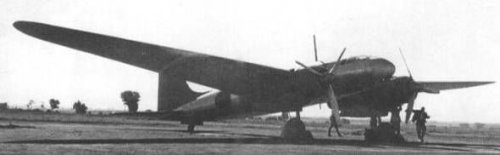

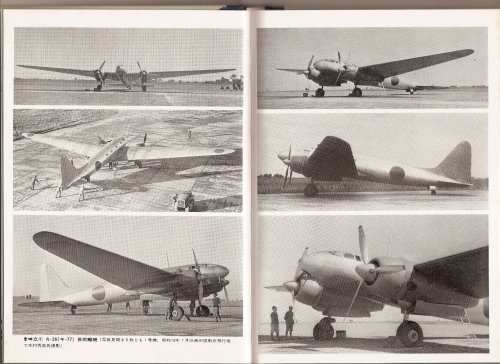

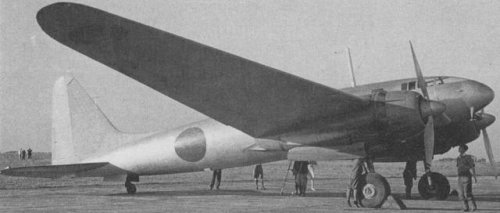

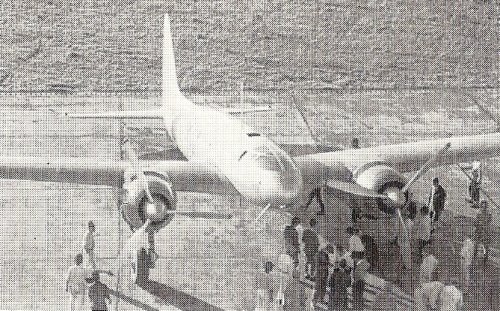

Hi! Another A-26(Ki-77) pictures.
Please enjoy Japanese beauty.


Attachments

  • A26.jpg
    746.3 KB · Views: 107
  • A26 006.png
    A26 006.png
    371.9 KB · Views: 110
