Hi,

Mr. Stanisław Sobkow who designed the WS-1 & WS-2 before WWII,he created after the war

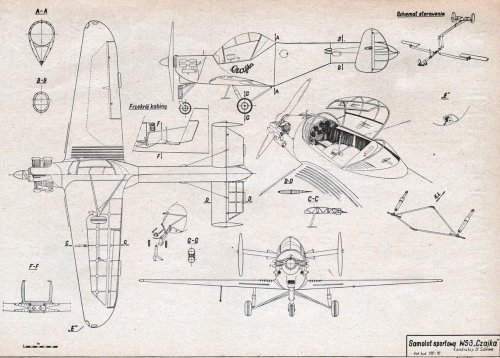

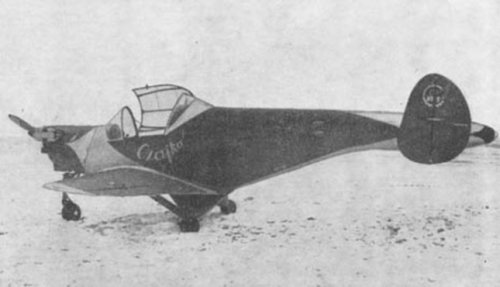

the WS-3 Czajka of 1956,it was a single seat cantilever sporting monoplane,very strange concept
with twin tail fin,powered by either one 60 or 75 hp engine.

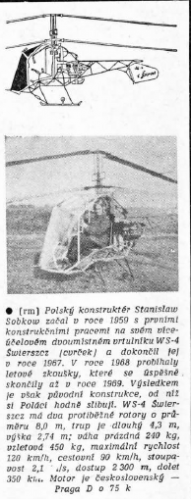

In 1968,he invented a famous amateur two-seat helicopter in Poland,it was WS-4 Świerszcz,
powered by one 75 hp Praga D engine.

http://www.samolotypolskie.pl/samoloty/2719/126/WS-3-Czajka2
http://www.samolotypolskie.pl/samoloty/2718/90/WS-4


Attachments

  • WS-3.jpg
    32.3 KB · Views: 156
  • WS-3 II.jpg
    WS-3 II.jpg
    336.8 KB · Views: 163
  • WS-4.jpg
    63 KB · Views: 144

Attachments

  • a.png
    732.7 KB · Views: 36
  • b.png
    407.2 KB · Views: 34
  • c.png
    667.3 KB · Views: 31
You're welcome.

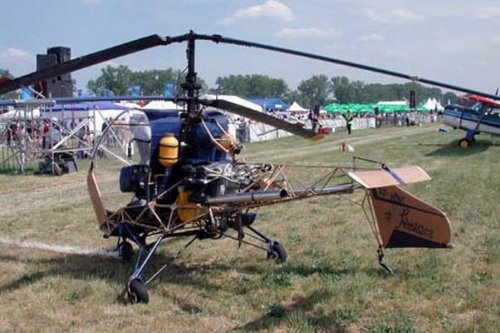

In these days the helicopter is called the WS-4 Bis Świerszcz. It has even painted it on its rudder. Hover, I cannot locate the point in time when the "Bis" was added and why. Maybe you know?
