STAL Skuten

[blockhaj]

Anyone have any info on STAL's jet engine Skuten? Ive looked through the internet and i have only found mentions of it although its designer Curt Nicolin did win some price for designing it. I have found some sources that mentions that there where plans to mount STAL jet engines on the Saab B-18 which would have made it a B-18R and that would most likely have ben the Skuten since its to my knowledge the earliest Jet engine developed by them. Curt Nicolin also worked on the STAL Dovern and STAL Glan.



[Petrus]

On Monday I'll post what I have (pictures and data) on my computer at my office.
Piotr



[blockhaj]

On Monday I'll post what I have (pictures and data) on my computer at my office.
Piotr

Nice



[Petrus]

It's Monday and here you've got some info on the Skuten engine.

It had 8-stage axial compressor, 6 combustion chambers and 1-stage turbine.

Specs:
Lenght: 3475 mm (some sources say 3850 mm)
Diameter: 920 mm
Weight: 780 kg
Pressure ratio: 4:1
Specific fuel consumption: 1.21 kg/kp/h
Max. thrust: 1450 kp @ 8000 rpm

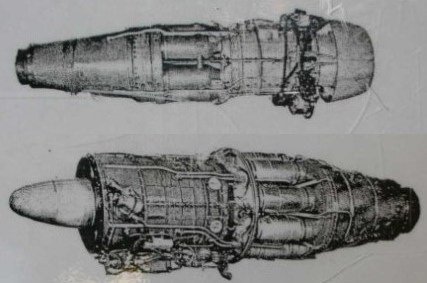

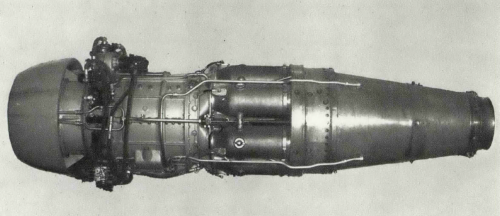

Below some photos of the Skuten.

Sources of info: "Enzyklopädische Abhandlung über ausgeführte Strahltriebwerke" and my archives

Piotr



[blockhaj]

It's Monday and here you've got some info on the Skuten engine.

Piotr

This is amazing. Where did u get this information from? Also i'm really bad at jet engines but how good/bad was the skuten for its time and what other jet engines from the era was comparable to it?



[Petrus]

Where did u get this information from?

Well, googling brings results. At a Czech website there is a handful of links to info on the early Swedish jet engines http://www.leteckemotory.cz/motory/dovern/.
Quite informative is also the German book "Enzyklopädische Abhandlung über ausgeführte Strahltriebwerke" by Karl Leist. Published in 1963 in West Germany it may be now reviewed and bought at Google Books.

Regards
Piotr



[fortrena]

Might the following chatty text be of interest?

A tale of two engines, or four, or even six: The STAL Skuten, Dovern and Glan | The Channel

Yours truly is running out of ideas on how to start each new issue of our blog / bulletin / thing

ingeniumcanada.org
