Spec R.1/36

[PMN1]

Has anyone seen what the early Saro S.36 with gull wings looked like and what was Saro's reason for changing to the design they finally did?

What did the Supermarine 314 look like?



[hesham]

My dear PMN1,


nothing in SARO book of Putnam,I will search in a magazines,maybe
I can find anything, but nice Info.



[Schneiderman]

The Supermarine Type 314 was a revised version of the Type 308, so Two RR Vultures, twin tail.



[hesham]

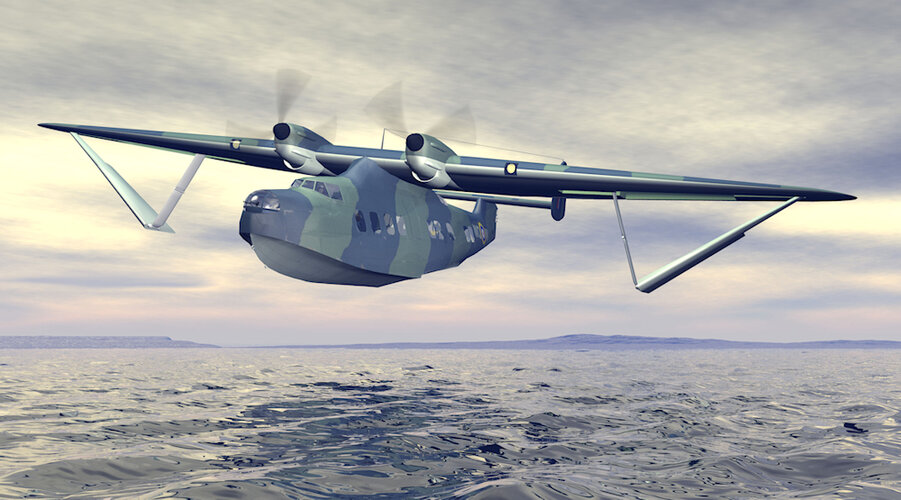

Here is the Supermarine 314;


http://www.secretprojects.co.uk/forum/index.php/topic,23322.msg243729.html#msg243729



[Schneiderman]

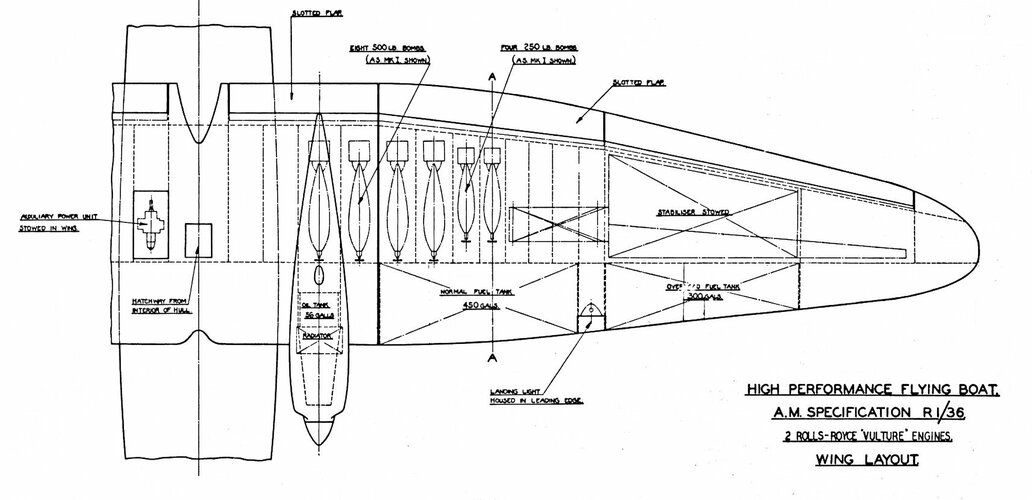

The Type 314 made maximum use of the available interior space in the wing provided by the 'D' box single spar and leading edge. Fuel in the spar box and bombs stowed behind the spar. Retractable stabiliser floats of unique design in the outer wing .



[Grey Havoc]

You would be forgiven for mistaking it for an early Cold War design. Nice.



[tallguy]

The Type 314 made maximum use of the available interior space in the wing provided by the 'D' box single spar and leading edge. Fuel in the spar box and bombs stowed behind the spar. Retractable stabiliser floats of unique design in the outer wingView attachment 656624View attachment 656626.

And 2 1/2 tons of bombload? Be still my beating heart!



[Schneiderman]

Plenty for the anti-shipping role
