Soviet Ram Fighter Concept (1938 - I Think).

[Wingknut]

Hi folks,

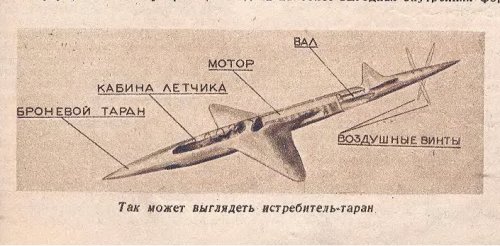

Thought this should go under ‘Theoretical and Speculative’ because I think the attached images are artist’s impressions or concept drawings, rather than deriving from an actual design. Anyway, making the best use I can of Google Translate, I think the attached originally come from ‘Technique-youth’ (or “Technology of Youth”) No. 8, 1938, but see article ‘Fighter-Ram’ here:
http://propagandahistory.ru/125/Istrebitel-taran/
Thanks, ‘Wingknut’



[Firebee]

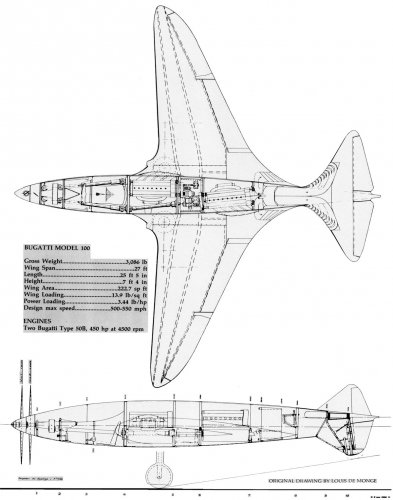

I think it resembles the Bugatti 100 racer more than just a bit. With some parts locations swapped, however.



[hesham]

Hi Wignknut,

it was from Grokhovski,and we had it here;

http://www.secretprojects.co.uk/forum/index.php/topic,17619.msg167960.html#msg167960



[Wingknut]

Thanks, Hesham - very sorry, I thought I'd searched in all the right places (e.g. under 'Ram', 'Taran', '1938' and 'Grokhovski' / 'Grokhovsky', etc.). I'll leave it posted for now though. All best, 'Wingknut'



[Motocar]

Very interesting



[r16]

The author of that "invention" tries to sell this ram fighter as a kind of ultimate wonder weapon
against the bomber, during a time, when the bomber still hadn't shown his full destructive power.
Nowadays, we probably would call such a drawing "fanart" .

from the other thread ; and as the resident nutter ı should readily say the bomber scare of 1930s was far greater than the 40s when it was demonstrated that they could be shot down , you know in their dozens , if not hundreds . And yeah , we have volume to retract into during crash/crush phase , right ?
