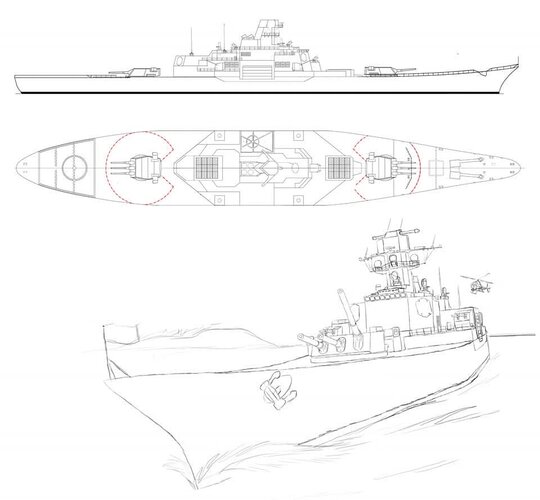

Someone knew information about this blueprint of aegis battle ship?

[M Raffa putra H]



[TomS]

Clearly fake/fantasy.

To me the most obvious tell is that the helo pad (already in an insane and terrible spot) has a lineup line for an approach though a piece of the superstructure. Whoever sketched that doesn't understand what the angled lineup lines are for and just copied them over from a standard aft helo pad. If an actual naval architect was going to draw something with a weird side helo pad like that, the markings would probably look like the helo spots on an LHD.



[TomS]

PS: Reverse image search is your friend.

https://www.deviantart.com/darkheart1987/art/Modern-Battleship-concept-265365879



[Justo Miranda]

My naval knowledge is very limited, but I don't think planar radar antennas could withstand the shock wave when the guns were fired. During World War II it was customary to throw seaplanes into the sea before entering combat.



[drwells42]

Except for the port-side helo/drone pad, I'd say that this one is not insane, however I share others' concern about the planar radar antennas' ability to withstand the overpressure from the guns. I wonder how much engineering it would take to "harden" the antennas and other electronics. Probably a lot......

DRW
