Snow Aviation International (SAI) SA-200 Series

Triton

Donald McKelvy
Senior Member
Joined
14 August 2009
Messages
9,707
Reaction score
2,501
Website
deeptowild.blogspot.com
Artist's impressions of Snow Aviation International (SAI) SA-210TA Intra-theater Tactical Airlifter with STOL and rough-field capability.

Source:
http://www.snowaviation.com/


Attachments

  • 210helos.jpg
    45.1 KB · Views: 269
  • 210ntbld.jpg
    36.6 KB · Views: 251
  • 210dst.jpg
    42.2 KB · Views: 242
  • 210mash.jpg
    61 KB · Views: 224
Artist's impressions of Snow Aviation International (SAI) SA-204C civil STOL transport aircraft.

Source:
http://www.snowaviation.com/


Attachments

  • 204ldin.jpg
    40.2 KB · Views: 88
  • 204747.jpg
    22.5 KB · Views: 408
http://www.flightglobal.com/pdfarchive/view/1989/1989%20-%201976.html
FLIGHT INTERNATIONAL 24 June 1989 (p.10)

Snow launches civil STOL

Snow Aviation of the USA has launched a civil cargo version of its SA-210 STOL tactical transport. The SA-204C is 3ft longer than the military SA-210TA now under development, and will be able to carry four A-type cargo containers. Federal Express has expressed interest in the twin turboprop aircraft, says Jack Kluever, vice-president sales for Ohio-based Snow Aviation.

Development of the military SA-210TA began early in 1987, and the first aircraft should fly
next February, says Kluever. Certification to civil FAR 25 rules is scheduled for late 1990. The aircraft will cost $6-65 million "green", he adds. Snow is currently putting together further financing needed to complete the project, estimated at up to $53 million to certification.

The aircraft began life as a modification to the de Havilland Canada Caribou, but changed so
significantly during design it is now an all-new aircraft, says Kluever. Design features include a landing gear able to take a 14ft/s descent rate and allow the aircraft to operate from wet sand or soft turf.

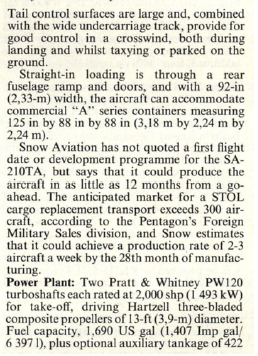

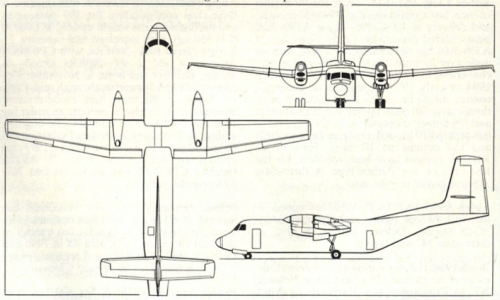

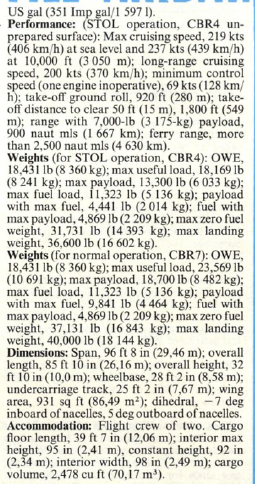

From Air International 5/1989,


here is the Snow SA-210TA aircraft project.


Attachments

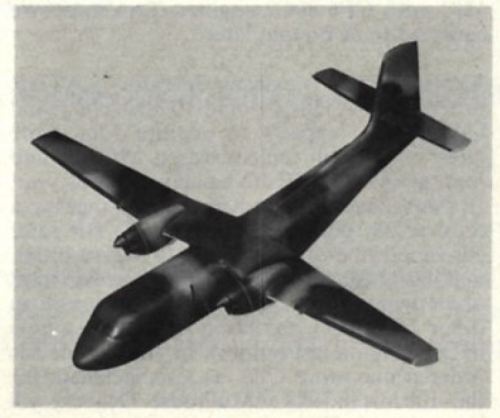

  • SA-210TA  Model.png
    SA-210TA Model.png
    561.8 KB · Views: 69
  • SA-210TA.png
    824 KB · Views: 89
  • SA-1-1.png
    370.6 KB · Views: 82
  • SA-1-2.png
    184.4 KB · Views: 56
  • SA-1-3.png
    254.9 KB · Views: 62
