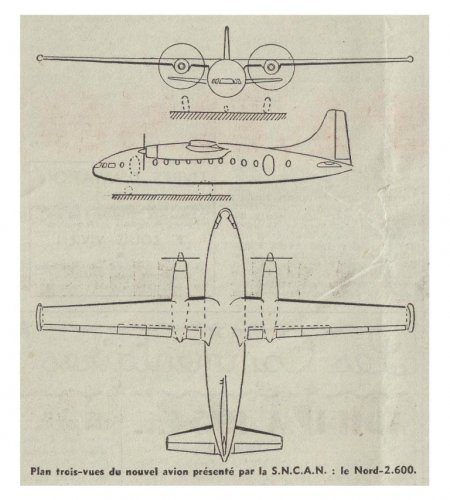

Dear Boys and Girls, here is an article in French about the SNCAN Nord 2600 turboprop airliner which was a follow-on to the SNCAN Nord 2501 Noratlas. It would have been powered by two Rolls-Royce Dart turboprops with wing-tip mounted Turboméca Palas booster jets; it remained a "project"......

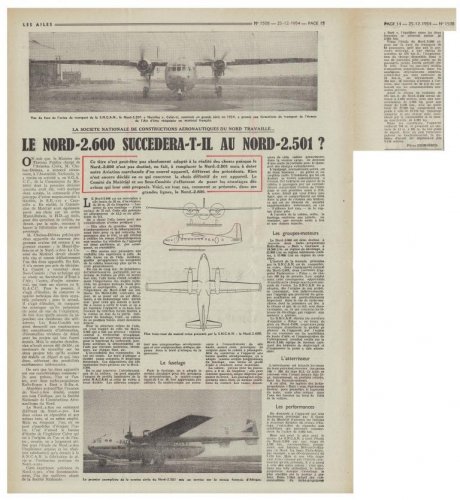

The article comes from the 25th December 1954 issue of Les Ailes......

Terry (Caravellarella)



[Stargazer]

Top view kind of heralds what truly WAS Nord Aviation's replacement of the Noratlas, the Transall...



[hesham]

My dear Caravellarella,

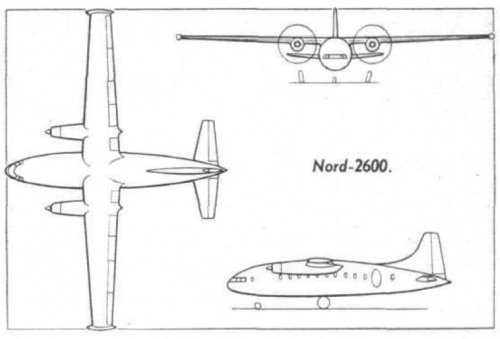

here is the SNCAN N.2600 from Flightglobal site,with Lockheed L-1449 project,
the SNCAN N.2600 was intended to compete the Hurel-DUBOIS HD-70.


http://www.flightglobal.com/pdfarchive/view/1955/1955%20-%200039.html



[Caravellarella]

Thank you Hesham for this better drawing; I wonder if the cabin floor would have been curved to match the cabin window line......

Terry (Caravellarella)



[hesham]

My dear Caravellarella,

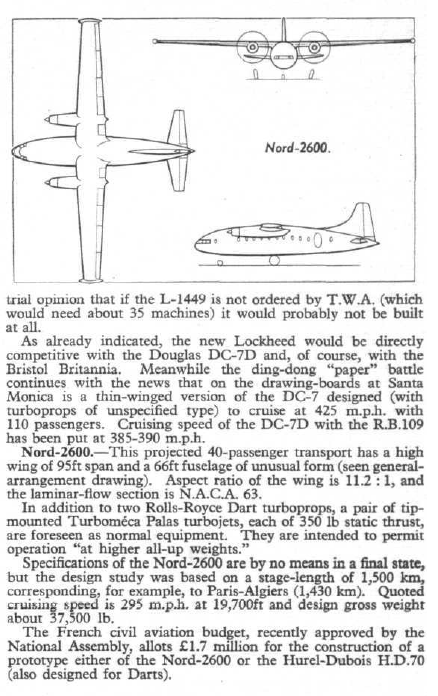

here is the SNCAN N.2600 from Flightglobal site,with Lockheed L-1449 project,
the SNCAN N.2600 was intended to compete the Hurel-DUBOIS HD-70.

http://www.flightglobal.com/pdfarchive/view/1955/1955%20-%200039.html

The page.



[PhR]

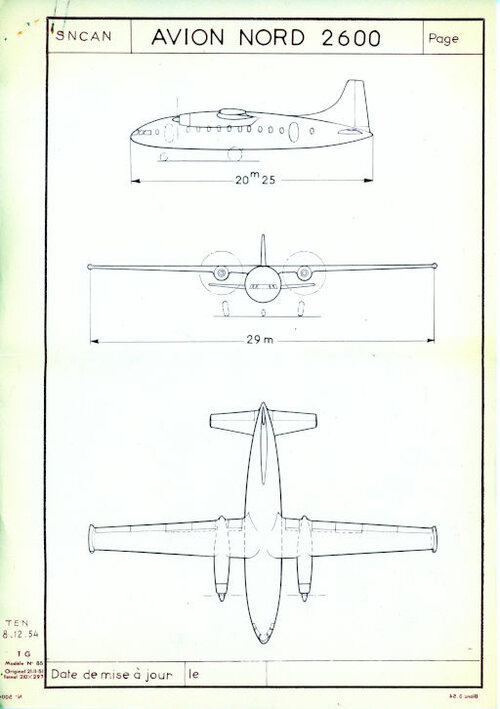

Sorry, I missed that dedicated topic. I placed in another thread this original 3-bue drawing of Nord 2600 project from my collection.
