SNCAC (Hanriot) NC-540 and NC-550

[Tophe]

While the built NC-510 is presented at http://www.secretprojects.co.uk/forum/index.php/topic,12658.msg135269.html

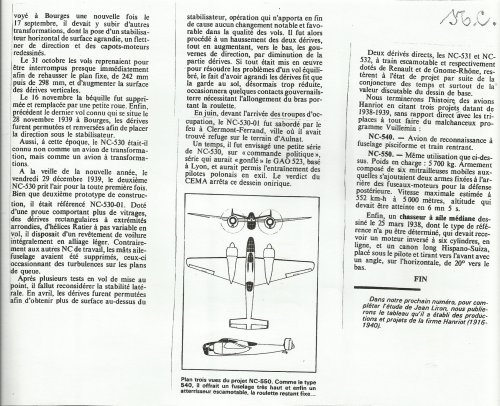

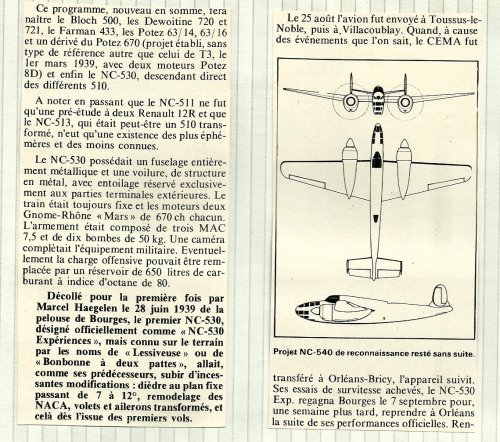

and the built NC-530 is also mentionned there, the rather different NC-540 and NC-550 are revealed in the Trait d'Union #214 (Mar-Apr 2004).

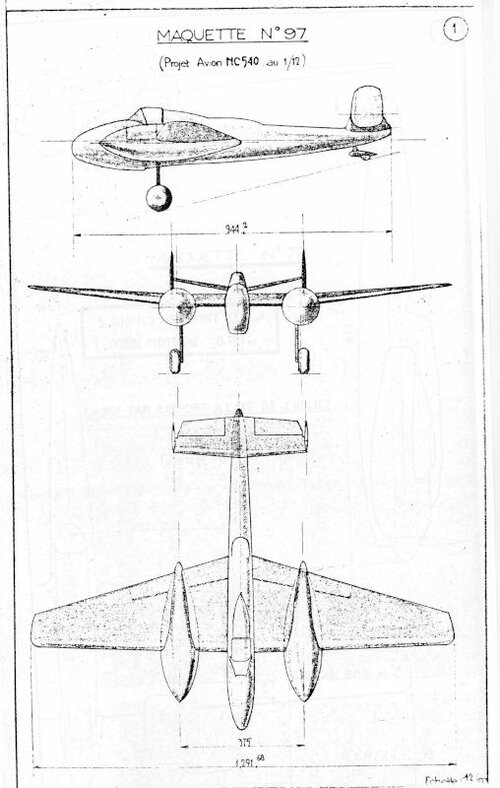

First, the NC-540 was a project (1938-39?) of reco three-seater aircraft with two Gnôme-Rhône engines and a retractable landing gear.



[Tophe]

The NC-550 was also a project of reco three-seat aircraft, this one having two Gnôme-Rhône 14 N48/49 engines of 1,180hp. Span 15.5m, total weight 5,700kg, maximum speed 552km/h. 6 movable machine guns and two guns at the rear of the engine pods.



[Maveric]

Do you have some data for the NC.540 my friend Tophe?


Thanks



[Tophe]

No data was included for the NC-540, sorry, but it seems a distant derivative between NC-510/530 and NC-550.
Thus maybe refer to : (510/530/550)
Span: 15.0/13.1/15.5m
Maximum weight: 3.8/5.1/5.7t
Maximum speed: 350/410/552km/h



[Maveric]

Thanks Tophe :'(



[airman]

Thanks , so watching NC-540 , i suppose the speed was near to 552 km/h of NC-550 some tens km/h less ! :



[Tophe]

I guess you are right: the engines of the 540 seem smaller than the 550's.
Concerning codes, there is no relation to maximum speed (about 550km/h for the NC-550 seems a coincidence, as this 550 belongs to the line 510/520/530/540/550 the 510 reaching only 350km/h - and the NC-600: 542km/h - the NC-600 being the code for the H-220-2).



[hesham]

Hi,

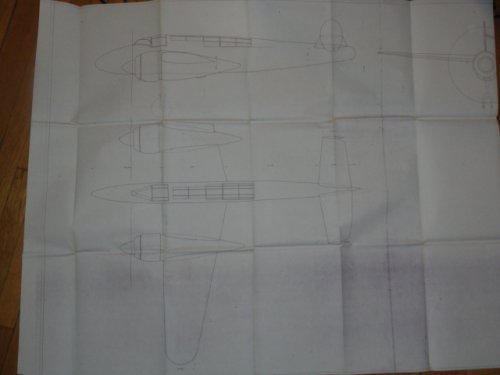

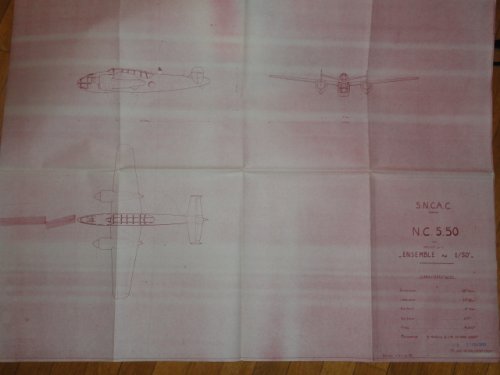

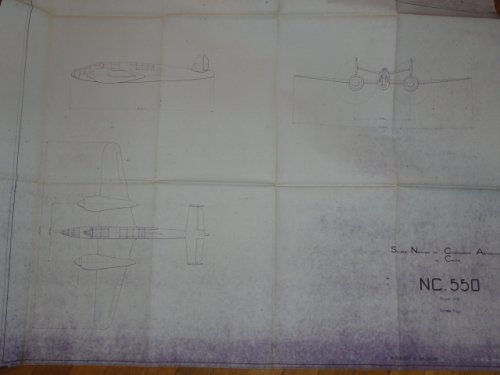

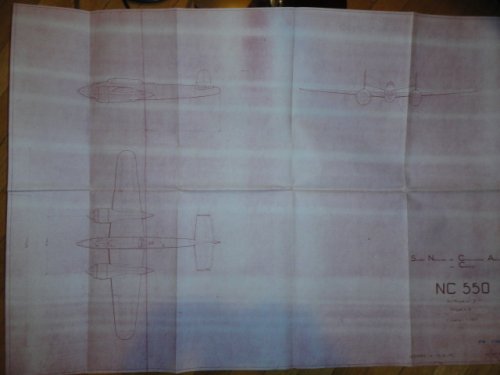

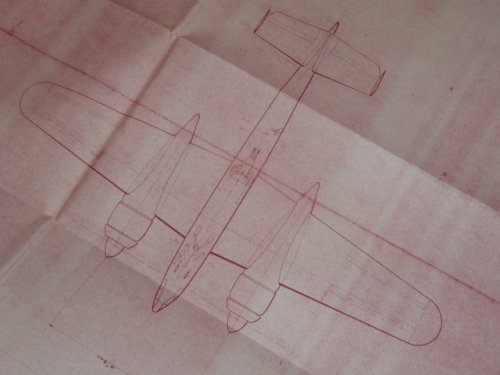

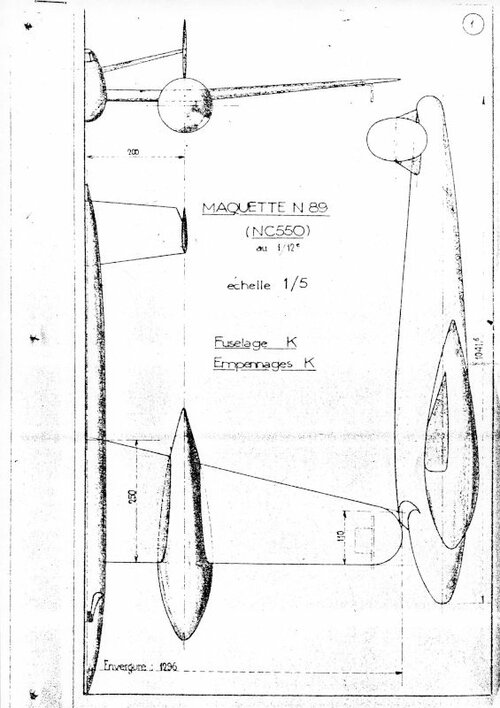

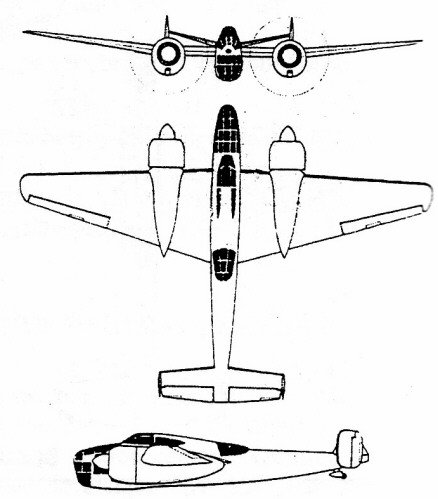

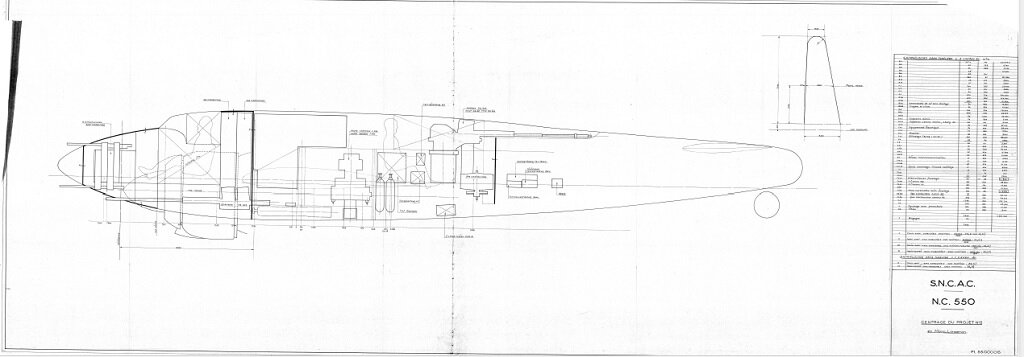

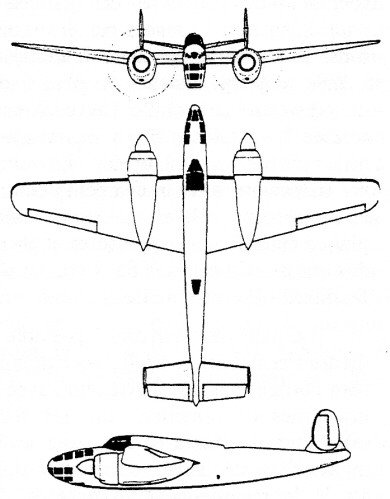

here is some SNCAC NC.550 drawings,but I don't know if the last one
is related to it or not.



[Jemiba]

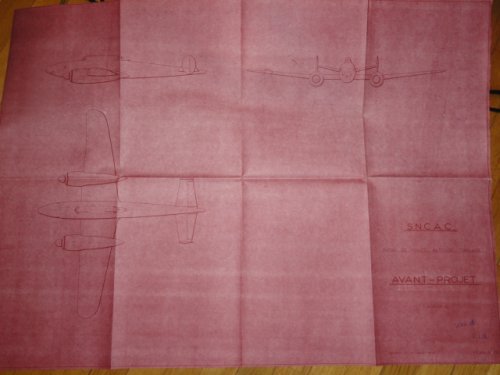

...but I don't know if the last one is related to it or not.

I think so, as the drawing is titled "Avant Projet", meaning pre-project and bears a strong
resemblance to the NC.550 .

BTW, could you tell us the source ?



[toura]

Hi all
From an old"aviation magazine"



[PhR]

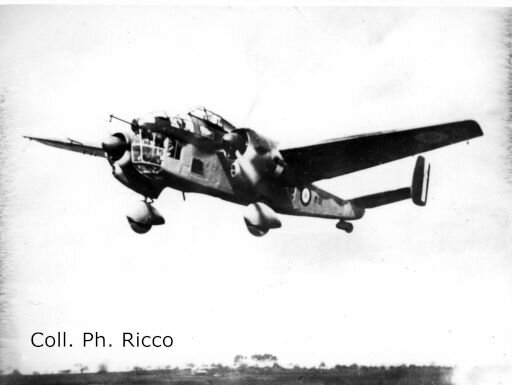

For the T3 program A19, the SNCAC has proposed the NC.520 project as an evolution of its 3 ptototypes NC.510, 511 and 512 ordered in August 1938. They received a new order 1463/8 in September for one prototype of this NC.520. This project became the NC.530 Exp, by modification of the NC.510-01.
A reconnaissance version was proposed as NC.532. This project became NC.540 after multiple modifications.



[PhR]

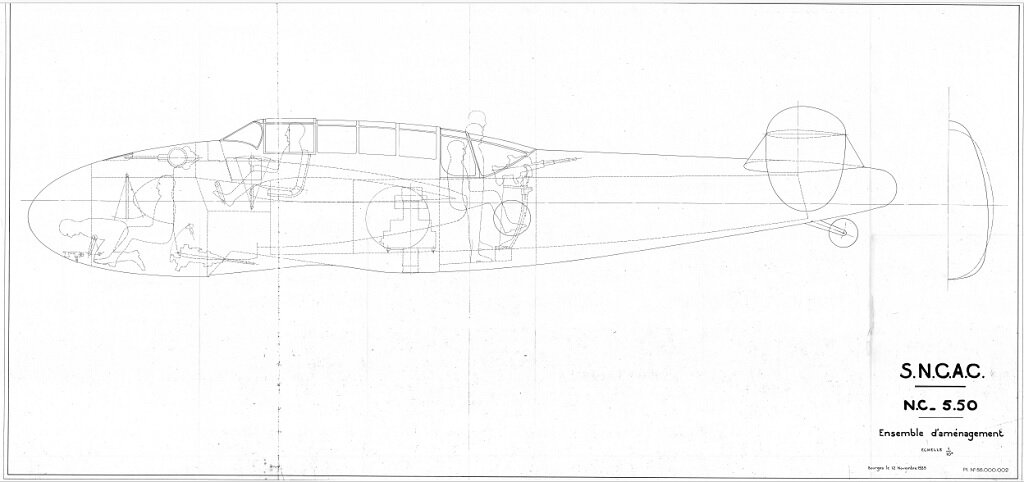

The SNCAC finally proposed an enhanced design with retractable landing gear, better aerodynamic and higher performances, the NC.550.
