Sikorsky S-43 - bomber/recconaisance project

[Silencer1]

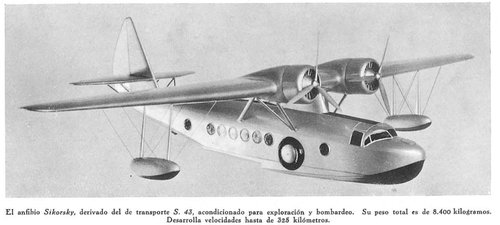

In Spanish magazine "Revista de Aeronautica" May 1936 I found curious article, describing military version (bomber and partol) of Sikorsky S-43 "Baby Clipper" amphibian.

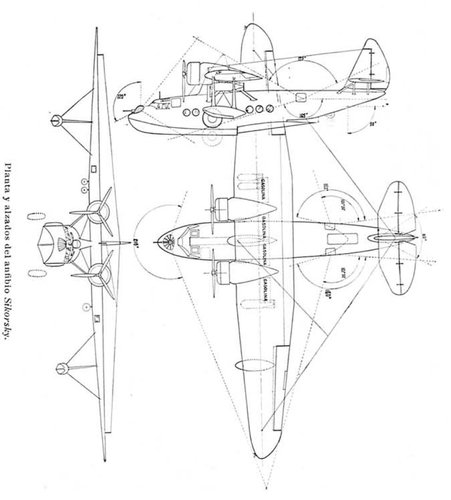

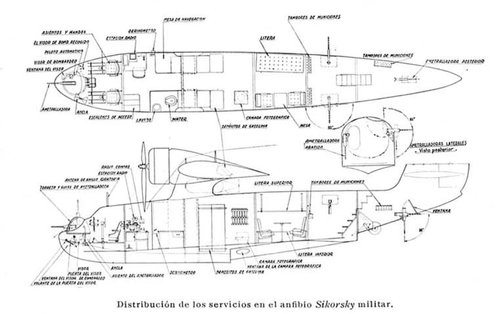

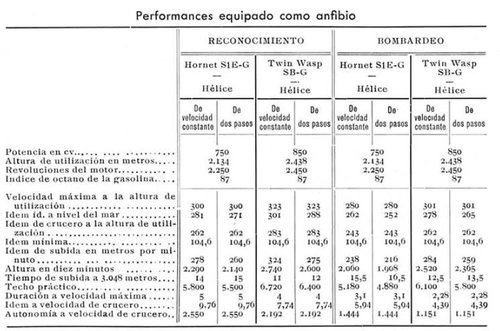

Article contains two drawings, demonstrating internal arrangement and defensive angles of armament, and consice description of aircraft features and charcteristics.
No sources mentioned - but I' don't read Spanish...
I'm aware, that there were S-43 versions for US Army Air Corps, Navy and Marines. But that aircraft doesn't have any armament, as far as I knew, used only for transportations.

For me, this project remind famous Consolidated PBY, by MG' arrangement and overall layout.
Did someone knew more about this project?



[tallguy]

So, William Green reports a version ordered by NEI for 48 planes



[tallguy]

Only source I have found though



[Silencer1]

Hi, tallguy!

So, William Green reports a version ordered by NEI for 48 planes

Thanks for reply!
Am I right, that NEI is Netherland's East India?
I so, Dornier Do-24 have been purchased for the partol/recconnaisance/bombing role.
In 1936, IMHO, Netherlands military budget has been too small for ordering such advanced (and still unbuilt) aircraft, like S-43 amphibian.



[tallguy]

Hi, tallguy!

So, William Green reports a version ordered by NEI for 48 planes

Thanks for reply!
Am I right, that NEI is Netherland's East India?
I so, Dornier Do-24 have been purchased for the partol/recconnaisance/bombing role.
In 1936, IMHO, Netherlands military budget has been too small for ordering such advanced (and still unbuilt) aircraft, like S-43 amphibian.

Yes, Neth East Indies. 1936? Probably more like 1940, after Do 24 supply was cut off.



[Silencer1]

Yes, Neth East Indies. 1936? Probably more like 1940, after Do 24 supply was cut off.

Thanks for clarification. I guess, what's the source of Spanish magazine' article? Even if any country showed their intention for such aircraft, haven't them hide their plans?
Perhaps, book from Ginter about S-43 could give us a clue?

Sikorsky 53 S-43/JRS-1, Amphibian, "Baby Clippers" by Steve Ginter

53 S-43/JRS-1

www.ginterbooks.com

I would admit, that Sikorsky company produced very little number of types and examples of armed aircraft, up to 1945.
Unusual cooperation with Consolidated (Guardian bomber) and XPBS-1 - comes to my mind.



[Grey Havoc]

On a related note, with regard as to the Sikorsky JRS-1:

View: https://www.youtube.com/watch?v=CN2J_eBP8OQ



[Petrusja]

The Netherlands navy issued a requirement for a replacement of the Dornier Wal reconnaissance flying boat in the Netherlands East Indies in 1934. Proposals were received from Dornier (Do 24 design), Fokker (B.V design) and Sikorsky (unknown). I think it is likely to have been an S-43 derivative. Interesting that William Green mentions a NEI order, although this is wrong. The Dutch wanted three or four engines so that may be why the S-43 was out of the race quickly and the PBY not even running. Dornier got the order.

The Netherlands military budget was limited but this was an important project. The NEI (Indonesia) was to be defended primarily by submarines, supported by a projected 72 reconnaissance flying boats.



[Petrusja]

Although it could also be the four-engined Sikorsky XPBS that was offered.
