Romeiko-Gurko RG-1 high-speed passenger/mail aircraft

[hesham]

Hi,

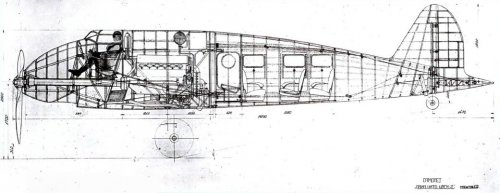

the Romeiko-Gurko RG-1 was unconventional high-speed passenger/
mail Russian aircraft of 1934,it was from a mixed-construction,braced
low-wing monoplane with large water-cooled engine on CG driving
tractor propeller via extension shaft under pilot's seat.it could carry
5/6 passengers.



[borovik]

There definitely is confusion.
RG-1 was light aircraft aviette (1929)

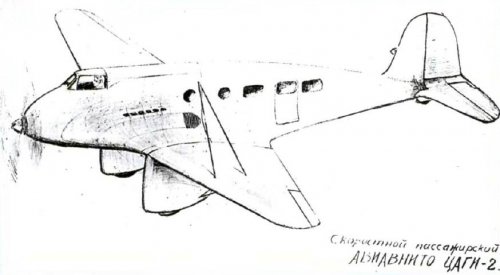

In this case, the description fits (with a probability of 98%) under the project high-speed passenger aircraft by Romeiko-Gurko with Kamenomostskiy and Nikolaenko submitted to the contest Aviavnito.

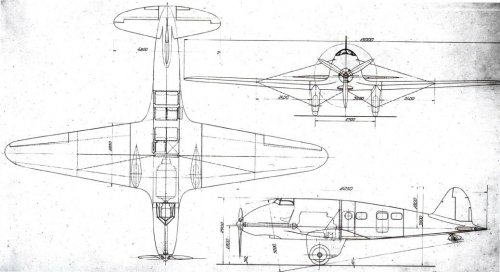

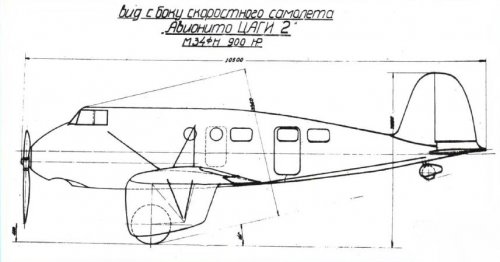

Aviavnito TsAGI-2 data:
engine: 1 - M-34FN 900hp.
span: 15m
lenght: 10,5 m
height: 3,2 m
ar.wing: 32m2
Courtesy of M. Maslov



[hesham]

Thank you my dear Borovik very very much,

and for Aviavnito,I think it was a for Kharkov.



[hesham]

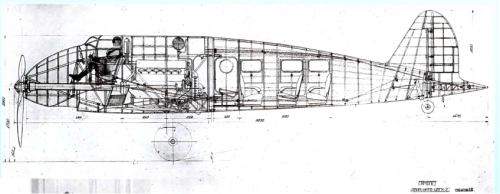

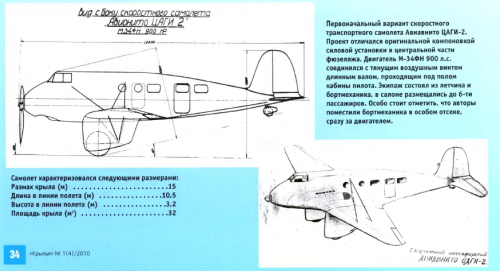

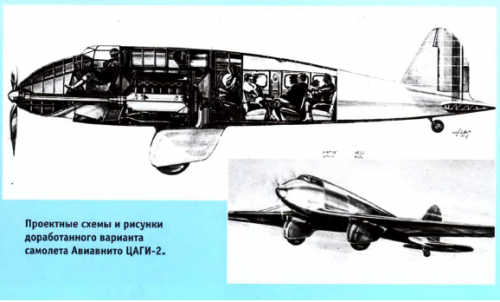

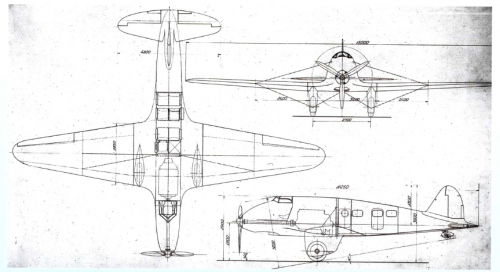

The same views with text and one drawing add,from Kryl'ya 2010.



[Motocar]

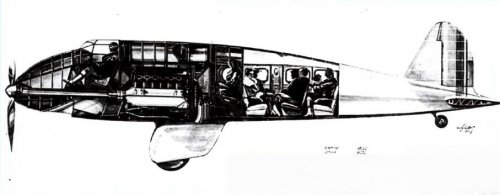

Good for cutaway drawing...!
