Rockwell unknown VSTOL transport aircraft of 1977

[hesham]

Hi,

I displayed this aircraft before,but I can't identify it,who can ?.

Low speed aerodynamic characteristics of a vectored thrust V/STOL transport with two lift/cruise fans
Renselaer, D. J
NASA-CR-152029

Low speed aerodynamic characteristics of a vectored thrust V/STOL transport with two lift/cruise fans - NASA Technical Reports Server (NTRS)

A wind tunnel test was conducted to obtain power on low speed characteristics of a twin fan vectored thrust V/STOL transport aircraft. Longitudinal, as well as some lateral directional data, were analyzed. Hover, STOL, and conventional flight modes were investigated. Determination of STOL...

ntrs.nasa.gov

[Admin - updated link and added report details]



[Jemiba]

I think, it's the entry for the A V/STOL competition, here's another

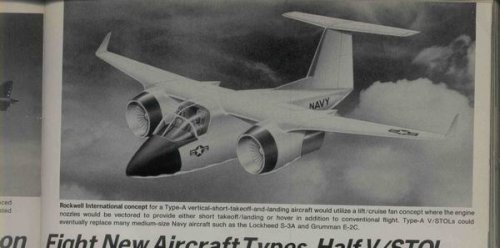

picture from Aviation Week 1977:



[hesham]

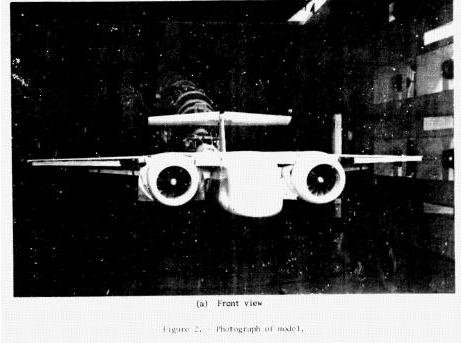

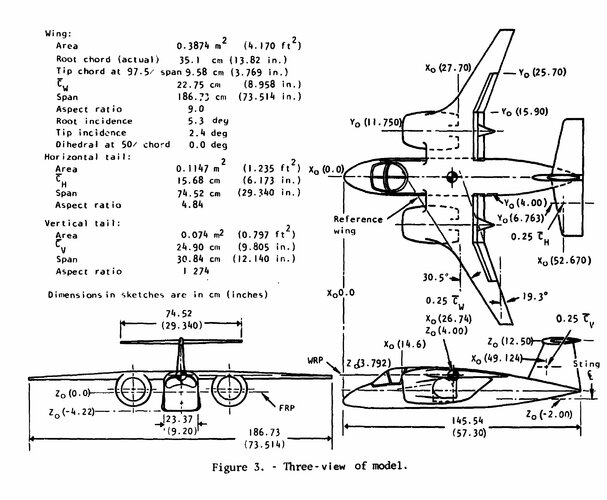

a Model for it.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19770022151_1977022151.pdf



[Vahe Demirjian]

I think, it's the entry for the A V/STOL competition, here's another
picture from Aviation Week 1977:

The aircraft in this artist's conception is the Rockwell (North American) NA-420. The NA-420 project is discussed elsewhere at this thread:

https://www.secretprojects.co.uk/threads/rockwell-na-420-na-430-and-na-431-us-navy-type-a-proposals.15481/



[riggerrob]

This reminds me of a proposal to replace the Lockheed S-3 Viking with a VTOL with tilting turbo-fan engines. The first sketches included gull wings and a canard, but - after wind-tunnel testing - they concluded that the canard was not needed because the huge engine cowlings generated sufficient lift to balance the airplane in cruise.



[aim9xray]

That would be the Grumman Model 698. Please see SPF Grumman Model 698 Thread for further info.



[overscan (PaulMM)]

I located the original report and fixed the link in the first post.

It's a Rockwell report, and it links the tested design to an earlier Rockwell report published by SAE:

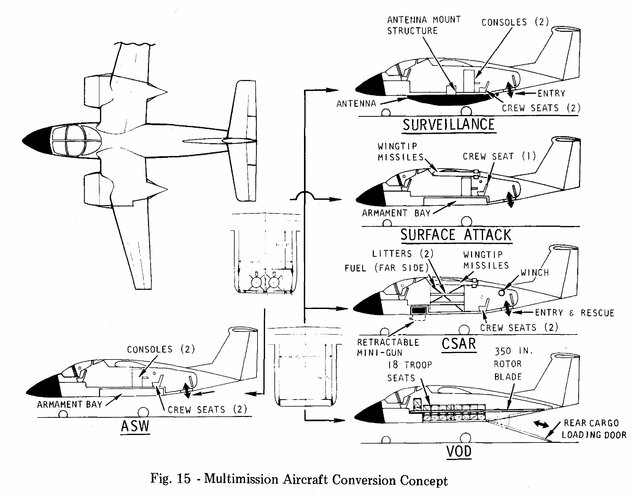

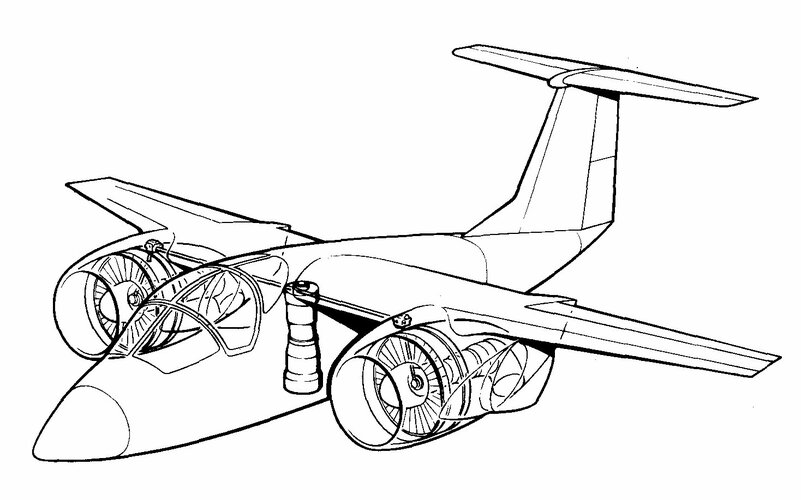

Three-Engine Two-Fan Navy Multimission V/STOL Aircraft Considerations
J.C. Ford, Rockwell International

Three-Engine Two-Fan Navy Multimission V/STOL Aircraft Considerations

A three-engine, two-fan arrangement for an advanced vertical and short takeoff and landing (V/STOL) lift/cruise multimission aircraft has many advantages.With three engines, sufficient engine-out thrust is available for safe operation, over the range of multimission emergency landing requirements. T

www.sae.org

Wing design is obviously different but I think it's part of the Rockwell VSTOL Type A lineage. Probably will merge this topic to https://www.secretprojects.co.uk/th...30-and-na-431-us-navy-type-a-proposals.15481/



[aim9xray]

Well, this Rockwell has neither canards nor tilting nacelles as described by @riggerrob (it has fixed nacelles with tilt nozzles). His description sounds like the 698, but I could be wrong. Wouldn't be the first time!



[overscan (PaulMM)]

Oh right - sorry - I thought you were replying to the whole topic, you were replying to Riggerob''s off-topic post You are correct As you were.
