Regia Aeronautica's DSSE « Guidonia I » high altitude bomber (1938)

[Stargazer]

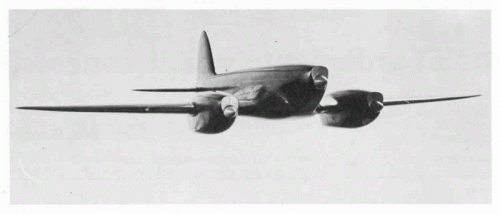

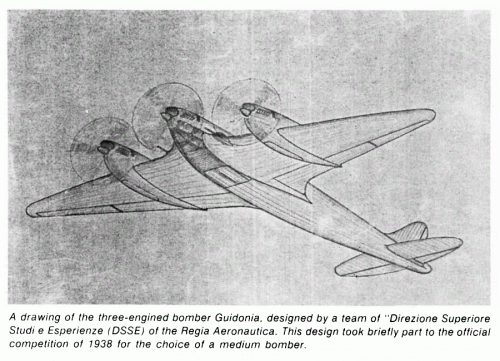

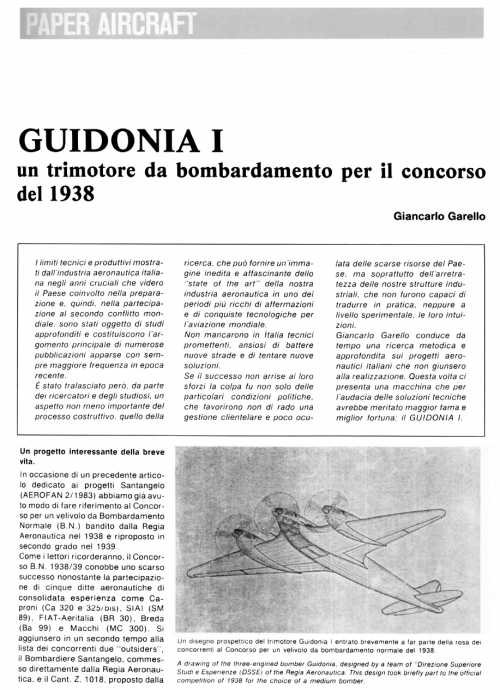

While browsing through magazines I came across an issue of the Italian AeroFan with this unknown project for a three-engined high-altitude bomber, the Guidonia I, studied in 1938 by the Regia Aeronautica's DSSE (Divizione Superiore Studi e Esperienze). According to the article, the design briefly took part in the official 1938 medium bomber competition against the projects of established companies such as Caproni's Ca.320 and 325/bis, Savoia-Marchetti's SM-89, FIAT-Aeritalia's BR.30, Breda's Ba 99 and Macchi's MC 300, although as part of a "second list" of "outsiders", along with the Cant Z. 1018.



[Stargazer]

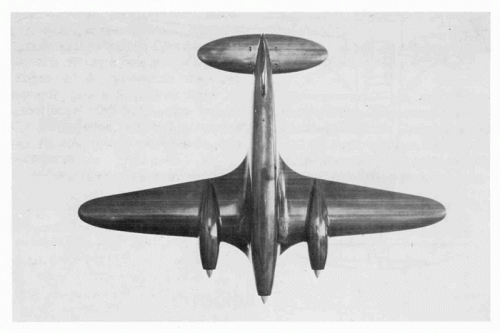

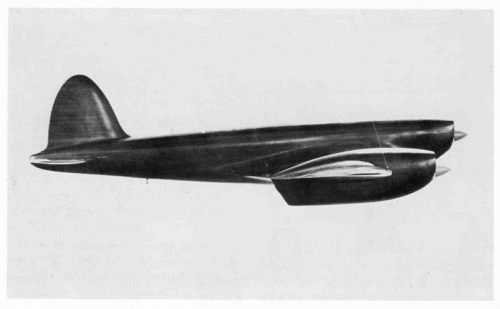

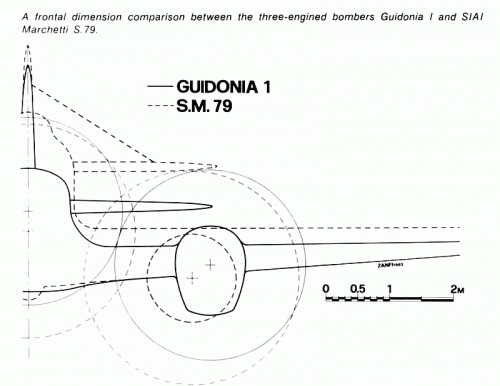

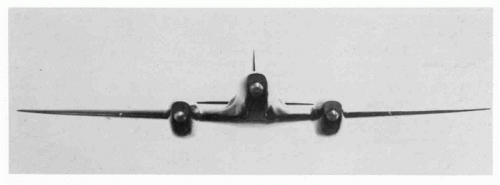

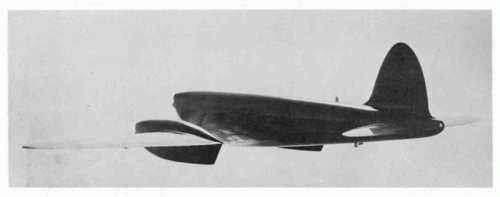

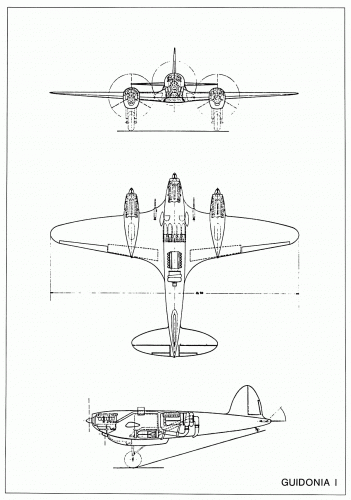

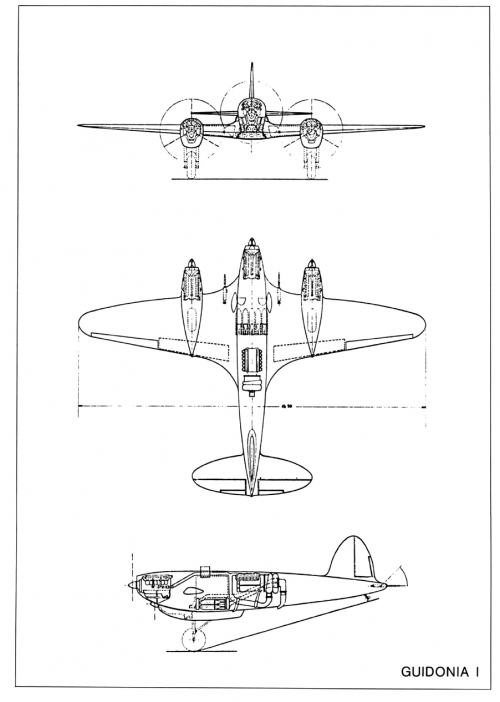

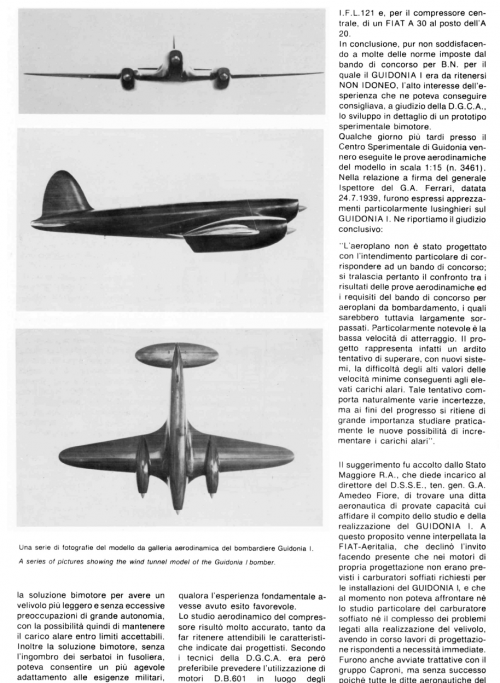

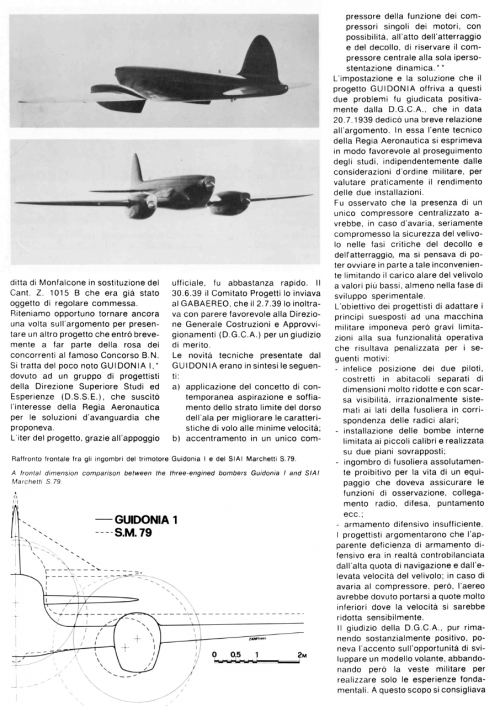

More pics of the wind tunnel model, a diagram showing comparative sizes with Savoia-Marchetti's SM.79 and a three-view arrangement:



[Stargazer]

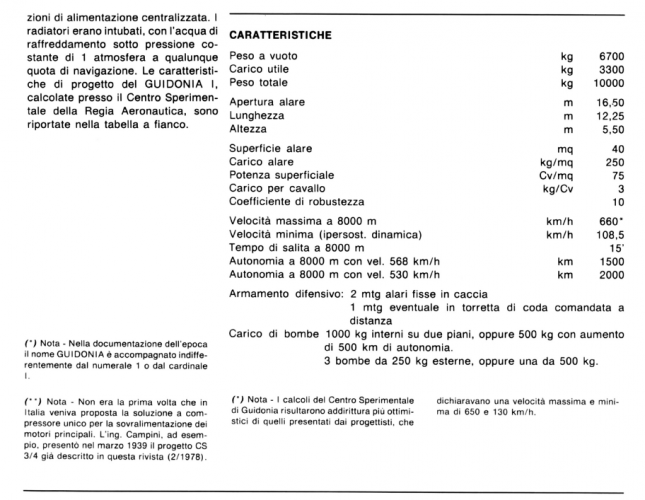

Technical characteristics

Weight:

• Empty weight: 6700 kg
• Payload: 3300 kg
• Total weight: 10000 kg (10 tons)

Dimensions:

• Wing span: 16,50 m
• Length: 12,25 m
• Height: 5,50 m
• Wing area: 40 m²

Performance:

• Wing loading: 250 kg/m²
• Power: 75 hp/m²
• Load factor: 3 kg/hp
• Strength factor: 10
• Maximum speed at 8000 m: 660 km/h
• Minimum speed: 108,5 km
• Time to reach 8000 m: 15 minutes
• Range at 8000 m with 568 km/h speed: 1500 km
• Range at 8000 m with 530 km/h speed: 2000 km

Defensive armament:

• 2 machine-guns in the wings
• 1 optional machine-gun in turret, controlled from cockpit

Bomb load:

• 1000 kg in two layers, or only 500 kg for a 500 km increase in range
• 3 external 250 kg bombs, or only one 500 kg bomb




[archipeppe]

REALLY Interesting!!!!!!
Never heard about it (even if it shows some resembling with Piaggio P.23R).


Many, many thanks Stargazer!!!!!!!!!
