Reggiane Re 101 to Re 105 Aircraft Engines

During WWII, the Italian aircraft manufacturer Reggiane designed a few aircraft engines. Only the Re 103 was built. It was an inverted W-18 that produced 1,740 hp (1,298 kW) and displaced 2,435 cu …

oldmachinepress.com

Motori - Reggiane fighters

www.reggiane.info

(Full credit to the above sources for information.)

In an alternate reality where Italy had a production capacity on par with the other major powers, these engines (at least in my opinion) would have been the standard Italian "Merlin/Daimler-Benz" equivalent.

Re 101 RC50 I - 1,200HP at takeoff
Re 102 RC50 I - 1,550HP at takeoff
Re 103 RC50 I - 1,740HP at takeoff with boost* (Planned for fighters, was considered for the Re.2005. This was also the only engine produced.)
Re 103 RC40 I - 1,700HP at takeoff with boost* (Planned for bombers.)
Re 103 RC57 I - 1,405HP at 5,700M
Re 104 RC38 - 1,100HP at sea level
Re 105 RC100 I - 1,310HP at 10,000M (Inferred to be a high altitude engine. This engine was ordered but never finished.)
H-24 - 2,200HP at 6,000M (Re 103 adapted into an H-design)
Diesel Design - Unknown specifications

The only known aircraft considered for any of these engines I could find were the Re.2005, Caproni-Vizzola MTC, and something described as "Campini twin engine bomber"** (?).

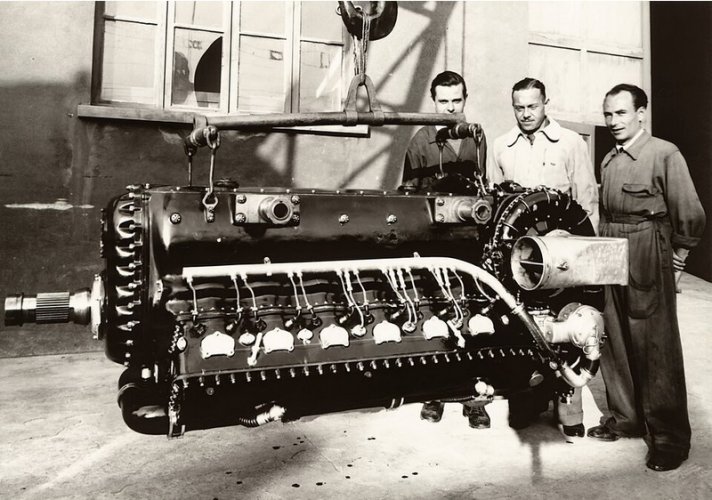

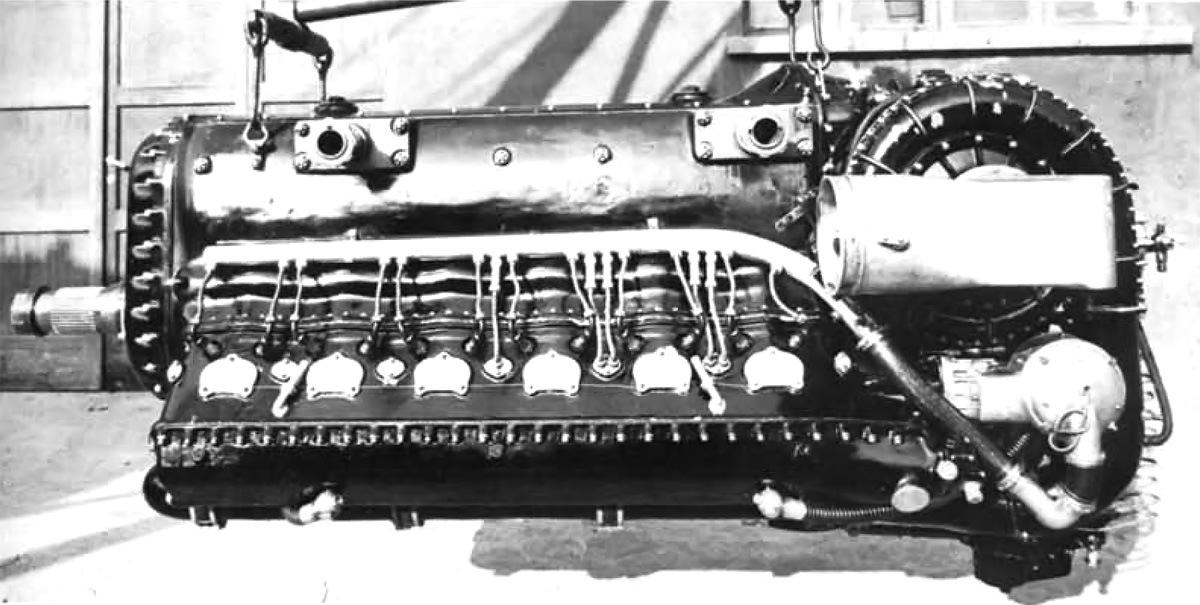

A picture of the Re 103 (Can't copy unfortunately):

https://picryl.com/media/reggiane-re-103-627aeb

*The second source might provide info without boost, but these are also at a minimum 1,500M. (1,640HP for RC50, and 1,540HP for RC40.)
**Mentioned in the second source. Perhaps intended as a motorjet and therefore for the CS.11 bomber?



[iverson]

Reggiane Re 101 to Re 105 Aircraft Engines

During WWII, the Italian aircraft manufacturer Reggiane designed a few aircraft engines. Only the Re 103 was built. It was an inverted W-18 that produced 1,740 hp (1,298 kW) and displaced 2,435 cu …

oldmachinepress.com

Motori - Reggiane fighters

www.reggiane.info

(Full credit to the above sources for information.)

In an alternate reality where Italy had a production capacity on par with the other major powers, these engines (at least in my opinion) would have been the standard Italian "Merlin/Daimler-Benz" equivalent.

Re 101 RC50 I - 1,200HP at takeoff
Re 102 RC50 I - 1,550HP at takeoff
Re 103 RC50 I - 1,740HP at takeoff with boost* (Planned for fighters, was considered for the Re.2005. This was also the only engine produced.)
Re 103 RC40 I - 1,700HP at takeoff with boost* (Planned for bombers.)
Re 103 RC57 I - 1,405HP at 5,700M
Re 104 RC38 - 1,100HP at sea level
Re 105 RC100 I - 1,310HP at 10,000M (Inferred to be a high altitude engine. This engine was ordered but never finished.)
H-24 - 2,200HP at 6,000M (Re 103 adapted into an H-design)
Diesel Design - Unknown specifications

The only known aircraft considered for any of these engines I could find were the Re.2005, Caproni-Vizzola MTC, and something described as "Campini twin engine bomber"** (?).

A picture of the Re 103 (Can't copy unfortunately):

https://picryl.com/media/reggiane-re-103-627aeb

*The second source might provide info without boost, but these are also at a minimum 1,500M. (1,640HP for RC50, and 1,540HP for RC40.)
**Mentioned in the second source. Perhaps intended as a motorjet and therefore for the CS.11 bomber?

See https://www.secretprojects.co.uk/threads/italian-fighter-projects.5420/post-2901
