Re: Kharkov (Kharkiv) Aviation Institute "KhAI-" designations

[Silencer1]

In the book 'Aviation in Ukraine" (by V.Savin, 1995) there has been chapters, covering the projects and prototypes, developed in KhAI and other Ukrainian small design groups.

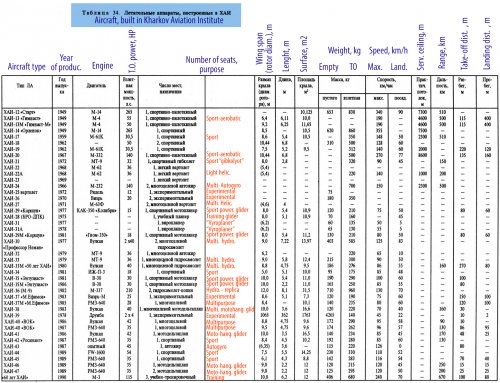

The table with specifications (on Russian) looks like this:


P.S. I prepared another version of table, with additional english text. Hopes, this helps



[Stargazer]

P.S. I prepared another version of table, with additional english text. Hopes, this helps

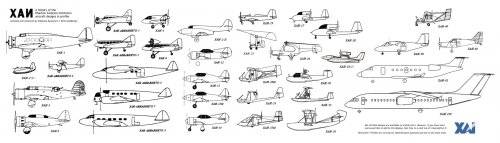

Absolutely brilliant. Thanks Silencer1! Can't wait to put this table to good use as I'm fascinated by these little-known Soviet/Russian student projects.

And thanks igor-mich for the great pics.



[Stargazer]

Here's the expanded version of the KhAI- list. Some entries are still missing, some data too.
So please add to it if you can! And if you spot any mistake I will edit the list accordingly.

Kharkov Aviation Institute (KhAI) list of projects
Харьковский авиационный институт (ХАИ) перечень проектов

KhAI-1 Seven-seat modern airliner with 480 hp M-22 engine (1932). 45 built.
KhAI-1B (KhAI-1VV) Military variant for bomber training. 2 conversions.
KhAI-2 Alternate, more conservative airliner design study (1932).
KhAI-2 (2nd use) Small experimental glider (1934).
KhAI-2 (3rd use) Single-seat low-wing experimental jet aircraft with 50 kg/st Lyulka RTD-1 engine (1937).
KhAI-3 "Leninskaya Iskra" No details. Use of this designation for the KAI-Aviavnito-3 is a widespread mistake.
KhAI-4 "Iskra" Two-seat tailless light aircraft, with fixed foreplane later added with 100 hp M-11 pusher engine (1934).
KhAI-5 (R-10) Two-seat reconnaissance and light bomber aircraft with M-25 (also M-62, M-63, M-88) engine (1936). Over 500 built.
KhAI-5bis (KhAI-51) Improved version of R-10 with M-25E engine (1938).
KhAI-6 Single-seat photo reconnaissance aircraft with 712 hp Wright SGR-1820 F3 Cyclone (1935).
KhAI-7 Possibly reserved for Aviavnito-7 project if produced.
KhAI-8 Planned production version of Aviavnito-3 with two engines mounted atop wing on pylons.
KhAI-9 Possibly reserved for Aviavnito-9 project if produced.
KhAI-10 Apparently not allocated
KhAI-11 Experimental tailless glider.
KhAI-12 "Start" Single-seat sport/aerobatic aircraft with 265 hp M-14 engine (1949).
KhAI-13 "Gymnast" Single-seat sport/aerobatic aircraft with 55 hp M-4 engine (1949).
KhAI-13M "Gymnast-M" Single-seat sport/aerobatic aircraft with 50 hp M-4 engine (1949).
KhAI-14 "Orlyonok" Single-seat sport aircraft with 265 hp M-14 engine (1949).
KhAI-15 Apparently not allocated
KhAI-16 Apparently not allocated
KhAI-17 Single-seat sport aircraft with 30.5 hp M-61K engine (1959).
KhAI-18 Two-seat sport aircraft with 50 hp engine, a development of KhAI-17. Not built (1961-62).
KhAI-19 Single-seat sport aircraft with 30.5 hp M-61K engine (1962).
KhAI-20 Single-seat sport/aerobatic aircraft with 140 hp M-332 engine, developed from KhAI-17 (1967).
KhAI-21 Single-seat sport hang-glider with 32 hp MT-9 engine (1972).
KhAI-22 Single-seat light helicopter with 36 hp M-62 engine (1968).
KhAI-22A Single-seat light helicopter with 36 hp M-62 engine (1968).
KhAI-23 Single-seat light helicopter; project only (1969).
KhAI-24 Two-seat multipurpose autogyro with 140 hp M-232 engine (1966).
KhAI-25 Light experimental ekranoplane (1966).
KhAI-25 (2nd use) Single-seat experimental helicopter with 12 hp Riedel engine (1972).
KhAI-26 Light two-seat experimental ekranoplane with 20 hp Vikhr engine (1966-70).
KhAI-27 "Kharkovchanin" Two-seat multipurpose helicopter with M-63F engine (1971).
KhAI-28 (BRO-DPK) Single-seat training glider (1975).
KhAI-29 "Korshun" Single-seat sport powered glider with 15 hp KAK-350 "Colibri" engine (1977).
KhAI-29M "Korshun-M" Single-seat sport powered glider with 18 hp Gnôme-350 engine (1981).
KhAI-29C "Korshun 5" No details.
KhAI-30 "Professor Nyeman" Two-seat multipurpose seaplane with two 40 hp Vulcan engines (1977). One built.
KhAI-31 Single-seat "vyroplaner", likely the equivalent of a gyro-glider (1977).
KhAI-31A Single-seat "vyroplaner", likely the equivalent of a gyro-glider (1978).

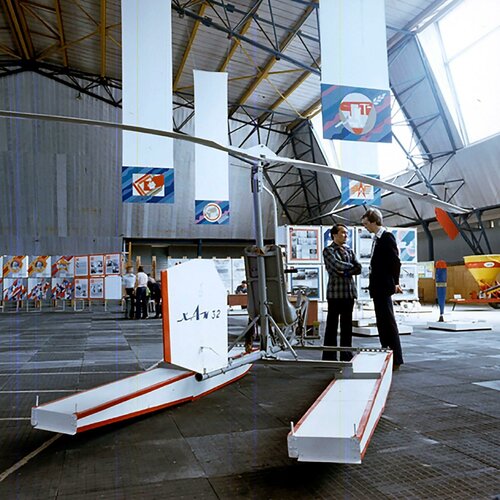

KhAI-32 Single-seat multipurpose autogyro with 36 hp MT-9 engine (1979).
KhAI-33 Single-seat multipurpose seaplane with 36 hp MT-9 engine (1979).
KhAI-33M "50 лет ХАИ" Single-seat multipurpose seaplane with 40 hp Vulcan engine (1980).
KhAI-34 Single-seat sport aircraft with 18 hp IJ-P-3 engine (1981).
KhAI-35 "Entuziast" Single-seat sport powered glider with 30 hp V-30 engine (1981).
KhAI-35M "Entuziast" Single-seat sport powered glider with 30 hp V-30 engine (1986).
KhAI-35M2 "Entuziast" Unidentified variant.
KhAI-36 Two-seat Grigorovich M-9 flying boat replica with 210 hp M-337 engine (1982). One built.
KhAI-37 "Mikhail Efimov" Single-seat experimental aircraft with 25 hp Vikhr-M engine (1983).
KhAI-37M "Mikhail Efimov" Single-seat multipurpose aircraft with 28 hp RMZ-640 engine (1985).
KhAI-37M2 "Mikhail Efimov" Unidentified variant.
KhAI-38 Single-seat multipurpose motorized hang-glider with 40 hp Vulcan engine (1983).
KhAI-39 Single-seat experimental aircraft with two 4 hp Druzhba engines (1978).

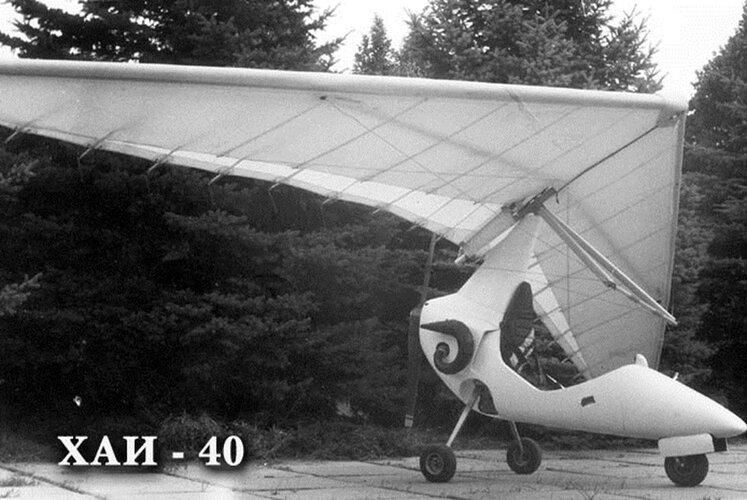

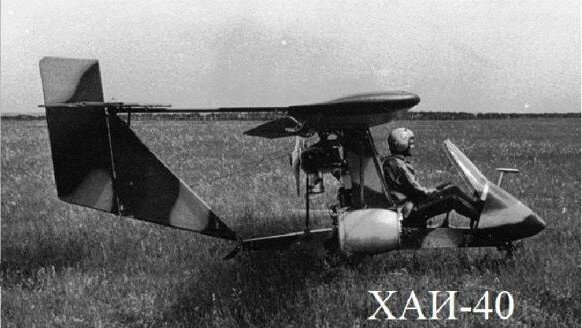

KhAI-40 "VOK" Single-seat multipurpose aircraft with 42 hp Vulcan engine (1986), then 35 hp RMZ-640 engine (1987).
KhAI-41 Single-seat motorized hang-glider with 42 hp Vulcan engine (1986).
KhAI-42 "Rossinant" Single-seat sport aircraft with 35 hp RMZ-640 engine (1987).
KhAI-43 Single-seat autogyro with 45 hp Opitniy engine (1987).
KhAI-44 Single-seat sport aircraft with 54 hp FW-1600 engine; not completed (1989).

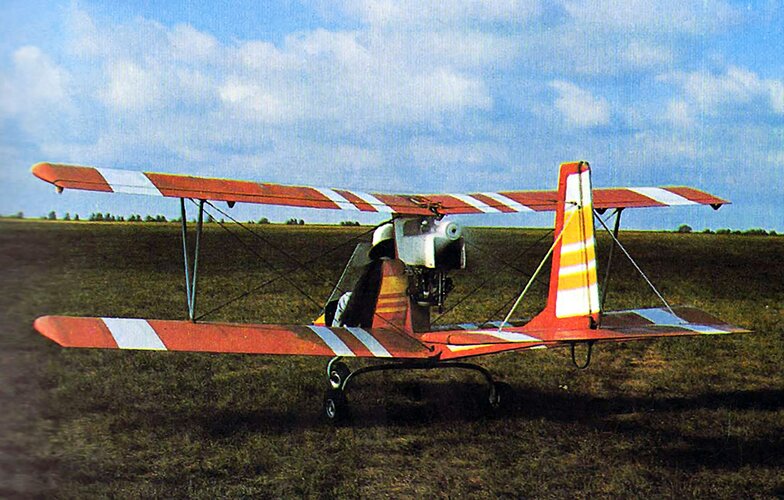

KhAI-45 Single-seat biplane sport aircraft with 35 hp RMZ-640 (later RMZ-500-Avia) engine (1989).
KhAI-46 Single-seat motorized hang-glider with 35 hp RMZ-640 engine (1989).
KhAI-47 Two-seat motorized hang-glider with 35 hp RMZ-640 engine (1989).
KhAI-48 Two-seat high-wing sport aircraft with 200 kg/st Rotax-582 pusher engine.
KhAI-49 Experimental autogyro with 45 hp engine, improved from KhAI-43 design (1995).

KhAI-51 Non-sequential, alternate designation of KhAI-5bis.
KhAI-52 Production version of KhAI-51; ten ordered but production cancelled with M-63 engine (1938).
— PS-5 One R-10 (KhAI-5) for use as a postal and passenger aircraft.

KhAI-60 Designation used for the "60 лет ХАИ" three-seat training aircraft with 115 hp M-3 engine (1990).

KhAI-70 Small twin-engine low-wing general purpose aircraft project (1995).

KhAI-80 Tandem wing unmanned vehicle, similar to Poysk series but with two engines, not launched.
Designation seldom used (confusion with KhAI's 80th anniversary).

KhAI-90 Small twin-engine high-wing passenger aircraft project.

KhAI-92 Twin-engine 19-passenger business jet project.

KhAI-101 Unmanned aerial vehicle, no details.

KhAI-103 to -108 Unmanned aerial vehicles, apparently for meteorological use.
KhAI-109 Unmanned aerial vehicle, no details.
KhAI-110 Unmanned aerial vehicle, no details.

KhAI-112 All-composite unmanned aircraft used for civilian (agricultural, etc.) and military purposes (1988).
KhAI-112K Variant with tricycle landing gear and a parachute for emergency landings.

KhAI-150 Twin-jet 150-passenger high-wing airliner project (2014).

KhAI-Aviavnito-1 "Strekozoy" Single-seat light aircraft entered unsuccessfully in 1935 race organized by Osoaviahimov central council (1934-35).
KhAI-Aviavnito-2 "Blokha" Two-seat powered glider project with PL-5 engine (1936).
KhAI-Aviavnito-3 "Sergey Kirov" Twelve-seat flying wing passenger aircraft with two fuselage pods, two M-11 engines (1936).
KhAI-Aviavnito-4 Two-seat project with M-48 engine; started but not completed (1934-35).
KhAI-Aviavnito-5 No details.
KhAI-Aviavnito-6 twin-engine, V-tailed passenger aircraft project with two M-34 engines (1934).
KhAI-Aviavnito-7 twin-engine, V-tailed light bomber aircraft project with two M-34 engines (1934).
KhAI-Aviavnito-8 Twelve-seatmotor glider projectwith two 100 hp M-11 engines (1937). Never completed.
KhAI-Aviavnito-9 twin-engine, V-tailed passenger aircraft project with two 750 hp M-34 engines (1934). Not built.

AVP-1 Experimental ground effect vehicle (1961).
AVP-2 Experimental ground effect vehicle (1962).
AVP-3 Experimental ground effect vehicle (1963).
AVP-4 Experimental ground effect vehicle.

AS-2 Experimental land vehicle on skis with pusher engine (1961).

Undesignated types:
— "Ivanov" multi-purpose (short-range bomber, recce and attack) "military-tactical" aircraft proposal with M-34FRN engine (1936).
— "Bezlonzheronka" KhAI (glider).
— "Osovets" KhAI (glider).
— "Komsomolets" KhAI (glider).
— "Osoaviakhimovets" KhAI (glider) (1934).
— "Baikal" (glider?)
— "Sprint" No data.
— "60 лет ХАИ" three-seat training aircraft with 115 hp M-3 engine (1990) >> SEE KhAI-60
— "Poysk" tandem wing UAV, related to the KhAI-80 design.
— "Poysk-2" Variant, differences unknown.
— "Poysk-3" Variant, differences unknown.

And also: VO-2M; S-1 to -10; S-100, S-102; TUNSO-2; T-10; U-2.

NOTE: Pre-war Kharkov types often appear under the name "Nyeman", after the institute's chief designer. The name was later removed when Nyeman was arrested in 1937.

Most of the new designations, but also the mysterious/unconfirmed ones are from online KhAI sources, notably these:

• Nauchno-Tekhnicheskaya Biblioteka
• Istoria KhAI (bibliography)

This is only a list. Kharkov types and projects are pictured and detailed in several forum topics:

• Kharkov Aviation Institute (KhAI) "Aviavnito" projects
• Kharkov KhAI-2 early jet plane project
• Postwar Kharkov (Kharkiv) Aviation Institute (KhAI) aircraft and projects



[Stargazer]

The list has been further updated, with many new additions and a few corrections.
If you're interested in those university prototypes, make sure also to check the links given in post above; the topics, too, have just been updated with previously unseen aircraft and projects... with more to come!



[Retrofit]

Great, thank you Skyblazer!



[hesham]

Amazing work my dear Skyblazer,just seen.



[Stargazer]

Great, thank you Skyblazer!

Amazing work my dear Skyblazer,just seen.

My pleasure! At least there are two people here that found it interesting... ;D



[Stargazer]

Going over the KhAI list again, and adding/rectifying a few things along the way:

• The KhAI-1VV is sometimes found as just "KhAI-1V" (KhAI-1B is a mistake).

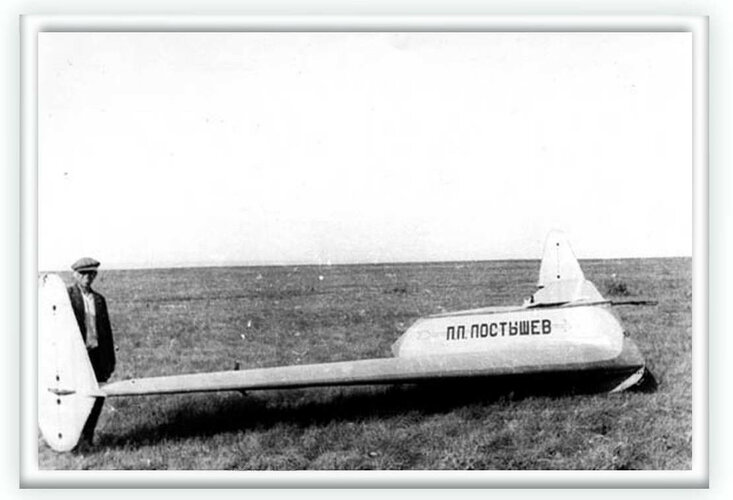

• The KhAI-2 (2) flying wing glider of 1934 was the same as the "P. Postyshev" glider.
• KhAI-3 has been found as an alternate designation for KhAI-1VV.
• KhAI-5 and R-10 were not exactly the same. The R-10 was the production version.
• KhAI-6 was also designated the SFR.
• Contrary to what I suggested, KhAI-9 was NOT related to the KhAI-Aviavnito-9. Instead, it was a glider designed and built by Isai Pavlovich Alexander in 1937.
• Contrary to what is said on some sites, the designations KhAI-12 and KhAI-14 were never assigned to sailplanes. This error results from a confusion by Westerners between "KhAI" (Kharkov Aviation Institute) and "KAI" (Kazan Aviation Institute).
• "Komsomolets-KhAI" was a glider built in 1953. Although it doesn't seem to have carried a designation, the date makes it a possible candidate for one of the undocumented -15 and -16 slots.
• A reuse of the designation KhAI-21 for a helicopter has been mentioned, but is not confirmed by any evidence so far.
• The first KhAI-25, an ekranoplane project, was never built, hence the reuse of the designation for a helicopter.
• The KhAI-28 (or BRO-DPK) was a development of the famous Oshkinis BrO-11 training glider from Latvia. Three were built for use by KhAI students. Note that an unspecified number of BrO-9 types had also previously been built at KhAI.
• Contrary to a frequent mistake (even found on a couple of KhAI-related pages!) the KhAI-32 had NOTHING to do with the much later Lilienthal Kh-32 "Bekas", just like the KhAI-34 had NOTHING to do with the Lilienthal Kh-34!
• The Grigorovich M-9 replica (KhAI-36) was built especially for a movie.

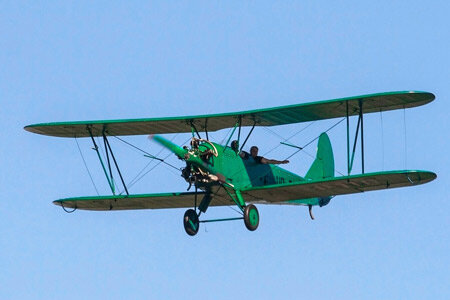

• Two more replicas were later built at KhAI: a Nieuport IV replica (for use in the Joker movie), and a Polikarpov Po-2 (U-2).
• An undesignated project was the "Salyut", a two-seater high-wing trainer study of 1982.
• According to a KhAI presentation, a single-seater delta-wing ultralight also carried the designation KhAI-40.

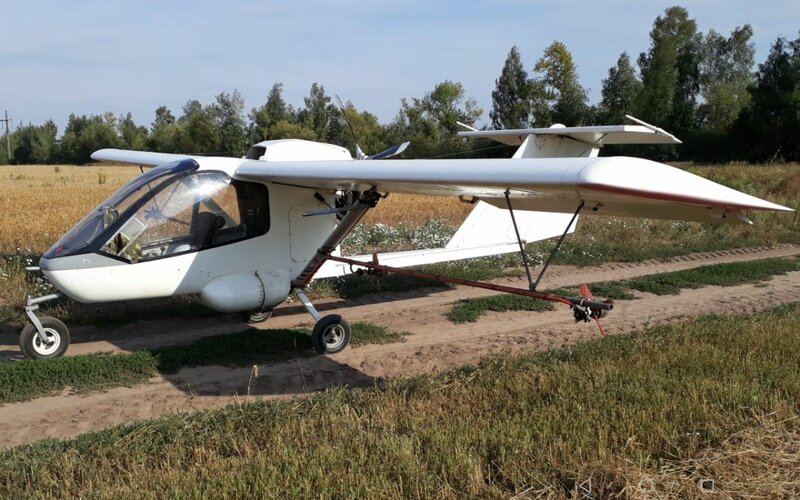

• The Vzlyot-KhAI Aviation Technical Club developed the KhAI-M01M5 "Khaiovets" project in the early 2000s. It was to be a four-seat high-wing multipurpose aircraft.

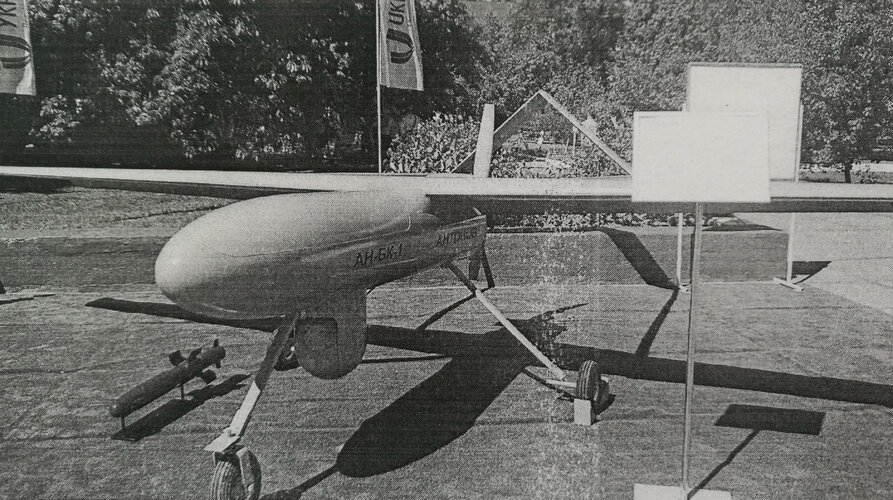

• The first unmanned vehicle developed at KhAI was the "Nosityel' Aerofotooborudovaniya" in 1973. Other UAVs were the NAFA-1 and NAFA-2 (1980) and the AN-BK-1 "Gorlitsa".
  The "S-" series consisted of delta-wing ultralight aircraft developed by the KAK A. Barannikov aviation club (part of SKB KhAI). The series ran from S-1 to S-9. The S-10 "Profil" was the only autogyro of the series. It was used for agricultural purposes, just like the S-7 and the S-5 SKh.

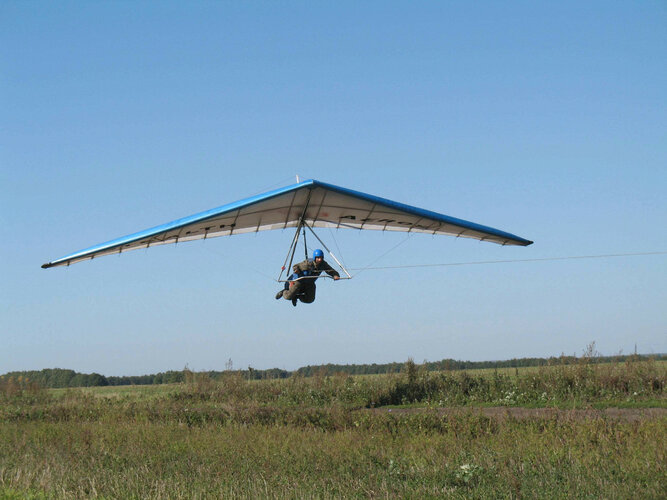

  The KAK A. Barannikov became the Deltaplanerniy Klub IKAR, developing only hang gliders: the "Student" series (Student-13, -16, -19 and -21) and "Stealth-KhAI" series (Stealth-KhAI-13 and -2-14). The Ukrainian government shut down the club in 2016, putting an end to its activities.

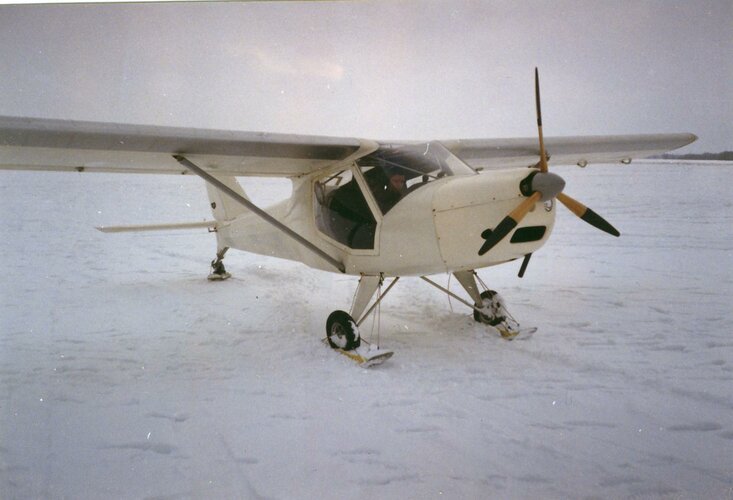

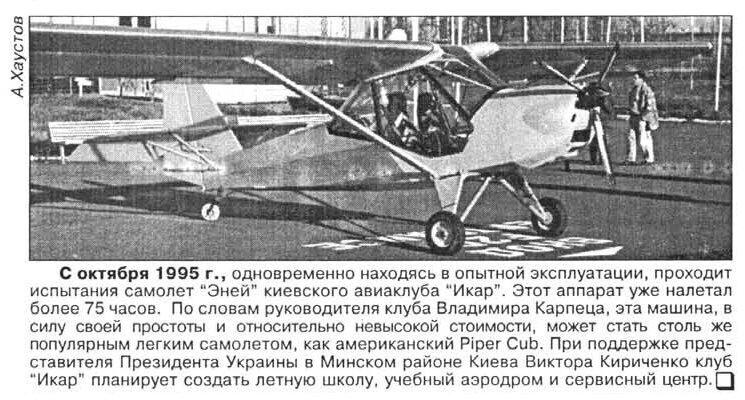

• Two proper aircraft were also developed under the "Aviaklub Ikar" monicker: the AI-10 "Ikar" (later produced by Skaethon as the K-10 "Swift") and the "Enei".
• The Shkurenko VS-3 "Sprint" apparently started life as a KhAI project.

I will soon upload a completely revised list.



[flateric]

UZGA LMS-901 "Baikal" apparently started life as KhAI projects.

?!



[Stargazer]

?!

I know it does sound strange, when said like that, but I found two clues pointing in that direction:

• mention of a "Baikal" in a list of KhAI-related projects,
• a post in a Russian forum on the day the LMS-901 flew, in which the poster said that he called his friends at KhAI to congratulate them. Second post in the page: https://www.forumavia.ru/t/201265/21/



[flateric]

Found it! Second post in the page:
https://www.forumavia.ru/t/201265/21/

Post author just saying that he called one of the UZGA staff that was studying with him in KhAI. Nothing more.
Baikal chief designer Dyomin has graduated MAI, was long time involved with OSKBES MAI and all the time MAI has some serious share in project tech side. So zero KhAI involvement especially considering timeline and political surroundings post-2014.

View: https://youtu.be/VBjrElCkqQ8?si=eXuWmFF_uv9DVLC8



[Stargazer]

Post author just saying that he called one of the UZGA staff that was studying with him in KhAI. Nothing more.

OK, then. I'll edit my post. Thanks!



[hesham]

This topic can help,

https://www.secretprojects.co.uk/threads/kharkov-kharkiv-aviation-institute-khai-aircraft-and-projects.11421/#post-166643



[Stargazer]

This topic can help,

https://www.secretprojects.co.uk/threads/kharkov-kharkiv-aviation-institute-khai-aircraft-and-projects.11421/#post-166643

Only once you've removed all the nonsense you wrote there! You misinterpreted picture numbers as model numbers in several posts, and it poses a big problem...



[hesham]

Only once you've removed all the nonsense you wrote there! You misinterpreted picture numbers as model numbers in several posts, and it poses a big problem...

What you are taking about ?,all them from a Russian or a reliable sources ?!,they identified
them as I mentioned exactly ?.



[TSARb]

KhAI-95 and KhAI-UTS: https://www.secretprojects.co.uk/threads/new-ukrainian-light-fighter-lbl.27165/
