Hi,
Mr. Raoul Vendôme was a French designer,and he was born in 1871,
and began career in aeronautical at 1908,and his aircraft list is;
No.1 was a single seat monoplane of 1908,probably never completed
No.2 was a single seat monoplane of 1908,with longer fuselage and different a little from No.1

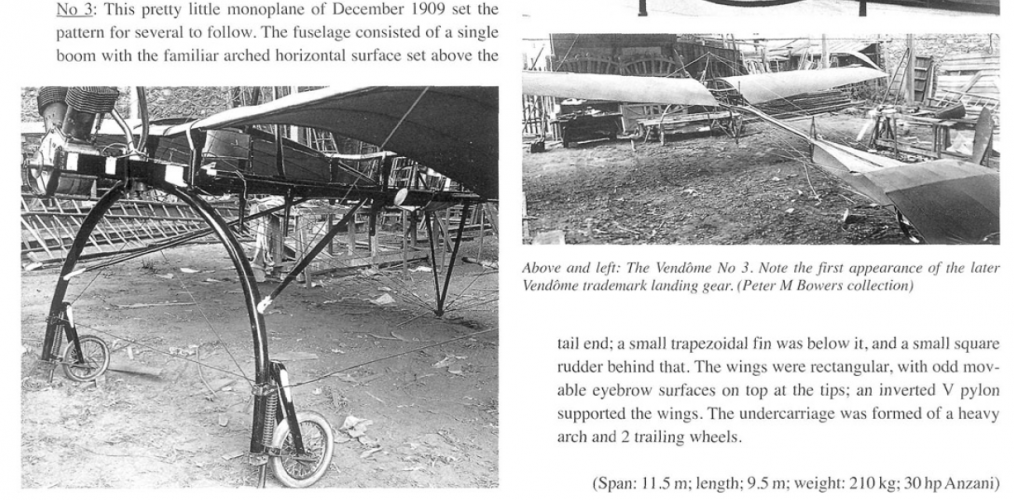

No.3 was a single seat pretty little monoplane of 1909,powered by one 50 hp Anzani engine

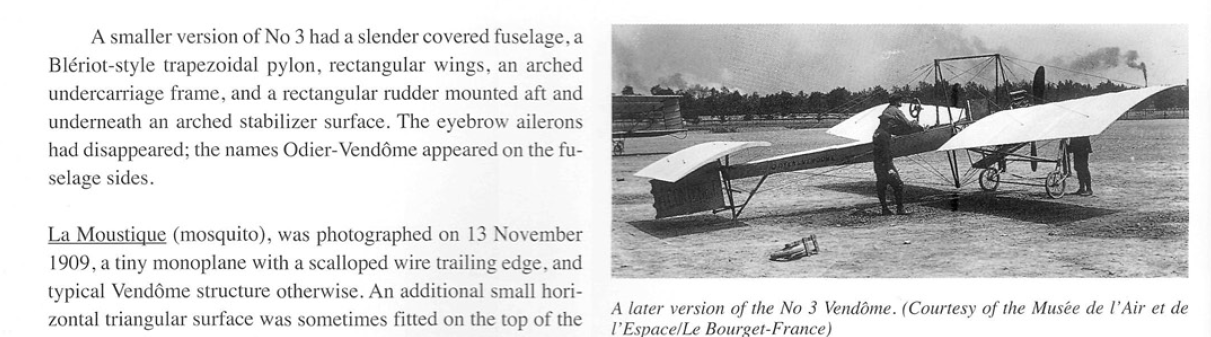

No.3/I was a smaller version of No 3 had a slender covered fuselage,a Bleriot-style trapezoidal pylon,
rectangular wings, an arched undercarriage frame, and a rectangular rudder mounted aft and underneath
an arched stabilizer surface
No.4 was a single seat little monoplane of 1909,called La Moustique or Vedome-2,powered by one 12 hp engine
No.5 was a single seat biplane of 1910,called Odier-Vendome,powered by 18 hp Turcot-Mery engine,maybe called
Vendome-3
No.6 was a single seat monoplane of 1910,called Vendome-4,powered by one 50 hp Anzani engine
No.7 was the same as (Vendome-4),but fiited with altered tail surfaces,1910,called Vendome-5
No.8 was a Demoiselle copy monoplane of 1910,powered by one 25 hp Anzani engine,called Vendome-6
No.9 was a single seat gull-wing monoplane of 1911,powered by one 50 hp Viale engine
No.10 was a military monoplane,with elliptical wings, the Vendome arched landing gear, rounded tailplane and elevators,and a new rounded comma-shaped rudder,powered by one Anzani engine,1911
No.11 was a single seat shoulder-wing military monoplane of 1912,powered by one Anzani engine
No.12 was a stubby single seat little monoplane of 1912,similar to the one of the previous year, but with a triangular fin
and D-shaped rudder
No.13 was a new monoplane featured a V-leg undercarriage,and curved trailing edges to the wings with cut-outs on each side next to the fuselage. A small rectangular rudder stood up by itself,over the large rectangular
horizontal tail,1914
No.14 was single seat military monoplane,featured a slender covered fuselage, and the arched undercarriage of the earlier
Vendomes,1914,powered by one 60 hp Le Rhone engine
No.15 was a two-seat military monoplane,a handsome machine with triangular undercarriage legs, a raised cowling in
front of the pilot, and an uncovered aft fuselage,powered by one 80 Rhone-Gnome engine,1915
No.16 was a three-seat army co-operation and light attack biplane in A.3 category,powered by two 120 hp Gnome engines,1916
No.17 was a two-seat recce and light attack airplane of 1917,powered by one 300 hp Hispano-Suiza engine,in Ab.2 category
Mr. Raoul Vendôme was a French designer,and he was born in 1871,
and began career in aeronautical at 1908,and his aircraft list is;
No.1 was a single seat monoplane of 1908,probably never completed
No.2 was a single seat monoplane of 1908,with longer fuselage and different a little from No.1
No.3 was a single seat pretty little monoplane of 1909,powered by one 50 hp Anzani engine
No.3/I was a smaller version of No 3 had a slender covered fuselage,a Bleriot-style trapezoidal pylon,
rectangular wings, an arched undercarriage frame, and a rectangular rudder mounted aft and underneath
an arched stabilizer surface
No.4 was a single seat little monoplane of 1909,called La Moustique or Vedome-2,powered by one 12 hp engine
No.5 was a single seat biplane of 1910,called Odier-Vendome,powered by 18 hp Turcot-Mery engine,maybe called
Vendome-3
No.6 was a single seat monoplane of 1910,called Vendome-4,powered by one 50 hp Anzani engine
No.7 was the same as (Vendome-4),but fiited with altered tail surfaces,1910,called Vendome-5
No.8 was a Demoiselle copy monoplane of 1910,powered by one 25 hp Anzani engine,called Vendome-6
No.9 was a single seat gull-wing monoplane of 1911,powered by one 50 hp Viale engine
No.10 was a military monoplane,with elliptical wings, the Vendome arched landing gear, rounded tailplane and elevators,and a new rounded comma-shaped rudder,powered by one Anzani engine,1911
No.11 was a single seat shoulder-wing military monoplane of 1912,powered by one Anzani engine
No.12 was a stubby single seat little monoplane of 1912,similar to the one of the previous year, but with a triangular fin
and D-shaped rudder
No.13 was a new monoplane featured a V-leg undercarriage,and curved trailing edges to the wings with cut-outs on each side next to the fuselage. A small rectangular rudder stood up by itself,over the large rectangular
horizontal tail,1914
No.14 was single seat military monoplane,featured a slender covered fuselage, and the arched undercarriage of the earlier
Vendomes,1914,powered by one 60 hp Le Rhone engine
No.15 was a two-seat military monoplane,a handsome machine with triangular undercarriage legs, a raised cowling in
front of the pilot, and an uncovered aft fuselage,powered by one 80 Rhone-Gnome engine,1915
No.16 was a three-seat army co-operation and light attack biplane in A.3 category,powered by two 120 hp Gnome engines,1916
No.17 was a two-seat recce and light attack airplane of 1917,powered by one 300 hp Hispano-Suiza engine,in Ab.2 category
