RAF Boeing Washington B.1 (B-29) with Grand Slam bombs

[frank]

I've looked thru every B-29 book I have or have seen & Googled with no luck. I've read that some of the B-29s sent to the RAF were equipped with racks at the wing roots to carry a Grand Slam bomb under each wing. ISTR also that some USAF a/c were modified as well. I've not been able to find pics or drawings of this installation or use of. Does anyone know if this practice was actually done? Has anyone ever come across any drawings or info? Thanks.



[sferrin]

this would be the page you're looking for but it looks like all the pictures got pulled.

http://members.aol.com/nukeinfo2/

B-29 with two Tall Boys. (From that page.)



[frank]

Thanks!

this would be the page you're looking for but it looks like all the pictures got pulled.

http://members.aol.com/nukeinfo2/

B-29 with two Tall Boys. (From that page.)



[Vahe Demirjian]

There's an image of a B-29 Superfortress with Grand Slam bombs at the following link:

https://flic.kr/p/9MmNUS



[kitnut617]

this would be the page you're looking for but it looks like all the pictures got pulled.

http://members.aol.com/nukeinfo2/

B-29 with two Tall Boys. (From that page.)

Actually, those are two Grand Slams. I've got a number of photos from the Boeing Archive (with licenses) and one of them shows a B-29 with a T.12 mounted (which is a bomb twice as heavy as a Grand Slam) A way to tell what bomb is being carried is by the number of chains holding the bomb to the rack, two chains means a Grand Slam. The B.29 could carry a Tall boy internally.



[sferrin]

Wow. I just had the site's caption to go off of. A quick Google yielded this:



[kitnut617]

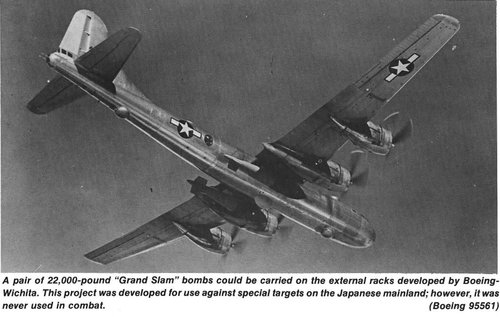

I've got a high resolution photo of that picture from Boeing, when you look it over with a magnifying glass, there's a guy's face looking out that side bubble window, clear as day ---

You'll notice the notch in the trailing edge of the flap there too ---

As an aside, my Dad served in 617 squadron during the period that they were using the Grand Slam, reason for my interest in the bomb.

The nice thing about using the B-29 was it could get to the height that Barnes Wallace had designed the bombs to be dropped at.



[kitnut617]

Coincidentally, this news article just came up on Microsoft News. I live near Calgary.

Don't be alarmed if you see a massive bomb rolling down an Alberta highway



[Rickshaw]

Coincidentally, this news article just came up on Microsoft News. I live near Calgary.

Don't be alarmed if you see a massive bomb rolling down an Alberta highway

Interesting picture attached. It appears to show a Tall Boy attached externally to, I assume a Lancaster?



[kitnut617]

Coincidentally, this news article just came up on Microsoft News. I live near Calgary.

Don't be alarmed if you see a massive bomb rolling down an Alberta highway

Interesting picture attached. It appears to show a Tall Boy attached externally to, I assume a Lancaster?

I don't see any Tall Boy in the article



[Arjen]

I downloaded the image K_M refers to
.



[Foo Fighter]

Tallboy had modified doors while the Grand slam had the doors removed and modifications to allow the fuselage to be cleared on release.



[TomS]

I downloaded the image K_M refers to

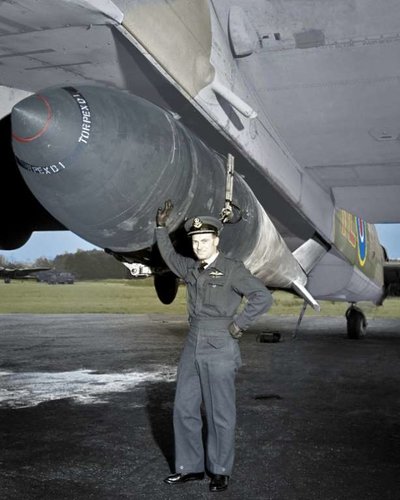

.View attachment 616731

The caption on this photo says it's a Grand Slam, not a Tall Boy.



[Arjen]

So it does. The caption disappears the moment you open the image, I missed it.



[kitnut617]

There's considerable difference in bomb size between the two, I don't have a picture of real one together, but I do have this in 1/72 scale. The really big one is a T.12 made from dimensions I found on a website about the T.12.



[kitnut617]

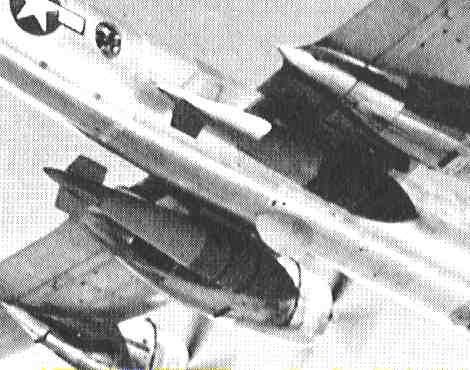

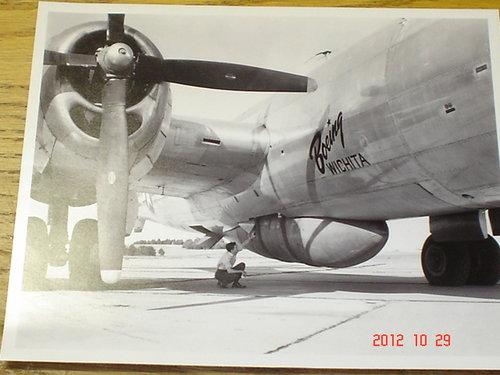

This is the photo of the T.12 slung under a B-29. Notice the fairing on the underside of the wing root where the spars had to be re-enforced to take the weight.

EDIT: Photo was provided by Boeing Archives with a license which doesn't restrict me where I use it.



[nuuumannn]

I don't have a picture of real one together,

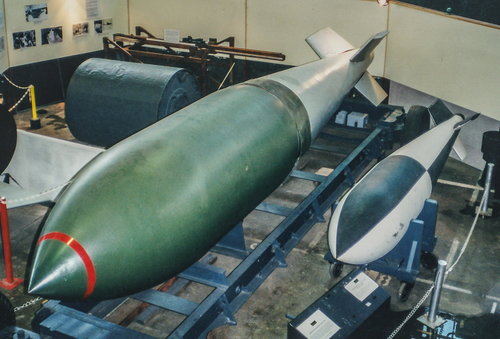

I took this many years ago at Brooklands Museum - scanned from a 35mm photo. Unfortunately the bombs are now no longer in such a photogenic arrangement, although they are together in the same building. You can really appreciate the difference in size between the Tall Boy and the Grand Slam when they are together.



[Dilandu]

Were there any interest from RAF to VB-13 Tarzon guidance kits for Tallboys?



[EwenS]

I don't have a picture of real one together,

I took this many years ago at Brooklands Museum - scanned from a 35mm photo. Unfortunately the bombs are now no longer in such a photogenic arrangement, although they are together in the same building. You can really appreciate the difference in size between the Tall Boy and the Grand Slam when they are together.

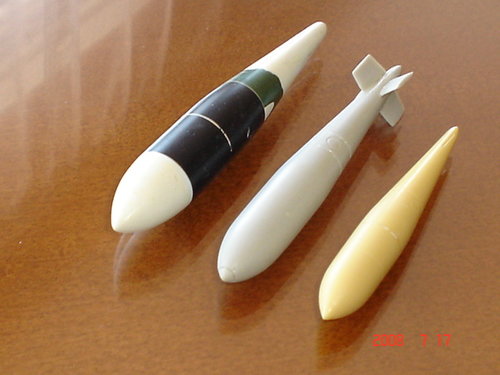

The bomb with the black and white markings isn’t a 12,000lb Tallboy but a 4,000lb Tallboy Small created in late 1943 to test the concept. It just serves to emphasise the size of Grand Slam.

Brooklands Museum :: Login

www.brooklandsmuseum.com

Brooklands have examples of all the Barnes Wallis bombs.



[kitnut617]

Thanks for posting that EwenS, I was going to say that's more of a comparison between a Tallboy and T12. Would you know if there was any plans to put Tallboy Small into service ?



[nuuumannn]

The bomb with the black and white markings isn’t a 12,000lb Tallboy but a 4,000lb Tallboy Small created in late 1943 to test the concept. It just serves to emphasise the size of Grand Slam.

Thanks for that, Ewen.

Brooklands have examples of all the Barnes Wallis bombs.

Indeed it does, although the last time I was there two years ago, I only saw the Grand Slam and Tall Boy Small on display near each other in the stratosphere chamber building.



[EwenS]

Thanks for posting that EwenS, I was going to say that's more of a comparison between a Tallboy and T12. Would you know if there was any plans to put Tallboy Small into service ?

According to “A Hell of a Bomb” by Stephen Flower the Tallboy Small was designed to prove the ballistics as a step up from firing miniatures from a gun down a gypsum mine and before moving on to produce Tallboy (or Tallboy Medium) and Grand Slam (or Tallboy Large).

One thing learned from the first drops of the 4000lb version was the need to angle the fins to generate spin and improve accuracy. Only 12 were manufactured with the first drop was in Dec 1943 by the AAEE, operating from Boscombe Down, using the range at Orfordness. More tests with them were made in April 1944.

The odd thing is that the 22000 pounder was designed first, then scaled down to 4000lb for the test articles and 12000lb.

Flower’s book was later republished as

Barnes Wallis' Bombs: Tallboy, Dambuster and Grand Slam (Revealing History): Amazon.co.uk: Flower, Stephen: 9780752429878: Books

Buy Barnes Wallis' Bombs: Tallboy, Dambuster and Grand Slam (Revealing History) New Edition by Flower, Stephen (ISBN: 9780752429878) from Amazon's Book Store. Everyday low prices and free delivery on eligible orders.

www.amazon.co.uk



[Justo Miranda]

Tempus 2002



[kitnut617]

Thanks Ewen, my Dad served in 617 sqn from 1944 to 46, he was interested into anything related like that but I don't remember him mentioning anything about the Tallboy Small so I was very interested in it. I'll keep an eye out for that book too.
What I have read about the Grand Slam it was scaled down because the Lancaster couldn't get it up to the altitude Wallis design it to be dropped at, somewhere around 30-35,000ft. The B-29 tests showed what it could really do when dropped from that altitude.



[taildragger]

I wonder how it was intended that the B-29 would drop the twin Tall Boy load in combat.
- If dropped simultaneously, I'd think that the detonation of the first to hit might impair the effectiveness of the second. They could be configured to separate during the fall, but that would reduce accuracy.
- If the drop was staggered, aircraft motion after release of the 1st 22,000 lb. bomb would complicate aiming of the 2nd.



[EwenS]

AIUI the only operational outfit was with the 19th BG in Korea using single Tarzon bombs. Anything else was purely an experimental fit. That would allow a reduced fuel load to keep total weight within the B-29 max take off weight of 135,000lb.



[SleeperService2]

I've got a high resolution photo of that picture from Boeing, when you look it over with a magnifying glass, there's a guy's face looking out that side bubble window, clear as day ---

You'll notice the notch in the trailing edge of the flap there too ---

As an aside, my Dad served in 617 squadron during the period that they were using the Grand Slam, reason for my interest in the bomb.

The nice thing about using the B-29 was it could get to the height that Barnes Wallace had designed the bombs to be dropped at.

Reading through this thread and looking at the photos I'm struggling to see how the wings would support the Tallboys, and the fuel, and the normal bombload, and the turrets/guns/gunners. Is there any evidence of the wing root modifications applied to the T-12 carrier? As that beast weighed about twice as much as Grand Slam would the double carriage of same need the same strengthening. Has anybody found any paperwork to provide more information on this project.

To my mind using bomb bay tanks and part filling the wing tanks seems the only way this might work. It's interesting to note the T/O and landing weights in the S.A.C HERE landing weight limited by strength nearly the same as T/O limited by space.

That would allow a reduced fuel load to keep total weight within the B-29 max take off weight of 135,000lb.

The Characteristics summary HERE shows 140 000lbs as MTOW performance limited, the lower figure is space restricted so a little more to play with.



[Dilandu]

AIUI the only operational outfit was with the 19th BG in Korea using single Tarzon bombs. Anything else was purely an experimental fit. That would allow a reduced fuel load to keep total weight within the B-29 max take off weight of 135,000lb.

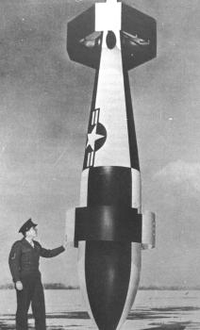

Yep, the USAF were skeptical about RAF idea of "very-very precise bomb drop"; they argued that in non-ideal condition it's just too hard for average crew to achieve, and highly-trained special mission squadrons are not practical in cost-effective terms. So, the idea of installing RAZON tail guidance kit (with enlarged rudders) on Tallboy was suggested. Albeit the rudders weren't still big enough, so the circular wing was added during testing, to provide aerodynamic lifting force in any desired direction of turn.



[Grey Havoc]

On a sad note:

Squadron Leader ‘Benny’ Goodman, one of the last surviving bomber pilots of 617 (Dambuster) Squadron – obituary

Goodman dropped Barnes Wallis’s powerful Tallboy bomb on the battleship Tirpitz and the 22,000 lb Grand Slam which destroyed a viaduct

www.telegraph.co.uk

Squadron Leader ‘Benny’ Goodman, one of the last surviving bomber pilots of 617 (Dambuster) Squadron – obituary
Squadron Leader Lawrence “Benny” Goodman, who has died aged 100, was one of the last two surviving Lancaster pilots of 617 (Dambuster) Squadron who were involved in attacking the German battleship Tirpitz in late 1944. And in the final weeks of the war he dropped the 22,000 lb “Grand Slam”, the biggest bomb dropped by the RAF.
Goodman had completed his training as a bomber pilot in the summer of 1944 when he was posted to 617 Squadron, based at Woodhall Spa in Lincolnshire. With its unique reputation as a special-duties squadron manned by highly experienced crews, it was unusual for a novice crew to be sent to 617.

Rest In Peace.



[pathology_doc]

What I have read about the Grand Slam it was scaled down because the Lancaster couldn't get it up to the altitude Wallis design it to be dropped at, somewhere around 30-35,000ft. The B-29 tests showed what it could really do when dropped from that altitude.

Based on reading Brickhill's "The Dam Busters", the thing they found is that both Tallboy and Grand Slam were capable of doing everything that was originally desired from the concept, even though the Lanc couldn't get it up to Wallis's ideal drop height.



[Yellow Palace]

What I have read about the Grand Slam it was scaled down because the Lancaster couldn't get it up to the altitude Wallis design it to be dropped at, somewhere around 30-35,000ft. The B-29 tests showed what it could really do when dropped from that altitude.

Based on reading Brickhill's "The Dam Busters", the thing they found is that both Tallboy and Grand Slam were capable of doing everything that was originally desired from the concept, even though the Lanc couldn't get it up to Wallis's ideal drop height.

Logically, once you're dropping from high enough to reach terminal velocity, all extra altitude does is increase the time available for wind to push the bomb off course.



[RyanC]

NARA II, COLLEGE PARK DECLASSIFIED VIA NND 750113​ UNKNOWN LOCATION​

SECRET​

ADDRESS REPLY TO
COMMANDING GENERAL, ARMY AIR FORCES
WASHINGTON 25. D.C.

HEADQUARTERS, ARMY AIR FORCES
WASHINGTON​

5 JAN 1945​

MEMORANDUM FOR: The Commanding General, Army Air Forces.

SUBJECT: Report of Conference on Large Bombs for AAF Bombardment Aircraft.

1. A meeting was held at this headquarters on 3 January 1945, to determine course of action necessary to facilitate carrying of British or AAF large size bombs in bombardment aircraft. (List of conferees is attached.)

2. Current and recently contracted bombardment aircraft have bomb bays designed to carry the maximum number of 500 pound American bombs with provisional requirement for carrying the 4,000 pound bomb and recently the 10,000 L.C. American bomb.

3. To extend the suitability of our bombardment aircraft to carry even larger bombs than the above, all existing and contemplated aircraft were evaluated. The British 12,000 and 22,000 pound bombs and a theoretical American 44,000 pound bomb were considered.

4. The following action is recommended:

a. B-29

(1) One article now being modified at Bell, Marietta, will be tested by AAF Board. If satisfactory results are obtained, all B-29 aircraft will be modified to accommodate one 12,000 pound G.P. British “tall boy” bomb.

(2) Present study for carrying the 22,000 pound “Grand Slam” British bomb will be completed to the extent required to determine the feasibility of this installation.

b. B-32

(1) The B-32 has its bomb bay compartment divided into cells which will accommodate bombs no larger than 4,000 pounds. Enlargement of these cells to handle large size bombs would entail basic redesign of fuselage structure.

(2) Air Technical Service Command is to instigate a study to determine the extent of redesign necessary to the fuselage to carry the 12,000 or 22,000 pound bombs.

c. XB-35 (Flying Wing)

(1) The 12,000 and 22,000 pound bombs are too large to fit between the wing spars which determine the length of the bomb bay.

(2) This airplane now carries eight (8) 4,000 pound bombs.

d. B-36

(1) This model will have its design changed to accommodate any of the following bomb loads:

(a) Two (2) of the largest possible bombs which are estimated to be in the order of 44,000 pounds each. The Ordnance is to build this bomb.

(b) Two (2) 22,000 pound.

(c) Two (2) 12,000 pound.

e. XB-45 (North American Jet Medium Bomber)

(1) This model will be redesigned to accommodate the 22,000 pound bomb.

(2) Bomb bay space is now sufficient to accommodate one (1) 10,000 or one (1) 12,000 pound bomb.

f. XB-46 (Consolidated Jet Medium Bomber)

(1) As designed it has space for one (1) 12,000 pound bomb,

(2) The 22,000 pound bomb installation will be studied.

g. XB-47 (Boeing Jet Medium Bomber)

(1) The airplane will be redesigned to accommodate one (1) 12,000 pound bomb.

(2) The 22,000 pound bomb installation will be studied.

h. XB-48 (Martin Jet Bomber)

(1) Present design will be modified and Martin will be instructed to provide a design which will carry either one (1) 22,000 or one (1) 12,000 pound bomb.

5. A military requirements policy will be formulated to govern bomb load requirements for future bombardment designs. This policy will insure consideration of bombs of the sizes discussed above.

/S/
O.P. ECHOLS,
Major General, U. S. A.,
Ass’t Chief of Air Staff,
Materiel and Services.​

Incl:
List of conferees at meeting 3 Jan. 45.

COORDINATION:
OC&R – Dr

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

CONFERENCE LIST​

The following listed persons attended conference at this Headquarters in the Office of AC/AS, Materiel & Services on 3 January 1945, to formulate plans for modification or redesign of existing and content-plated AAF bombardment aircraft to accommodate the British "Grand Slam" (22,000 lb.) and "Tall Boy" (12,000 lb.) bombs:

NAME​	REPRESENTING​
Maj. Gen. O.P. Echols	AC/AS, M&S
Brig. Gen. E.M. Powers	AC/AS, M&S
Brig. Gen. R.C. Coupland	AC/AS, M&S
Brig. Gen. Donald Wilson	AC/AS, OC&R
Brig. Gen. F.O. Carroll	ATSC
Brig. Gen. L.C. Craigie	ATSC
Colonel J.F. Phillips	AC/AS, M&S
Colonel J.G. Moore	AC/AS, M&S
Colonel J.H. Wallace	AC/AS, OC&R
Colonel F.R. Cook	ATSC
Colonel R.E. Jarmon	ATSC
Colonel A.P. Taber	ATSC
Colonel R.G. Butler, Jr.	ORDNANCE
Lt. Colonel J.A. Gibbs	AC/AS, M&S
Lt. Colonel J.M. Gruitch	AC/AS, M&S
Lt. Colonel E. Elliott, Jr.	AC/AS, M&S
Lt. Colonel G.J. Fix, Jr.	AC/AS, OC&R
Lt. Colonel D.E. Bailey	AC/AS, OC&R
Major W.H. Jones, Jr.	AC/AS, M&S
Captain R.S. Williams	ATSC
Captain R.L. Roark	ATSC



[Grey Havoc]

View: https://www.youtube.com/watch?v=bB3IZ_tqIi4&t=4s



[Scott Kenny]

(deleted for space)

3. To extend the suitability of our bombardment aircraft to carry even larger bombs than the above, all existing and contemplated aircraft were evaluated. The British 12,000 and 22,000 pound bombs and a theoretical American 44,000 pound bomb were considered.

4. c. XB-35 (Flying Wing)

(1) The 12,000 and 22,000 pound bombs are too large to fit between the wing spars which determine the length of the bomb bay.

(2) This airplane now carries eight (8) 4,000 pound bombs.

Emphasis mine. That wouldn't be a bad thing, except for the sheer size of the first generation nukes needing larger bomb bays...

And would have let the B-35s carry second generation atomic bombs pretty easily.
