Also from Kryl'ya Rodine 1-2/2014,

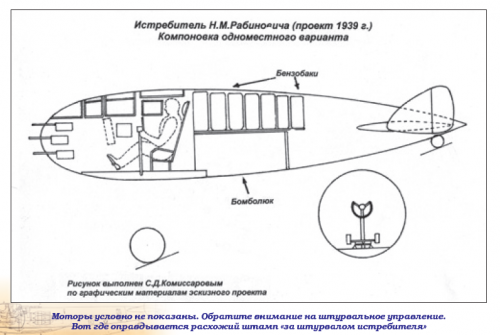

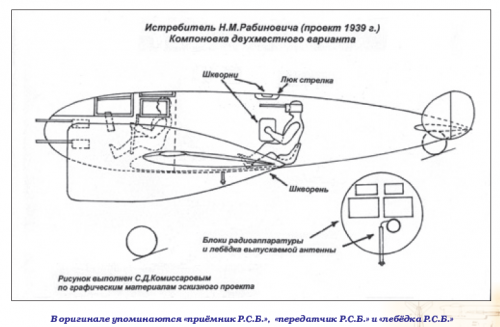

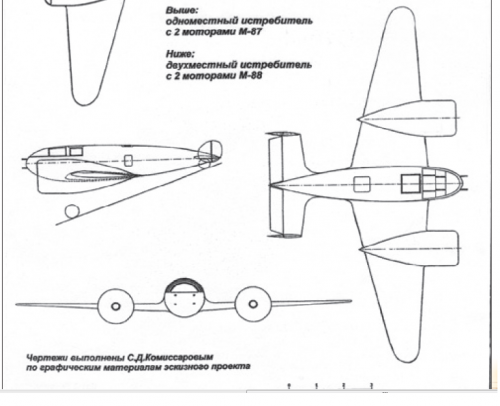

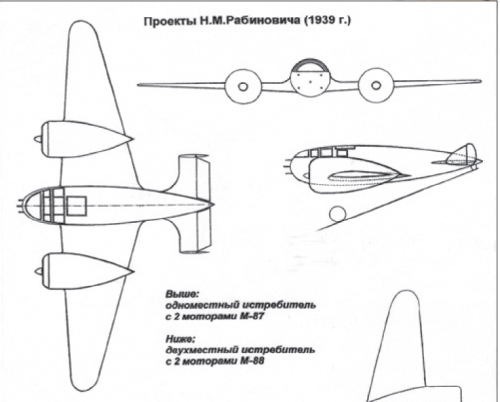

the Russian designer N.M. Rbinovich made two twin engined fighter projects,the first was powered by M-87 engines and had a five machine gun in nose,and the second was powered by M-88 engines and had a four machine gun in the nose,in common,they had a low-mid-wing and a twin tail fins.


Attachments

  • 1.png
    200 KB · Views: 286
  • 2.png
    197.7 KB · Views: 282
  • 3-1.png
    206 KB · Views: 275
  • 3-2.png
    228.4 KB · Views: 262
