R A Izmailov Projects - I-701/702/703/704/705/711

[walter]

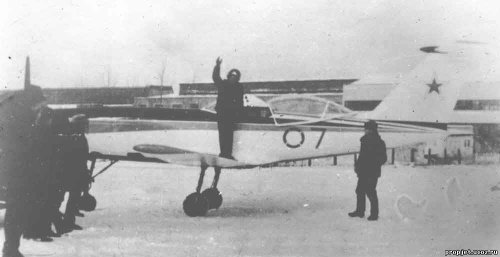

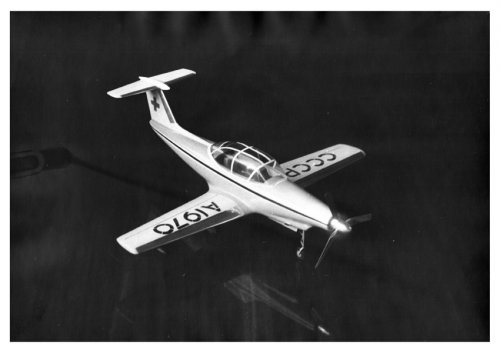

Anyone with info on this Russian aircraft?. Maybe intended as ag-plane. Engine in the long nose coule be a TVD-10 and designer could be a Mr. Ivanov. Maybe designated I-721.



[ucon]

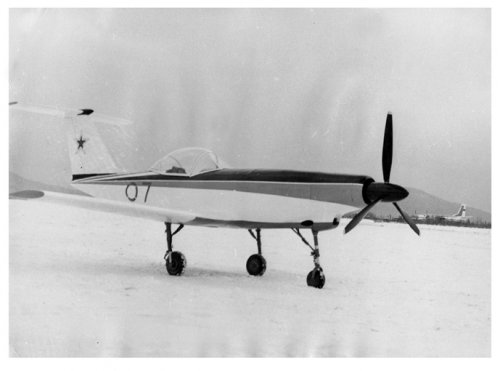

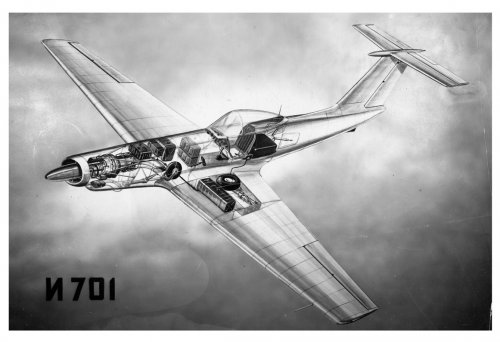

This is I-701 by R A Izmailov, built in Arseniev Aviation Plant.
There were serie of "I" projects - I-701, I-702, I-703, I-704 and I-705.
Long time some aviation magazines indicated it as Antonov plane, but it s Izmailov.



[hesham]

Thank you my dear Ucon,

and can you display them please ?.



[ucon]

For Hesham, Walter and others



[ucon]

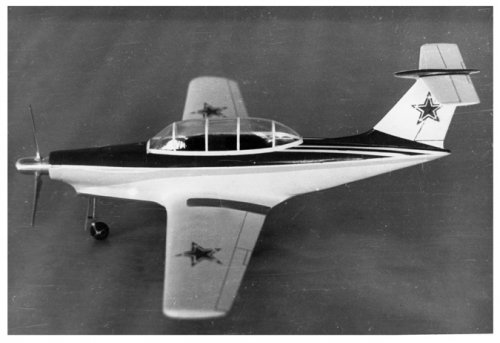

I-702



[ucon]

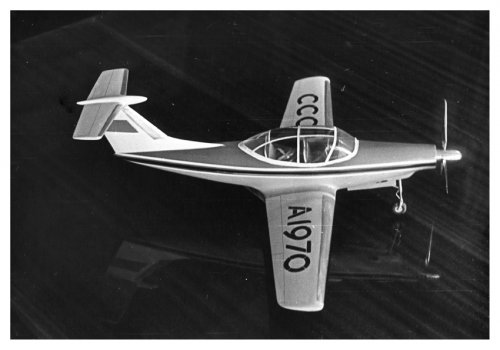

I-703



[ucon]

I-704



[ucon]

I-705



[ucon]

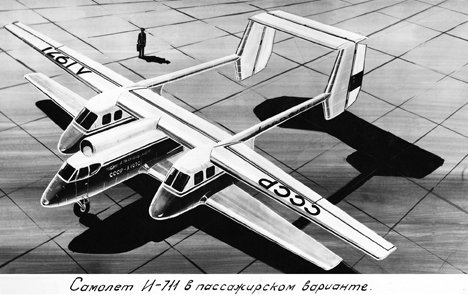

And 711 project



[overscan (PaulMM)]

And 711 project

That's pretty crazy looking - I like it



[dan_inbox]

And 711 project

Thanks a lot for all these unkown-to-us planes, ucon. I really appreciate the sharing. Never heard of Izmailov before.

Were the 1 to 5 actually produced, ie more than 1-2 prototypes?
The project I-711 has a strong configuration similarity with Poland's PZL-Mielec M-15 Belfegor ag-plane. Is there a known reason or connection?



[toura]

Bonjour Ucon

dan_inbox write the I 711 seems to be like the PZL m 15 mielec
belfegor !

The chief of the design team of the m 15 were
Kazimierz Goryla
Riamir Izmaiov

I suppose that it is the person who works for this 2 planes

Thank you for your answer

PAUL



[walter]

Dear Ucon
Thank you so much for all the info and the beautiful photos. Very interesting stuff and to see the connection between Izmailov, the M_15 Belphegor and the I-711.
Would you know whether the I-701 was built as a full-scale mock-up or was it a " real" airplane?
Best Regards, Walter



[Maveric]

Many thx ucon, great stuff.
Are these projects on your web side?



[hesham]

Thank you my dear Ucon,

and can you display them please ?.

Oh my good,

you made my day my dear Ucon,many thanks.



[ucon]

Short story.
Reamir Izmailov was working in Antonov DB as chief designer of gliders (A-11, A-13, A-15) motor gliders (An-11M and An-13M) in Arseniev Aviation plant.
He was also leading designer of AN-14 and all its agrycultural variants and modifications. Then he started to make some projects of AG aircraft to improve

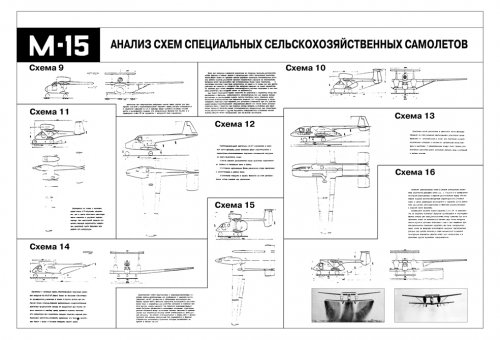

AG characteristics - there were 16 different projects (see tables). I-711 made in Arseniev. In 1971 group of soviet spesialists was sent to Poland to create
M-15 Belphegor. BTW, M-15 had itself some unusual variants, include seagull wing etc.
After Poland Izmailow worked in MDB and was a Buran crew cabin designer.



[ucon]

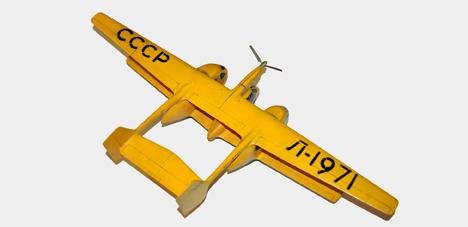

711 with three-blade propeller



[ucon]

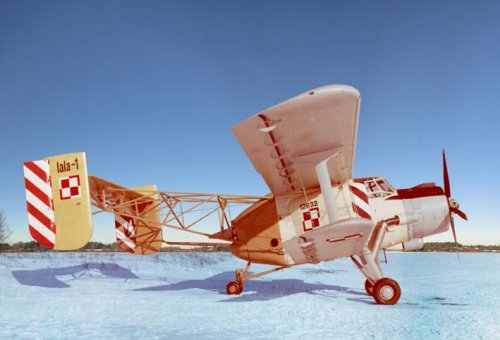

And LaLa-1 - flying laboratory for M-15



[toura]

THANKS UCON !!!! VERY INTERRESTING !!



[hesham]

Amazing my dear Ucon,

but what was I-721 ?.
