Rémy Gaucher projects

Tophe

ACCESS: Top Secret
Joined
18 February 2006
Messages
1,156
Reaction score
133
Website
www.kristofmeunier.fr

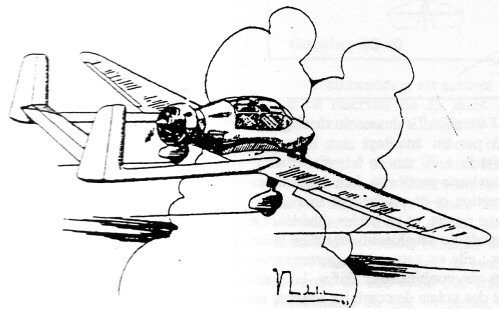

In the Trait d'Union #207 (Jan-Feb 2003): "During WW2, Rémy Gaucher designed a twin-boom monoplane with no name. Engine Salmson AP5 of 85hp. Two-seat side by side. All in wood. Tricycle landing gear. Span 12m, Length 6.5m, total weight 400kg. Cruise speed 180km/h."


Attachments

  • r_tu207a.JPG
    38.8 KB · Views: 456

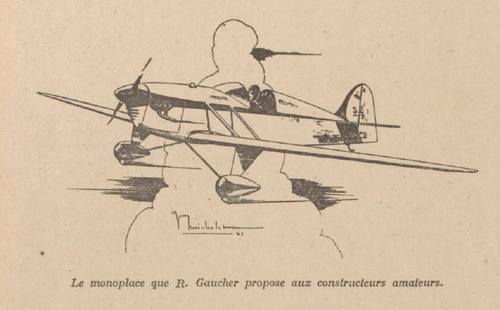

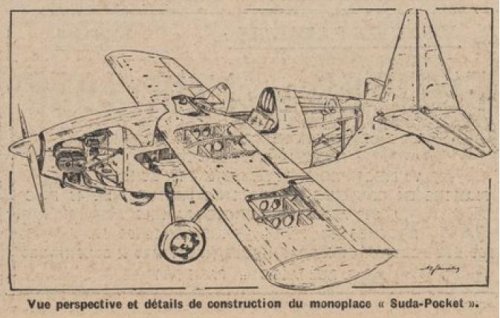

hesham, only the second image depicts the Suda-Pocket monoplane project. The first one show the Aviana biplane!

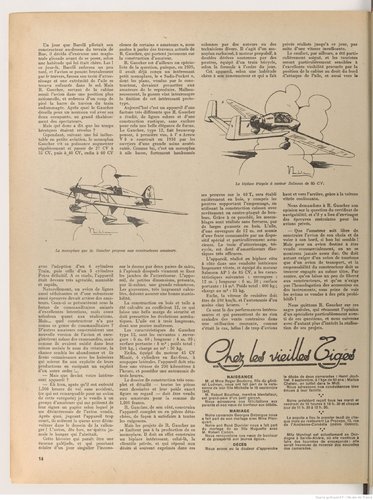

From L'Air 1943,

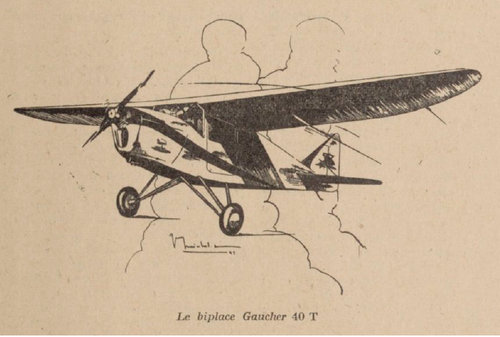

here is a two aircraft for Gaucher,the first was RG-40T,which developed from RG-40,and the
second called RG-12 or Type-12.


Attachments

  • 1.png
    348.3 KB · Views: 27
  • 2.png
    341.1 KB · Views: 26
  • L'Air___revue_mensuelle___[...]Ligue_nationale_bpt6k9796467d_15.jpeg
    1.1 MB · Views: 25
  • L'Air___revue_mensuelle___[...]Ligue_nationale_bpt6k9796467d_16.jpeg
    1.1 MB · Views: 23
