Questions about Junkers aircraft
- Thread starter hesham
- Start date
Re: Questins about Junkers aircraft

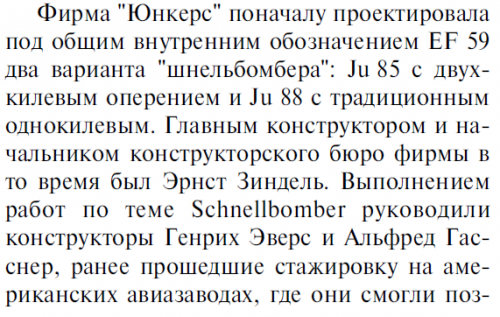

Maybe this a foolish question , but could it be that the designation EF 59
was used twice. Once in relation to the Ju-88 and once to the Ju-287..?
In the Junkers book mentioned by Jemiba ,the designation EF 59 is reported in the Ju-88 chapter..
Maybe this a foolish question , but could it be that the designation EF 59
was used twice. Once in relation to the Ju-88 and once to the Ju-287..?
In the Junkers book mentioned by Jemiba ,the designation EF 59 is reported in the Ju-88 chapter..
Re: Questins about Junkers aircraft
hello
with ju 88 junkers has study the ju 85
The main difference , ju 88 has single tail unit
ju 85 a double tail unit
the ju 85a was derivate of the ju 88 v3
Perhaps the answer ???
hello
with ju 88 junkers has study the ju 85
The main difference , ju 88 has single tail unit
ju 85 a double tail unit
the ju 85a was derivate of the ju 88 v3
Perhaps the answer ???
Junkers Projekt designations
There were more than one series of JFM project designations. The most well known being the EF series which was a continuation of the original "J" series (changed from J to EF about the time the nazis took over JFM by extortion, intimidation, etc.). The Ju 88 in most literature is described as being the 8-Nummer designation for EF 59 (Although I have never seen a primary document that confirms this information, the timing is about right.). The Ju 85 was more than a twin tail version of the Ju 88, and I have seen primary documents to support that. The photo shown of a jet designated EF59 does not agree with any documented sources I have seen, and IMHO it is incorrect.
Best Regards,
Artie Bob
There were more than one series of JFM project designations. The most well known being the EF series which was a continuation of the original "J" series (changed from J to EF about the time the nazis took over JFM by extortion, intimidation, etc.). The Ju 88 in most literature is described as being the 8-Nummer designation for EF 59 (Although I have never seen a primary document that confirms this information, the timing is about right.). The Ju 85 was more than a twin tail version of the Ju 88, and I have seen primary documents to support that. The photo shown of a jet designated EF59 does not agree with any documented sources I have seen, and IMHO it is incorrect.
Best Regards,
Artie Bob
- Joined
- 26 May 2006
- Messages
- 33,572
- Reaction score
- 13,700
Thank you my dears at first,
but the EF.059 was twin piston engined attack aircraft,as in the book,
unfortunately it was old book,and I don't remember the name of the
Author,but I remember also a wooden model to EF.061 aircraft.
And may be I don't remember well and it was J59 ?!.
but the EF.059 was twin piston engined attack aircraft,as in the book,
unfortunately it was old book,and I don't remember the name of the
Author,but I remember also a wooden model to EF.061 aircraft.
And may be I don't remember well and it was J59 ?!.
hello
Ask " luftArchiv.de" and click on "site information from alexa" and on "luftarchiv" on the center.
on the left above "die luftwaffe write "junkers ju 88" and click.you have a list of airplanes
the first is "ju 88" click. You have a lot of photos and a text. on the third line on the right
see"EF 59" (i don't understand german) but it is sure this "ef 59" exist but what it is ??
the designation seem to be used twice
Ask " luftArchiv.de" and click on "site information from alexa" and on "luftarchiv" on the center.
on the left above "die luftwaffe write "junkers ju 88" and click.you have a list of airplanes
the first is "ju 88" click. You have a lot of photos and a text. on the third line on the right
see"EF 59" (i don't understand german) but it is sure this "ef 59" exist but what it is ??
the designation seem to be used twice
- Joined
- 11 March 2006
- Messages
- 8,633
- Reaction score
- 3,489

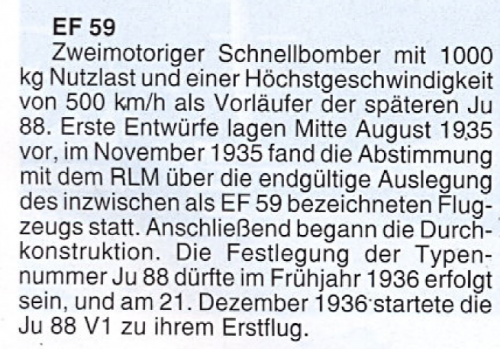

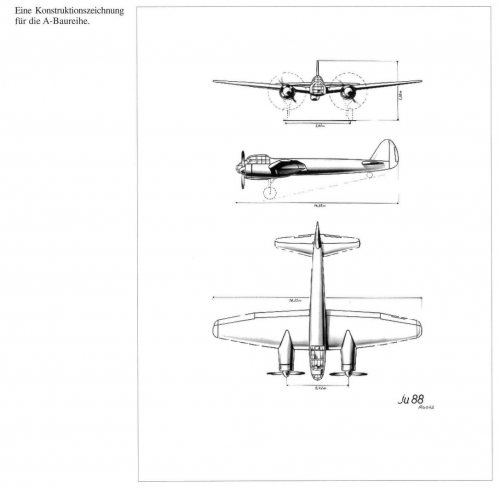

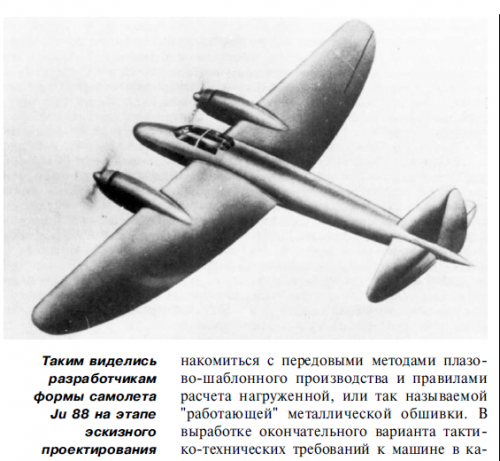

Lark is right, in the mentioned book by Wolfgang Wagner, the EF 59 IS mentioned,
as the Ju 88 forerunner, but on page 537, a windtunnel model is shown, which, as the
caption says, can be reagarded as the project, that evolved later into the Ju 88.
Unfortunately, this project is designated as EF 73, so not even in chronological order
with EF 59 ... ???

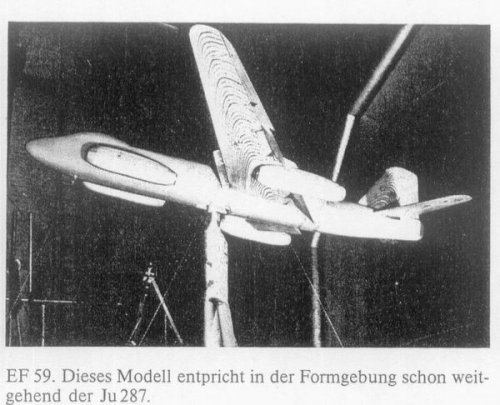

And, to make matters worse, on the pages 534 and 535 a number of windtunnel models
with different configurations for a jet bomber are carrying the designations EF 55 to
EF 59, the last quite obvious just one step from the final Ju 287 configuration.
Maybe, designations were used twice (then there were around 8 years between the "first"
and the "second" EF 059), or maybe differences were made between windtunnel testing of
configurations and actual projects. And the heading on page 534 speaks of the "Neue EF-
Entwicklungsreihe" (new line of designs) ... ???
as the Ju 88 forerunner, but on page 537, a windtunnel model is shown, which, as the
caption says, can be reagarded as the project, that evolved later into the Ju 88.
Unfortunately, this project is designated as EF 73, so not even in chronological order
with EF 59 ... ???
And, to make matters worse, on the pages 534 and 535 a number of windtunnel models
with different configurations for a jet bomber are carrying the designations EF 55 to
EF 59, the last quite obvious just one step from the final Ju 287 configuration.
Maybe, designations were used twice (then there were around 8 years between the "first"
and the "second" EF 059), or maybe differences were made between windtunnel testing of
configurations and actual projects. And the heading on page 534 speaks of the "Neue EF-
Entwicklungsreihe" (new line of designs) ... ???
- Joined
- 26 May 2006
- Messages
- 33,572
- Reaction score
- 13,700
Thank you my dears,
and also in Hugo Junkers site,they spoke about the EF-73 as a design
study for Ju-288,but in the Wikipedia,they spoke about the EF-74 as
also a design study for the Ju-288;
http://en.wikipedia.org/wiki/Junkers_Ju_288
who we can believed ?.
and also in Hugo Junkers site,they spoke about the EF-73 as a design
study for Ju-288,but in the Wikipedia,they spoke about the EF-74 as
also a design study for the Ju-288;
http://en.wikipedia.org/wiki/Junkers_Ju_288
who we can believed ?.
Hi guys,

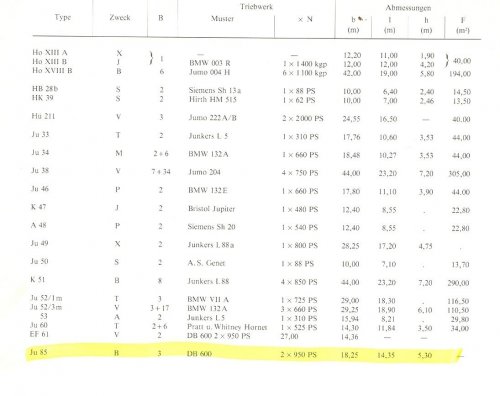

the Junkers Ju 85 is quite an elusive aircraft. From it I know a 3-view sketch published by Nowarra, sporting a cabin much like the Do217 and triangular twin fins. In the same book a wind tunnel model shows it with round twin fins, a cabin "a la Ju88 V1" and a massive ventral gondola/turret(?). Wofgang Wagner questions it`s existence as a twin-finned Ju88 by saying this designation might relate to a torpedo bomber with floats submited to a swedish contract, the K85. Well, the fact is it existed a Ju85, as evidenced in Manfred Griehls "The Luftwaffe Album". It shows a mock-up of the Ju85, with an unquestionable plaque, fielding a wide cabin and a protruding machine gun in the half-transparent nose. What would be this aircraft?
the Junkers Ju 85 is quite an elusive aircraft. From it I know a 3-view sketch published by Nowarra, sporting a cabin much like the Do217 and triangular twin fins. In the same book a wind tunnel model shows it with round twin fins, a cabin "a la Ju88 V1" and a massive ventral gondola/turret(?). Wofgang Wagner questions it`s existence as a twin-finned Ju88 by saying this designation might relate to a torpedo bomber with floats submited to a swedish contract, the K85. Well, the fact is it existed a Ju85, as evidenced in Manfred Griehls "The Luftwaffe Album". It shows a mock-up of the Ju85, with an unquestionable plaque, fielding a wide cabin and a protruding machine gun in the half-transparent nose. What would be this aircraft?
"but in the Wikipedia,they spoke about the EF-74 as
also a design study for the Ju-288;
http://en.wikipedia.org/wiki/Junkers_Ju_288
who we can believed ?."
If no primary sources are identified, proceed with caution, as a high percentage of undocumented material concerning the Luftwaffe is pure crap (wikipedia, at times, can be in that category) . I generally believe only pictures and primary sources, but even these can have errors (the Germans were pretty good at retouching photos), so better is to find two or three primary sources that say the same thing.
Best Regards,
Artie Bob
also a design study for the Ju-288;
http://en.wikipedia.org/wiki/Junkers_Ju_288
who we can believed ?."
If no primary sources are identified, proceed with caution, as a high percentage of undocumented material concerning the Luftwaffe is pure crap (wikipedia, at times, can be in that category) . I generally believe only pictures and primary sources, but even these can have errors (the Germans were pretty good at retouching photos), so better is to find two or three primary sources that say the same thing.
Best Regards,
Artie Bob
Hello,
the photo pictured in "The Luftwaffe Album" is pretty much authentic. Nowarra tells the Ju85 shared 90% components with the Ju88. The Ju85A would be the modified Ju88V-3 with a wider cabin to acommodate a rear MG15 gun position ( this cabin is similar in structure to the one in the DH Mosquito ). Nothing on the belly turret/gondola depicted in the wind tunnel model. The Ju85B would be the one with the "kampfkopf" like the Do217K/Do317, with single strut legs. What does your sources say about this plane?
the photo pictured in "The Luftwaffe Album" is pretty much authentic. Nowarra tells the Ju85 shared 90% components with the Ju88. The Ju85A would be the modified Ju88V-3 with a wider cabin to acommodate a rear MG15 gun position ( this cabin is similar in structure to the one in the DH Mosquito ). Nothing on the belly turret/gondola depicted in the wind tunnel model. The Ju85B would be the one with the "kampfkopf" like the Do217K/Do317, with single strut legs. What does your sources say about this plane?
Hi guys,

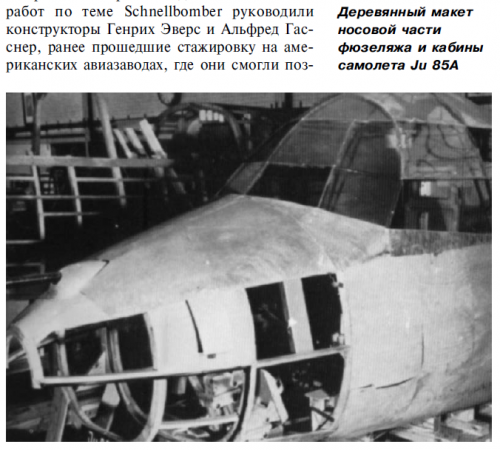

quick link: http://hugojunkers.pytalhost.com/ju_k85_a1.htm
As you can see, despite the controversy around its designation, the plaque on the mockup says much of it. Unfortunatelly the picture does not include the gondola (bodenwanne?) as it is stated.
quick link: http://hugojunkers.pytalhost.com/ju_k85_a1.htm
As you can see, despite the controversy around its designation, the plaque on the mockup says much of it. Unfortunatelly the picture does not include the gondola (bodenwanne?) as it is stated.

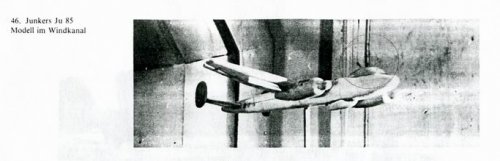

There's a kind of a gondola on the first windtunnel model
with the solid nose.

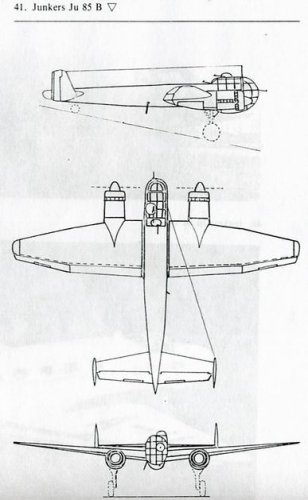

Heinz J.Nowarra mentoned the the solid nose version
as the Ju 85A and the all glazed nose variant as the Ju 85B.
Die Deutsche Luftrüstung 1933-1945 Band 3.
also reported in : Junkers Flugzeuge und Motoren-Walter Zuerl.Steinebach/Wörthsee
with the solid nose.
Heinz J.Nowarra mentoned the the solid nose version
as the Ju 85A and the all glazed nose variant as the Ju 85B.
Die Deutsche Luftrüstung 1933-1945 Band 3.
also reported in : Junkers Flugzeuge und Motoren-Walter Zuerl.Steinebach/Wörthsee
- Joined
- 31 May 2006
- Messages
- 655
- Reaction score
- 431

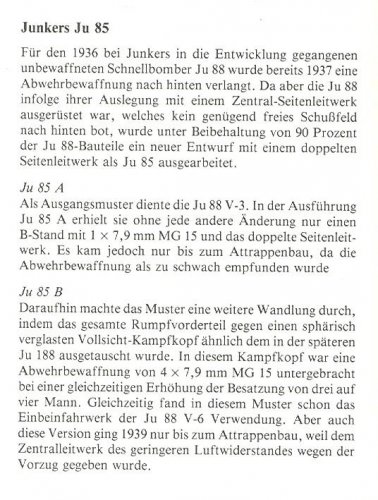

I have attempted to translate the text on the Ju85 posted by Justo using Babelfish and then editing it to try and make sense of the resultant mish mash of words in a language not entirely unlike English.
Corrections welcomed!
Junkers Ju 85
In 1936 Junkers was pursuing the development of the Ju 88 unarmed high-speed bomber. In 1937 requirements changed and a rearward defensive armament was stipulated. Since however the design of the Ju 88 was equipped with a central vertical stabilizer, which did not offer a sufficient free field of fire to the rear, a new draft design with a double vertical stabilizer called the Ju 85 was prepared. This retained 90 per cent commonality of components with the Ju 88.
Ju 85 A
When compared to the Ju 88 V-3 the Ju 85 A was very similar but had a single 7.9 mm MG 15 and the double vertical stabilizer. It progressed only so far as the building of mockups, since the defensive armament was felt to be too weak
Ju 85 B

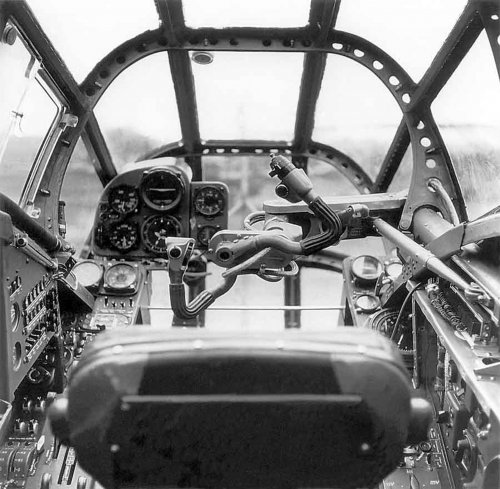

The design went through a further transformation, the entire fuselage front section was altered to incorporate a glassed hemispherical cockpit/crew compartment with an excellent all round view similar to that of the later Ju 188. This accommodated an armament of 4 x 7.9 mm MG 15 and permitted an increase in the crew from three to four men. The installation incorporated many of the modifications found on the Ju 88 V-6. However, this version proceeded only up to the building of mockups in 1939, preference being given to the central tail unit design of the Ju 88 because of its smaller air resistance.
Corrections welcomed!
Junkers Ju 85
In 1936 Junkers was pursuing the development of the Ju 88 unarmed high-speed bomber. In 1937 requirements changed and a rearward defensive armament was stipulated. Since however the design of the Ju 88 was equipped with a central vertical stabilizer, which did not offer a sufficient free field of fire to the rear, a new draft design with a double vertical stabilizer called the Ju 85 was prepared. This retained 90 per cent commonality of components with the Ju 88.
Ju 85 A
When compared to the Ju 88 V-3 the Ju 85 A was very similar but had a single 7.9 mm MG 15 and the double vertical stabilizer. It progressed only so far as the building of mockups, since the defensive armament was felt to be too weak
Ju 85 B
The design went through a further transformation, the entire fuselage front section was altered to incorporate a glassed hemispherical cockpit/crew compartment with an excellent all round view similar to that of the later Ju 188. This accommodated an armament of 4 x 7.9 mm MG 15 and permitted an increase in the crew from three to four men. The installation incorporated many of the modifications found on the Ju 88 V-6. However, this version proceeded only up to the building of mockups in 1939, preference being given to the central tail unit design of the Ju 88 because of its smaller air resistance.

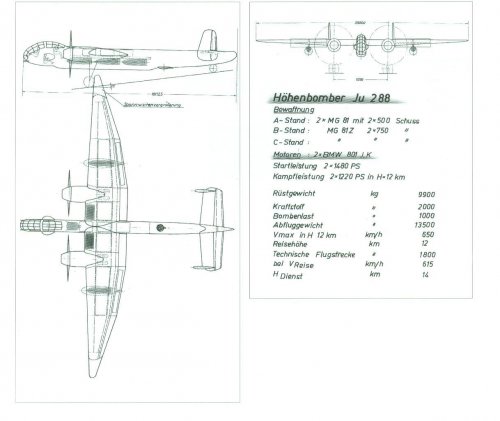

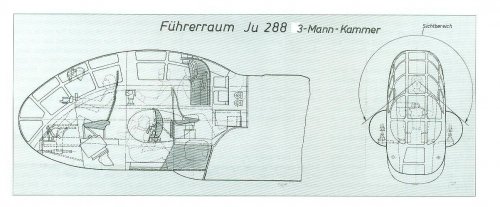

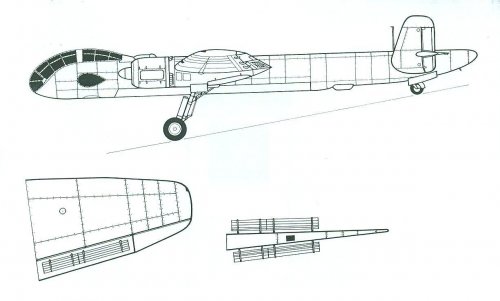

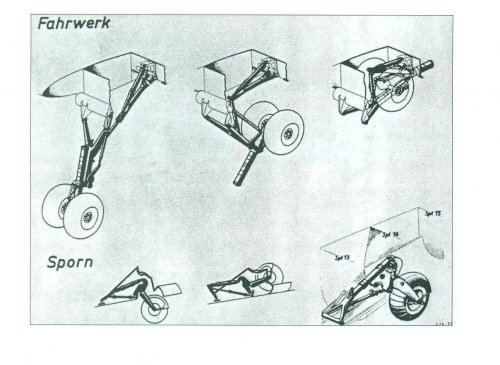

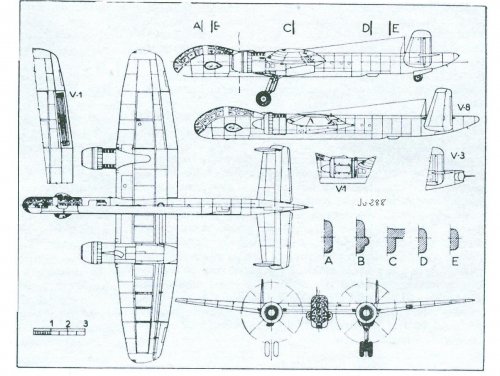

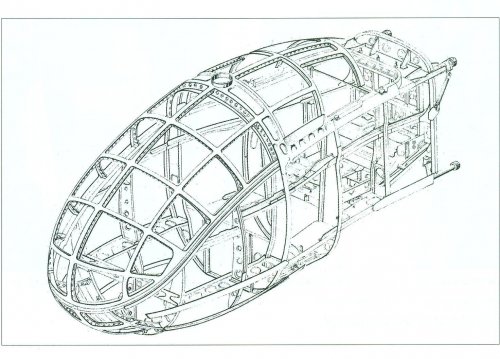

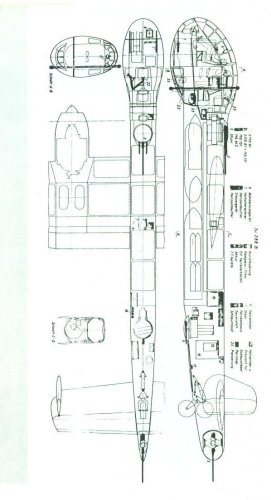

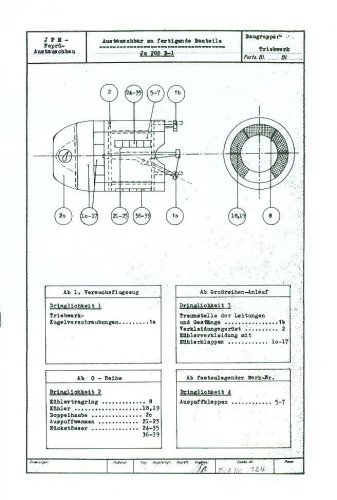

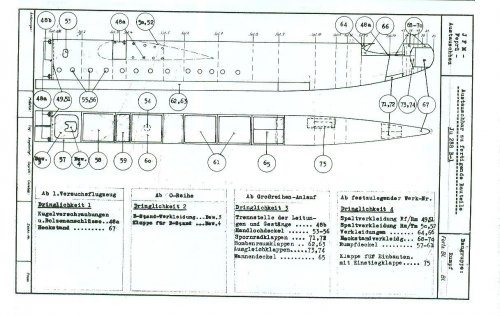

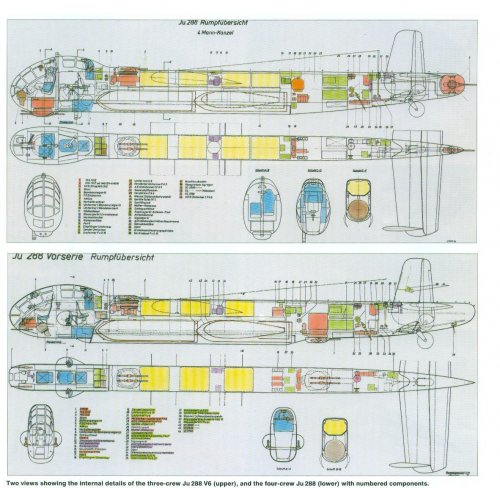

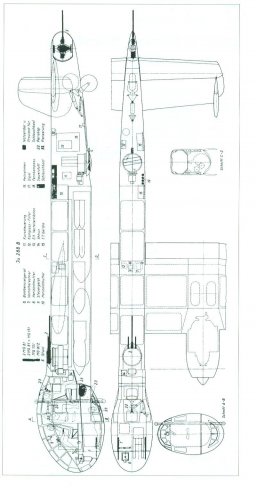

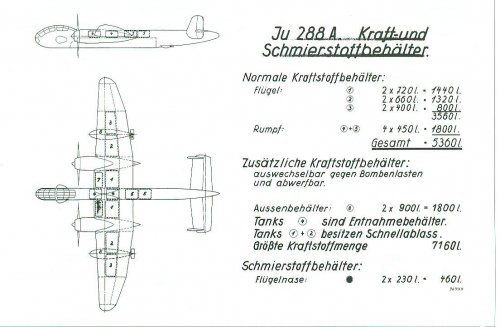

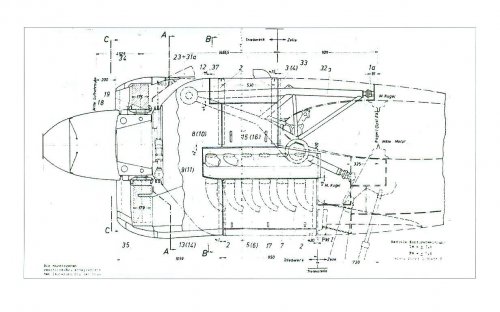

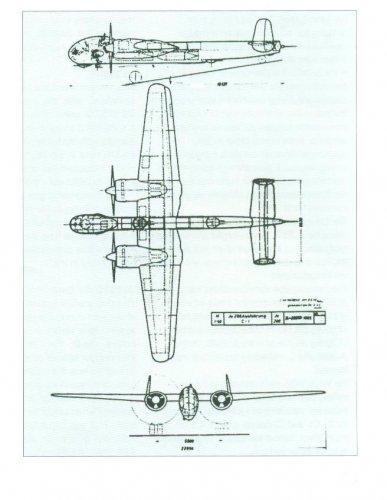

Can anyone recommend a good reference book on the Ju 288? I have the following:

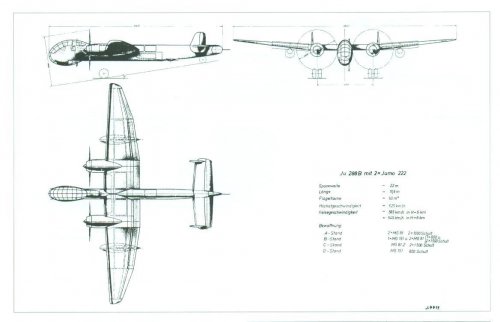

But it is a little light on and would really appreciate more details. I would also like a good 3-view drawing if anyone has one. Given the size of the Bomber B program, I find it hard to believe there is not more information on this aircraft.
Thank you in advance.
Regards,
Greg
But it is a little light on and would really appreciate more details. I would also like a good 3-view drawing if anyone has one. Given the size of the Bomber B program, I find it hard to believe there is not more information on this aircraft.
Thank you in advance.
Regards,
Greg
- Joined
- 2 August 2006
- Messages
- 3,206
- Reaction score
- 1,322
I just saw this, obviously, but there was an old issue of Wings/Airpower that had a good article on the Ju-288. I would give you the issue number but my issue somehow walked away from my collection.
I think that issue was published in the 80's.
I think that issue was published in the 80's.
- Joined
- 26 May 2006
- Messages
- 33,572
- Reaction score
- 13,700
Jemiba said:
Sorry for double post,but this artist drawing called EF.059 as in old book as I mentioned
in beginning of this topic,I mean this one.
Attachments
- Joined
- 11 March 2006
- Messages
- 8,633
- Reaction score
- 3,489
hesham said:
I would rather think, that the EFo 59 was meant, as the EF 59 is said to have been a design
for a 4-engined jet bomber (http://www.secretprojects.co.uk/forum/index.php/topic,14756.msg147646.html#msg147646 )
and wouldn't really fit into the timeframe of the EF 50-series, I think.
- Joined
- 26 May 2006
- Messages
- 33,572
- Reaction score
- 13,700
- Joined
- 11 March 2006
- Messages
- 8,633
- Reaction score
- 3,489
hesham said:
Needless to proceed with this discussion ! In our threads about the EF/EFo designations,
it was already made clear, that A LOT of nonsense was published about this theme. So
to rely on any single source certainly is of no avail here. :
- Joined
- 26 May 2006
- Messages
- 33,572
- Reaction score
- 13,700
