Q.8/37 gunnery practice target seaplanes for the Royal Navy

[simmie]

Anyone got anymore info on this pair.

A 3-view of each would be really nice, but ain't holding my breath on that.



[Stargazer]

The Percival contenders for Q.8/37 radio-controlled target competition were the P.21 and P.21A (the former being a mid-wing aircraft while the latter being a shoulder-wing one).

At least one source lists the P.22 as a contender for the same spec but it is most likely a mistake since the P.22 and P.23/A/B appear in reliable sources as communications aircraft.



[hesham]

Hi,

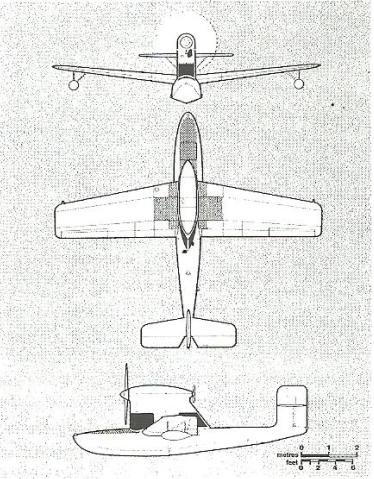

here is a 3-view to GAL-35 from Air Enthusiast magazine,I know also the
Fairey company involved in this tender,who can send a drawing to Fairey
proposal ?.



[simmie]

O.K, done some checking.


The original art comes from 'The British Aircraft Specification File', by Air-Britain Publications.


Under the entry for Q.8/37 it lists submissions from Airspeed (AS.37), Percival (P.21, P.21a and P.22) and General Aircraft (GAL.35).



[hesham]

Hi Simmie,

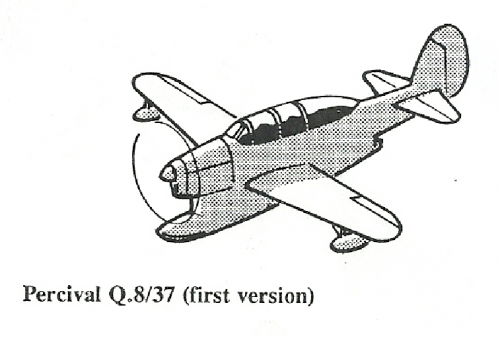

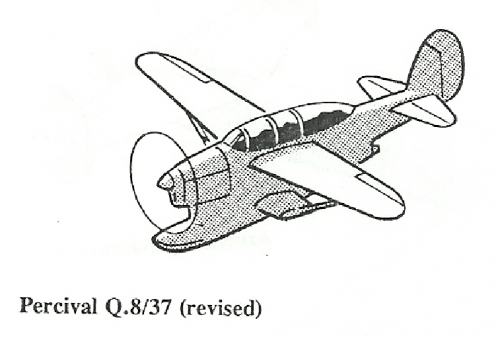

here is a drawing to Percival P.21 first version and revised version.


The British Aircraft Specifications File



[hesham]

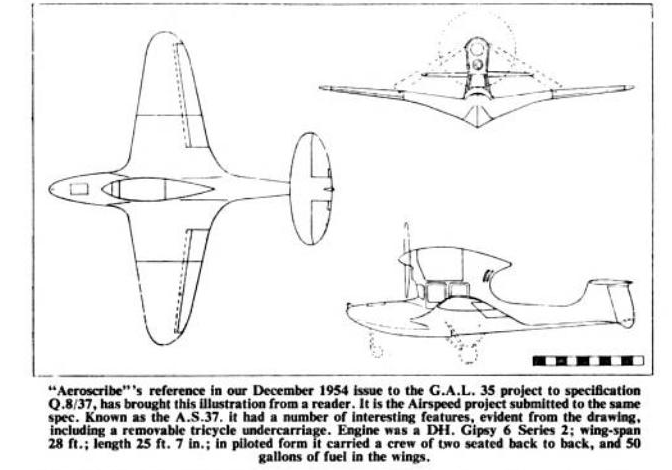

From Air Pictorial 1955.



[Grey Havoc]

Also, from the old Airspeed Projects thread:

AS.37- A late 1930s proposal for a radio-controlled target in the form of a flying boat. To be powered by a Gipsy Six series II.

Did Airspeed build a prototype?



[Grey Havoc]

From another old thread:

Stargazer2006​

GAL.35

Type: remotely-controlled target seaplane
Powerplant: one 205 hp De Havilland Gipsy Six II engine
Date: 1937
Number built: none

This radio controlled target seaplane project, designed to Spec. Q.8/37 (Operational Requirement OR.48) and meant as a Queen Bee replacement, was a mid-wing monoplane of unusual configuration: it featured a single float, a pylon mounted engine and its cockpit was completely integrated to the engine pylon.



[hesham]

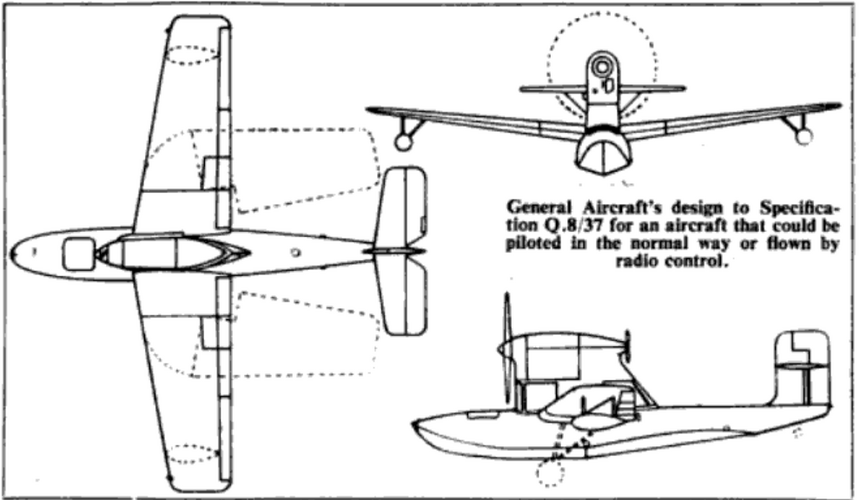

From Air Pictorial 1954.
