Projects related to V-2 from FliegerRevue X 68

[lippischh]

This low res article overview about the V-2 development presents many interesting bits of information that are new to me, maybe to some of you as well.

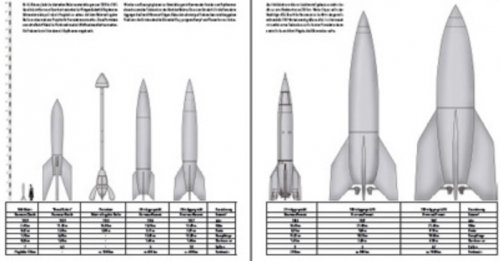

On the first attached cropping, i couldn't identify some of the missiles. Particularly the third one (clearly an Oberth design) and the two last ones (A-10?).

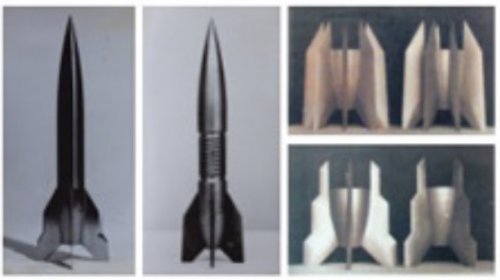

The second cropping presents an interesting model with 8 fins, and another with 4 staggered ones.



[lippischh]

I was able to find this excerpt https://www.ppvmedien.de/mediafiles//PDF/FRX/2017/FliegerRevueX-68-Leseprobe.pdf

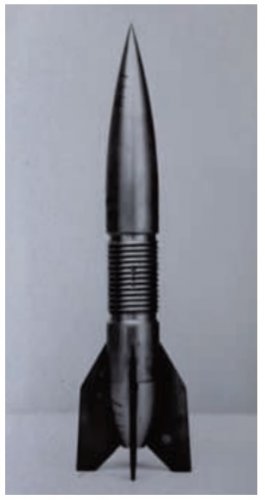

Only Pages 5 and 6 relate to the subject. A quick google translation of the caption of the first picture in page 6 talks about the multi-fins configuration and a "ribbed hull" as a means for stability.



[arshin]

Technical Data on the Development of the A4 V-2

www.allworldwars.com

https://apps.dtic.mil/dtic/tr/fulltext/u2/419538.pdf

a history of inertial guidance , discussing the v-2 guidance.
