A small addition to posting airman
The first attempt in 1925

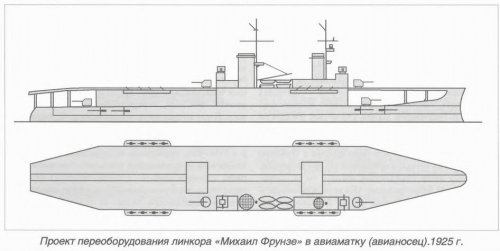

"Mikhail Frunze" up to 50 aircraft

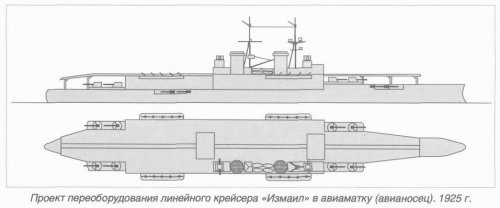

"Izmail" - 12 torpedo bombers (bombers), 12 fighters, 6 recon., + 5 aircraft for special purposes. Displacement 20000-22000t., Length 224m., Speed 27 knots. The maximum number of aircraft to 50.

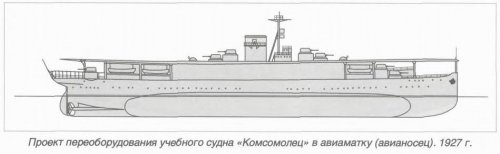

"Komsomolets" 1927 - 16 bombers, 26 fighters. Dimensions deck 137 x 22m. Displacement 12000t.


Attachments

  • M.Frunze.jpg
    42.6 KB · Views: 720
  • Izmail.jpg
    37.2 KB · Views: 679
  • Komsomolets.jpg
    30.5 KB · Views: 675

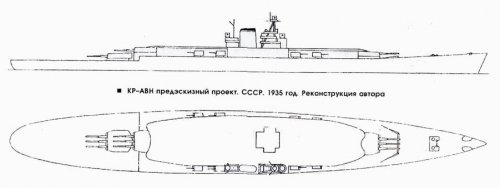

  • KR-AVN.jpg
    31.2 KB · Views: 672
