Potez designations

[AM]

hi all



[Stargazer]

Here is a list of all known Potez designations. If I missed something out or made a mistake, please let me know so I can update the list accordingly. Thanks to AM for providing a lot of the information therein.


Société d'études aéronautiques (SEA)

Created in 1916 by Henry Potez, Marcel Bloch and R. Lévy-Finger, with Louis Coroller as main designer.

SEA I observation two-seater

SEA II two-seat reconnaissance and fighter aircraft that did not fly

SEA III three-seat reconnaissance aircraft which did not fly

SEA IV biplane two-seat fighter
SEA IV C2 observation two-seater (also Potez IV reconnaissance two-seater)

SEA V


Aéroplanes Henry Potez

Founded by Henry Potez in Aubervilliers in 1919. The company moves to Levallois in 1921. Louis Coroller still designs most aircraft. A new factory opens in Meaulte in 1925. Another one eventually opens in Berre. The company is eventually absorbed by SNCAN (later Nord Aviation) in 1936 but the designs keep the name Potez.

VII passenger transport aircraft based on SEA IV

VIII tourism aircraft
VIIIA tourism aircraft
VIII tourism floatplane aircraft
VIII two-seat tourism aircraft

IX light passenger plane

XA three-engined colonial passenger aircraft
XB three-engined military transport aircraft

XI two-seat fighter

XII reconnaissance aircraft

XIV 3-engined postal biplane

XV reconnaissance-bomber
XV HO2 observation seaplane variant

XVI single-seat fighter project

XVII experimental long-range postal/liaison aircraft derived from Potez XV

XVIII three-engined passenger plane

XIX three-engined night bomber (also found as Potez 19 Bn2)

XX four-engined three-seat bomber version of P.XVIII

XXI multi-engined transport aircraft

XXII passenger transport aircraft

23 fighter

24 A2 reconnaissance aircraft (also as XXIV A2)

25 short-range reconnaissance aircraft
25 GR "grand raid" aircraft
25.12 short-range reconnaissance aircraft
25.23 raid aircraft
25.44 short-range reconnaissance aircraft
25 TOE reconnaissance and bombardment two-seater aircraft

26 fighter

27 observation/reconnaissance aircraft

28/2 distance record aircraft
28M distance record aircraft

29-2 transport aircraft
29-4 passenger transport aircraft
29-6 passenger transport aircraft
29-8 passenger transport aircraft
29-11 record aircraft

31 night fighter based on Potez 25

32 passenger transport aircraft

33 general purpose (observation/transport) version of Potez 32

34 distance record aircraft (Farman and Hispano-powered)

35 medium bomber

36 tourism/training light plane
36/1 tourism/training light plane
36/3 tourism/training light plane
36/5 tourism/training light plane
36/13 tourism/training light plane
36/14 tourism/training light plane
36/21 tourism/training light plane

37 R2 fighter-reconnaissance aircraft
371 (4 built)

38 passenger transport aircraft

39 observation two-seater aircraft
39H
390 short-range reconnaissance aircraft and light bomber, production version of Type 39
391 short-range reconnaissance aircraft, production version of Type 39
391bis observation floatplane variant
39-10 reconnaissance aircraft
392 short-range reconnaissance aircraft
393 short-range reconnaissance aircraft

40 colonial police aircraft
400 three-engined multipurpose colonial military transport

41 bomber
410 Bn5 bomber

42 sanitary transport

430 tourism/training three-seater aircraft
431 tourism aircraft
432 tourism aircraft
434 tourism aircraft
435 tourism aircraft
437 tourism aircraft
438 tourism/training aircraft

450 catapult-launched fighter-reconnaissance aircraft
452 observation floatplane
453 fighter floatplane

49 TOE all-metal two/three-seat general purpose/observation sesquiplane version of P.392
49 all-metal parasol-wing observation variant

50 reconnaissance aircraft/bomber
501 observation aircraft
502 version of the Type 50 (1 built)
506 altitude record aircraft

51 training aircraft
510 ET2 training aircraft

53 racing/speed record aircraft

54 bomber
540 reconnaissance aircraft
541 bomber
542 reconnaissance aircraft
543 bomber

550

56 transport/recce/observation aircraft
56E carrier-borne reconnaissance aircraft
560T passenger plane
561 version of the Type 560 (3 built)
565 version of the Type 560 with a streamlined fuselage (one built and flown in Jan. 36)
566 observation aircraft
567 target tow aircraft
568 training aircraft

58 three-seat tourism/training aircraft
580 tourism aircraft
584 version of Type 580 (1935 - 4 built)
585 liaison aircraft
586 version of Type 580 (10 built)

60 tourism/training aircraft
600

62 civilian passenger transport
620 civilian passenger transport
621 civilian passenger transport

63-11 three-seat observation/recce aircraft
630 heavy fighter
631 heavy fighter
632 conversion of the 630 prototype as a night fighter
633 light bomber
636 version of the 630 produced under licence by Avia in Czechoslovakia
637 reconnaissance aircraft
639 reconnaissance version of the 630 (1 built)

65 military transport
650T16 military transport based on Potez 620

660 passenger transport aircraft
661 four-engined passenger transport aircraft
662 four-engined passenger transport aircraft

670 two-seat heavy fighter
671 two-seat heavy fighter

68 twin-engined low-mid-wing project

700 twin-engined two-seat heavy fighter
702 twin-engined heavy fighter
703 projected variant of 702
705 projected variant of 702

75 light strike aircraft

840 passenger plane
841L passenger plane
842L passenger plane
843 passenger plane

870 derivative of the Potez 840

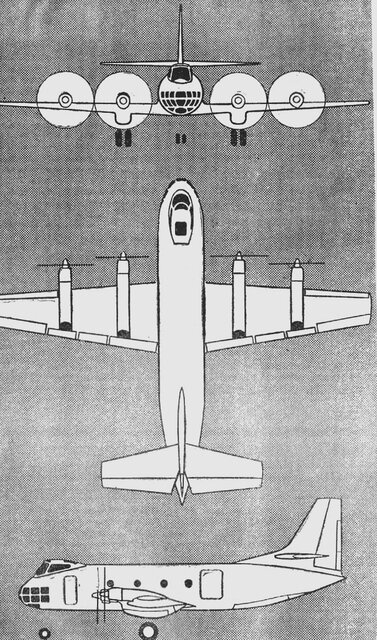

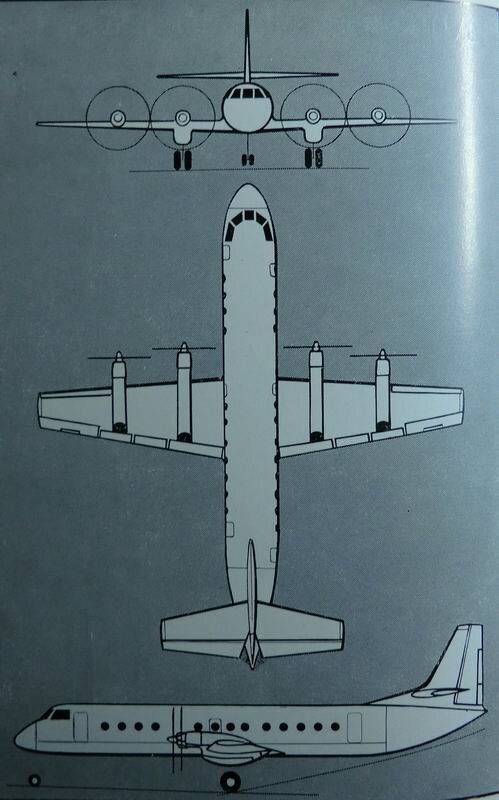

880 low wing light transport and freight aircraft

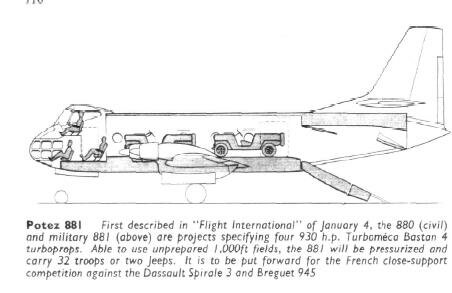

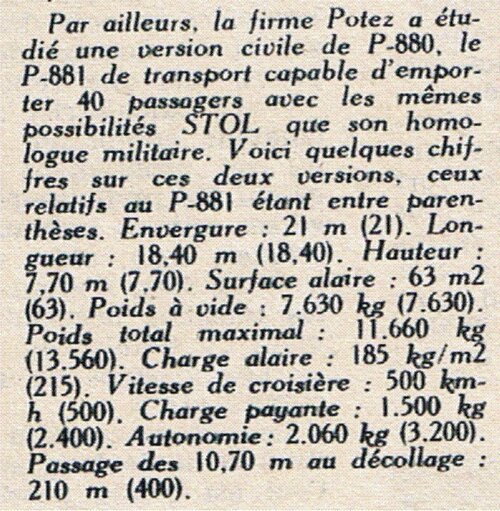

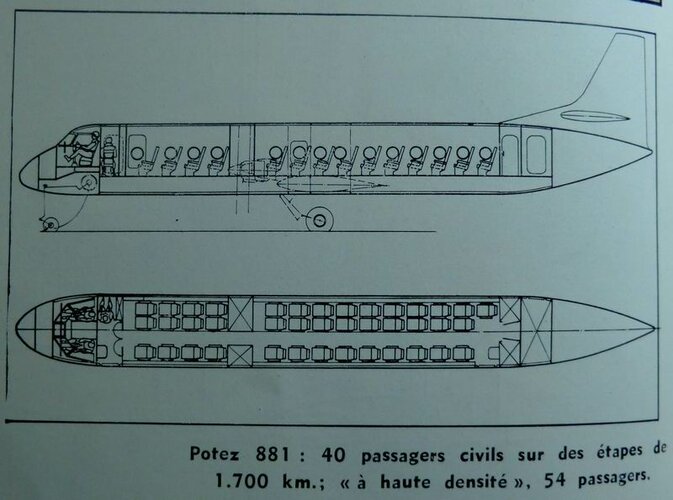

881 military transport version with protruding cockpit

89 twin-engined civilian version of the 840 with shorter fuselage to accommodate 9 passengers (not built)
890 alternate designation of Type 89

90 high-speed light transport aircraft based on Potez 75

91 redesigned version of Potez 75

92 single-seat twin-engined jet strike and close-support project sith rear-mounted engines to compete against Breguet Br 121

94 Super Magister training plane, a Fouga CM 170 derivative initially designated Potez CM 173


CAMS and Potez-CAMS designations

CAMS 70
CAMS 80
CAMS 90
CAMS 100
CAMS 110
CAMS-120
CAMS-130
Potez-CAMS 141 Antares long-range reconnaissance boat (also known as the CAMS-141)
CAMS-150
Potez-CAMS 160 experimental flying boat, scale-built P.161
Potez-CAMS 161 Picardie flying boat
Potez-CAMS 170 floatplane
Potez-CAMS 220 reconnaissance aircraft
Potez-CAMS 230 fighter derived from ANF Mureaux 190


Potez-Heinkel designations

CM 191 Fouga Magister derivative



[Stargazer]

Some great links:

- http://www.premiumwanadoo.com/aeroscope/coroller.htm]http://www.premiumwanadoo.com/aeroscope/coroller.htm
- http://www.premiumwanadoo.com/aeroscope/coroller2.htm
- http://www.aviafrance.com/constructeur.php?ID_CONSTRUCTEUR=1057



[Jos Heyman]

I have the following additions:

371: 4 built
390: production version of 39.
391: production version of 39.
502: version of the 50. One built.
561: Version of the 560. Three were built.
565: Version of the 560 with a streamlined fuselage. One was built and flew in January 1936
584: version of 580. Four were built in 1935..
586: version of 580. 10 built.
600
632: Conversion of the 630 prototype as a nightfighter.
636: Version of the 630 produced under licence by Avia in Czechoslovakia.
639: Reconnaissance version of the 630 of which one was built.
890: Twin engined civilian version of the 840 which was not built. Also known as model 89.

I also believe that the following CAMS designs were designated as Potrez with the same numbers.
CAMS 70
CAMS 80
CAMS 90
CAMS 100
CAMS 110
CAMS-120
CAMS-130
CAMS-141
CAMS-150



[hesham]

Hi,

P.68 twin-engined low-mid-wing project.
P.703 & P.705 developed from 702
P.90 high speed light transport aircraft,based on 75
P.92 single seat twin engined jet strike and close-support project and the engines was mounted above the rear of the fuselage in a new shape,it was designed to compete Breguet Br.121.



[hesham]

My dear Stargazer,

the Potez-CAMS 220 & Potez-CAMS 230 don't belong to CAMS,it belongs to
ANF-Les Mureaux after Potez took over it,and you can say Potez-ANF-Les
Mureaux 220 and Potez-ANF-Les Mureaux 230;

http://www.aviafrance.com/potez-220-aviation-france-924.htm

http://www.aviafrance.com/potez-230-aviation-france-1571.htm



[AM]

hi all



[Apophenia]

A bit more detail on Potez 63 variant designations ...

The Potez 63 was designed to meet the Service technique aéronautique (STAé) Programme Technique C3 (Triplace de Chasse) requirement of Oct 1934. Work began (led by engineers Coroller and Delaruelle) in April 1935 with a prototype flying one year later. A contract was received in May 1937 for 10 examples in fighter, night fighter, conversion trainer, light bomber, army co-operation, and attack aircraft configurations.

Potez 63 series designations followed the French pattern of applying numbers to the end of the type designation to indicate major design changes. In some cases, those designation changes were the result of different engine types being employed. More often, designation changes indicated the application of different mission-specific equipment.

Armée de l'Air (AdA) designations built on the manufacturer's form. To that maker's designation was added letters signifying role and numbers for crew -- so a Potez 630 C3 was of the first 63 series variant and a Triplace de Chasse (or three-seat fighter). Ada role abbreviations applied to Potez 63 series variants were as follows:

A --- Armée (Army co-operation)
AB -- Assaut-Bombardement (Attack Bomber)
B --- Bombardement (Bomber)
Bp -- Bombardement en Piqué (Divebomber)
C --- Chasse (Fighter)
CN -- Chasse de Nuit (Night Fighter)
Ins - Instruction (Conversion trainer)
T --- Travail (General Purpose)

No 'P' for Postale designation seems to have been applied to two Potez 63s modified as air mail carriers and transfered to Société Anonyme Air Bleu in late 1938. These aircraft are usually listed as 630s (although Golden Years lists F-ARIR as Potez 637 c/n 21 - possibly a conversion of Potez 630 c/n 1).

Potez appended country names to export variants, eg: Potez 633 Grec, 633 Roumain, and 63 (or 633) Franco-Roumain (for airframes begun for the AdA but completed for FARR). But I've seen no reference to a 'Potez 631 Finnois'. This style was also applied to at least two demonstrator aircraft -- the Potez 630 Suisse. Yet no such labels seem to have been added to the Yugoslav 630 demonstrator (F-AREY).

The planned Czech-licensed Potez 631 received a distinct type designation - Potez 636. However, there seems to be no record of a separate designation for planned licensed Mitsubishi 631 (to Spec 13-shi for a 3-seat, twin-engine fighter-bomber). Possibly the 'missing' Potez 638 designation was applied to this proposed Japanese variant?

http://www.secretprojects.co.uk/forum/index.php/topic,12142.msg118569.html#msg118569

There is some confusion over prototype Potez 63 designations. Was the first prototype Potez 63.01 simply redesignated Potez 630.01 (after one of its many engine changes, perhaps)? Or, as some sources claim, was the Potez 630.01 a second prototype? Can anyone clear this up?

Further confusion surrounds the Potez 631 Ins and Potez 634 dual-control trainers. Did the ten Potez 631 Ins (taken from early Potez 631 production) obviate the need for the Potez 634? Or are, as some source claim, the Potez 631 Ins and Potez 634 one and the same?

________________________

Potez 63 Series

Potez 63 - Multi-seat fighter, first flown April 1936
- Potez 63: (As planned) 2 x 450 hp Potez 12D HO-12s*
-- * The air-cooled engined were to buried in the wings
- Potez 63.01: (As built) 1st prototype, 2 x HS 12Hbs**
-- ** 580 hp Hispano-Suiza 12Hbs 14-cyl 2-row radials
- Potez 63.01: (Re-engined) 2 x HS 12Ab 02/03 radials
- Potez 63.01: (Re-engined) 2 x HS 12Ab 10/11 radials
-- NB: Potez 63.01 later redesignated as Potez 630.01

Potez 630 - Series fighter with Hispano-Suiza 14 engines
- Potez 630.01: Redesignated 1st fighter prototype*
-- * Some sources list Potez 630.01 as 2nd prototype
- Potez 630 C2: AdA desig., [?? Project only ??]
- Potez 630 C3: AdA desig., 2 x 700 hp HS 12Ab 10/11
- Potez 630 CN2 No.01: Night-fighter prototype, x 1

Potez 631 - Series fighter with Gnome-Rhone 14M Mars
- Potez 631.01: 2nd prototype, 2 x 700 hp GR 14M
- Potez 631 C3: 2 x 700 hp GR 14M 04/05 radials
- Potez 631 Ins: Potez 630 trainer conv'n (GR 14Ms)

Potez 632 Bp2 - [Project] Divebomber conv'n (630 CN2)
- Potez 632 Bp2: 2 x Hispano-Suiza HS-14Ab 02/03
-- Potez 632 Bp2 completed as HS 14-powered Potez 633

Potez 633 B2 - 1937 light bomber derivative, 2 x GR 14M
- Potez 633.01: 1st prototype, 1937
- Potez 633 B2: 125 ordered, canc. after prod. begun
- Potez 633 Roumain: x 20 for Romanian Air Force
- Potez 633 Grec : x 24 for Greek Air Force
- Potez 633 Franco-Roumain: x 20* for Romania**
-- * 19 retained by the Armee de l'Air, 1939
-- ** Completed from canc. Armee de l'Air order
-- Undelivered Potez 633: China, Finland

Potez 634 - [Project] Potez 630 dual-control trainer
-- Some sources say Potez 634 and 631 Ins were same

Potez 635 - [Project] Night fighter deriv. (cancelled)
- Potez 635 CN2: 2 x +20° 20mm HS-9 or HS-404 cannon

Potez 636 - [Project] Licensed Czechoslovak Potez 631*
- Potez 636 C3: Proposed Avia-built with Walter M14 Mars
-- * Avia taken up with B.71 (Tupolev SB) production
- Avia B.63: [Project] 2-seat bomber, Potez 636 deriv.
-- http://www.secretprojects.co.uk/forum/index.php/topic,1401.msg11739.html#msg11739

Potez 637 - Oct 1938 Army co-op-recce vers., belly gondola
- Potez 637: x 60 ordered Aug 1938, AdA service May 1939
- Potez 637 A3: Labrely F20/F30/F50 camera aft of gunner

Potez 638 - [??]

Potez 639 AB2 - Eval. order attack bomber prototype, x 1
- Potez 639: Dec 1937 order conf., repl. 1 x Potez 633
- Potez 639 AB2: 1 x -14° HS-404, vert. and wing racks

Potez 63.10 - [??]

Potez 63.11 - 3-seat army co-op/general purpose a/c, x 2
- Potez 63.11 A3: Prototypes 01 and 02 flown Dec 1938
- Potez 63.11: Submitted to Programme Technique T3

Potez 63.12 - Dec 1938 631 compl'd with P&W engines,* x 1
Potez 63.12 C3 - fighter with P&W Twin Wasp Juniors, x 1
-- * 825 hp R-1535-SB4-G Twin Wasp Junior 14-cyl radials

Potez 63.13 Bp2 - Aug 1939 dive bomber prototype [conv'n?]
- Potez 63.13 Bp2: 1 x prototype (Potez 63.13 Bp2.01)

Potez 63.14 - General Purpose aircraft, no other details
- Potez 63.14: Submitted to Programme Technique T3

Potez 63.15 - General Purpose aircraft, no other details
- Potez 63.14: Submitted to Programme Technique T3

Potez 63.16 - Jan 1940 Conv'n trainer for the Potez 63.11
- Potez 63.16 T3 - Long-winged, unarmed trainer, x 1
-- Prototype 63.16 T3, conversion of Potez 63.11 No.114

Potez 63... - [??] Others ??


Unnumbered (or Unknown Designation) Potez 63s

Potez 63 STOL - 1939 study* with 4.2m (or 4.18m) propellers
-- * By Svetkopolk Pivko, Institut Aérodynamique de Saint-Cyr
-- http://www.secretprojects.co.uk/forum/index.php/topic,18486.msg177941.html


Potez 63 Follow-On Designations

The Potez 670/671 can be considered a Potez 63 development. This prototype was essentially a Potez 631 fuselage mated to the wings of the ANF Les Mureaux/Potez 220 army co-operation/recce aircraft.

Potez 670 - March 1939 prototype, long-range escort fighter
- Potez 670-01: 2 x 700 hp GR 14M 03/04, conv. to 671-01

Potez 671 - July 1939 conversion of Potez 670 prototype
- Potez 671: Re-engined with 2 x 800 hp HS 14AB 12/13s
- Potez 671 C2: 40 ordered, prod'n begun at SNCAN Méaulte

Potez 672 - [Project] Acrobatic development of Potez 670
- Potez 672: 2 x 1,000 hp Hispano-Suiza HS-12Y-21 V-12s
___________________



[hesham]

Great work my dear Apophenia,


and I want to add;


P.672 was developed from P.671,as special acrobatic aircraft project,powered by two
1000 hp Hispano-Suiza 12 Y 21 engines.



[Apophenia]

Thanks for that Hesham. I'd never even heard of the Potez 672!



[hesham]

Hi,

Potez P-80 & P-82 were a three engined transport airplane Projects,no more details
are known ?.



[hesham]

To my dear Richard N;

Potez 30 was a two-seat fighter Project (C.2),developed from Potez-25
Potez 44 was a four-seat tourist airplane Project,powered by one engine
Potez 46 was a four engined flying boat Project
Potez 47 was a single seat fighter Project
Potez 48 was an unknown Project
Potez 52 was a twin engined flying boat Project
Potez 55 was an unknown Project
Potez 57 was a flying boat or seaplane Project
Potez 59 was a two-seat fighter Project (C.2)
Potez 61 was a four-seat tourist airplane Project
Potez 64 was a four-seat airplane Project,developed from Type-63,with retractable landing gear



[hesham]

Hi,

Potez P-80 & P-82 were a three engined transport airplane Projects,no more details
are known ?.

Sorry for this mistake,they were powered by two turboprop engines for each design,and
not three.



[hesham]

By the way;

SEA.V was a single seat fighter monoplane Project of 1918,powered by one 300 hp
Hispano-Suiza 8 Fb engine
SEA.VI was a two-seat night bomber Project,powered by one 400 hp Liberty engine



[hesham]

From Le Fana 599;

P.80 & P.82 were a twin engined medium transport Projects
P.81 was a three engined low-wing light transport Project,powered by three Turboméca Bastan engines
P.93 was a twin jets transport Project,could accommodated 50 passenger



[Cy-27]

The Aviation Magazine de l'Espace No. 320, dated 1st April 1961, was dedicated the 50th anniversary of Potez aircraft.

It summarized many of the Potez aircraft families. A three page designations list was included in tabular form.

Link: https://gallica.bnf.fr/ark:/12148/bpt6k5323492t.item

Its a large PDF, so may take a while to load.



[hesham]

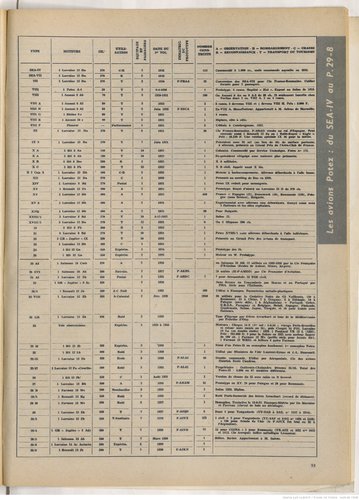

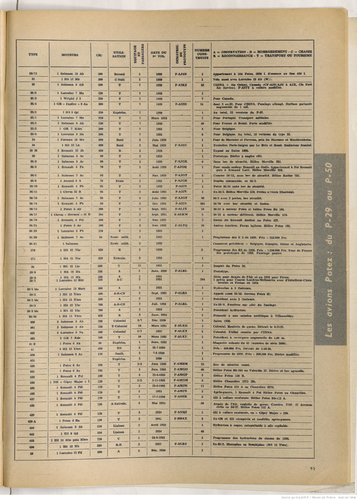

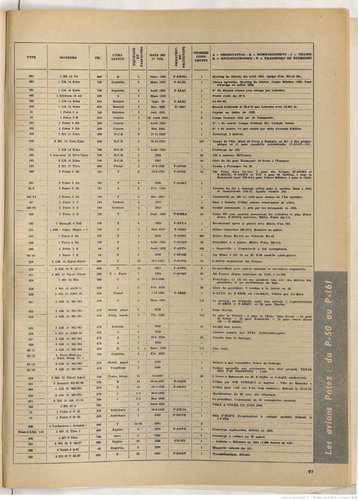

Thank you my dear Cy-27,and here it's.



[chercheuravions]

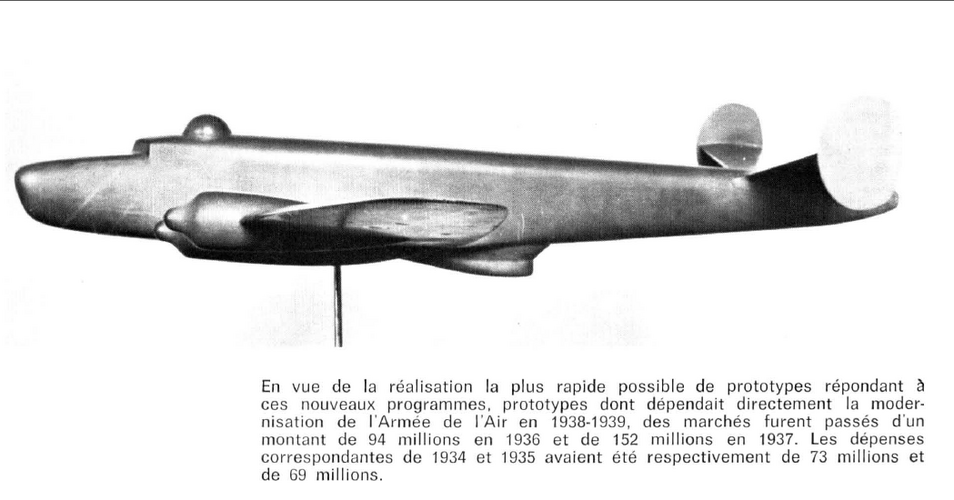

hello, I found that on a french models website, do someone know this project? Because the designation of Potez 40 is already taken and it's look like the potez 231



[hesham]

hello, I found that on a french models website, do someone know this project? Because the designation of Potez 40 is already taken and it's look like the potez 231

Yes,it's Potez C1-40,and not Potez-40,it was a single seat fighter Project,based on Potez-230,you will see more details in my new book.



[chercheuravions]

hello, I found that on a french models website, do someone know this project? Because the designation of Potez 40 is already taken and it's look like the potez 231

Yes,it's Potez C1-40,and not Potez-40,it was a single seat fighter Project,based on Poetz-230,you will see more details in my new book.

thank you very much! Where will you sell your book? (I'm new on the forum, and I want to know more about French secrets projects)



[hesham]

thank you very much! Where will you sell your book? (I'm new on the forum, and I want to know more about French secrets projects)

Welcome aboard,

and it's under construction now,it's about French Military Aircraft from 1919
to 1945,you will find a huge quantity of Projects in it for each company.



[Apophenia]

As hesham says, this is the Potez C1-40 S project, effectively an enlarged Potez 230 (in turn, a Potez development of the AMF Mureaux 190 light fighter).

Whereas the Potez 230 was powered by an HS 12X, the larger C1-40 S was to have a 1,300 hp HS 12Z engine driving twin turbochargers and a four-bladed propeller.

Specifications: Span 11.92 m; Area 19 m²; Length 9.71 m; Weight (empty) 1,800 kg; weight (T/O) 3,200 kg

Performance: 540 km/h @ sea level; 610 km/h @ 5,000 m; 675 km/h @ 9,000 m; service ceiling 12,000+ m; time to 10,000 m 14 minutes; maximum range of 1,800 km.

Source: L'aviation selon Drix https://aviadrix.blogspot.com/2016/04/

On the anomalous C1-40 S designation, I suspect that it simply stood for a generic Chasse en monoplace - 1940 ... but I'm not sure about the 'S' suffix. Perhaps it stood for suralimentation?



[Archibald]

thank you very much! Where will you sell your book? (I'm new on the forum, and I want to know more about French secrets projects)

Welcome aboard,

and it's under construction now,it's about French Military Aircraft from 1919
to 1945,you will find a huge quantity of Projects in it for each company.

Good luck with the project, Hesham !



[hesham]

Good luck with the project, Hesham !

Thank you my dear Archibald,

and I finished it with my dear James Davilla,but we make a big review now.



[hesham]

I intend to speak about Potez list after WWII,from P.75 to P.94,and
in my new book a surprise about his early designation.



[hesham]

I intend to speak about Potez list after WWII,from P.75 to P.94,and
in my new book a surprise about his early designation.

As following;

Potez 75 was a two-seat ground-support, observation and launch aircraft for anti-tank missiles,powered by one 640 hp Potez 8d 32 engine
Potez 76 ? was unknown,but may it was the same as P.75-2,which had side-by-side
two seat crew,as re-allocated ?,project
Potez 77 ? was unknown,but may it was the same as P.75-3,which was a trainer
version of P.75-2,as re-allocated,project
Potez 78 ? was unknown,but may it was an amphibian flying boat version of P.75,
as re-allocated,project
Potez 79 ? was unknown,but may it was the same as TOE, amid-wing three-seat
ground attack COIN monoplane project,powered by two 800 to 1000 hp
engines
Potez 80 was a twin engined medium transport,powered by two Turboméca Marboré VI engines. Project
Potez 81 was a three engined low-wing light transport Project,powered by three Turboméca Bastan engines
Potez 82 was a twin engined medium transport Project
Potez 83 ? was unknown,but may it was an observation and army liaison aircraft project,intended to
compete Nord N.3400
Potez 84 or Potez 840 was a low-wing 18-passenger medium transport aircraft,powered by four 640 hp Turbomeca Astazou X turboprop engines
Potez 841 was a production variant powered by 558 hp Pratt & Whitney PT6A-6 engines
Potez 842 was a production variant powered by 640 hp Turbomeca Astazou XII
engines
Potez 843 was an unbuilt 1965 proposal with deeper fuselage and PT6 engines
Potez 850 ? was unknown,but may it was a business jet low-wing monoplane project of 1959/60,derivative of Magister,powered by two engines,mounted at the rear and beside of the fuselage
Potez 860 ------?
Potez 870 was a high-wing army cooperation a/c,with quite an impressive ground attack,powered by four,could be a Turboprops
Potez 880 was low wing light transport and freight aircraft,it was powered by four
930 hp Turbomeca Bastan 4 turboprop engines,project
Potez 881 was a military version of Potez-880,also used as close-support
aircarft against Spriale 3,MS-915 and Breguet 945,only a project
Potez 89 was a twin-engined civilian version of the 840 with shorter fuselage to accommodate 9 passengers,project
Potez 90 was a high-speed light transport aircraft based on Potez 75,project
Potez 91 in 1975 the company redesigned the aircraft as Super 75,which
was later known as Potez-91,it was twin boom amphibian aircraft and
powered by one Potez 8 D-32 engine
Potez 92 was a single-seat twin-engined jet strike and close-support project with rear-mounted engines to compete against Breguet Br 121
Potez 93 was a twin jets transport Project,could accommodated 50 passenger
Potez 94 Super Magister was a training plane, a Fouga CM 170 derivative initially designated Potez CM 173



[Stargazer]

The Potez 60 was called the SAUTERELLE (Grasshopper).
The Potez 880 was not a version of the Potez 870. It was a low wing light transport and freight aircraft.
I have the Potez 881 as a military transport version of the Potez 880 with a protruding cockpit.

If I'm not mistaken, remaining model numbers mysteries are XIII (perhaps not used), 48, 550, 69, 71-74, 76-79, 85, 86. I don't know if there were numbers used after the Potez 94.



[hesham]

The Potez 60 was called the SAUTERELLE (Grasshopper).
The Potez 880 was not a version of the Potez 880. It was a low wing light transport and freight aircraft.
I have the Potez 881 as a military transport version of the Potez 880 with a protruding cockpit.

If I'm not mistaken, remaining model numbers mysteries are XIII (perhaps not used), 48, 550, 69, 71-74, 76-79, 85, 86. I don't know if there were numbers used after the Potez 94.

I correct Potez 880 & 881,thanks.

For Potez XIII,55,69,71,72 & 73,in my new book,you will find a good speculations
to how they were,very nearly the truth,but for Potez 48,we can say;

Potez 48 ? was unknown,but may it was a postal civil aircraft project,intended for 1929 up to 1931 competition,which the main contenders included ; Nieuport NiD-740,Bleriot Bl-110,Couzinet-28,29 & 30,SPCA-40T,Bloch-60,Bleriot 195/2,
Dewoitine D.29,ANF-Mureaux-140T,Albert A.20,Bleriot BZ-4, Breguet Br.380 ?
and Guerchais T.6



[Stargazer]

I correct Potez 880 & 881,thanks.

Just realized I wrote "880" twice. What I meant to write was "The Potez 880 was not a version of the Potez 870. It was a low wing light transport and freight aircraft."

Also I think it's not correct to write the Potez numbers as "P." since I don't think this was never used.



[hesham]

I add to the list Potez 76,77,78 & 79,as it's only my speculations.



[Stargazer]

Please note however that there seems to be a confusion over which was the civil version between the Models 880 and 881. Depending on the source, the 880 is given as the military version and the 881 as the commercial one (Aviation Magazine), or the other way around (Flight International). Since the only image with an actual model number on the airplane is the one of a civil "881", I believe the military cargo version with the protruding cockpit must have been the Model 880 and the commercial passenger transport the Model 881.



[hesham]

As following;

P.75 was a two-seat ground-support, observation and launch aircraft for anti-tank missiles,powered by one 640 hp Potez 8d 32 engine
P.76 ? was unknown,but may it was the same as P.75-2,which had side-by-side
two seat crew,as re-allocated ?,project
P.77 ? was unknown,but may it was the same as P.75-3,which was a trainer
version of P.75-2,as re-allocated,project
P.78 ? was unknown,but may it was an amphibian flying boat version of P.75,
as re-allocated,project
P.79 ? was unknown,but may it was the same as TOE, amid-wing three-seat
ground attack COIN monoplane project,powered by two 800 to 1000 hp
engines
P.80 was a twin engined medium transport Project
P.81 was a three engined low-wing light transport Project,powered by three Turboméca Bastan engines
P.82 was a twin engined medium transport Project
P.83 ? was unknown,but may it was a business jet low-wing monoplane project
of 1959/60,derivative of Magister,powered by two engines,mounted at the rear
and beside of the fuselage
P.84 or P.840 was a low-wing 18-passenger medium transport aircraft,powered
by four 640 hp Turbomeca Astazou X turboprop engines
P.841 was a production variant powered by 558 hp Pratt & Whitney PT6A-6 engines
P.842 was a production variant powered by 640 hp Turbomeca Astazou XII
engines
P.843 was an unbuilt 1965 proposal with deeper fuselage and PT6 engines
P.850 ------?
P.860 ------?
P.870 was a high-wing army cooperation a/c,with quite an impressive ground attack,powered by four,could be a Turboprops
P.880 was low wing light transport and freight aircraft,it was powered by four
930 hp Turbomeca Bastan 4 turboprop engines,project
P.881 was a military version of Potez-880,also used as close-support
aircarft against Spriale 3,MS-915 and Breguet 945,only a project
P.89 was a twin-engined civilian version of the 840 with shorter fuselage to accommodate 9 passengers,project
P.90 was a high-speed light transport aircraft based on Potez 75,project
P.91 in 1975 the company redesigned the aircraft as Super 75,which
was later known as Potez-91,it was twin boom amphibian aircraft and
powered by one Potez 8 D-32 engine
P.92 was a single-seat twin-engined jet strike and close-support project with rear-mounted engines to compete against Breguet Br 121
P.93 was a twin jets transport Project,could accommodated 50 passenger
P.94 Super Magister was a training plane, a Fouga CM 170 derivative initially designated Potez CM 173

By the way,the "P" prefix was also used by Aviation Magazine itself ?!,

Aviation : magazine de l'espace | 1961-04-01 | Gallica



[Stargazer]

By the way,the "P" prefix was also used by Aviation Magazine itself ?!,

So what? Journalists have always made mistakes! Magazines make mistakes! Even authors make mistakes! (I once tried to list all the mistakes in an Alain Pelletier MiniDocavia book and gave up because there were just too many...)



[hesham]

As following;

Potez 75 was a two-seat ground-support, observation and launch aircraft for anti-tank missiles,powered by one 640 hp Potez 8d 32 engine
Potez 76 ? was unknown,but may it was the same as P.75-2,which had side-by-side
two seat crew,as re-allocated ?,project
Potez 77 ? was unknown,but may it was the same as P.75-3,which was a trainer
version of P.75-2,as re-allocated,project
Potez 78 ? was unknown,but may it was an amphibian flying boat version of P.75,
as re-allocated,project
Potez 79 ? was unknown,but may it was the same as TOE, amid-wing three-seat
ground attack COIN monoplane project,powered by two 800 to 1000 hp
engines
Potez 80 was a twin engined medium transport Project
Potez 81 was a three engined low-wing light transport Project,powered by three Turboméca Bastan engines
Potez 82 was a twin engined medium transport Project
Potez 83 ? was unknown,but may it was a business jet low-wing monoplane project of 1959/60,derivative of Magister,powered by two engines,mounted at the rear and beside of the fuselage
Potez 84 or Potez 840 was a low-wing 18-passenger medium transport aircraft,powered by four 640 hp Turbomeca Astazou X turboprop engines
Potez 841 was a production variant powered by 558 hp Pratt & Whitney PT6A-6 engines
Potez 842 was a production variant powered by 640 hp Turbomeca Astazou XII
engines
Potez 843 was an unbuilt 1965 proposal with deeper fuselage and PT6 engines
Potez 850 ------?
Potez 860 ------?
Potez 870 was a high-wing army cooperation a/c,with quite an impressive ground attack,powered by four,could be a Turboprops
Potez 880 was low wing light transport and freight aircraft,it was powered by four
930 hp Turbomeca Bastan 4 turboprop engines,project
Potez 881 was a military version of Potez-880,also used as close-support
aircarft against Spriale 3,MS-915 and Breguet 945,only a project
Potez 89 was a twin-engined civilian version of the 840 with shorter fuselage to accommodate 9 passengers,project
Potez 90 was a high-speed light transport aircraft based on Potez 75,project
Potez 91 in 1975 the company redesigned the aircraft as Super 75,which
was later known as Potez-91,it was twin boom amphibian aircraft and
powered by one Potez 8 D-32 engine
Potez 92 was a single-seat twin-engined jet strike and close-support project with rear-mounted engines to compete against Breguet Br 121
Potez 93 was a twin jets transport Project,could accommodated 50 passenger
Potez 94 Super Magister was a training plane, a Fouga CM 170 derivative initially designated Potez CM 173

I correct it,not a big deal ?!.



[Stargazer]

Have we got a tentative designation for the B5 bomber project?



[hesham]

Have we got a tentative designation for the B5 bomber project?

The answer is in my new book.



[hesham]

Potez 80 was a twin engined medium transport,powered by two Turboméca Marboré VI engines. Project

I add the definition of engines to the text.
