Hi,

I saw today the Rohr 2-175 in the topic "Jet trainers without jets", and I realized that Postwar deltas flying with propellers are not well known (at least by me ;D )

So I searched a first list of these planes. Among their the main are only prototypes (we are on SecretProjects ;) ). I am interested by all the others that you can add [but more "deltas" than other flying wings and canards or similar like ML Utility MkI (1957 : 65 hp), Rutan VariViggen (1972 : 150 hp), Miller Texas Gem (1973 : 100 hp), Velocity (1985 : 160 hp ?), Miller Bohannon JM-2 (1989 : 100 hp), Wingco Atlantica (2003 : 160 or 235 hp, crash during first flight), Chudzik CC-02 (2007 : 200 hp), Velocity V-Twin (2012 : 2 x 160 hp) or Raptor Aircraft Raptor (2019 ? : 300 hp)]

-Baker MB-1 : 1960 : 85 hp (1 prototype)
https://en.wikipedia.org/wiki/Baker_MB-1_Delta_Kitten
https://commons.wikimedia.org/wiki/File:KN_Baker_DeltaKitten_1960.jpg

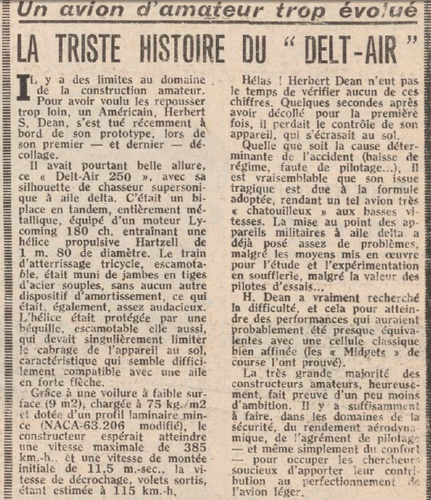

-Dean Delt-Air 250 : 1961 : 180 hp (crash of the prototype during first flight)
https://en.wikipedia.org/wiki/Dean_Delt-Air_250
https://www.vintagemodelplans.com/products/full-size-printed-scale-peanut-plans-dean-delt-air-250-model-proved-to-be-a-very-stable-flier

-Dyke Delta : 1966 : 180 hp ? (around 50 built, among their one one-seat Stingray 1970 ? 100 hp)
https://en.wikipedia.org/wiki/Dyke_Delta
https://doc8643.com/aircraft/JD2
https://www.recreationalflying.com/topic/9163-finally-found-it-but/

-Rohr 2-175 : 1974 : 150 hp (one prototype)
http://www.fraseraerotechnologycompany.com/Rohr_2-175_Fan_Jet.html
https://ic.pics.livejournal.com/thexhs/33277452/85322/85322_original.jpg

-Facetmobile FMX-4 : 1993 : 50 hp (one prototype)
https://en.wikipedia.org/wiki/Wainfan_Facetmobile
http://www.facetmobile.com/

-Verhees Delta D1 : 2004 : 50 hp (one prototype)
http://www.verheesengineering.com/single-seat-d1/
http://www.verheesengineering.com/d1-specifications/

-Verhees Delta D2 : 2018 : 100 hp (one prototype)
http://www.verheesengineering.com/d2-twoseater/
http://www.verheesengineering.com/specifications-verhees-delta-2/


I like the Baker MB-1 and the Verhees Deltas D1/2. There is Payen's spirit in these planes :)


Attachments

  • Baker MB-1.jpg
    Baker MB-1.jpg
    83.3 KB · Views: 604

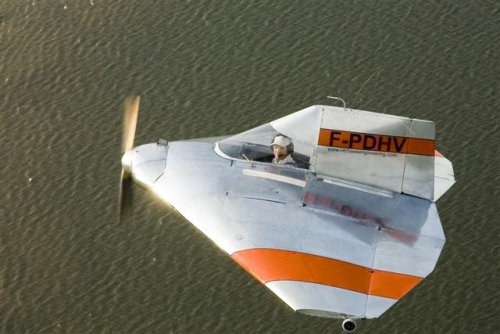

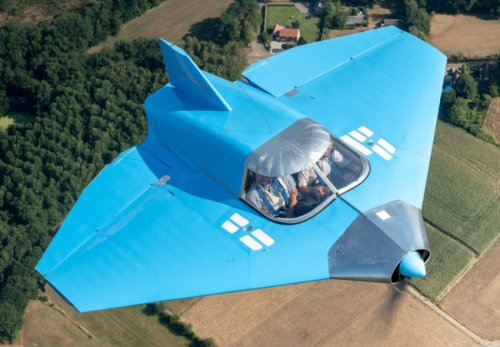

  • Verhees Delta D2.jpg
    Verhees Delta D2.jpg
    365.6 KB · Views: 169
  • Verhees Delta D1.jpg
    Verhees Delta D1.jpg
    41.2 KB · Views: 154

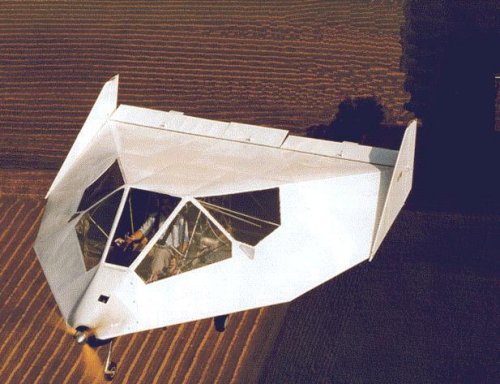

  • Facetmobile FMX-4.jpg
    Facetmobile FMX-4.jpg
    59.4 KB · Views: 168

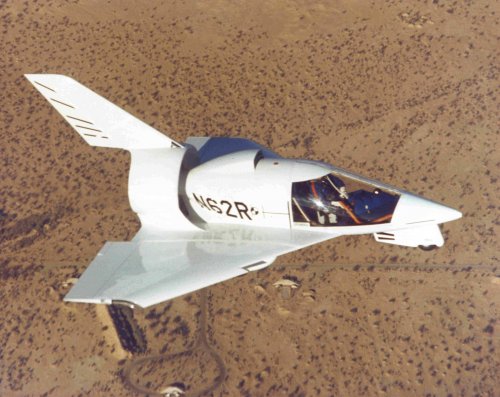

  • Rohr 2-175.jpg
    Rohr 2-175.jpg
    487.2 KB · Views: 523

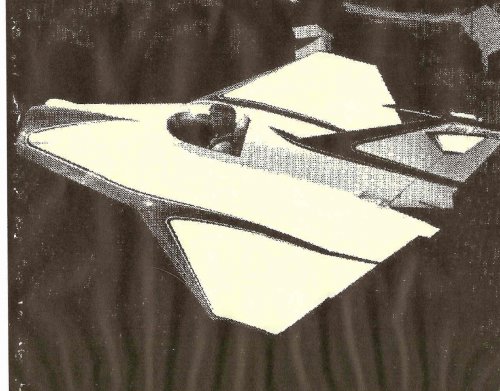

  • Dyke Delta Stingray.jpg
    Dyke Delta Stingray.jpg
    131.4 KB · Views: 525

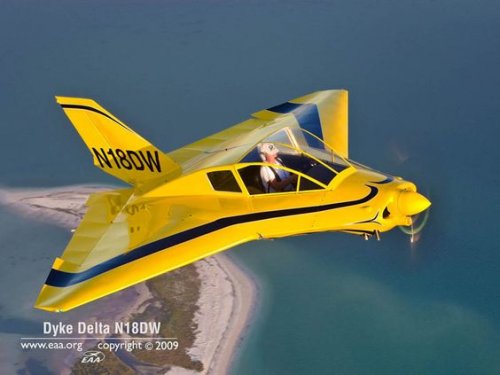

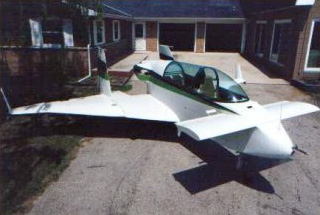

  • Dyke Delta.jpg
    Dyke Delta.jpg
    33.5 KB · Views: 538
  • Dean Delt-Air 250 2.jpg
    Dean Delt-Air 250 2.jpg
    41.1 KB · Views: 589
Videos about flying :

-Dyke Delta : https://www.youtube.com/watch?v=5imyOLhIJDQ

-Rohr 2-175 : https://www.youtube.com/watch?v=Yg_8hDMIJtA

-Facetmobile FMX-4 : https://www.youtube.com/watch?v=djdG0TNvPio

-Verhees Delta D1 : https://www.youtube.com/watch?v=6pBxqUG4cfk

-Verhees Delta D2 : https://www.youtube.com/watch?v=MLUs8hqyCnA

There's also that cranked delta that only flew as an RC model that was being proposed as a military trainer somewhere here at SP. It has tandem seating. I can't remember the name of it right now.

Cy-27 said:
There was also the Lohr Deltaflügler - see https://www.secretprojects.co.uk/forum/index.php/topic,17943.msg196838.html#msg196838
Click to expand...
Thanks. I did not know this project. Too bad that it did not have the opportunity to fly.

Jemiba said:
Eric, how could you forget to mention THE postwar delta with a prop, the Payen Pa.60/61 ?
https://www.secretprojects.co.uk/forum/index.php/topic,1417.0.html

Well, ok, much too obvious to be mentioned again ... ;D
Click to expand...
Yes, "too well known". But thank you for this reminder ;)

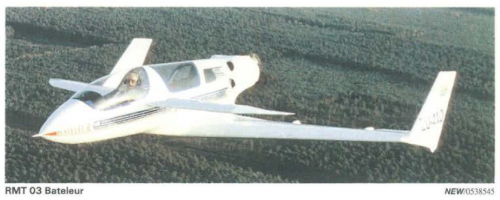

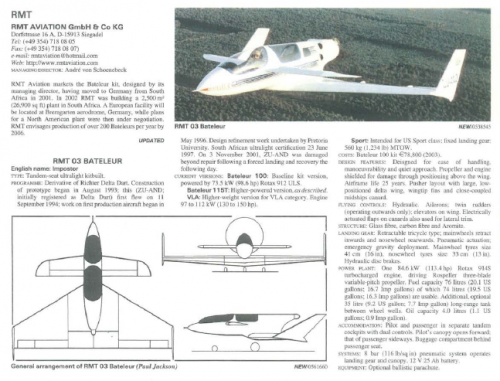

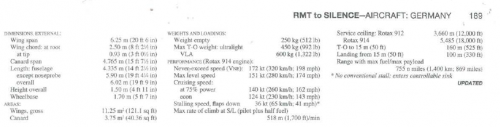

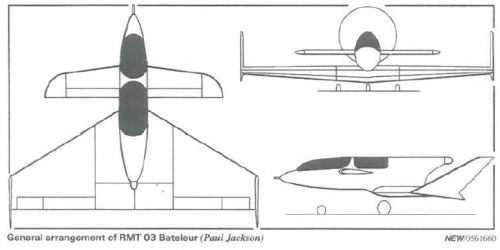

It looks like more a Delta-canard, like the Rutan VariViggen, but thanks Hesham.

Deltafan said:
This one ? (AMR XD-110A : 1969)
Click to expand...

Yes, that's the one.

https://www.secretprojects.co.uk/forum/index.php/topic,1303.msg10858.html#msg10858

https://www.secretprojects.co.uk/forum/index.php/topic,19933.msg193259.html#msg193259

H-5A Delta Stinger was/is a high-wing, low-aspect ratio, homebuilt designed by Continental Airlines engineer Lawrence “Larry” Heuburger. It probably never flew, but the prototype was recently spotted along a dusty road in the American South-West desert.
The wing had leading edges swept about 45 degrees while trailing edges swept forward a little (ala. Mirage).
The slab-sided fuselage sat a pilot in the nose, closely followed by a passenger. The engine was mounted high, amidships with an extension shaft connecting it to a pusher propeller. The deep fuselage included a rudder below the wing. A second rudder and fin were mounted above the wing. Fixed, tricycle, landing gear with spring-steel main legs.

H-5A had a tiny, horizontal trimming surface on the nose (similar to trimming surfaces on later Dyke Deltas).
There is a thread on the H-5A on www.homebuiltairplanes.com ....... started by our buddy Hesham..
I found the same photos and a 3-view drawing on Google.

Hopefully, a more tech-savvy poster can add links to those websites.
Pleeeeeeeease?

Heuburger later helped design the OMAC high-wing, canard, business turboprop. The first OMAC prototype had a delta centre wing, with constant-chord outer wing panels. After stability testing in a NASA wind tunnel, the revised OMAC got tapered wings.

Thanks riggerrob

https://www.rcgroups.com/forums/showthread.php?2428258-Heuberger-H-5-Delta-Stinger

https://www.homebuiltairplanes.com/forums/threads/high-mounted-low-aspect-ratio-delta-wing.17614/#post-205176

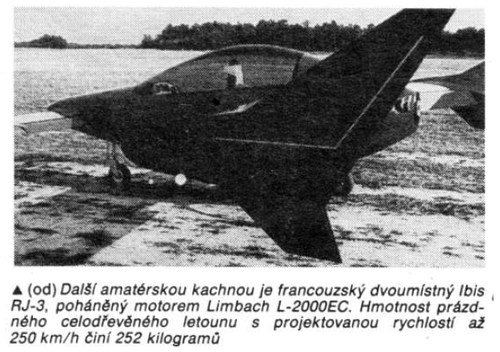

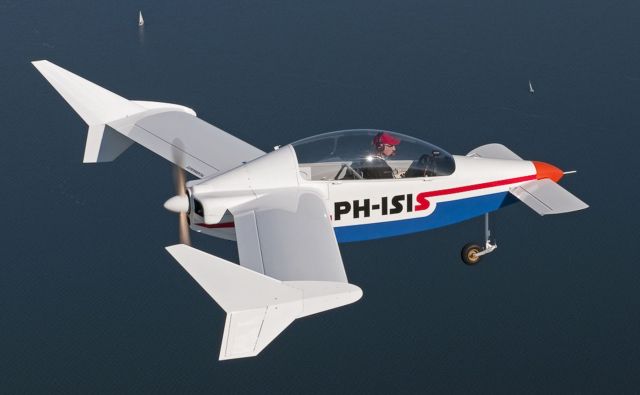

What was this French,Ibis RJ-3 ?.

From L+K 23/1991.


Attachments

  • 2 23-1991.png
    2 23-1991.png
    274.2 KB · Views: 215
Another one (new) project :

Schiffmann Aurora Delta :

www.facebook.com

42K views · 293 reactions | Aurora Low/Low speed taxi | Low/low speed taxi of the #auroradelta ⚡️⚡️⚡️www.wasabiaero.com This was my first time taxiing the airplane. We were looking at braking and ground... | By Wasabi Air Racing | Facebook

Low/low speed taxi of the #auroradelta ⚡️⚡️⚡️www.wasabiaero.com This was my first time taxiing the airplane. We were looking at braking and ground...
www.facebook.com www.facebook.com

not sure that it's the better shape (OK, amphibious...) to fly ... But, nevertheless, I like the look :)

Anyone know if it flew successfully?

Last edited:
After further research:


June 2013 :

the SRS Aurora. The SRS stands for Sticks, Rags and Styrofoam. It is loosely based on the Dyke-Delta with the additional capability of being amphibious. To accomplish this, Designer Gary Schiffmann positioned the 300HP Wankle engine on top in a pusher configuration. Gary has been working on this aircraft since 1981. He successfully built and flew a 1/4 scale RC model in that time. He is nearly finished and is in the process of filing his FAA paperwork. Gary hopes to fly the SRS Aurora later this summer.
Click to expand...

Well... For the moment, still no proof/photo/movie of flight (according to the article, only the 1/4 scale RC model).

Last edited:
Latest news has it that Bart Ver Hees is not interested in manufacturing or marketing kits for his Delta 2. The good news is that Mr. Ver Hees is seeking a business partner to CNC kits and ship them to builders. This is a good business opportunity for someone who already owns a CNC shop.

A Ver Hees Delta 3 would be nice ... since VD2 already resembles the 4-seater Dyke Delta. Dyke seats 3 passengers across a wide bench at the center-of-gravity.
However, the biggest market sector is 2-seaters optimized for hunting $100 hamburgers.

Last edited:
riggerrob said:
Latest news has it that Bart Ver Hees is not interested in marketing or manufacturing kits for his Delta 2. The good news is that Mr. Ver Hees is seeking a business partner to CNC kits and ship them to builders.
Click to expand...
Good news ! :)

Also hopefully, why not, a Delta 3 ;)

Retrofit said:

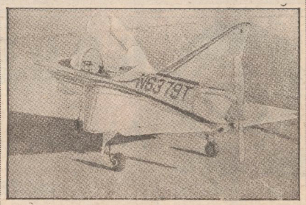

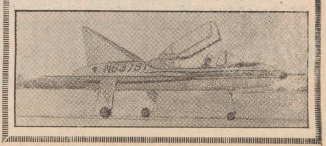

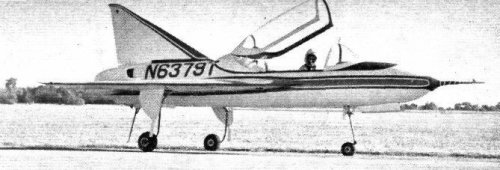

Cecil Goddard "Delta Wing".
Source: Sport Aviation
Click to expand...
Very good Retrofit ! :)

Maybe Cecil Goddard was this man in Mossbank-Saskatchewan-Canada:


One of the most eye-catching exhibits centers on a small airplane that is suspended from the roof. The plane was designed, built and flown by a local farmer, Cecil Goddard. Goddard built over a dozen different aircraft and flew them all with varying degrees of success. Some of his planes have been displayed in major airports and aviation museums, others, however, crashed with Goddard in them! Amazingly, despite his somewhat shaky flight record, Goddard emerged unscathed from every crash.
Click to expand...

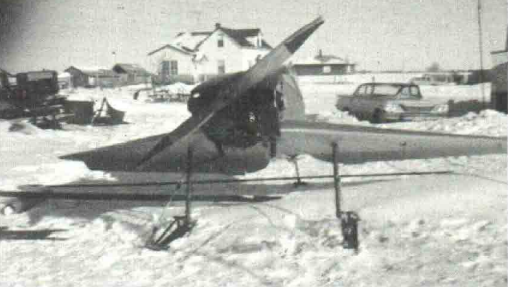

I found three photos of the plane, but it's not the delta. There are two photos sets around the plane, but they are too small to see anything...

riggerrob said:
H-5A Delta Stinger was/is a high-wing, low-aspect ratio, homebuilt designed by Continental Airlines engineer Lawrence “Larry” Heuburger. It probably never flew, but the prototype was recently spotted along a dusty road in the American South-West desert.
The wing had leading edges swept about 45 degrees while trailing edges swept forward a little (ala. Mirage).
The slab-sided fuselage sat a pilot in the nose, closely followed by a passenger. The engine was mounted high, amidships with an extension shaft connecting it to a pusher propeller. The deep fuselage included a rudder below the wing. A second rudder and fin were mounted above the wing. Fixed, tricycle, landing gear with spring-steel main legs.

H-5A had a tiny, horizontal trimming surface on the nose (similar to trimming surfaces on later Dyke Deltas).
There is a thread on the H-5A on www.homebuiltairplanes.com ....... started by our buddy Hesham..
I found the same photos and a 3-view drawing on Google.

Hopefully, a more tech-savvy poster can add links to those websites.
Pleeeeeeeease?

Heuburger later helped design the OMAC high-wing, canard, business turboprop. The first OMAC prototype had a delta centre wing, with constant-chord outer wing panels. After stability testing in a NASA wind tunnel, the revised OMAC got tapered wings.
Click to expand...

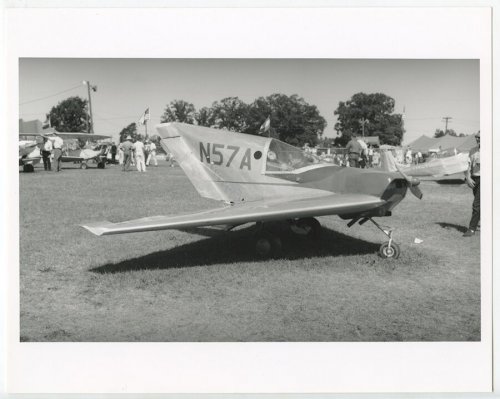

A recent E-Pay buy of negatives yielded these two prints of the Stinger H-5. Found this info on a Flickr page with color photos of the Stinger "out to pasture" in Tucumcari, NM in 2008. "The Stinger was an original design of Mr. Larry (Lawrence K) Heuberger who started construction around the early-1960s. Prior to completion the project was acquired (around 1968) by Mr. Bud Rinker (Santa Barbara, Ca) who almost certainly did some limited testing in 1970. It is a two-seat aircraft and powered by a 140hp Lycoming O-290-G engine".
https://flic.kr/p/dHuUQa
View: https://www.flickr.com/photos/spicpix/8345898409


Enjoy the Day! Mark


Attachments

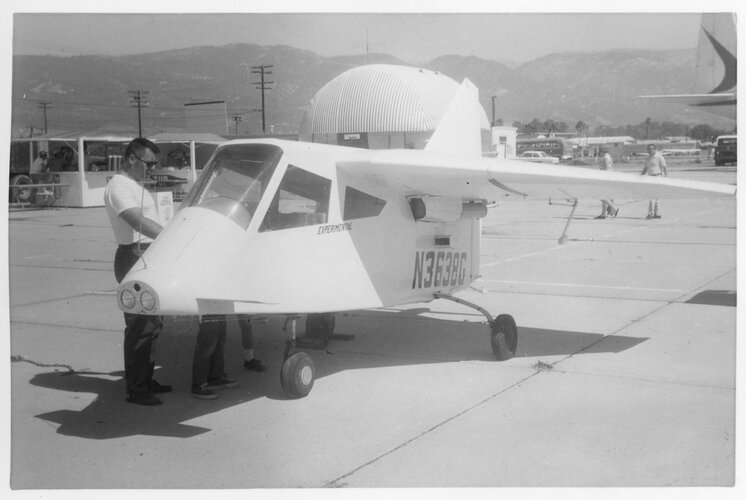

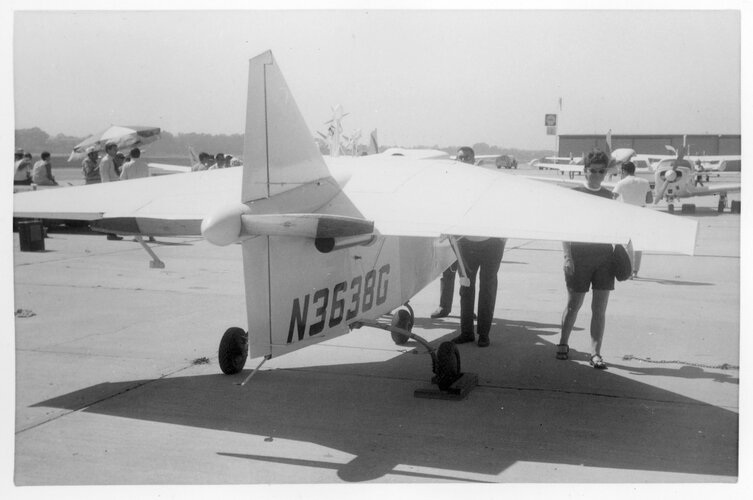

  • Heuberger-Rinker H-5 Stinger N3638G front view.jpg
    Heuberger-Rinker H-5 Stinger N3638G front view.jpg
    1.9 MB · Views: 60
  • Heuberger-Rinker H-5 Stinger N3638G rear view.jpg
    Heuberger-Rinker H-5 Stinger N3638G rear view.jpg
    2.1 MB · Views: 75
Mark Nankivil said:
Prior to completion the project was acquired (around 1968) by Mr. Bud Rinker (Santa Barbara, Ca) who almost certainly did some limited testing in 1970.


Enjoy the Day! Mark
Click to expand...

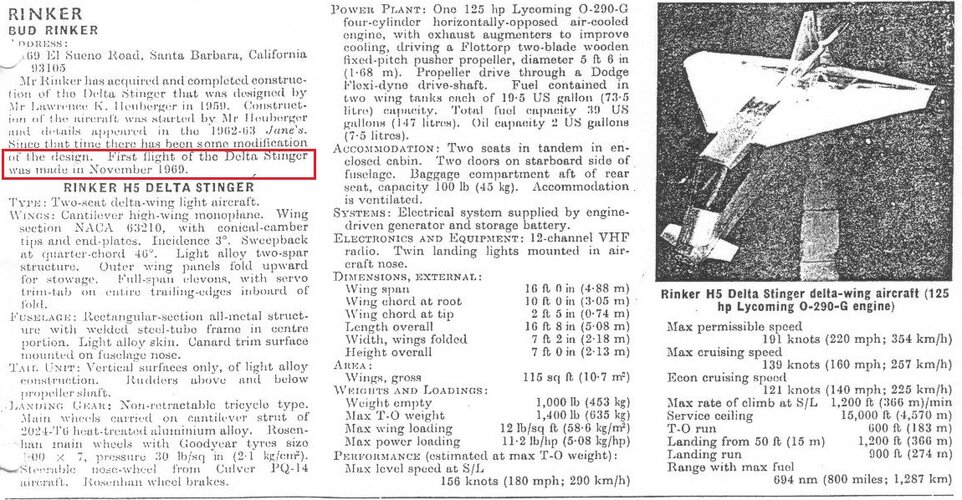

Bud Rinker performed the first flight in November 1969 but the aircraft was damaged soon after during a hard landing.

Source: Jane's.


Attachments

  • Heuberger003Amod.jpg
    378.6 KB · Views: 77
Last edited:
Last edited:

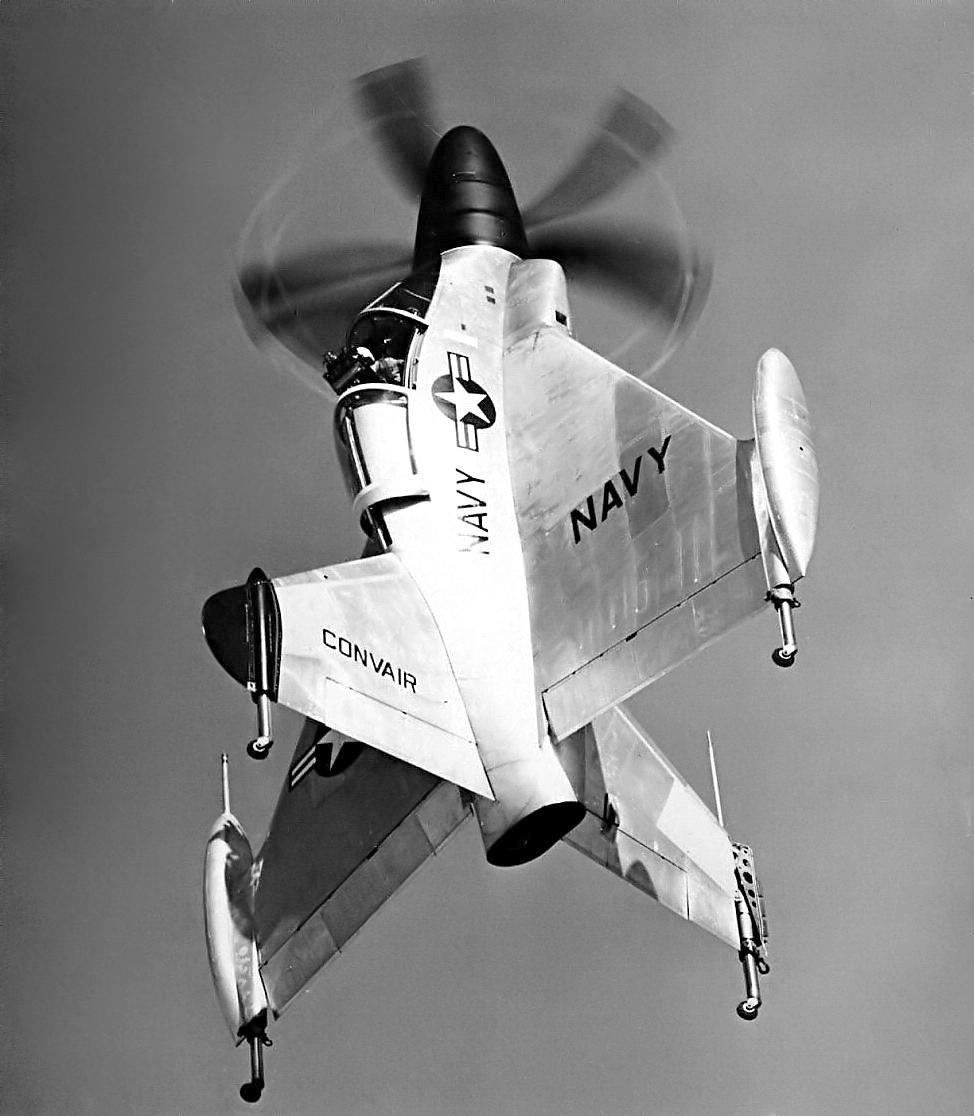

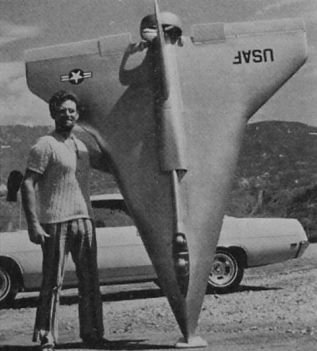

Don't forget the Convair XFY Pogo
