Porsche 109-005TL information?

[sagallacci]

Any good data and drawings of the Porsche disposable jet engine from WWII? I saw once a cutaway drawing in a Luft'46 reference and elsewhere a semi-speculative external cowl image.



[Basil]

No drawing but I can absolutely recommend the excellent book "German Jet Engine and Gas Turbine Development 1930-1945" by Antony L. Kay for an in-depth description of this turbojet. By the way, the book contains a nearly complete overview and analysis of the projects mentioned in the title in a quality which is second to none, including many drawings and photos. Perhaps the author was part of a technician team investigating german projects after the capitulation.



[sagallacci]

I've got that book and while it does discuss the 005, it has no illustrations, which is what I'm looking for.



[Justo Miranda]

From "Le Fanatique de l'Aviation Nº 396"
-"Unknown! Nº 2"



[Michel Van]

the french text say, this engine had to be used for V1 weapon,
how far was that prosche project ready ?



[Justo Miranda]

From

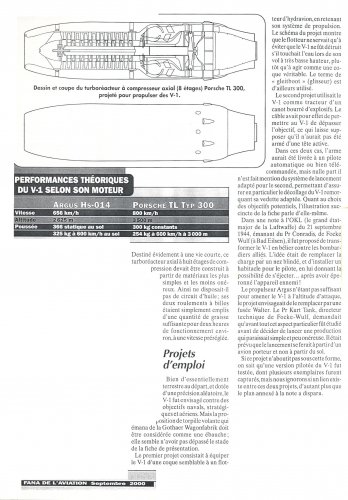

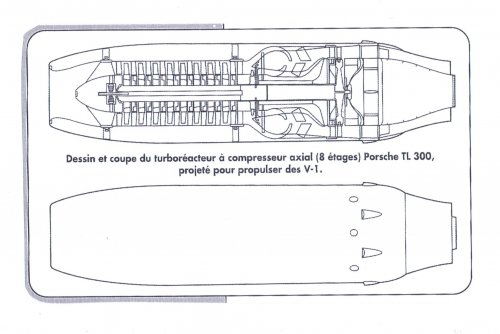

Le Fanatique de l'Aviation Septembre 2000



[Justo Miranda]

From

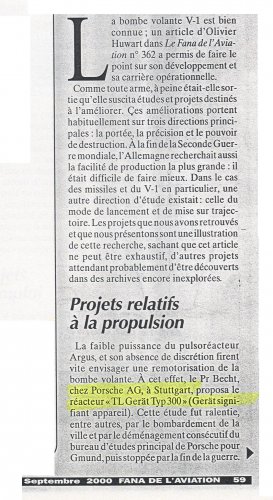

Le Fanatique de l'Aviation Septembre 2000 Post-2



[Johnbr]

Herr Mueller was asked to work on the engine by the RLM.Some were in the USA archive is very detailed drawings of it.the UK list the on the net said they info on it.



[Justo Miranda]

From

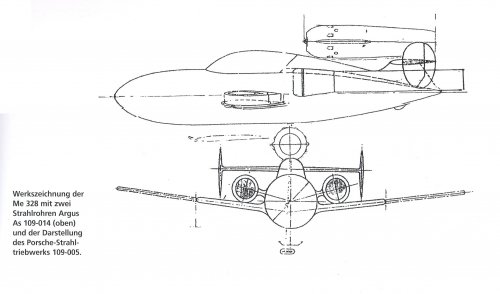

"Geheimprojekte der Luftwaffe Band III"
Motorbuch Verlag



[Justo Miranda]

From

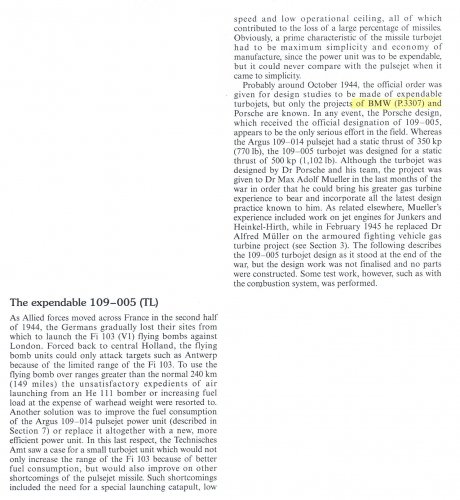

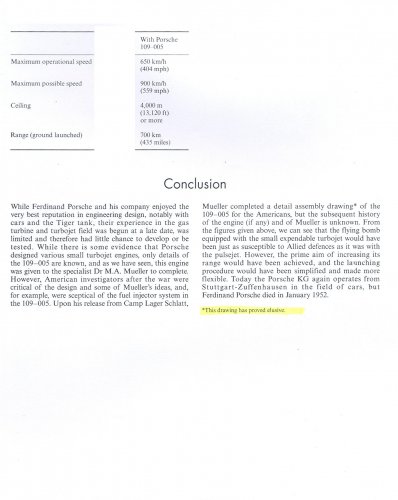

"German Jet Engine and Gas Turbine Development 1930-1945" by Antony L. Kay



[Justo Miranda]

From unknown source...



[Justo Miranda]

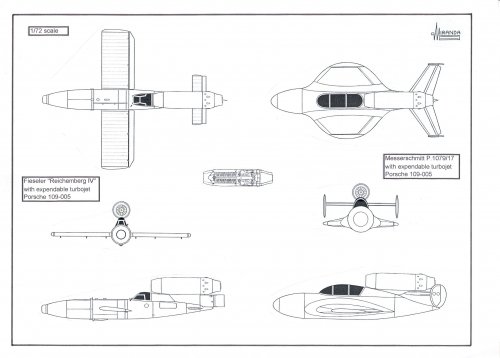

From -"Unknown! Nº 2"



[Michel Van]

Big THX to Justo Miranda

A V1 weapon with Porsche 109-005TL
would had be a unpleasantly surprise for British Air defence

although how to bring into accordance, a disposable jet engine with Manned jet Fighter ?



[Johnbr]

Me I would have put FW ram jet on the back of the v1.
