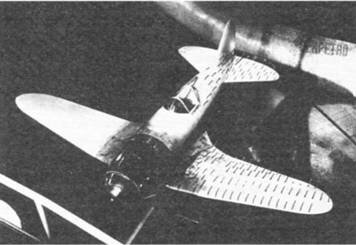

Polikarpov I-180 and I-185 fighters

[Stargazer]

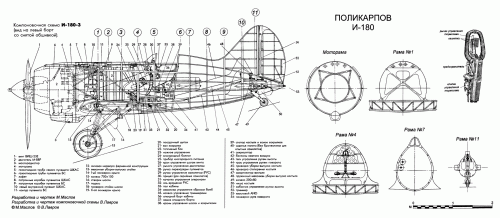

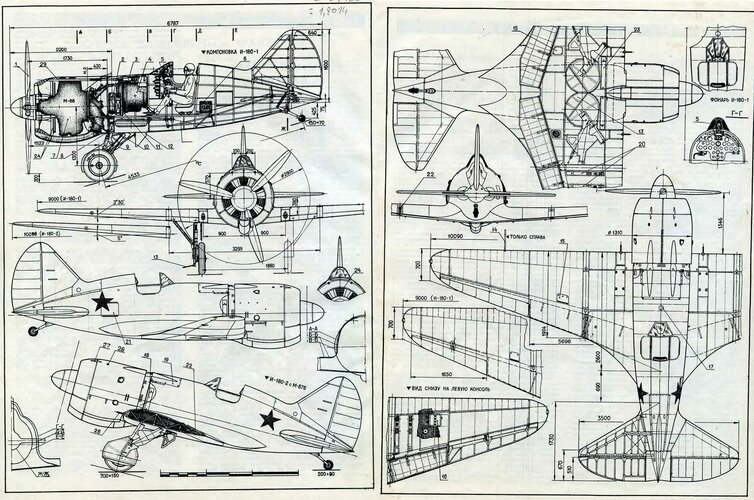

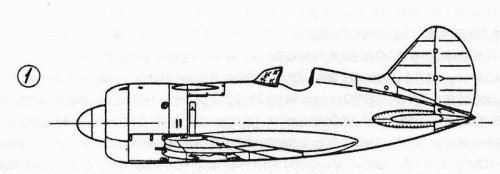

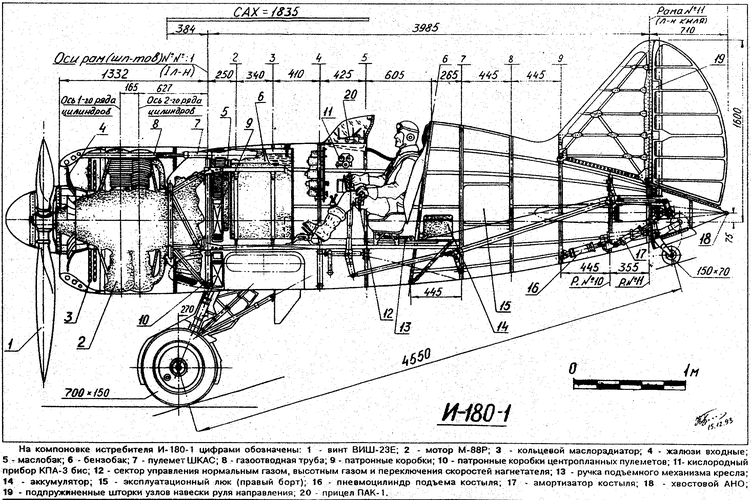

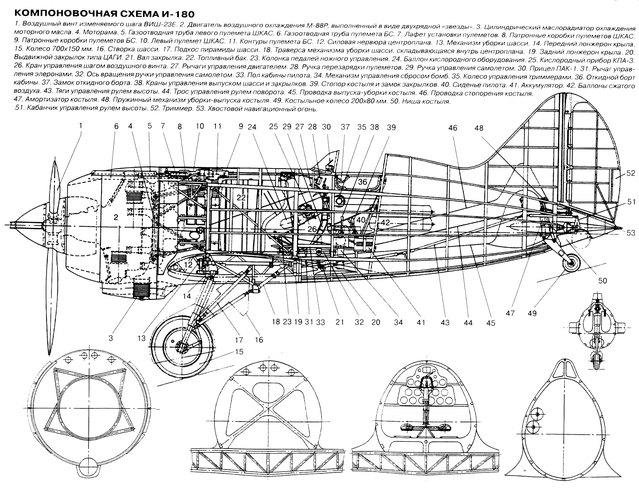

Polikarpov I-180-1 cutaway drawing from the Russian Aviatsiya i Vremia N°5 (1994):



[Stargazer]

Beautiful set of color profiles from the Russian Aviatsiya N°1 (1999):



[Stargazer]

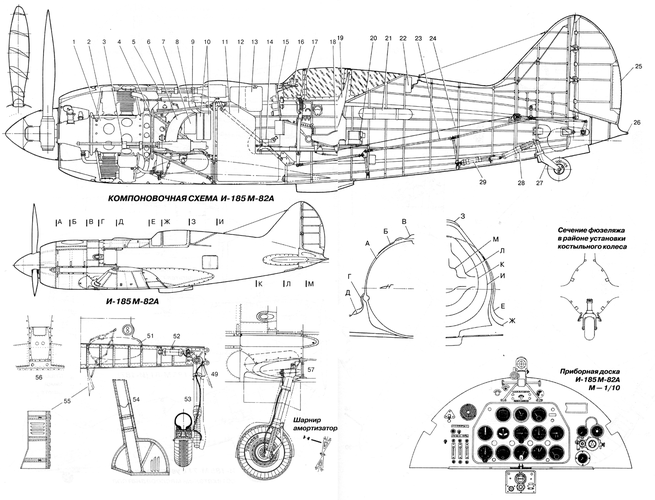

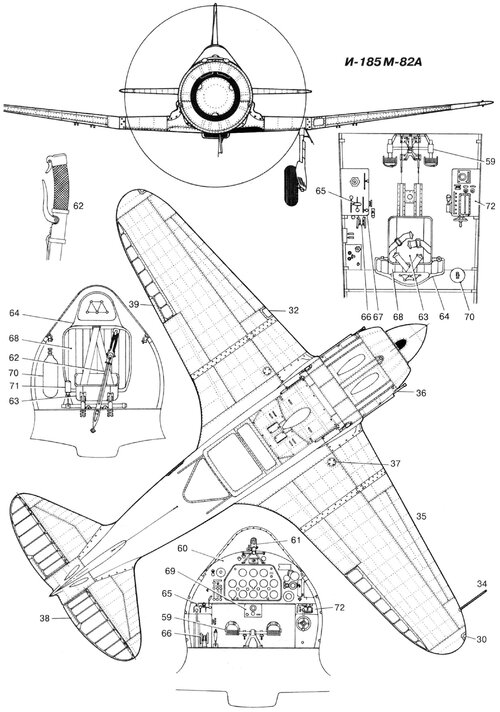

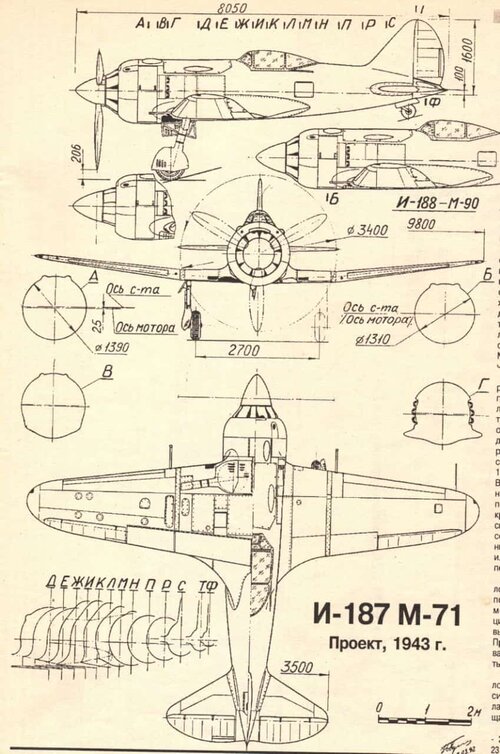

Beautiful plans from the very same source:



[Stargazer]

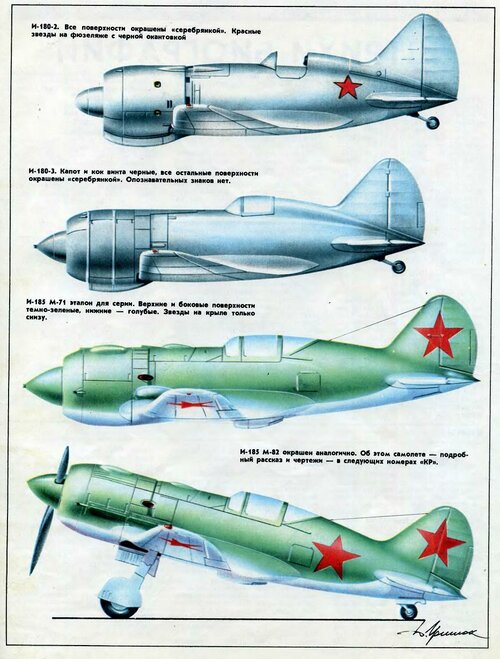

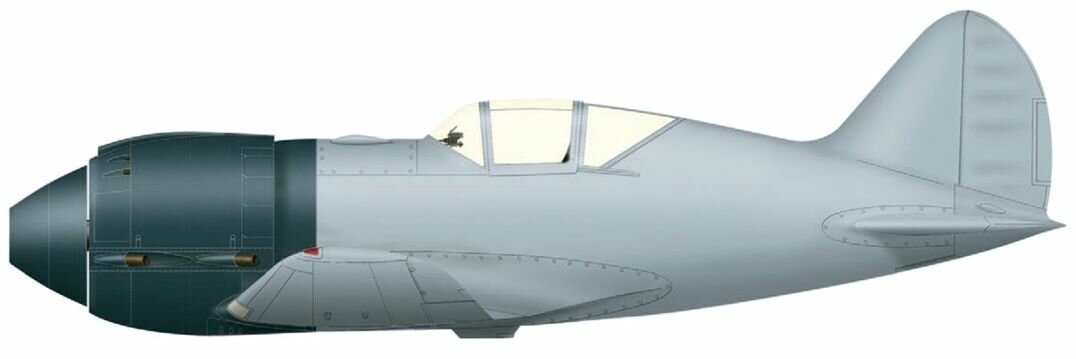

Color profiles of the Polikarpov I-180 and I-185 from the July 1990 issue of Krylia Rodine:



[Stargazer]

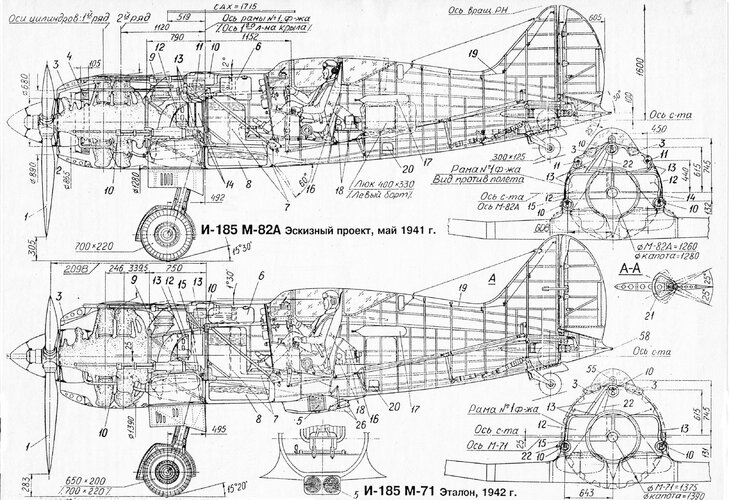

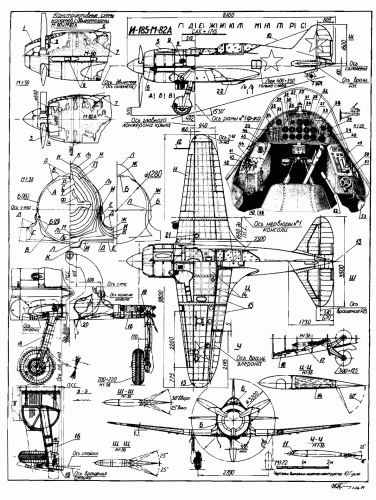

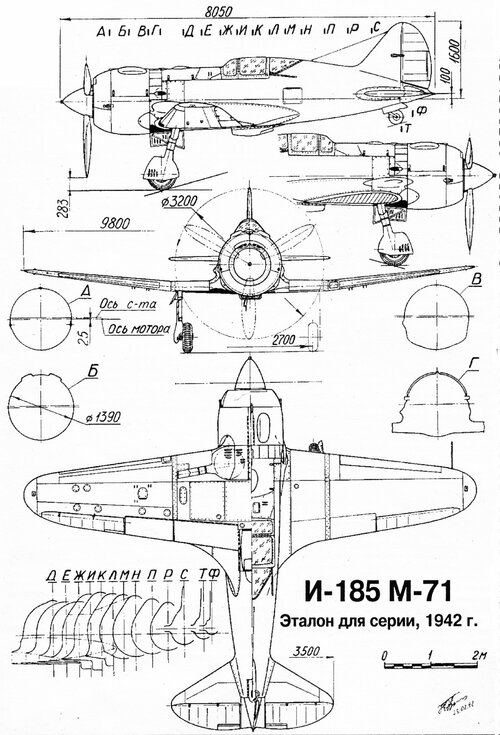

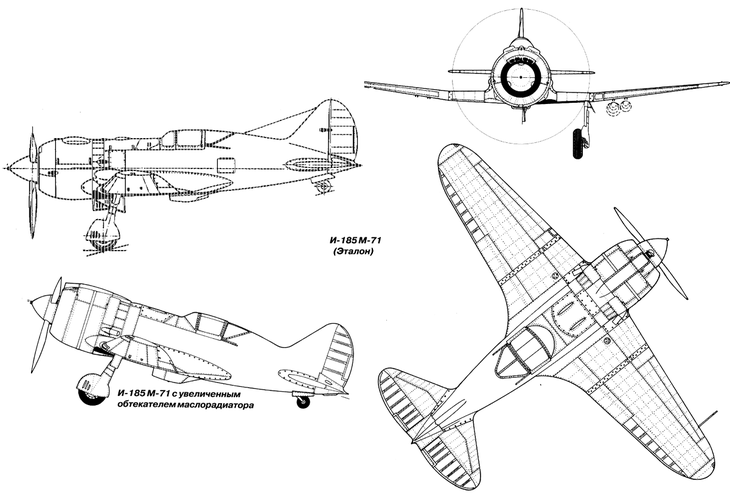

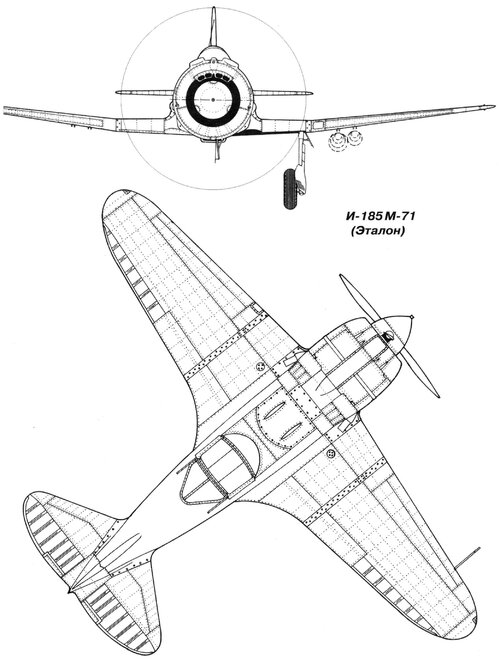

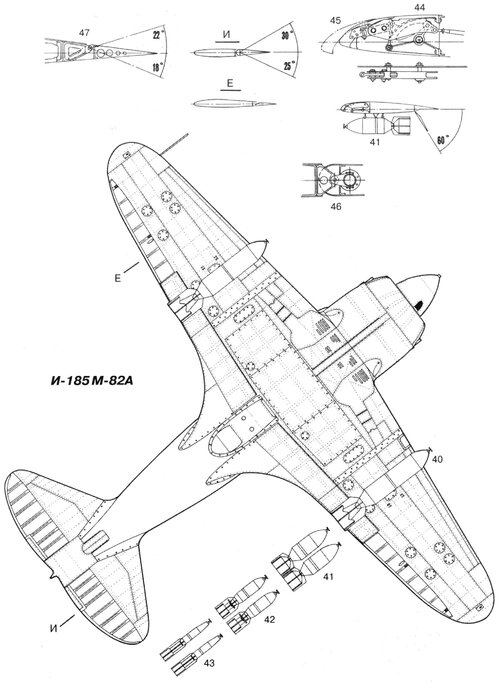

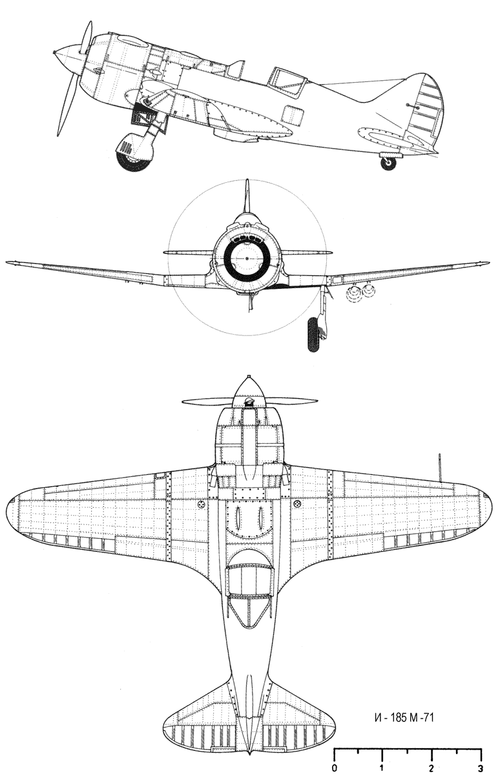

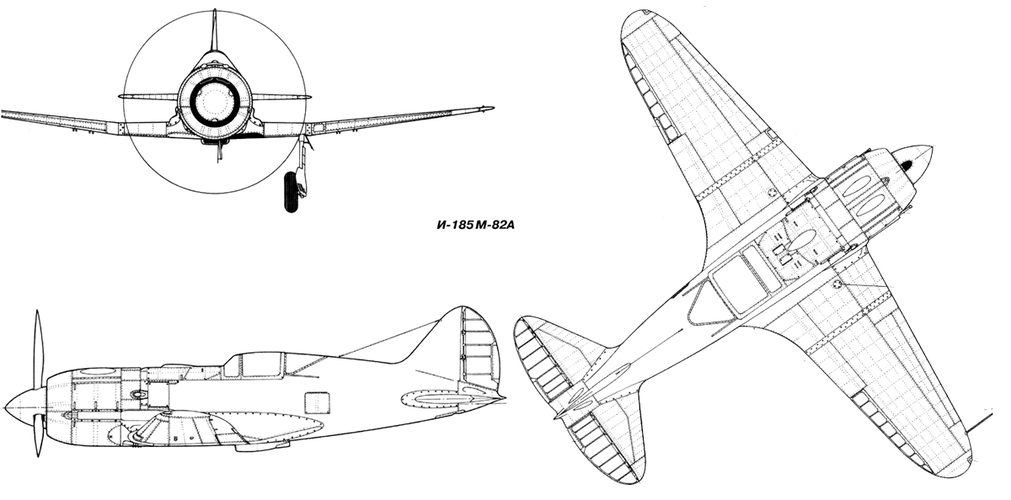

Plans of the I-185-M-71 and I-185-M-82A, from Krylia Rodine, August 1990:



[Stargazer]

Topic split from the Polikarpov projects thread.



[Stargazer]

Initially shared by borovik in another thread:

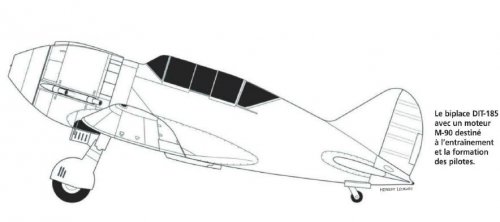

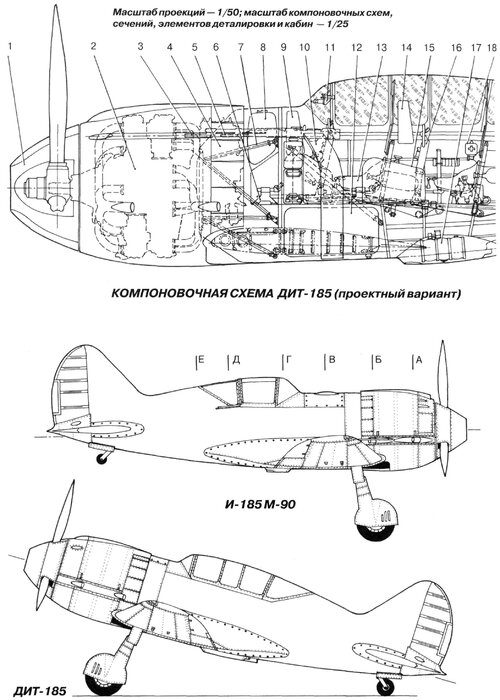

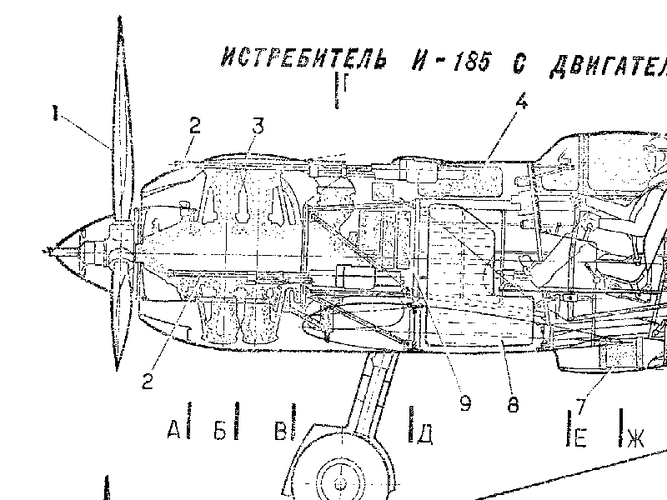

• DIT-185 drawing Yuri Guglya, magazine A i V (top profile)
• I-185 M-71 + D-5 engine



[hesham]

From Le FANA 507 magazine



[Jemiba]

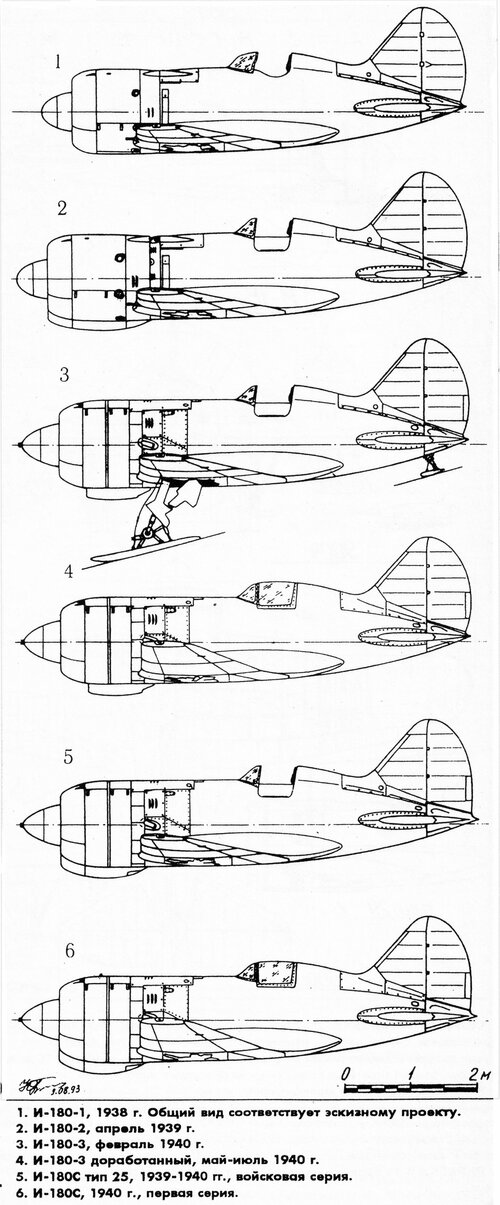

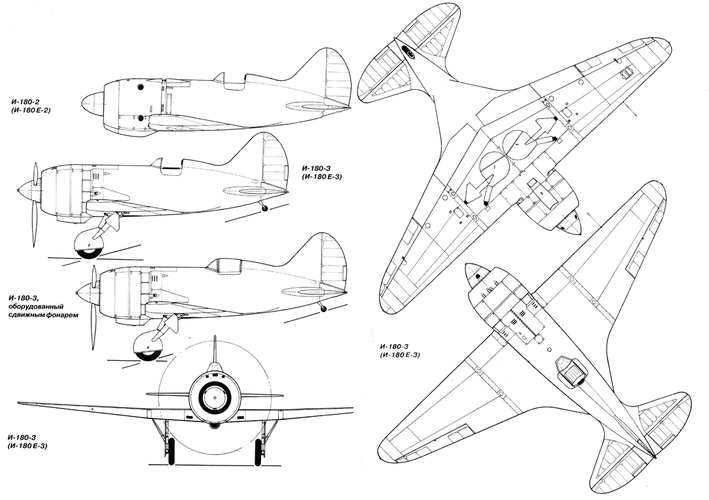

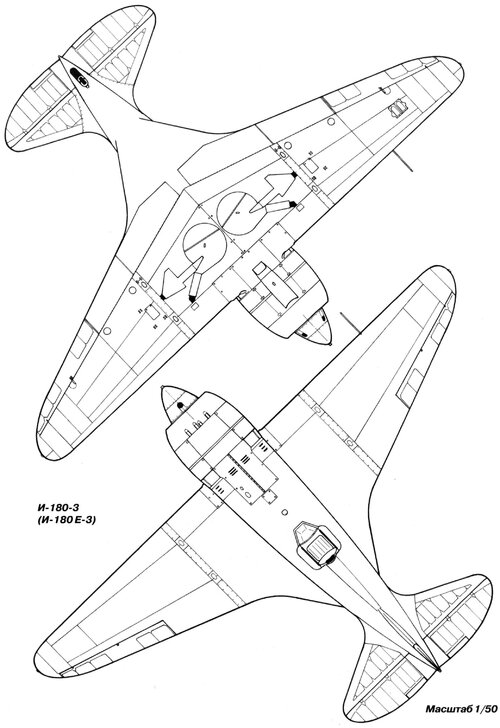

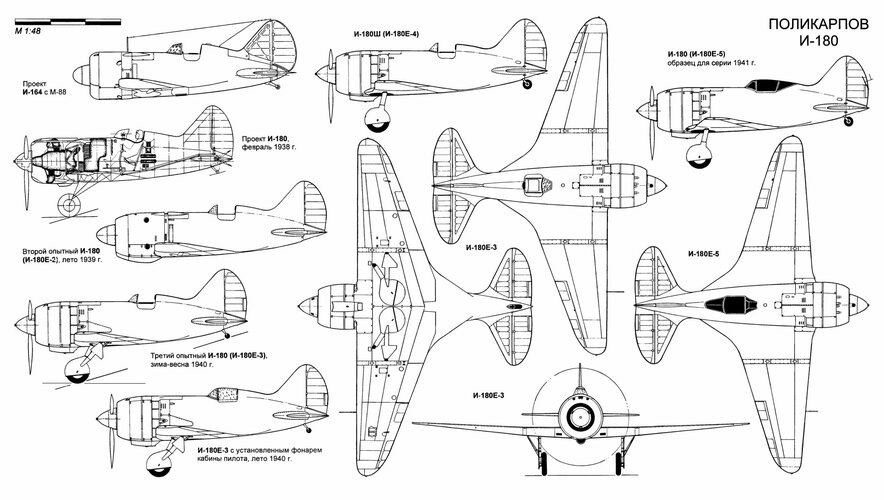

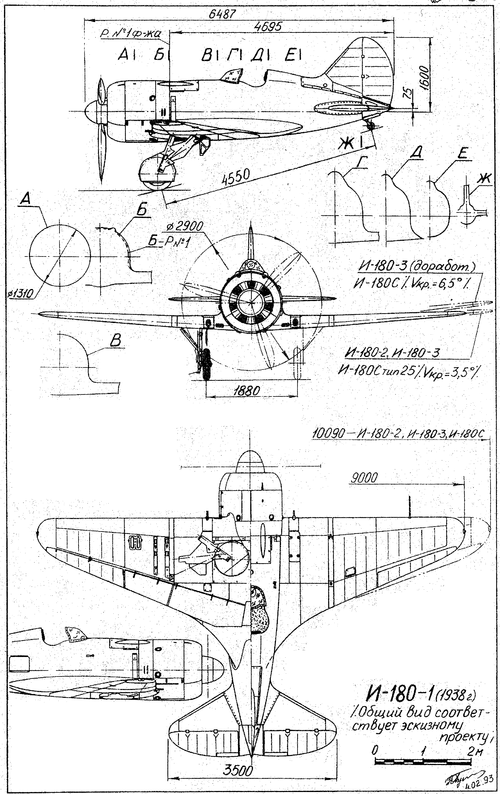

From "I-180, I-185 - poslednie istrebiteli Polikarpova " (The Last Poloikarpov's Fighters) by Jurij Guglja,

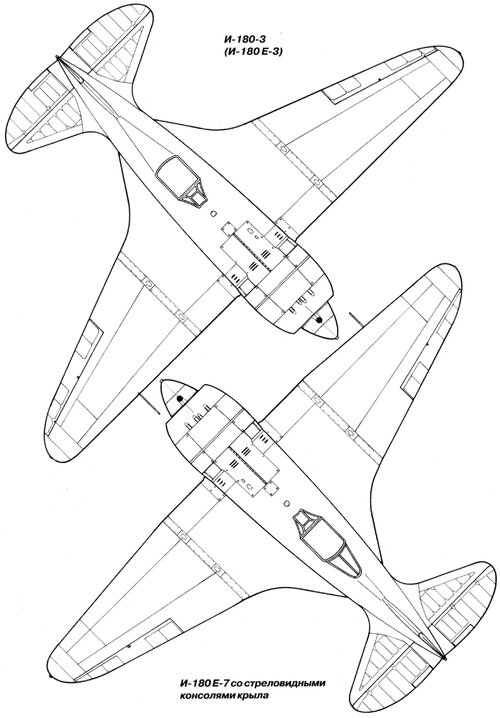

a 3-view of the I-180-1 (1938) and side views of the I-180-1, -2, -3, -3 Improved, I-180S and I-180S type 25:



[Jemiba]

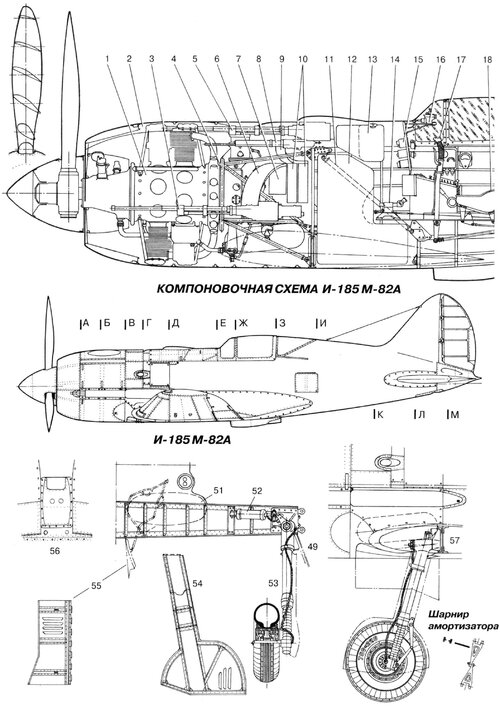

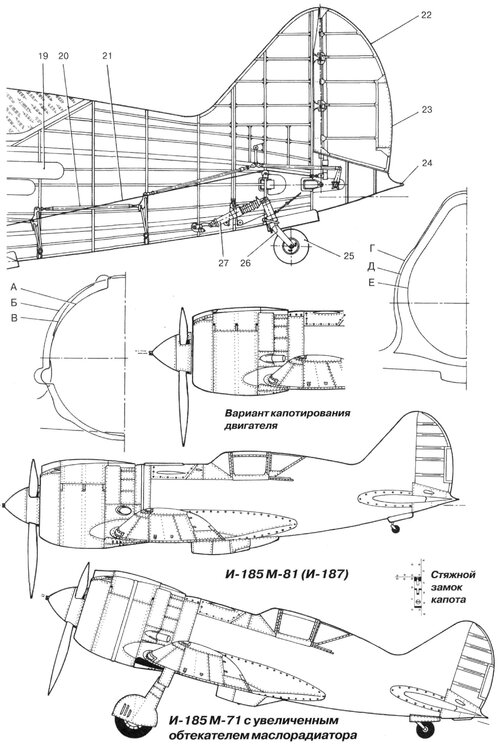

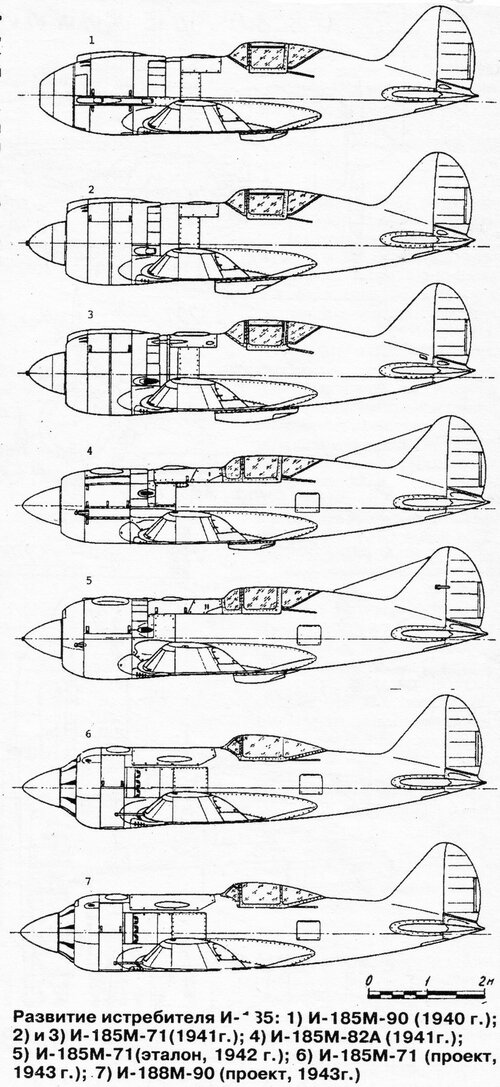

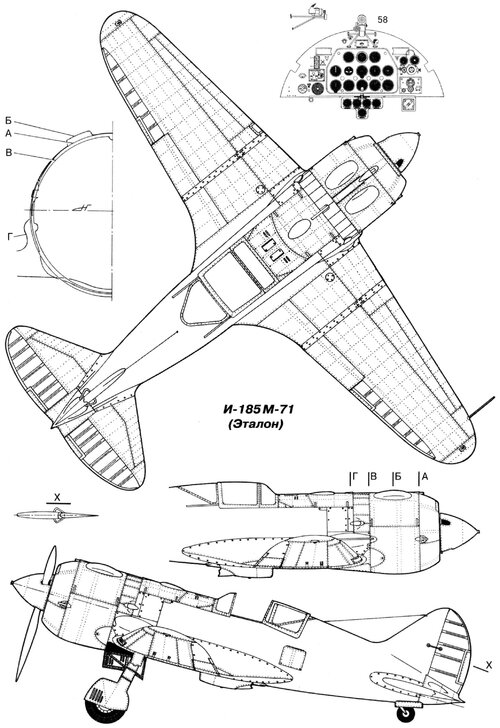

.. and from the same source the M-185 M-71 in 1941 and 1942, the I-185 M-82A and M-90:



[Cy-27]

In chapter 17 of B.P. Ivanov's book Aircraft of N.N. Polikarpov (Rusavia 2004), there are descriptions and illustrations of several I-180 variants. The image below is of the improved version of the I-180-3 with the enclosed cockpit.



[hesham]

Hi,

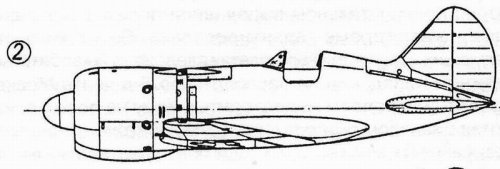

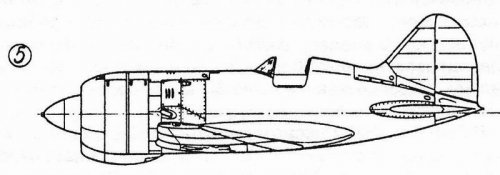

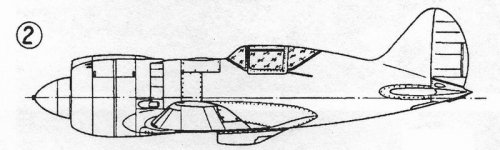

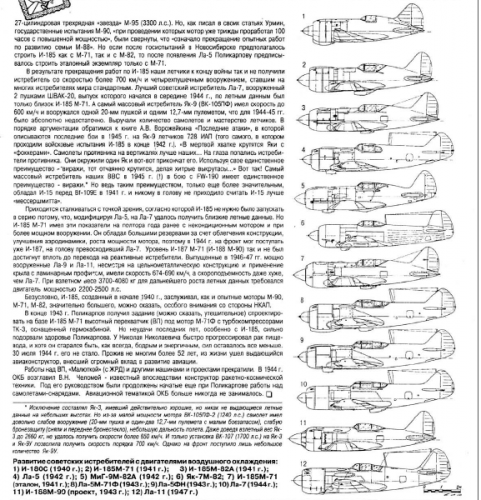

here is the I-180 series in comparison with anther Russian fighters,the mystery is the
MiG-9,drawing No.5,I think it was a misprint or La.9.



[Arjen]

Hi,


here is the I-180 series in comparison with anther Russian fighters,the mystery is the
MiG-9,drawing No.5,I think it was a misprint or La.9.

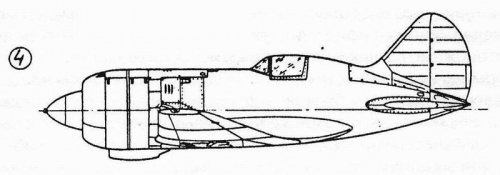

No.5 looks more like the I-210, a Shvetsov Ash-82/M-82 powered MiG-3.
According to Wikipedia, the I-210 was also known as MiG-9.

The I-211 was a direct descendent of the Mikoyan-Gurevich I-210 high-altitude fighter prototype, also known as the MiG-3-82 or MiG-9.



[hesham]

Thank you my dear Arjen.



[athpilot]

Two good books about these planes. And pics of I-185 kicking nazis ass... (from Maslov´s book).
Greetings, Athpilot



[hesham]

Thank you my dear Athpilot,


and I think I have them both.



[Pavel_P]

I-180



[hesham]

Hi,


I read,but I don't remember where,that a Polikarpov I-185 was called Project-62 ?!.



[hesham]

I read,but I don't remember where,that a Polikarpov I-185 was called Project-62 ?!.

Hi,


here is the proof for that the Polikarpov I-185 was called Project 62.



[hesham]

here is the proof for that the Polikarpov I-185 was called Project 62.

Hi,


It seemed to be that there is a series to Polikarpov,here is a reference to Project
called "61",it was mentioned in a book about I-180 and its derivative.



[hesham]

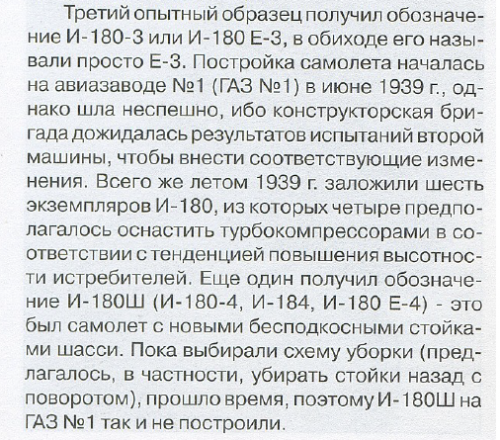

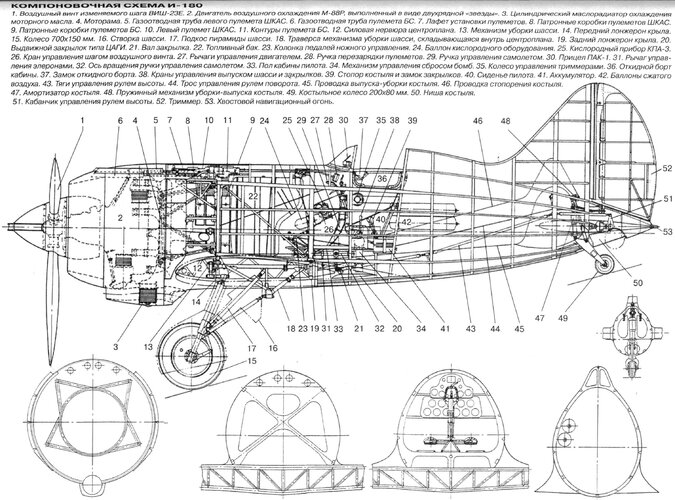

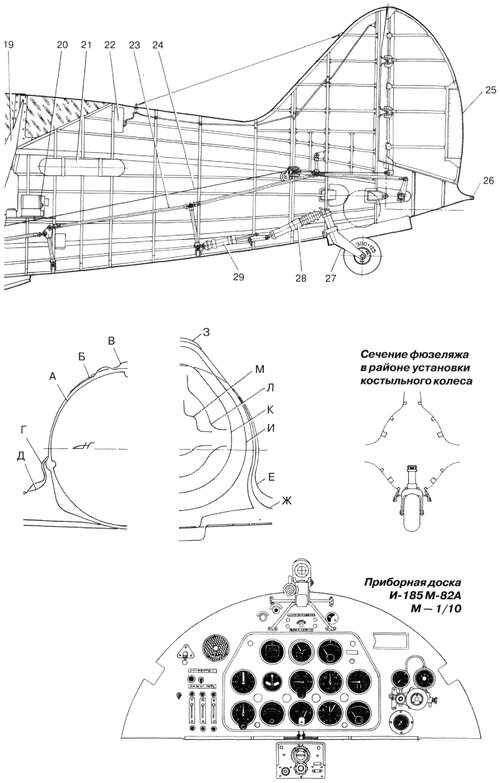

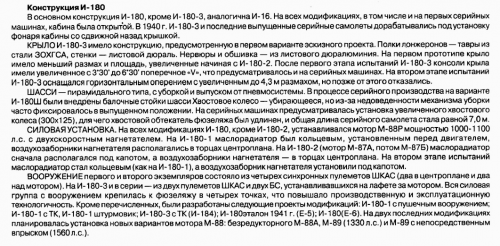

From two Russian books about I-180.

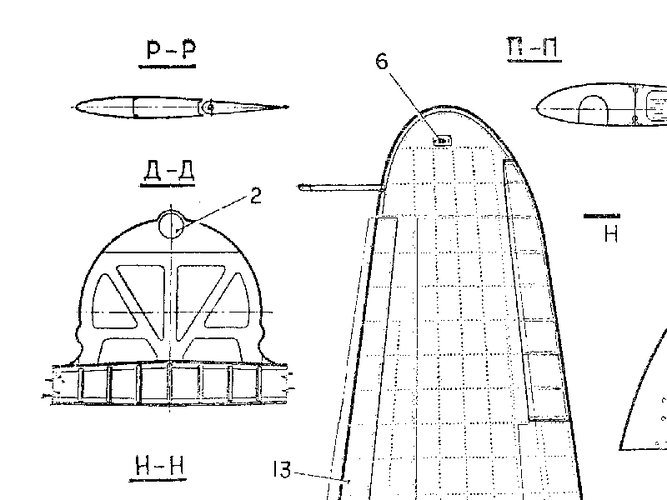

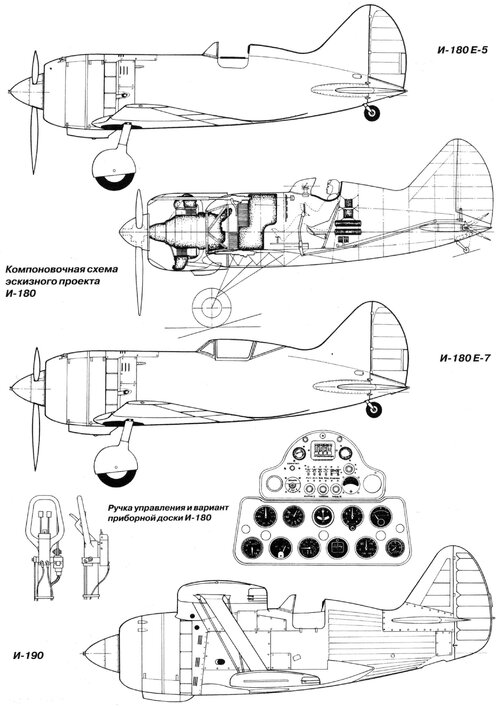

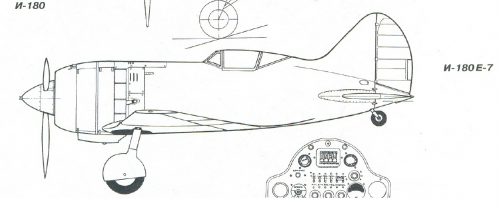

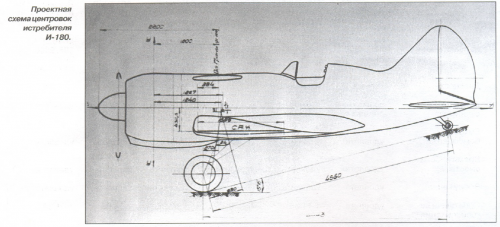

here is the early I-180 drawing,also a drawings to I-180 E-5 & E-7 and info about I-184.



[hesham]

Hi,

here is a schedule shows the I-180-5,and a comparison in speed between I-185 and some fighters.



[sienar]

TSAGI report on the M-71 I-185. Lots of photos and drawings.

https://www.dropbox.com/s/bjt86bmywh62n5e/I-185%20M72.pdf?dl=0



[blackkite]

Hi! I-180.
https://drawingdatabase.com/polikarpov-i-180/



[blackkite]

Hi!

https://www.pinterest.com/pin/634796509949443716/

View: https://sk.pinterest.com/pin/634796509949443716/



[Wurst]

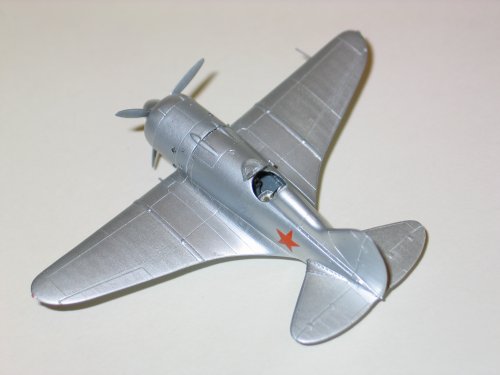

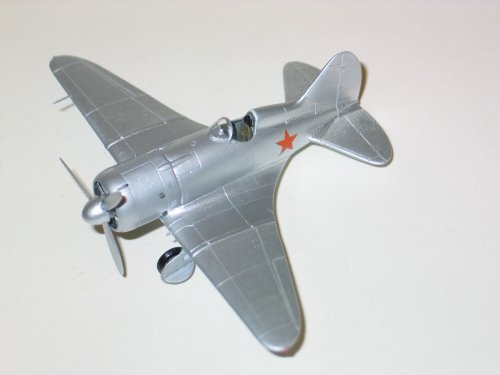

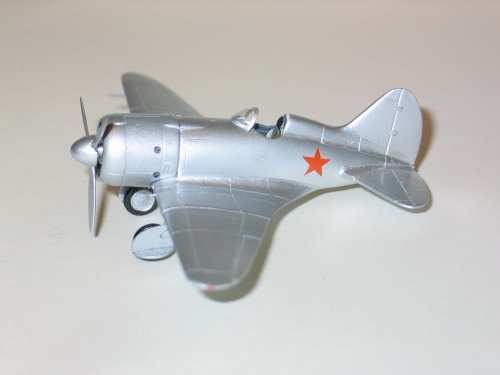

build of my Polikarpov I-180E3 1/72 scale model
finshed model

build of my Polikarpov I-185 1/72 scale model



[blackkite]

Hi!



[Juergen Pianka]

Beautiful plans from the very same source:

Beautiful plans from the very same source:

Are the missing airframe sections from airframe 1 to airframe 11 available?



[Rl3]

I-185 M-71 + D-5 engine

Do you know from which magazine or book the picture of the I-185 M-71 with the D-5 engine?



[Kant1983]

And I will contribute to this page about a wonderful aircraft



[Kant1983]

more



[Justo Miranda]

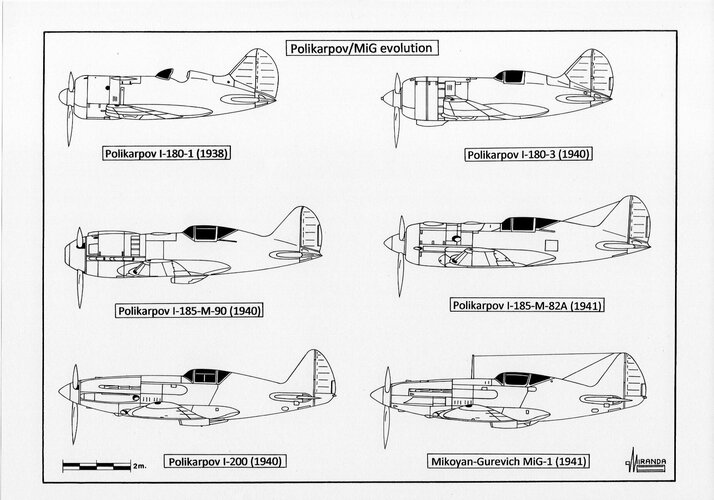

Evolution



[spicmart]

No cleaner aircraft lines than Russian fighters'. Not even the (undeservedly imho) much vaunted Italian designs come close.
