Piana Canova PC 1500

[zeroc]

Hi everyone!

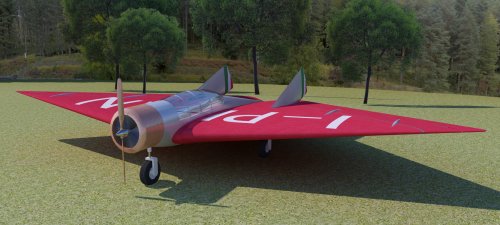

Attached, a little work about an unbuilt italian all-wing of the '30s.
Comments welcome.
Cheers,
Marco



[HeavyG]

That picture looks digitally rendered...any old drawings or pictures of this aircraft?



[zeroc]

That picture looks digitally rendered...any old drawings or pictures of this aircraft?

Hello, HeavyG.
This is a complete render, draw from a blueprint using SketchUp 8 free edition (with some plugins) and rendered with SU Podium (and awaiting a post production when I'll able to do something acceptable using GIMP).
This plane was actually a "paper plane". I'll post the blueprint asap -don't know if there are other drawings or picture of a wooden model.
Regards,
Marco



[theponja]

I was for this one. I saw it on Facebook. As a flying-wing fan I found it fascinanting. Great work Marco. I wait for the blueprint



[zeroc]

I was for this one. I saw it on Facebook. As a flying-wing fan I found it fascinanting. Great work Marco. I wait for the blueprint

I have some other projects blueprint of Ing. Piana Canova impressive all-wings plane.
I've also rendered another plane of him. Not strictly a flying wing, but an uncommon layout as well.

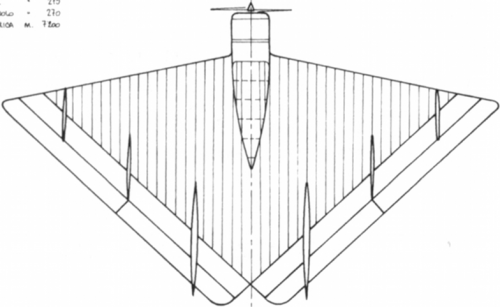

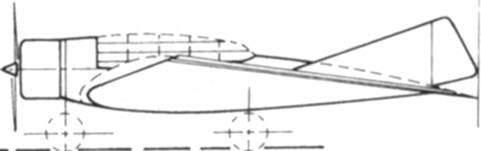

Attached, three view of PC1500



[ermeio]

Hi Marco,
Thanks for the blueprints.
EccellentI. ...
Do you have the overall dimension of the P 1500?
Grazie



[Avimimus]

Also: Are those two-part control surfaces?



[zeroc]

Hi Marco,
Thanks for the blueprints.
EccellentI. ...
Do you have the overall dimension of the P 1500?
Grazie

Thank for commenting.
Wing span 26,60 m.
Lenght: 15,10 m.
surface 200 sq.mt.
Cheers!



[zeroc]

Also: Are those two-part control surfaces?

I think so.



[hesham]

Was it a fighter or what ?.
