Oriflamme and Radiance

[Tuomasn]

I am looking for images of the Oriflamme and Radiance French space launcher projects. There are short descriptions at http://www.astronautix.com/lvfam/winged.htm , but no pics. Obviously also any other further info would be appreciated.



[Michel Van]

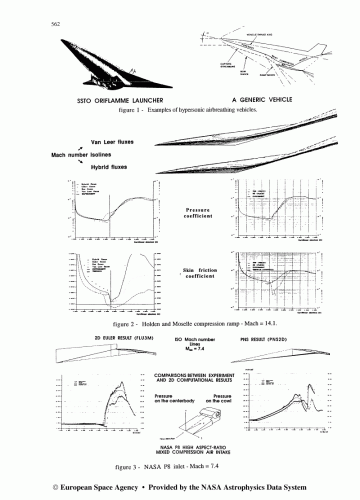

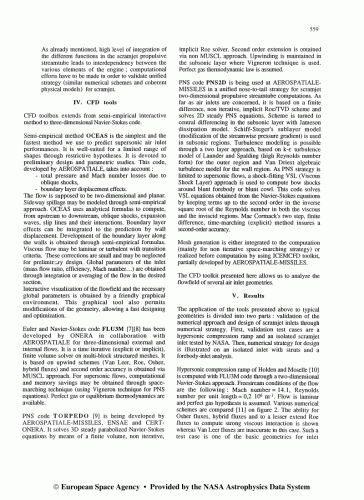

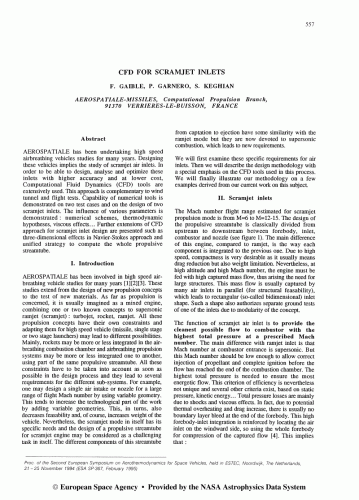

AIAA has some very expensive PDF about them
check this
http://adsabs.harvard.edu/abs/1991mont.iafcS....W
http://adsabs.harvard.edu/abs/1991mont.iafcS....W

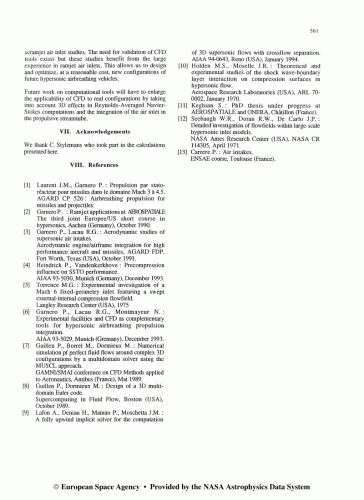

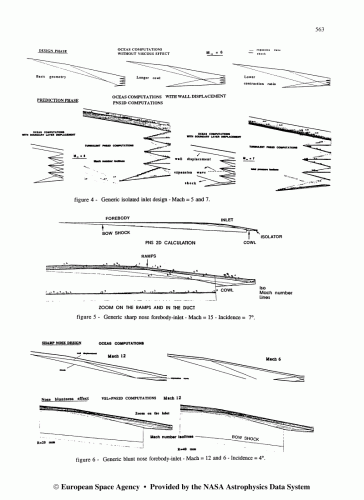

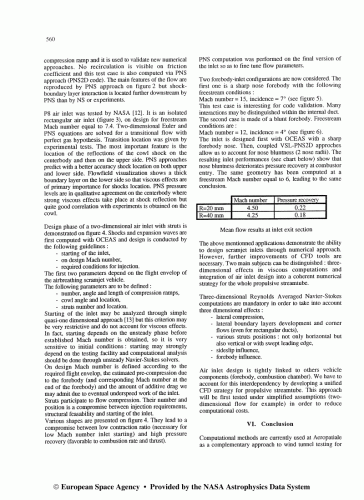

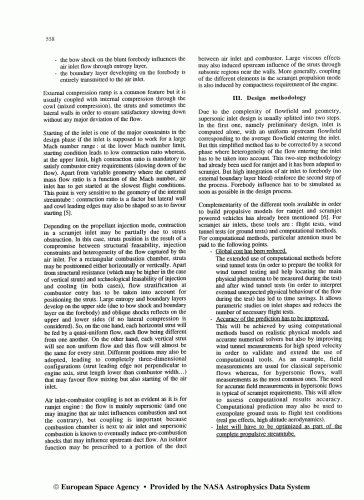

i upload them here



[Tuomasn]

Thank you Michel, though I think the second last page would have sufficed...

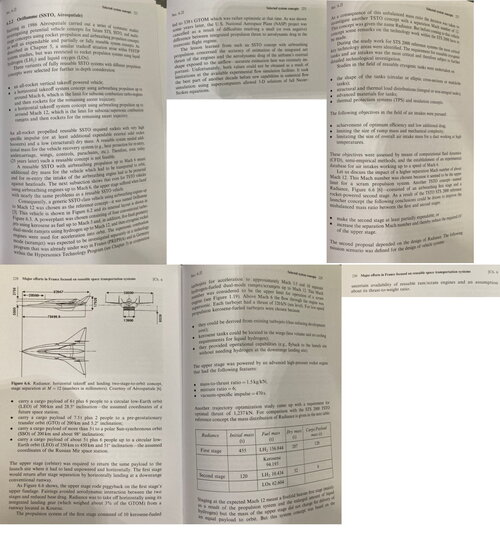

The reason I ask is these are mentioned in "Deutsche Raketenflugzeuge und Raumtransporter-Projekte", but googling wouldn't produce any meaningful results. We really need a similar book on French projects!



[Barrington Bond]

Air and Cosmos No 3 1993



[Tuomasn]

Thanks!



[Michel Van]

nice find Barrington Bond



[TheKutKu]

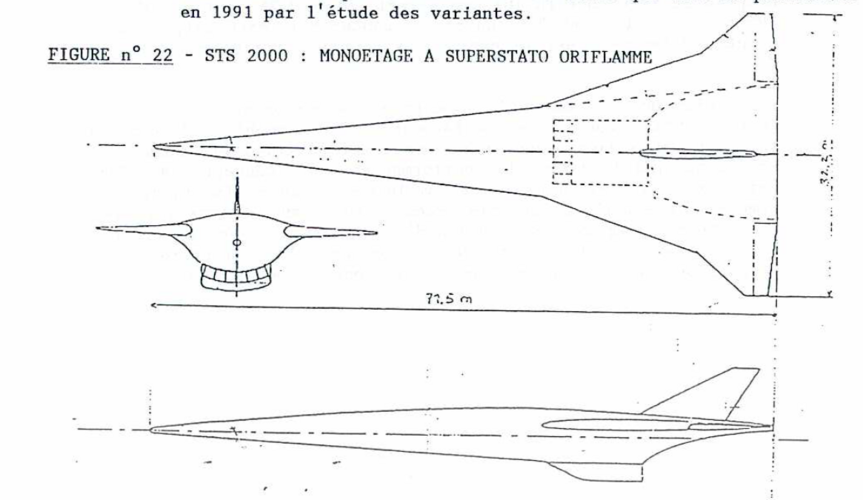

Radiance and Oriflamme
H.Lacaze, Lanceurs Futurs, Interpretation de la litérature, 1990.

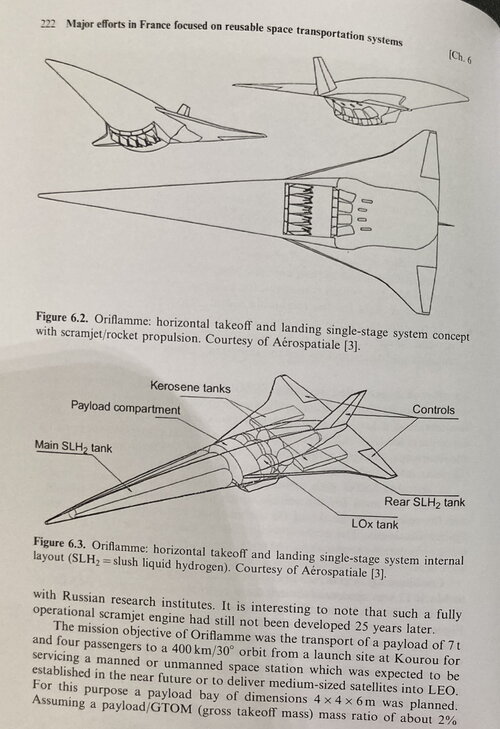

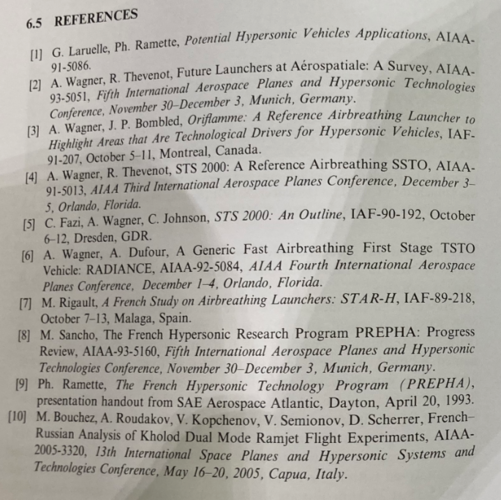

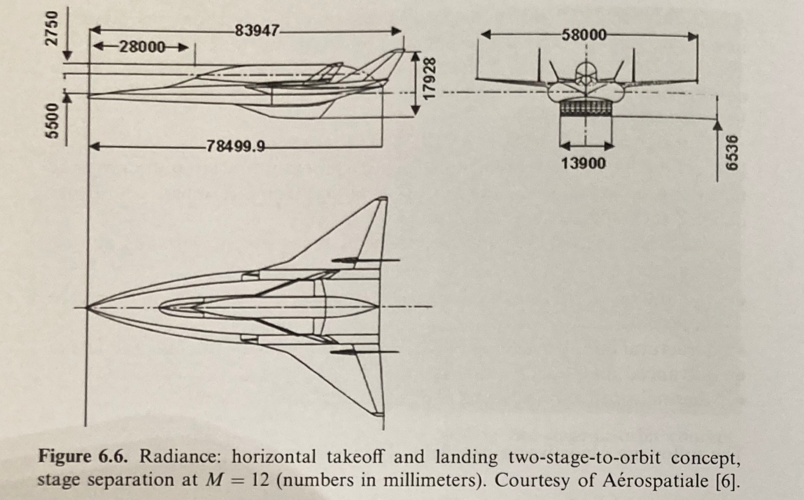

H. Kuczera, P.W. Sacher, Reusable space Transportation System, 2011



[Archibald]

Just to be informative (or pedantic, pick your choice): in french "scramjet" translates as "superstatoréacteur" = "super ramjet". Not as short nor imaginative as "scramjet" but c'est la vie.



[Grey Havoc]

FLTP/FESTIP

FLTP/FESTIP

www.astronautix.com



[woods170]

High-resolution scans of the Oriflamme and Radiance concept art are available from the online photographic archive of the NRM museum:

Oriflamme concept art - Aerospatiale
Radiance concept art - Aerospatiale
