Northrop Versatile Fighter Configuration Technology - N369 STOVL

[BillRo]

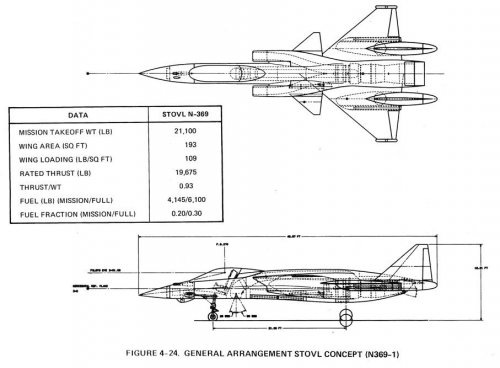

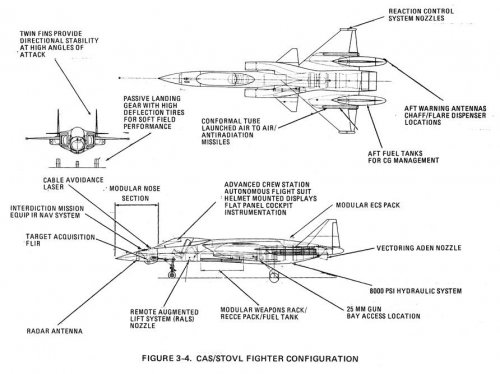

This is the second configuration presented



[BillRo]

Re: Northrop Versatile Fighter Configuration Technology - N-369 STOVL

This configuration was N369-3 BTW



[Grey Havoc]

Nice. Think what Mitsubishi could do with such a design today.



[overscan (PaulMM)]

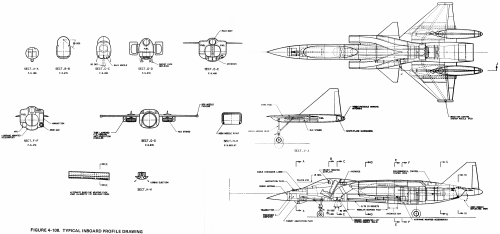

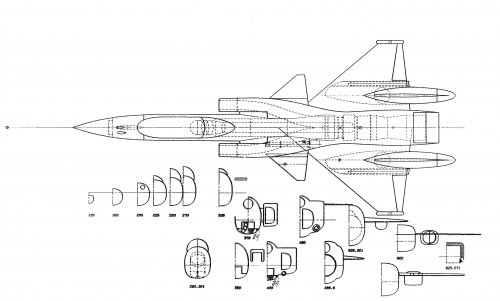

N369 Inboard drawing



[overscan (PaulMM)]

Note a family resemblance to the later N382-20 in this topic



[overscan (PaulMM)]

Also similar, a 1979 Northrop HAVSTOL using RALS in this topic

https://www.secretprojects.co.uk/threads/northrop-havstol-and-rals-studies.366/



[allysonca]

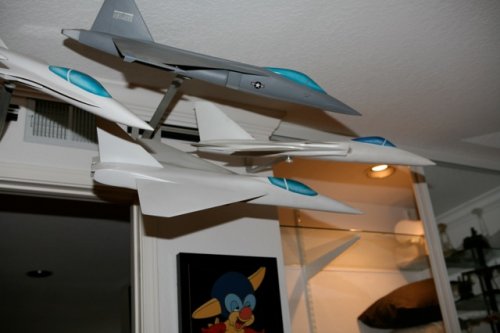

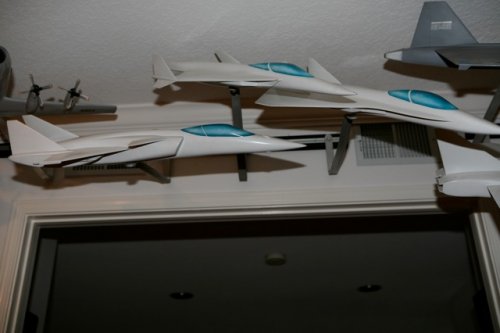

From my collection in 1/20th. These were litigation models utilized during the McDonnell/Northrop F-18 lawsuit.



[Stargazer]

Hi allysonca and welcome! Your pics won't appear until you have reached a minimum amount of posts on this forum (I think it's 15).
You can get in touch with overscan about it and he'll see what he can do.



[overscan (PaulMM)]

Great first post... a cornucopia of Northrop project models.

You can now post without requiring approval.



[flateric]

From my collection in 1/20th.

Fantastic! Thank you, Ms. Vought



[fightingirish]

Great post! Could you kindly take some more pictures from different angles? Just only if it doesn't mean too much work taking the models down from wall.



[Sundog]

I have to agree with Fighting Irish (As a Purdue grad you have no idea how much that pains me to say that ) that more pictures would be greatly appreciated of those models, especially a forward bottom fuselage shot of the P700. Although it's directly related to the ND-102 it would appear it didn't have the "double bubble cross section" lower fairing that is a characteristic of the ND-102 models we've seen in pictures. I did notice that in the drawings Billro posted as well.
